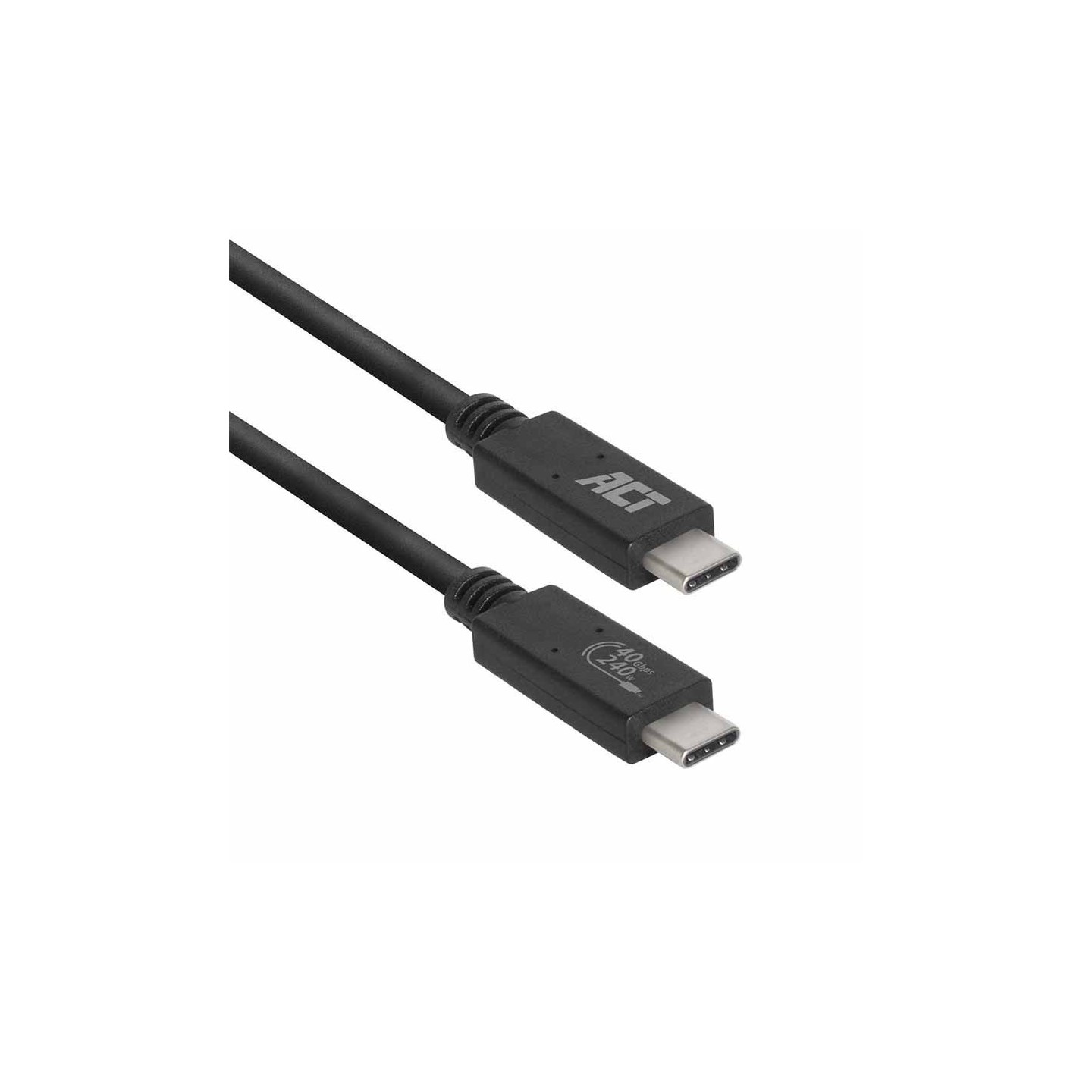

AC7451 0.8m USB4 40Gbps Cable USB-C M/M USB-IF Certified (Retail)
USB-IF certified AC7451 0.8m USB4 cable: 40Gbps data, Thunderbolt 4 support, 240W EPR power delivery. Supports 8K@60Hz or 2x4K@60Hz video. Backwards compatible with TB3/USB.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| USB-C Cables - Source Connector | USB-C |
|---|---|
| USB-C Cables - Data Transfer Standard | Thunderbolt 4 USB4 (40 Gbps) |
| USB-C Cables - Cable Length | Short (Under 1m) |
| USB-C Cables - Power Capacity | EPR (240W PD 3.1) |
The AC7451 from ACT is an officially USB-IF certified USB4 connection cable measuring 0.8 meters, featuring USB Type-C male to male connectors. It delivers blazing-fast data transfer speeds of up to 40Gbps with full Thunderbolt™4 compatibility, making it ideal for high-performance connections between modern laptops, docks, monitors, and peripherals.
Equipped with Extended Power Range (EPR) supporting up to 240W (48V @ 5A), this cable handles demanding power delivery profiles including 5V-48V at up to 5A. It supports video output via DisplayPort Alt Mode with a maximum resolution of 1x 8K @ 60Hz or 2x 4K @ 60Hz in daisy-chain mode. An intelligent e-marker chip ensures safe, optimal communication between devices for data, power, and video transmission. Backwards compatible with Thunderbolt™3, USB 3.2, and USB 2.0.
- USB-IF certified for reliability and standards compliance
- Shielding: Aluminum Mylar + Braid; Conductor: Tinned copper
- Wire gauge: 23/30/34 AWG; Jacket: Durable PVC
- Straight USB-C connectors on both ends
| Length | 0.8 meters |
| Connector A | USB-C male (straight) |
| Connector B | USB-C male (straight) |
| Data Transfer Speed | Up to 40Gbps (USB4 Gen 3x2) |
| Standards Supported | USB4, Thunderbolt 4, Thunderbolt 3, USB 3.2, USB 2.0 |
| Power Delivery | 240W EPR (48V @ 5A) |
| PD Profiles | 5V/5A, 9V/5A, 12V/5A, 15V/5A, 20V/5A, 28V/5A, 36V/5A, 48V/5A |
| Video Support | 1x 8K@60Hz or 2x 4K@60Hz (DP Alt Mode) |
| Certification | USB-IF certified |
| Shielding | Aluminum Mylar, Braid |
| Conductor Material | Tinned copper |
| Wire Gauge | 23, 30, 34 AWG |
| Outer Jacket | PVC |
| E-Marker Chip | Yes |
