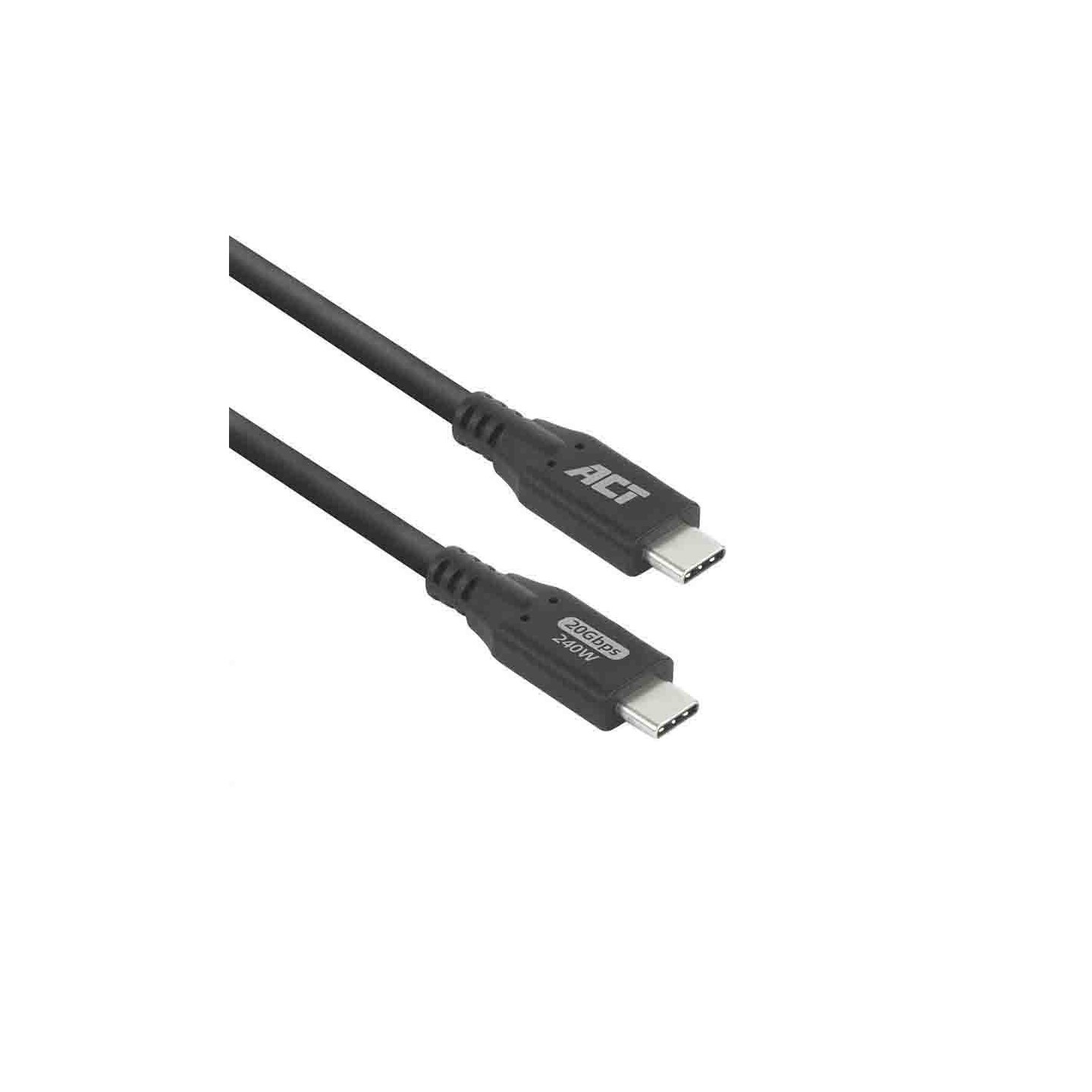

ACT AC7420 0.5m USB4 20Gbps 240W USB Type-C Cable (Retail)
Premium USB4 cable with 20Gbps data transfer and 240W Extended Power Range delivery. Features DisplayPort 1.4 for 4K@60Hz video, 100% braid shielding, and full backward compatibility with USB 3.x standards.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| USB-C Cables - Source Connector | USB-C |
|---|---|
| USB-C Cables - Data Transfer Standard | USB4 (40 Gbps) |
| USB-C Cables - Cable Length | Short (Under 1m) |
| USB-C Cables - Power Capacity | EPR (240W PD 3.1) |
| USB-C Cables - Special Features | Braided Nylon |
The ACT AC7420 is a high-performance USB4 cable delivering up to 20Gbps data transfer speeds with support for 240W Extended Power Range (EPR) power delivery. This 0.5-meter cable features a robust 100% braid shield construction with copper conductors (24/32 AWG) and a 5mm outer diameter PVC jacket, ensuring durability and reliable signal integrity for demanding applications.
The cable supports DisplayPort Alternate Mode 1.4, enabling video output up to 4K resolution at 60Hz (4096x2160), with higher resolutions supported at lower refresh rates (7680x4320@30Hz, 4096x2160@120Hz). The 48V EPR profile enables the cable to deliver maximum 240W power, significantly exceeding standard USB-C cables limited to 60W. Full backward compatibility with USB 3.2, USB 3.1, and USB 3.0 ensures seamless integration with existing devices.
Supported power delivery profiles include 5V/5A, 9V/5A, 12V/5A, 15V/5A, 20V/5A, 36V/5A, and 48V/5A configurations. The cable does not support Thunderbolt connectivity.
- USB4 SuperSpeed 20Gbps data transfer
- 240W Extended Power Range (EPR) delivery
- DisplayPort 1.4 Alternate Mode support
- 100% braid shielding with copper conductors
- Backward compatible with USB 3.x standards
- 0.5-meter length for compact setups
| USB Standard | USB4 (SuperSpeed 20Gbps) |
| Data Transfer Speed | 20Gbps |
| Connector Type A | USB Type-C Male |
| Connector Type B | USB Type-C Male |
| Cable Length | 0.5m (50cm) |
| Power Delivery | 240W (Extended Power Range - EPR) |
| Power Delivery Profiles | 5V/5A, 9V/5A, 12V/5A, 15V/5A, 20V/5A, 36V/5A, 48V/5A |
| DisplayPort Alternate Mode | DisplayPort 1.4 |
| Maximum Video Resolution @30Hz | 7680x4320 |
| Maximum Video Resolution @60Hz | 4096x2160 (4K) |
| Maximum Video Resolution @120Hz | 4096x2160 |
| Shielding Type | 100% Braid |
| Conductor Material | Copper |
| Wire Gauge | 24, 32 AWG |
| Outer Jacket Material | PVC |
| Outer Diameter | 5mm |
| Cable Color | Black |
| Thunderbolt Support | No |
| USB 3.x Backward Compatibility | USB 3.2, USB 3.1, USB 3.0 |
| Active Cable | No |
| E-Marker | Yes (EPR capable) |
