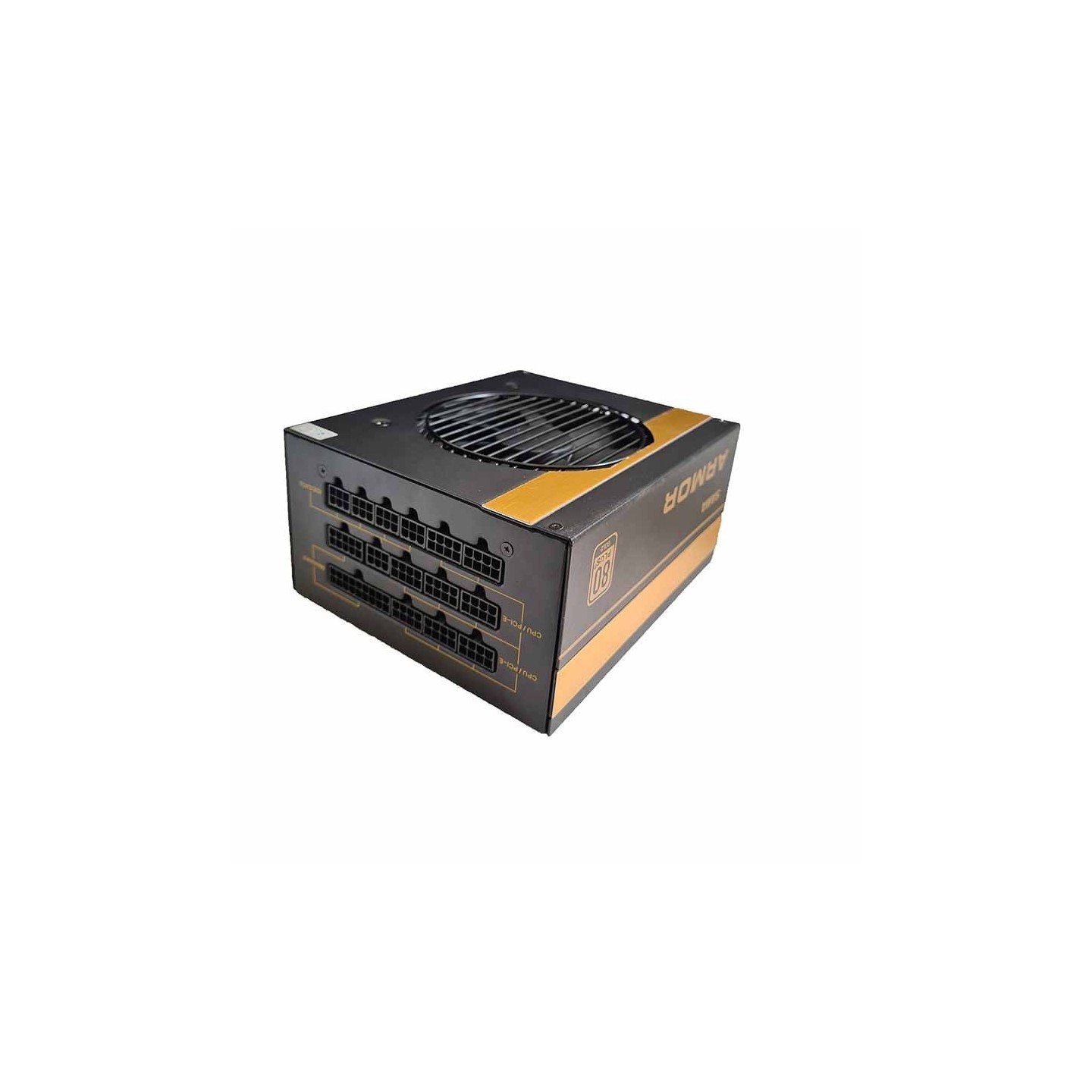

Sama HTX-1000-B4 1000W 80+ Gold Fully Modular PSU (Boxed)
Sama HTX-1000-B4 1000W 80+ Gold fully modular PSU with armor design. Features 12cm FDB fan, Japanese 105°C capacitors, active PFC, strong +12V rail. Includes 20+4 ATX, dual EPS, 4x PCIe 6+2, multiple SATA/IDE cables for optimal cable management.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 1000 - 1199 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 4x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |
The Sama HTX-1000-B4 is a high-performance 1000W fully modular power supply unit certified 80 PLUS Gold for up to 92% efficiency. It features an armored design for durability, a 12cm Fluid Dynamic Bearing (FDB) fan for ultra-quiet operation, and 100% Japanese 105°C rated capacitors for long-term reliability. Active PFC and a powerful single +12V rail ensure stable power delivery to modern high-end CPUs and GPUs, including PCIe 5.0 support with optional cables.
Full modular flat cables improve airflow by 50% and simplify cable management. Key connectors include 20+4pin ATX (570mm), 2x (4+4pin) EPS (670mm), 4x (6+2pin) PCIe (530mm), and multiple SATA/IDE chains (up to 560mm). It supports full voltage range (100-240V) and modern standby for quick wake times. Ideal for gaming rigs and workstations demanding reliable, efficient power.
- 80 PLUS Gold certified efficiency
- 12cm FDB silent fan with intelligent control
- Full modular design for easy installation
- Japanese capacitors & active PFC
- PCIe 5.0 ready (12VHPWR cable optional)
- 1.5m UK power cord included
| Model | HTX-1000-B4 / ETX-1000-1 |
| Wattage | 1000W |
| Efficiency Certification | 80 PLUS Gold |
| Fan | 12cm FDB (Fluid Dynamic Bearing) |
| PFC | Active PFC |
| Capacitors | 100% Japanese 105°C rated |
| Modularity | Fully Modular |
| Main ATX Connector | 20+4 pin, 570mm |
| EPS/CPU Connectors | 2x 4+4 pin, 670mm |
| PCIe/GPU Connectors | 4x 6+2 pin, 530mm (PCIe 5.0 ready) |
| Peripheral Connectors | IDE x3 (530+150+150mm), 2x 4x SATA (560mm) |
| Input Voltage | 100-240V 47-63Hz |
| Fan Control | Intelligent / Semi-passive |
| Warranty | 10 Years (claimed in some listings) |
| Dimensions (Unit) | 150 x 86 x 160mm (est.) |
| Weight (Unit) | 2.2kg (est.) |
