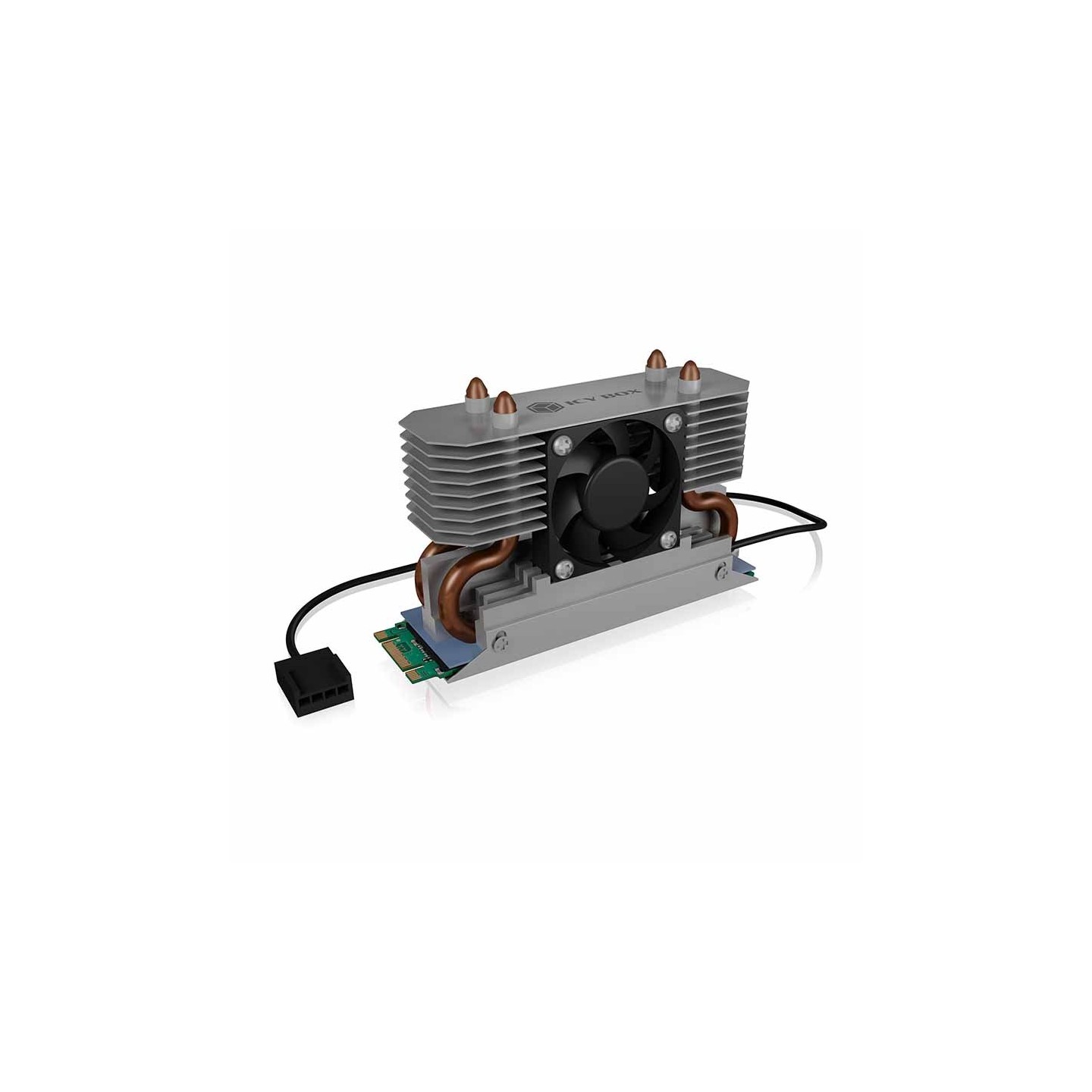

IB-M2HSF-702 Heat Pipe Heatsink for M.2 SSD 22x80mm w/30mm Fan (Boxed)
ICY BOX IB-M2HSF-702 is an active M.2 2280 SSD cooler with 2x4mm copper heat pipes, 9 aluminum fins, and 30mm 8500RPM fan. Reduces temps up to 50% (TDP 25W). Silver aluminum, includes thermal pads, 4-pin 12V connector. Mounting height 55mm.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | M.2 Heatsink |
|---|---|
| Cooling (CPU & Case) - Fan Size | 40 mm |
| Cooling (CPU & Case) - Lightning | None |
| Cooling (CPU & Case) - Connector | 4-Pin PWM |
| Cooling (CPU & Case) - Color | Silver / Grey |
The ICY BOX IB-M2HSF-702 is a high-performance active cooling solution designed specifically for M.2 SSDs measuring 22x80mm (2280 form factor). Featuring a substantial aluminum heatsink with 9 cooling fins (0.5mm thick, 2mm air gaps), dual 4mm copper heat pipes (Cu1100, sintered structure with H2O fluid), and a silent 30x30x7mm fan spinning at 8500 RPM, this cooler efficiently dissipates up to 25W TDP. It connects via a standard 4-pin DC 12V motherboard header and can reduce SSD temperatures by up to 50% under heavy loads compared to passive solutions.
Made of high-grade silver aluminum with silicone thermal pads (1.5 W/mK conductivity, -20°C to 180°C range), the IB-M2HSF-702 ensures optimal heat transfer and compatibility across various SSD models. Installation requires 55mm mounting height clearance and is straightforward with included counter plate, thermal pads, and screwdriver. Ideal for high-performance NVMe drives in gaming PCs or workstations where thermal throttling is a concern.
- Key Benefits: Up to 50% temperature reduction*, 25W TDP capacity, direct SSD contact heat pipes
- Fan Specs: 4.87 m³/h airflow, 70mA (max 90mA), no PWM speed control
- Compatibility: M.2 2280 SSDs max 80mm length, 4-pin 12V header required
- Includes: Heatsink, fan, 2x thermal pads, counter plate, screwdriver
- *Depends on SSD manufacturer, model, version, and workload
| MPN | IB-M2HSF-702 |
| EAN | 4250078170662 |
| Color | Silver |
| Material | Aluminium |
| M.2 Card Size | 22x80 mm |
| Cooling Type | Heat pipe with 30 mm fan |
| Thermal Pad Material | Silicone |
| Thermal Conductivity | 1.5 W/mK |
| Thermal Pad Temp Range | -20°C ~ 180°C |
| Heat Pipes | 2x 4 mm copper (Cu1100) |
| Heatpipe Structure | Sinter |
| Heatpipe Fluid | Water (H2O) |
| Cooling Fins | 9 (0.5 mm thick, 2.0 mm air gap) |
| TDP | 25W |
| Fan Dimensions | 30 x 30 x 7 mm |
| Fan Speed | 8500 rpm (no speed adjustment) |
| Fan Current | 70 mA (max. 90 mA) |
| Fan Connector | 4-PIN DC 12 V |
| Air Flow | 4.87 m³/h (2.87 CFM) |
| Mounting Height | 55 mm |
| System Requirements | M.2 SSD max 80 mm, one 4-PIN DC 12 V port |
| Temperature Reduction | Up to 50%* |
