SG2206MP 6-PORT GIGABIT ACCESS PoE+ SWITCH W CENTRALIZED MANAGEMENT CAPABILITY TP-LINK

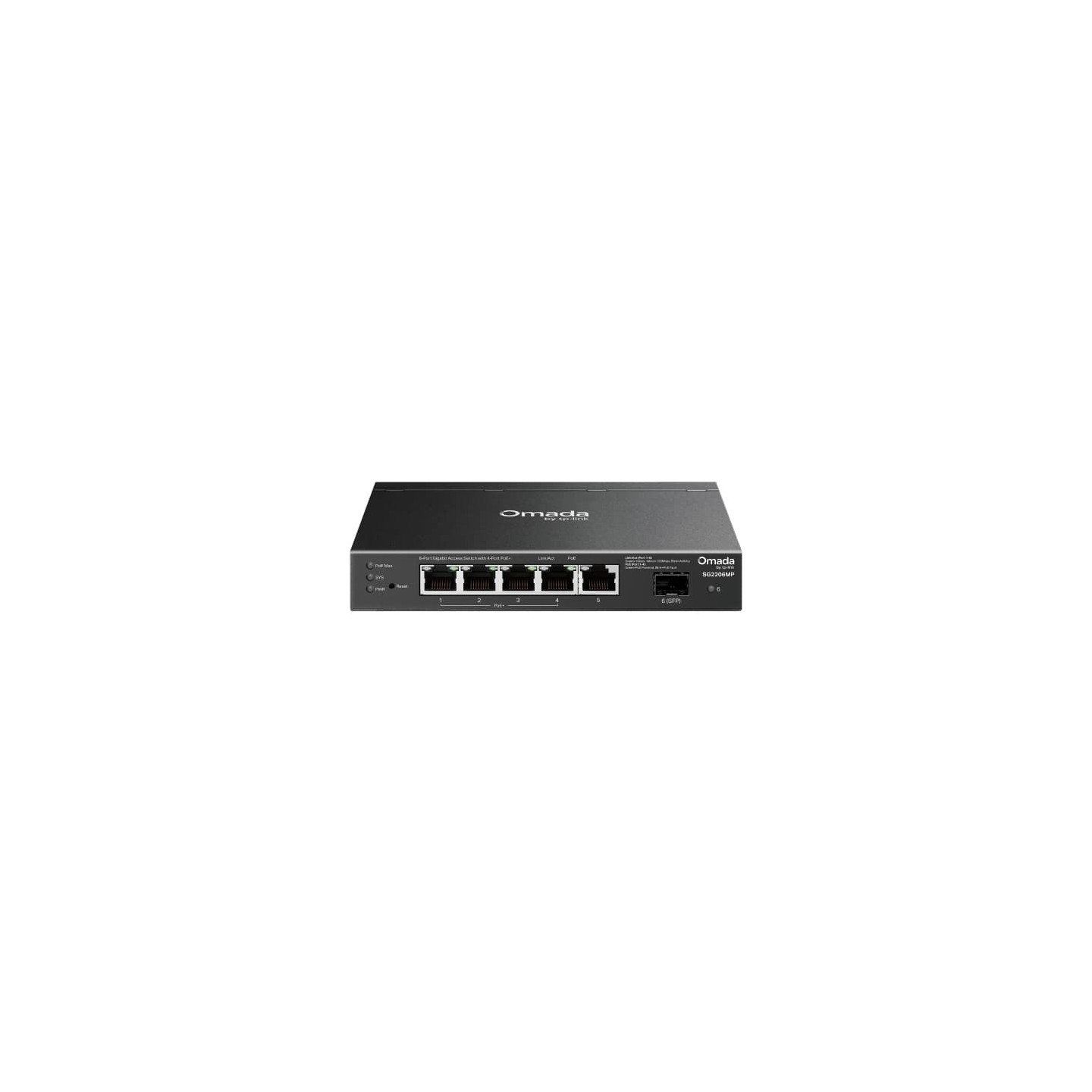

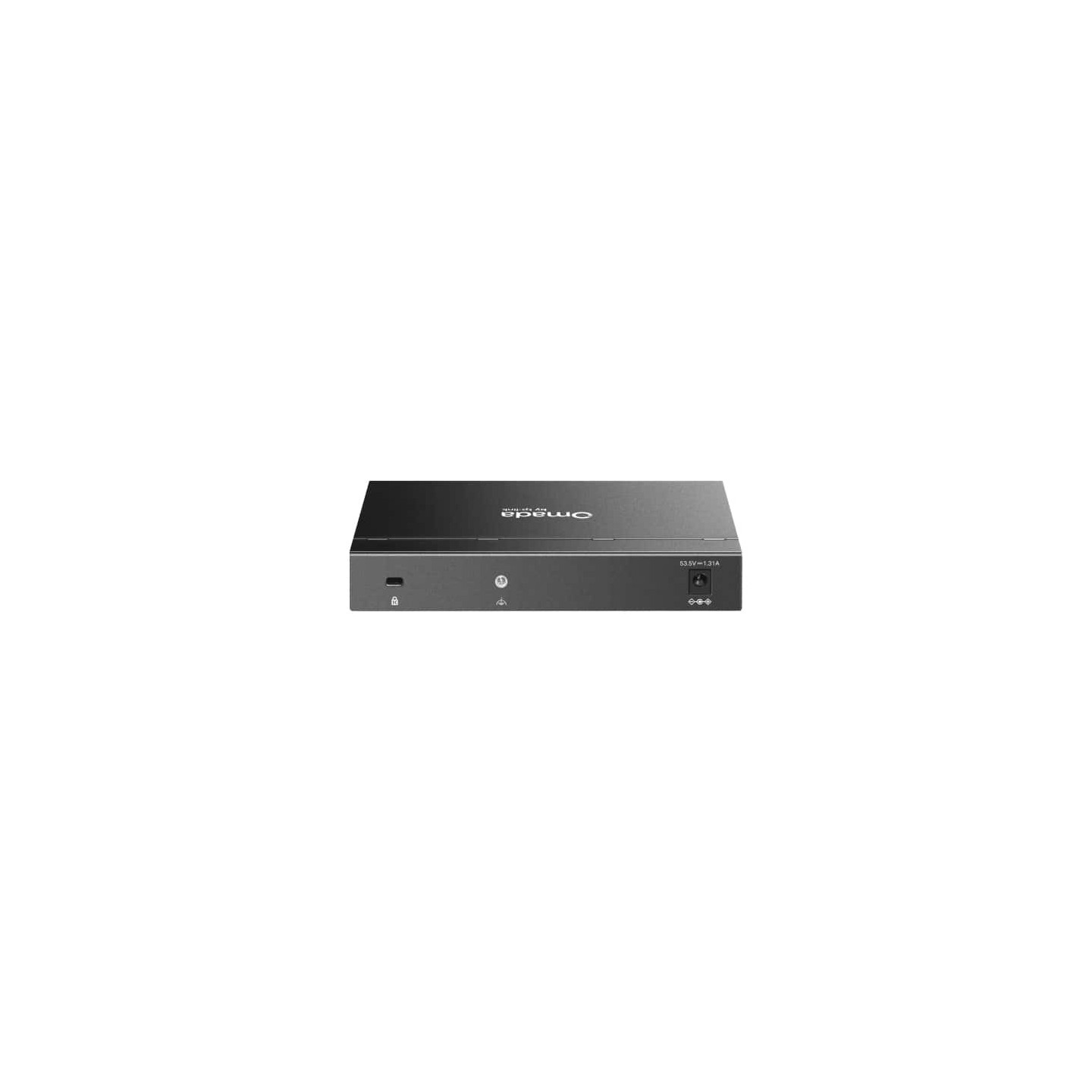

SG2206MP 6-PORT GIGABIT ACCESS PoE+ SWITCH W/CENTRALIZED MANAGEMENT
5× Gigabit RJ45 ports (4× PoE+) and 1× Gigabit SFP slot
63W total PoE budget with up to 30W for each PoE+ port*
Centralized cloud ma...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
SG2206MP 6-PORT GIGABIT ACCESS PoE+ SWITCH W/CENTRALIZED MANAGEMENT
5× Gigabit RJ45 ports (4× PoE+) and 1× Gigabit SFP slot
63W total PoE budget with up to 30W for each PoE+ port*
Centralized cloud management via the web or the Omada app†
Standalone management via web, CLI, SNMP, and RMON
Static Routing helps route internal traffic for higher efficiency
VLAN, ACL, QoS, and IGMP Snooping
Durable metal casing and desktop/wall mounting design
Interface: 4× 10/100/1000 Mbps PoE+ RJ45 Ports, 1× 10/100/1000 Mbps RJ45 Port, 1× Gigabit SFP Slot
Physical Security Lock: √
Power Supply: 53.5 VDC / 1.31 A
PoE Ports (RJ45): Standard: 802.3at/af compliant, PoE+ Ports: 4 Ports, PoE Power Budget: 63 W*, Fast PoE, Perpetual PoE
Dimensions (W x D x H): 6.2 × 4.0 × 1.0 in (158 × 100.7 × 25.4 mm)
Mounting: Desktop / Wall Mounting
Max. Power Consumption: 73.7 W (110V/60Hz) (with 63 W PD connected)
Max Heat Dissipation: 250.4 BTU/hr (110V/60Hz) (with 63 W PD connected)
Switching Capacity: 12 Gbps
Packet Forwarding Rate: 8.93 Mpps
MAC Address Table: 8K
Packet Buffer Memory: 4.1 Mbit
Jumbo Frame: 9 KB
