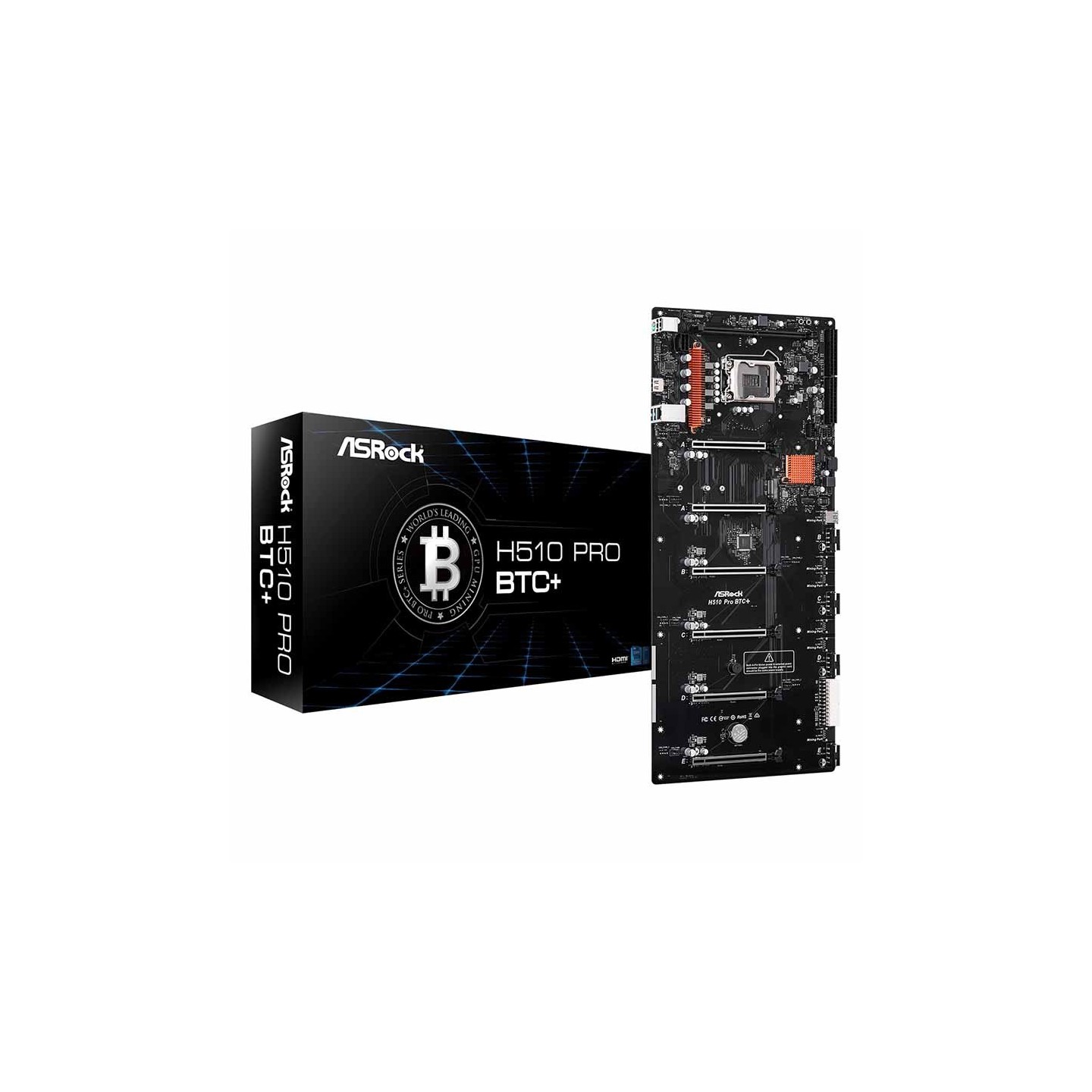

ASRock H510 PRO BTC+ LGA 1200 Intel Motherboard (Boxed)
ASRock H510 PRO BTC+ is a specialized cryptocurrency mining motherboard supporting 10th/11th gen Intel Core processors with 6 PCIe 3.0 x16 GPU slots and 1 mining port for maximum mining efficiency.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | LGA 1200 |
|---|---|
| Motherboards - Chipset | Intel H510 |
| Motherboards - Form Factor | E-ATX |
| Motherboards - Memory Type | DDR4 |
| Motherboards - Memory Profile Support | None |
| Motherboards - Memory Slots | 2 |
| Motherboards - Max Memory Capacity | 64 GB |
| Motherboards - Main Slot PCIe Version | PCIe 3.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 1 |
| Motherboards - SATA Ports | 2 |
| Motherboards - USB-C Support | None |
| Motherboards - RGB Headers | None |
| Motherboards - Wireless Connectivity | None |

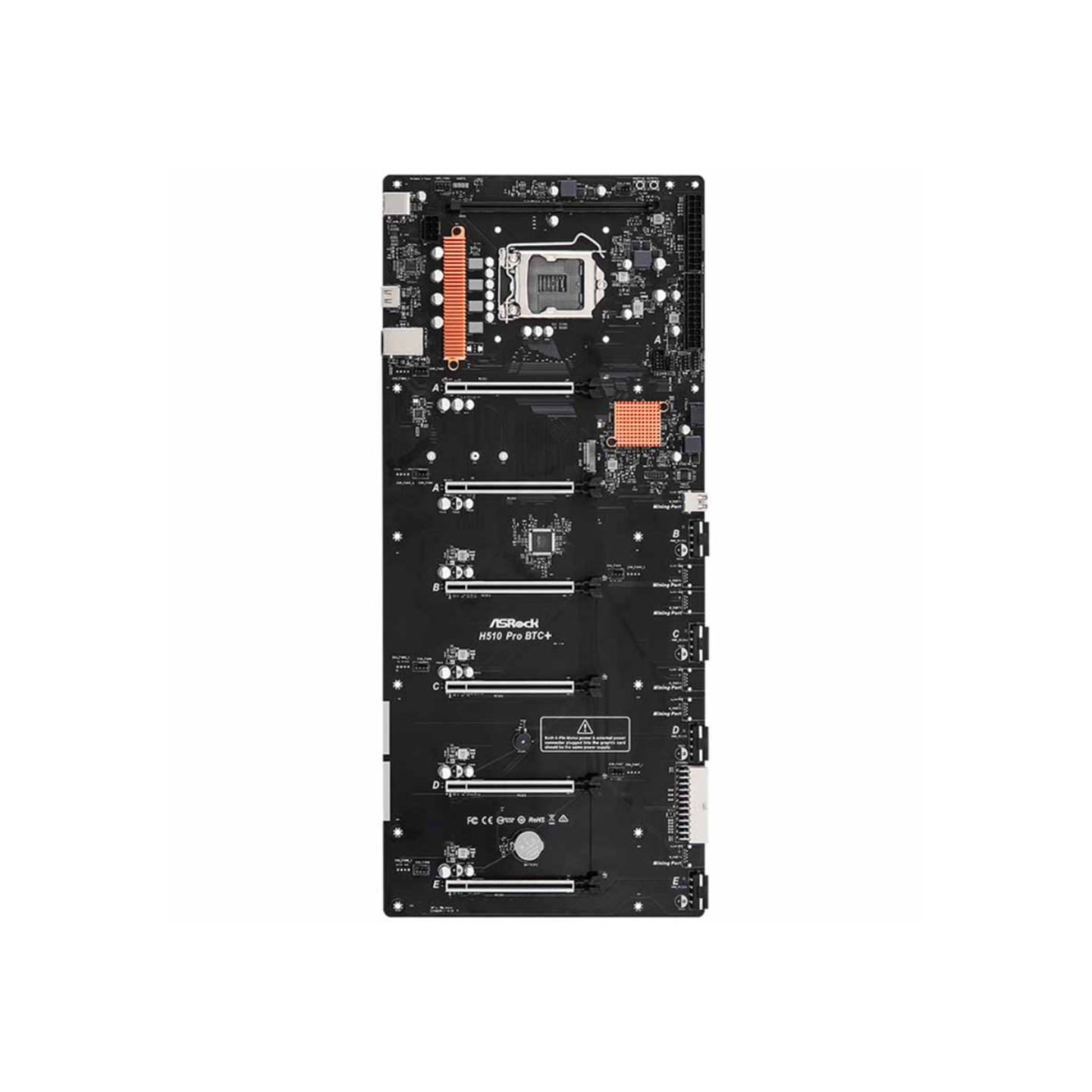

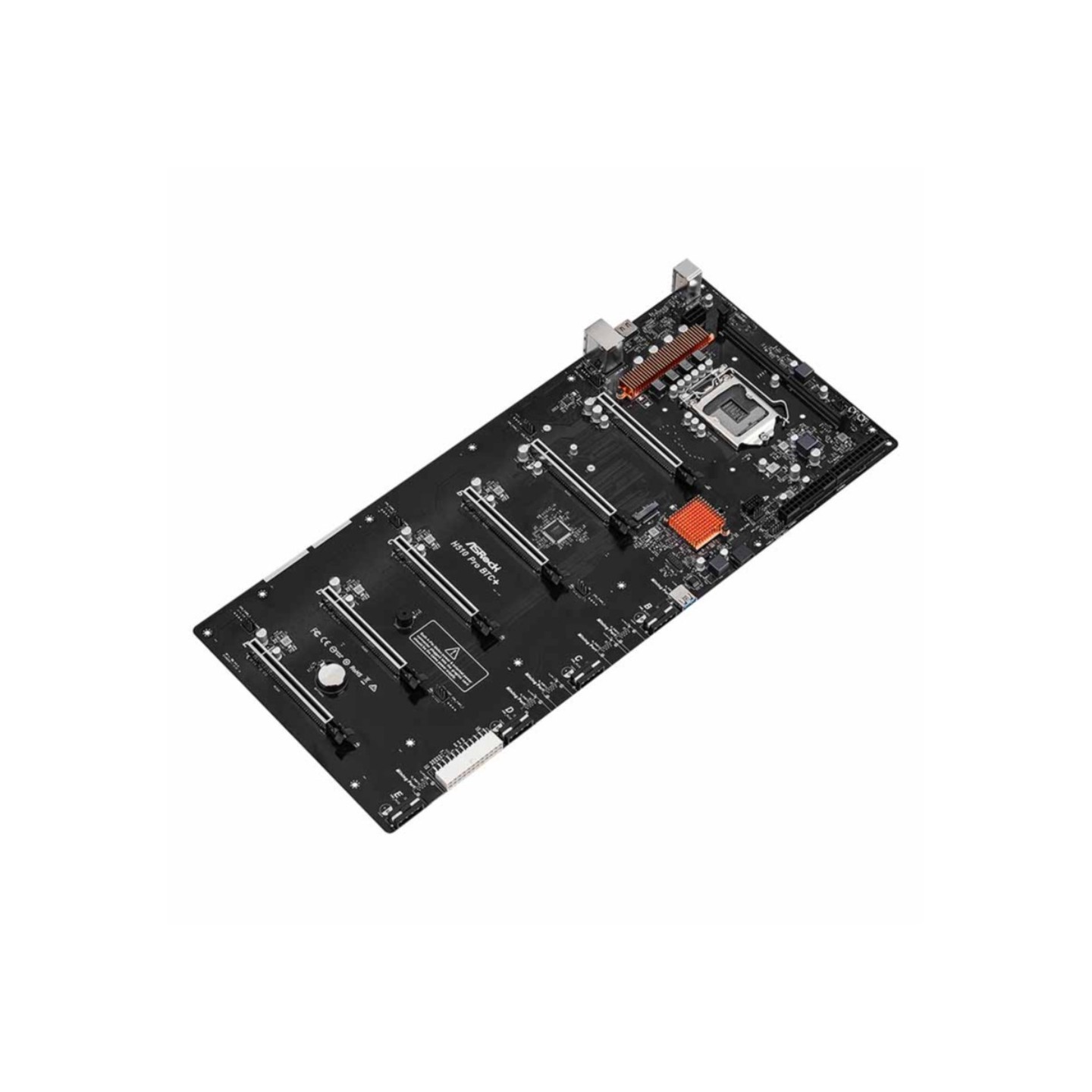

The ASRock H510 PRO BTC+ is a purpose-built motherboard engineered specifically for cryptocurrency mining operations. Featuring the Intel H510 chipset and LGA 1200 socket, it supports both 10th and 11th generation Intel Core processors (i9, i7, i5, i3, Pentium, and Celeron). The motherboard's standout feature is its exceptional expansion capability with six PCIe 3.0 x16 slots (all reinforced with steel) plus one dedicated mining port, allowing users to connect up to seven graphics cards for GPU-based mining. This configuration makes it ideal for building high-density mining rigs.
The H510 PRO BTC+ incorporates robust power delivery with three 24-pin ATX power connectors and four Molex connectors, enabling stable operation with multiple high-power GPUs. Memory support includes a single DDR4 slot supporting speeds up to 3200MHz (Rocket Lake) or 2933MHz (Comet Lake) with a maximum capacity of 32GB. Storage options include one SATA3 port and one M.2 slot (SATA-based, up to 110mm). The board features digital PWM power delivery (Digi Power) for enhanced stability, full spike protection for sensitive components, and smart PCIe state detection. Connectivity includes one Gigabit Ethernet (Intel I219V), HDMI 1.4 output, two USB 3.2 Gen 1 ports, four USB 2.0 ports, and PS/2 combo port. Note: The custom elongated form factor (20.1 x 8.8 inches) requires open-frame mining rig setups and is incompatible with standard ATX cases.
- 6x PCIe 3.0 x16 expansion slots + 1x mining port for up to 7 GPUs
- Supports 10th and 11th generation Intel Core processors (LGA 1200)
- Single DDR4 memory slot, up to 32GB at 3200MHz
- Three 24-pin ATX power connectors for robust power delivery
- Digital PWM (Digi Power) and full spike protection
- 1x SATA3 and 1x M.2 SATA storage support
- Gigabit Ethernet, HDMI, USB 3.2 Gen 1, and USB 2.0 connectivity
- Custom form factor requires open-frame mining rig configuration
| CPU Socket | LGA 1200 |
| Chipset | Intel H510 |
| Supported Processors | 10th Gen Intel Core (Comet Lake) and 11th Gen Intel Core (Rocket Lake) - i9, i7, i5, i3, Pentium, Celeron |
| Form Factor | Custom ATX (20.1 x 8.8 inches elongated) |
| Memory Type | DDR4 |
| Memory Slots | 1 |
| Maximum Memory | 32 GB |
| Memory Speed Support | DDR4-2133, DDR4-2400, DDR4-2666, DDR4-2800, DDR4-2933 (Comet Lake), DDR4-3200 (Rocket Lake) |
| Memory Channels | Dual channel (single slot) |
| ECC Support | Yes (ECC memory modules supported) |
| PCIe Slots | 6x PCIe 3.0 x16 (primary slot x16, remaining slots x1), 1x Mining Port (M_Port1 at x1) |
| SATA Ports | 1x SATA3 |
| M.2 Slots | 1x M.2 (SATA3, up to 110mm length) |
| Power Connectors | 3x 24-pin ATX, 1x 8-pin CPU, 4x 4-pin Molex |
| Power Delivery | 4-phase with 50A power chokes, Digital PWM (Digi Power) |
| LAN | 1x Gigabit Ethernet (Intel I219V) |

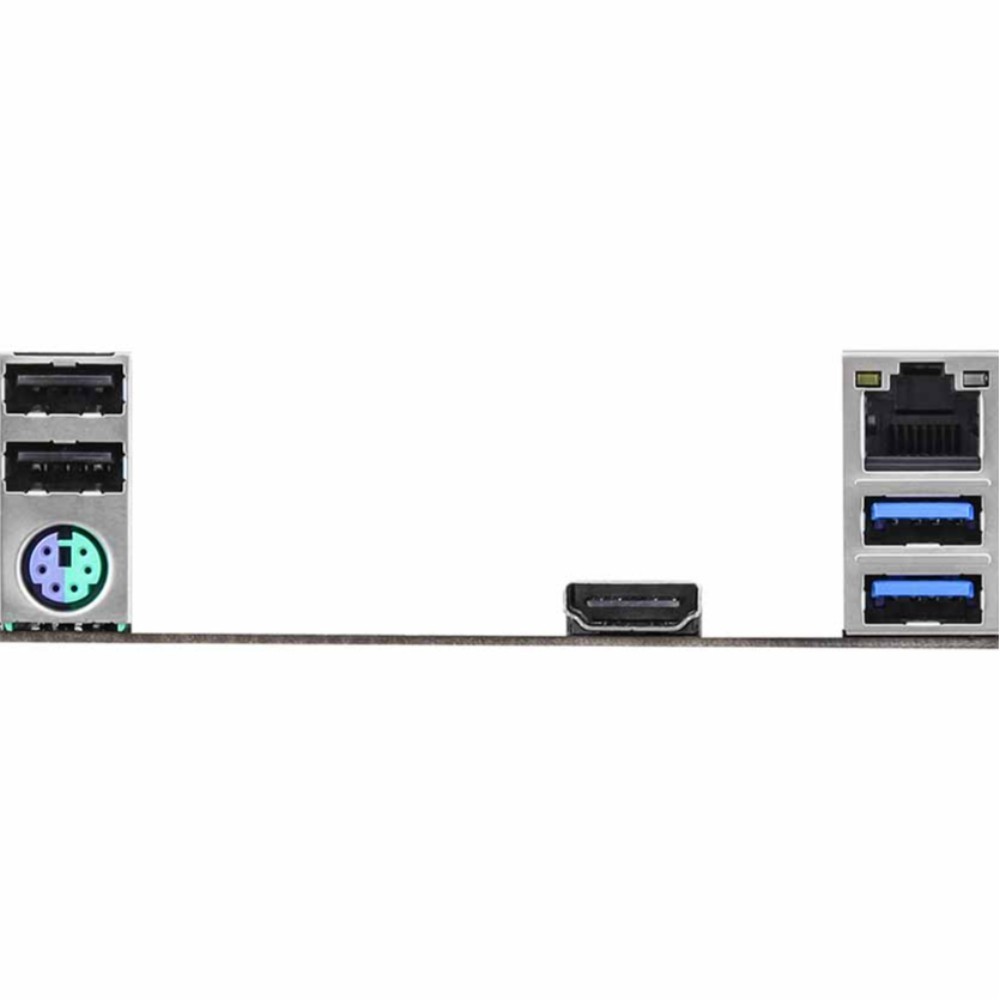

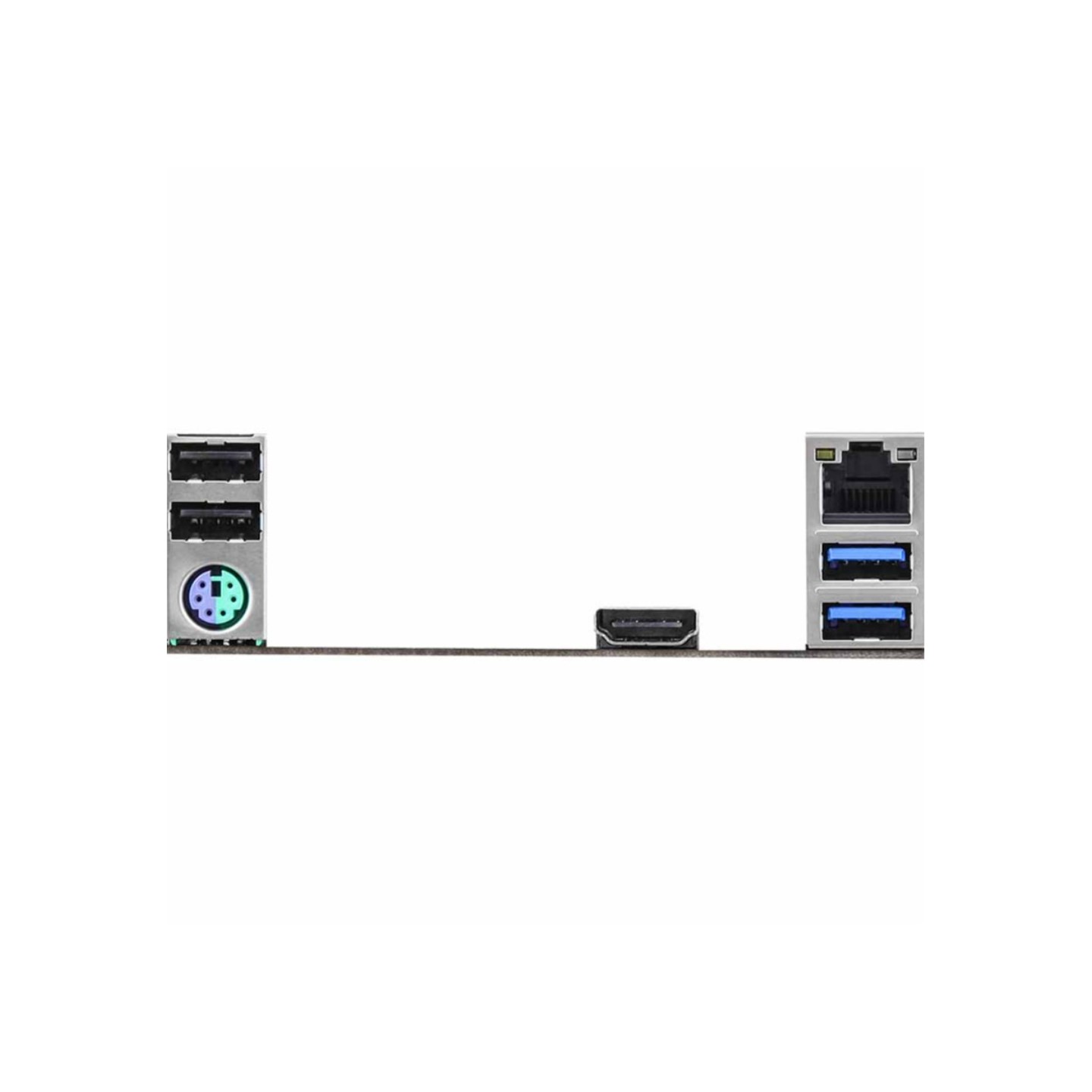

| USB Ports (Rear) | 2x USB 3.2 Gen 1 Type-A, 2x USB 2.0 Type-A, 1x PS/2 combo (keyboard/mouse) |
| USB Headers (Internal) | 2x USB 2.0 headers (supports 2 additional USB 2.0 ports) |
| Video Output | 1x HDMI 1.4 |
| Audio | None (no onboard audio chip) |
| Wireless Connectivity | None (no WiFi or Bluetooth) |
| Fan Headers | 9x 4-pin PWM |
| BIOS | 128 Mbit AMI UEFI |
| Color | Black |
| Special Features | Smart PCIe State Detection, Onboard Power On/Reset buttons, Full Spike Protection, High Density Glass Fabric PCB, Designed for cryptocurrency mining (GPU mining) |
| Cooling | Passive (no active cooling components on board) |
