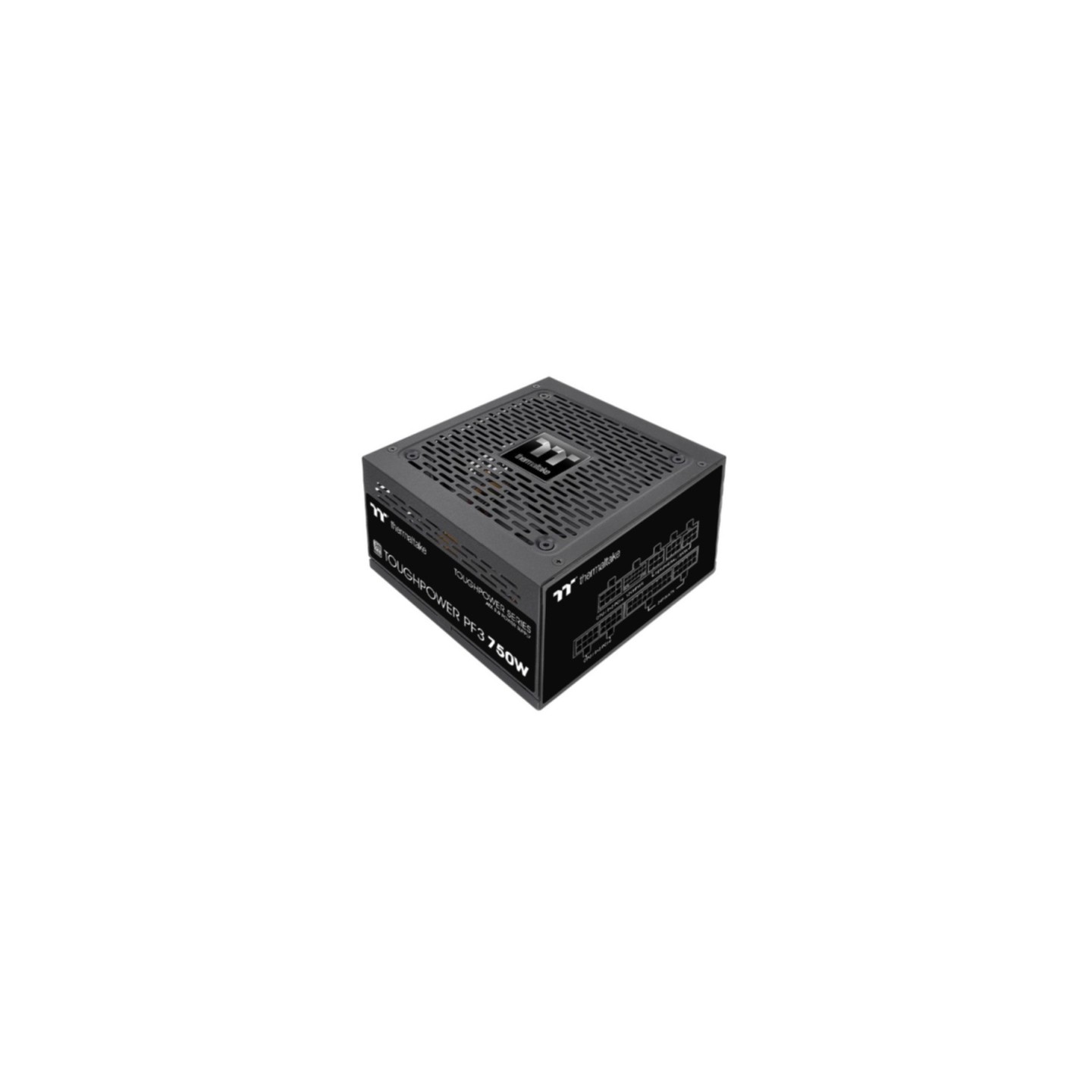

Thermaltake TOUGHPOWER PF3 750W Fully-Modular 80+ Platinum ATX 3.0 PSU PS-TPD-0750FNFAPU-3 (Boxed)
750W fully modular ATX 3.0 PSU with 80 PLUS Platinum efficiency. Includes 1x 12VHPWR (600W), 4x PCIe 6+2 pin, 8x SATA. 120mm FDB fan, Smart Zero Fan, Japanese caps,
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 700 - 799 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Platinum |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12VHPWR 16-pin 4x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm Up to 140 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |
The Thermaltake Toughpower PF3 750W is a premium fully modular ATX 3.0 power supply certified 80 PLUS Platinum for exceptional energy efficiency. Designed for modern high-performance PCs, it features a native PCIe 5.0 12+4 pin (12VHPWR) connector rated for 600W, perfect for next-gen GPUs like NVIDIA RTX 40 series, plus 4x PCIe 6+2 pin connectors for versatile GPU and PCIe support. It delivers a powerful single +12V rail with 62.5A (750W) capacity, ensuring stable power under heavy loads.
Built with 100% high-quality Japanese electrolytic capacitors, it offers ultra-low ripple noise (<30mV) and strict voltage regulation (<±2%). The ultra-quiet 120mm fluid dynamic bearing (FDB) fan with Smart Zero Fan mode auto-adjusts speed based on load for silent operation. Compact dimensions (150x150x86mm) fit most cases, with active PFC, full protections, and universal 100-240V input. Ideal for gaming rigs and workstations.
- ✅ 80 PLUS Platinum certified efficiency
- ✅ Fully modular flat black cables
- ✅ ATX 3.0 & PCIe 5.0 compliant
- ✅ 1x 12VHPWR + 4x 6+2 PCIe connectors
- ✅ 8x SATA, 4x Molex, 24-pin ATX, EPS
- ✅ Smart Zero Fan & Japanese capacitors
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 10 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Hold time | 17 ms |
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 8 |
| SATA power cable length | 150.500 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Peripheral (Molex) power cable length | 150.500 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (12+4 pin) cable length | 600 mm |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Platinum |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.0 |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Operating temperature (T-T) | 0 - 40 °C |
| Smart Zero Fan | Yes |
| Japanese capacitors | 100% |
| Ripple noise | <30mV |
