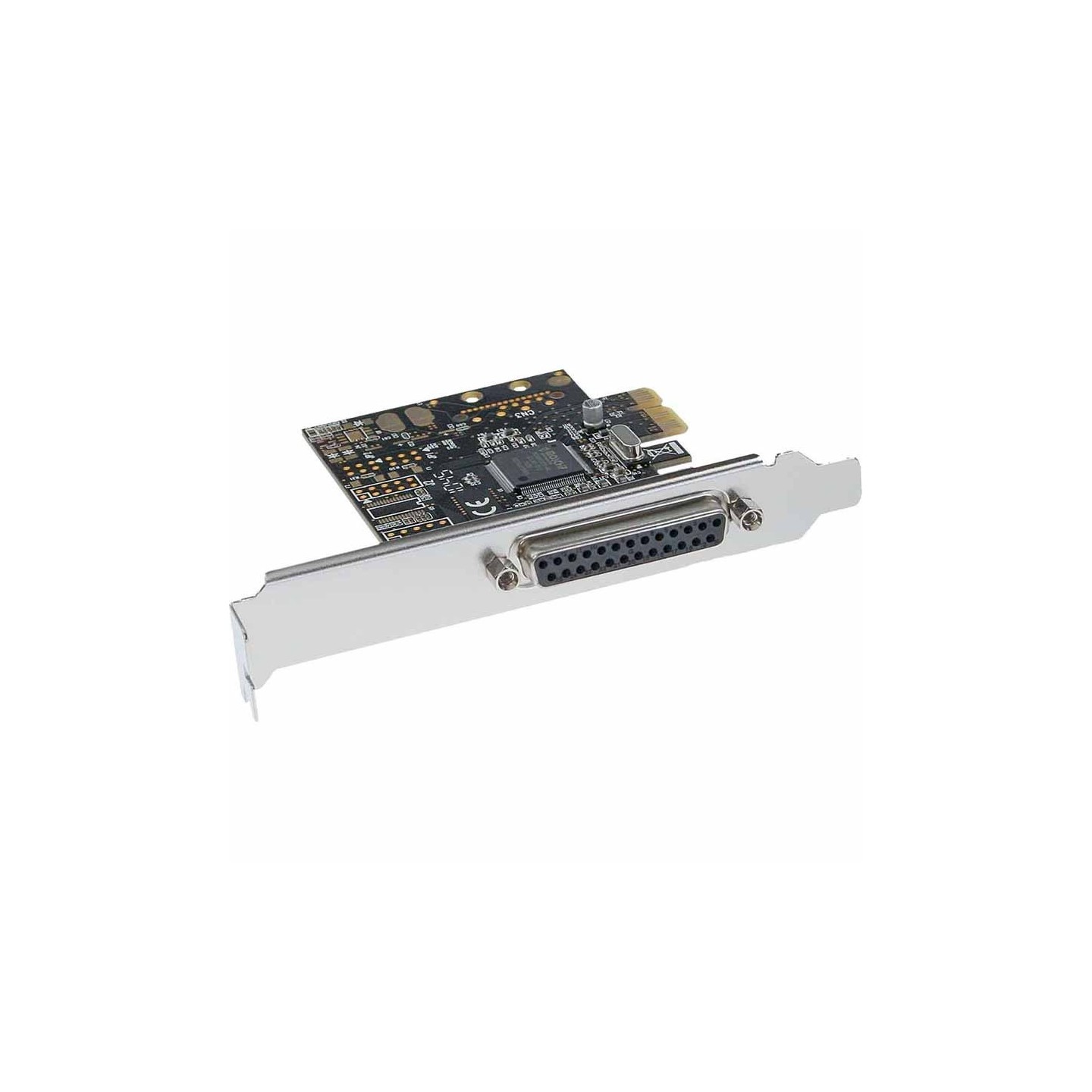

InLine 76625C Parallel Port ECP/EPP/SPP PCIe x1 Card (Boxed)
InLine 76625C PCI-E parallel port card adds ECP/EPP/SPP DB25 port. PCIe x1 (2.5Gbps), Moschip MCS9900CV-AA chipset, legacy remap. Supports Win2000-Win10, Linux, MacOS. IEEE1284 compliant.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Expansion Cards - Product Type | IO Port Expansion |
|---|---|
| Expansion Cards - Host Interface | PCIe x1 |
| Expansion Cards - Form Factor | Standard Profile Full-Height |
| Expansion Cards - External Connectivity | Serial and Parallel |
The InLine 76625C is a PCI-Express interface card that provides a high-performance parallel port for legacy peripherals like printers and scanners. Fully compliant with PCI-Express Base Specification Revision 1.1, it uses a single-lane (x1) interface with up to 2.5Gbps throughput.
Key features include IEEE1284 compatibility supporting SPP, PS/2, EPP, and ECP modes via a 25-pin DB female connector. The Moschip MCS9900CV-AA chipset enables re-mapping of legacy ports. Compatible with Windows 2000 through 10 (32/64-bit), Linux, Mac OS X 10.5+, and DOS 6.22.
- PCIe x1 slot - Easy installation in modern systems
- DB25 parallel port - Standard connector for printers
- Net weight: 0.064kg - Compact and lightweight
- Made in Taiwan - Quality InLine manufacturing
| Product Type | IO Port Expansion |
| Chipset | Moschip MCS9900CV-AA |
| Host Interface | PCIe x1 Single-Lane |
| External Ports | 1x Parallel 25-pin DB female |
| Parallel Standards | IEEE1284 SPP, PS/2, EPP, ECP |
| Throughput | 2.5 Gb/s |
| Low Profile | No |
| Net Weight | 0.064 kg |
| Packaged Weight | 0.130 kg |
| Country of Origin | Taiwan |
| OS Support | Windows 2000-XP-Vista-7-8-10, Linux, Mac OS X 10.5+, DOS 6.22 |
