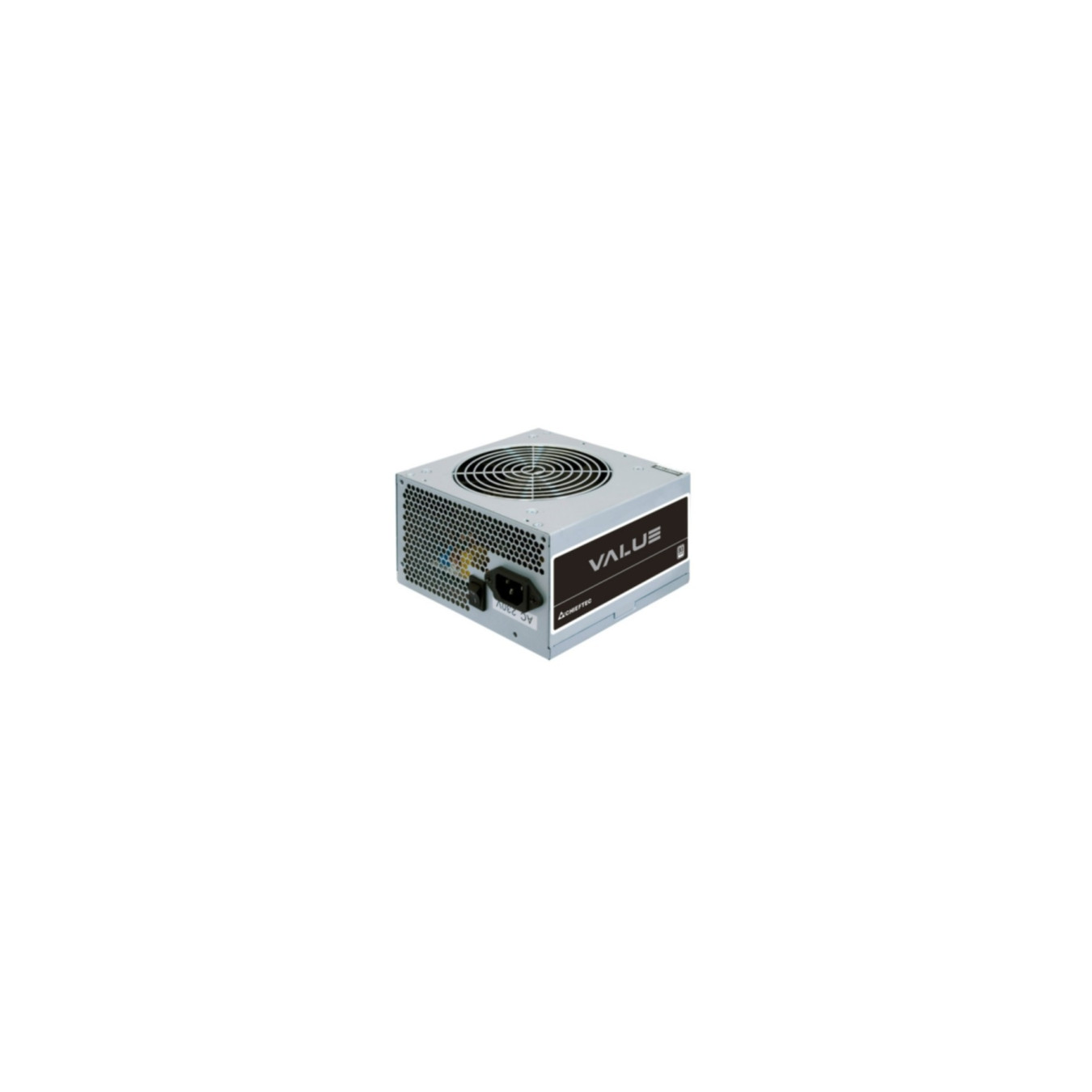

Chieftec VALUE Series - APB-600B8 - 600W Non-Modular ATX PSU, 80 PLUS, Silent Fan
600W Chieftec VALUE APB-600B8 ATX power supply, non-modular, 80 PLUS (230V EU), 20+4 pin ATX, 4x SATA, long native cables, quiet thermal-controlled fan, multiple safety certifications.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Modularity | Non-modular |
|---|
The new VALUE SERIES offers both quality and 80 PLUS 230V EU efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with installed thermal board, the PSU runs quietly on full load and provides REAL POWER, thereby providing all security features. Certified by CE, CB, EAC, TÜV and amongst many others, it’s the VALUE choice!
| Total power | 600 W |
| Peak power | 600 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Maximum input current (@220V) | 4.5 A |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 552 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V1) | 46 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of SATA power connectors | 4 |
| SATA power cable length | 150, 500 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 150, 500 mm |
| EPS power connector (8-pin) | No |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| Floppy disk drive connector | Yes |
| Floppy disk drive cable length | 15 cm |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.3 |
| Product colour | Steel |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
| Compliance certificates | CE, RoHS |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 87 mm |
| Weight | 1.42 kg |
| Package weight | 1.56 kg |
| Harmonized System (HS) code | 84733020 |
