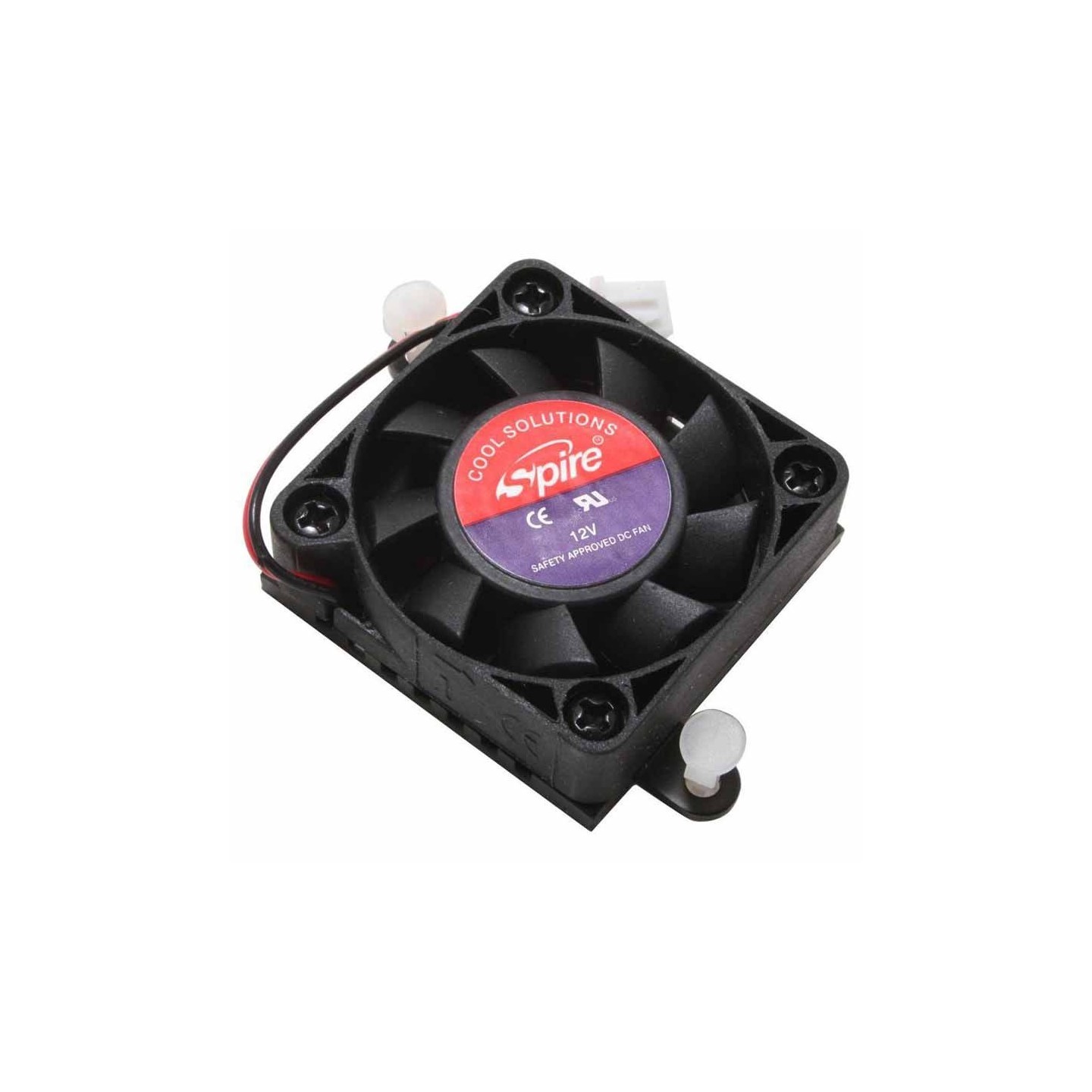

Spire 3A07S2 Chipset Cooler 40x40x12mm Sleeve Bearing - MB/VGA Chip (Boxed)
Spire 3A07S2 Chipset Cooler (40x40x12mm) with sleeve bearing delivers 4.84 CFM at 5500 RPM. Ideal for MB or VGA chipsets. Features 2-pin connector, 23 dBA noise, 30,000hr life, thermal sticker. Compact cooling solution.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | Accessories Spare Parts |
|---|---|
| Cooling (CPU & Case) - Fan Size | 40 mm |
| Cooling (CPU & Case) - Lightning | None |
| Cooling (CPU & Case) - Connector | 2-Pin |
| Cooling (CPU & Case) - Special Features | Low Profile |
The Spire 3A07S2 is a compact chipset cooler designed specifically for cooling motherboard (MB) chipsets or VGA chipsets. Measuring just 40x40x12 mm, this small fan fits perfectly into tight spaces where larger coolers cannot. It spins at 5500 RPM, providing 4.84 CFM airflow while maintaining a tolerable noise level of 23.0 dBA.
Equipped with a reliable sleeve bearing rated for 30,000 hours of operation, the cooler uses a 2-pin connector compatible with most MB or VGA card headers. It comes pre-applied with a thermal sticker for easy installation, ensuring efficient heat transfer without the need for additional thermal paste.
- Dimensions: 40 x 40 x 12 mm (L x W x H)
- Rated Speed: 5500 RPM
- Airflow: 4.84 CFM
- Noise Level: 23.0 dBA
- Bearing Type: Sleeve
- Connector: 2-Pin
- Life Hours: 30,000
- Current: 0.09 A
- Thermal Interface: Sticker
| Product Type | Chipset Cooler |
| Fan Dimensions | 40 x 40 x 12 mm (L x W x H) |
| Rated Speed | 5500 RPM |
| Airflow | 4.84 CFM |
| Noise Level | 23.0 dBA |
| Bearing Type | Sleeve Bearing |
| Connector | 2-Pin (MB/VGA) |
| Life Hours | 30,000 Hours |
| Rated Current | 0.09 A |
| Application | MB Chipset or VGA Chipset |
| Thermal Interface | Thermal Sticker |
