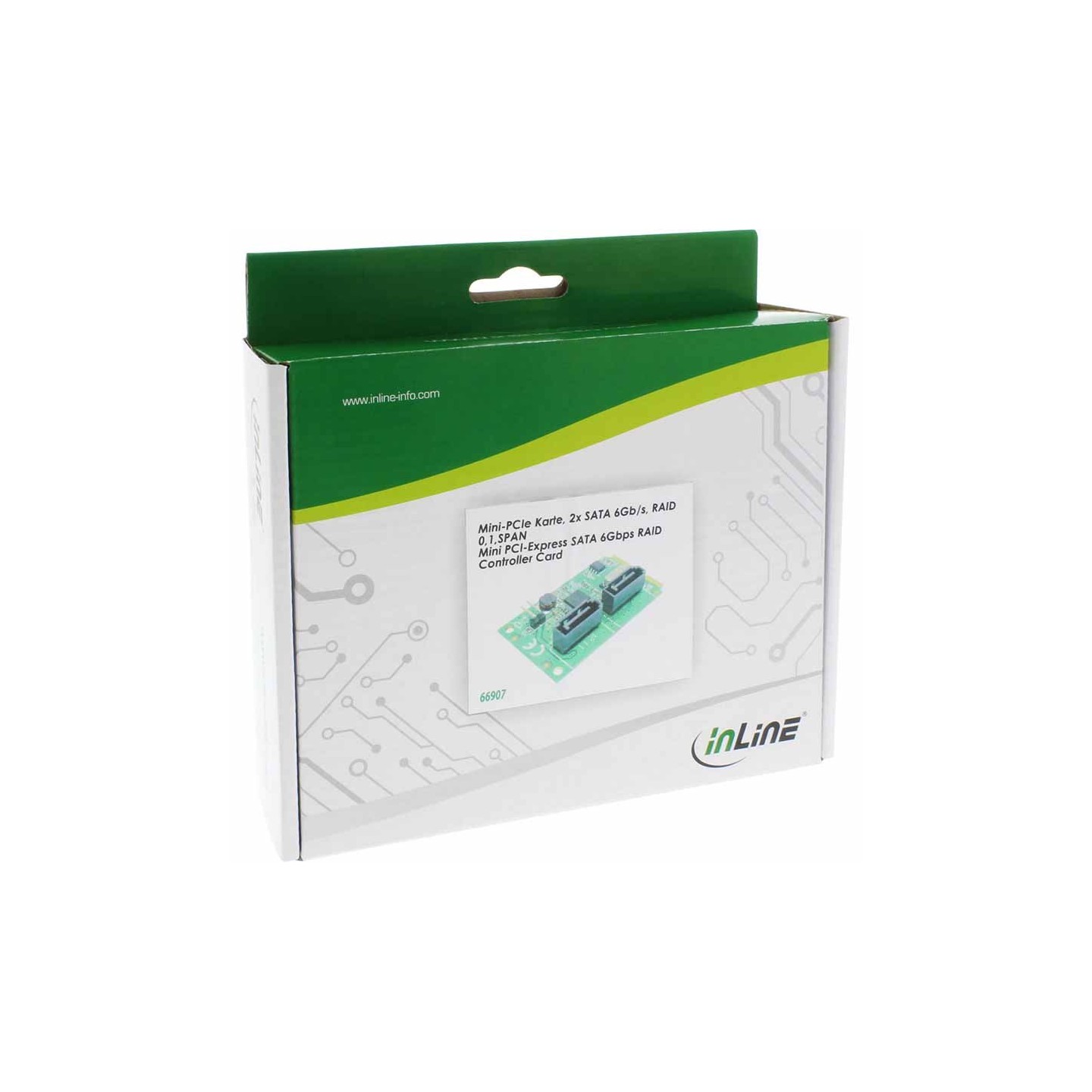

Inline 66907 Mini-PCIe 2.0 SATA 2x 6Gbps RAID 0/1/SPAN (Boxed)
Inline 66907 Mini-PCIe card with ASMedia ASM1061R chipset adds 2x SATA 6Gbps ports supporting RAID 0/1/SPAN. PCIe 2.0 x1 interface, full-size Mini-PCIe form factor, internal vertical SATA connectors. Windows compatible with built-in drivers.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Expansion Cards - Product Type | Storage Controller and Adapter |
|---|---|
| Expansion Cards - Host Interface | Mini-PCIe |
| Expansion Cards - Internal Connectivity | SATA Ports |
| Expansion Cards - Form Factor | Standard Profile Full-Height |
| Expansion Cards - External Connectivity | Internal Only |
The Inline 66907 is a full-size Mini-PCIe expansion card that provides two internal SATA 6Gbps ports for connecting HDDs and SSDs. Based on the ASMedia ASM1061R chipset, it supports PCIe 2.0 x1 with up to 2.5Gb/s bandwidth and complies with SATA Rev. 3.2 and AHCI 1.3 specifications.
It enables RAID 0, RAID 1, and SPAN modes with automatic rebuild, Native Command Queue (NCQ), and compatibility with SATA III/II/I drives. Ideal for systems needing additional high-speed storage without external controllers. Supported by built-in Windows drivers (8.1/8/7/Vista).
- 2x vertical internal SATA 6Gb/s ports
- RAID 0/1/SPAN with hardware engine
- PCIe Gen2 x1 to SATA bridge
- Supports NCQ and port multiplier
- Includes manual; requires free Mini-PCIe slot
| Chipset | ASMedia ASM1061R |
| Host Interface | PCIe 2.0 x1 (Mini-PCIe) |
| SATA Ports | 2x SATA 6Gb/s (internal, vertical) |
| RAID Support | RAID 0, RAID 1, SPAN (JBOD) |
| SATA Specification | SATA Rev. 3.2, AHCI 1.3 |
| Supported Speeds | 6Gb/s, 3Gb/s, 1.5Gb/s |
| Form Factor | Full-size Mini-PCIe |
| OS Support | Windows 8.1/8/7/Vista (built-in drivers) |
| Features | NCQ, Port Multiplier, Automatic Rebuild |
| Package Contents | Mini-PCIe card, manual |
