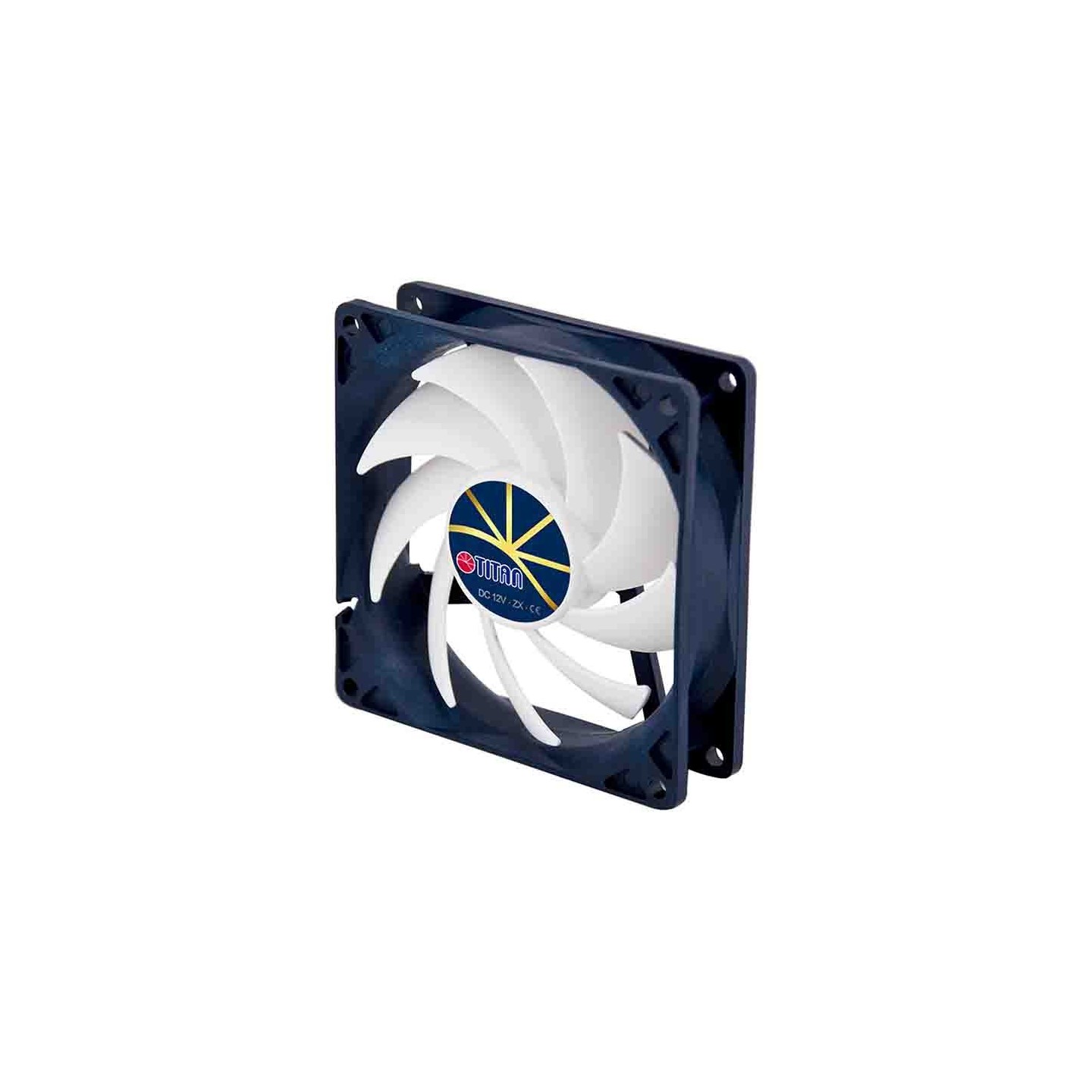

TITAN 33120O Extreme Silent Fan PWM 92x92x25mm (Boxed)
TITAN 33120O Extreme Silent PWM Case Fan, 92x92x25mm. 270-2700RPM, 47.56CFM airflow,
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | Case Fan |
|---|---|
| Cooling (CPU & Case) - Fan Size | 92 mm |
| Cooling (CPU & Case) - Lightning | None |
| Cooling (CPU & Case) - Connector | 4-Pin PWM |
| Cooling (CPU & Case) - Color | Black |
| Cooling (CPU & Case) - Special Features | Low Noise |
The TITAN 33120O Extreme Silent Fan is a high-performance 92mm PWM case fan designed for ultra-quiet operation in PC builds. Featuring precise speed control from 270RPM minimum to 2700RPM maximum, it delivers 47.56 CFM airflow and 0.11 InchH2O static pressure while maintaining noise levels below 5dBA at low speeds, rising to under 23.4dBA at full speed.
Equipped with a 4-pin PWM connector for motherboard control, 12V DC power (0.24A, 2.88W consumption), and TITAN's exclusive Z-AXIS bearing for exceptional durability up to 60,000 hours. This fan excels in low-power, silent cooling scenarios, preventing heat buildup without excessive noise or energy use.
- Dimensions: 92 x 92 x 25 mm
- Speed Range: 270 ±20% ~ 2700 ±10% RPM
- Noise: <5dBA ~ <23.4dBA
- Connector: 4-PIN PWM
- Bearing: Z-AXIS, 60,000 hours MTBF
| Outline Dimension | 92x92x25mm |
| Rated Voltage | 12V DC |
| Rated Current | 0.24A |
| Power Consumption | 2.88W |
| Min. Rated Speed | 270 +- 20% ~ 2700 +- 10% RPM |
| Airflow | 47.56 CFM |
| Static Pressure | 0.11 InchH2O |
| Min. Noise Level | <5dBA ~ <23.4dBA |
| Connector | 4-PIN PWM Function |
| Bearing Type | Z-AXIS |
| Life Time | 60,000 hours |
