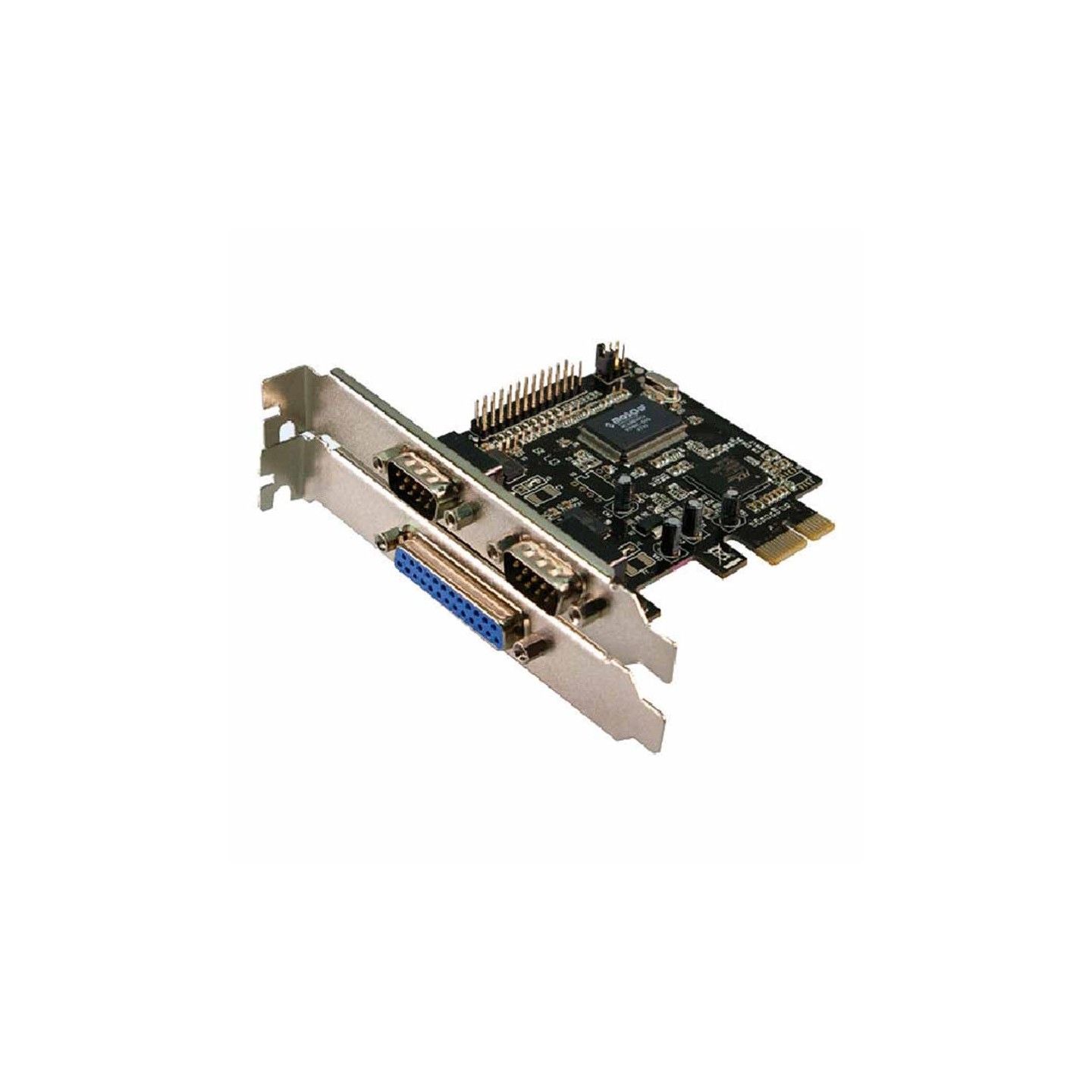

LogiLink PC0033 PCIe x1 2x Serial RS232 + 1x Parallel (Boxed)
PCIe x1 expansion card with 2x RS232 serial (DB9) and 1x IEEE 1284 parallel (DB25) ports. Plug & Play, 16C550 UART with 16-byte FIFO, up to 1.5MB/s parallel. Supports legacy devices on modern PCs.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Expansion Cards - Product Type | IO Port Expansion |
|---|---|
| Expansion Cards - Host Interface | PCIe x1 |
| Expansion Cards - Form Factor | Low Profile Half-Height |
| Expansion Cards - External Connectivity | Serial and Parallel |
The LogiLink PC0033 is a PCI Express expansion card designed to add legacy connectivity to modern computers. It provides 2x RS232 serial ports (9-pin DB9 connectors) and 1x parallel port (25-pin D-SUB), enabling connection of older printers, scanners, industrial equipment, and serial devices.
Featuring a single-lane PCIe x1 interface compliant with PCI Express 1.0a, it delivers 2.5Gb/s full duplex transfer rates. The serial ports use 16C550 UART with 16-byte FIFO buffers for reliable data transfer up to 1MB/s, including hardware flow control. The parallel port supports SPP, PS/2, EPP, ECP modes per IEEE 1284 standard with 16-byte FIFO and speeds up to 1.5MB/s. Fully Plug & Play with automatic IRQ/address assignment.
- PCIe x1 low-profile card for easy installation
- 2x External RS232 DB9 serial ports
- 1x External DB25 parallel port (IEEE 1284)
- 16C450/16C550 UART compatibility
- Supports Windows 2000/XP/7/8/10 and Linux
- NetMOS chipset for stability
| Product Type | IO Port Expansion |
| Host Interface | PCIe x1 Single-Lane |
| PCIe Specification | PCI Express Revision 1.0a |
| Transfer Rate | 2.5Gb/s Full Duplex |
| Serial Ports | 2x RS232 DB9 |
| UART Type | 16C550 with 16-Byte FIFO |
| Serial Data Rate | Up to 1MB/s |
| Parallel Port | 1x IEEE 1284 DB25 |
| Parallel Modes | SPP, PS/2, EPP, ECP |
| Parallel Data Rate | Up to 1.5MB/s |
| Parallel FIFO | 16 Byte FIFO |
| Chipset | NetMOS |
| Plug and Play | Yes, Automatic IRQ/Address |
| Gross Weight | 159.2g |
