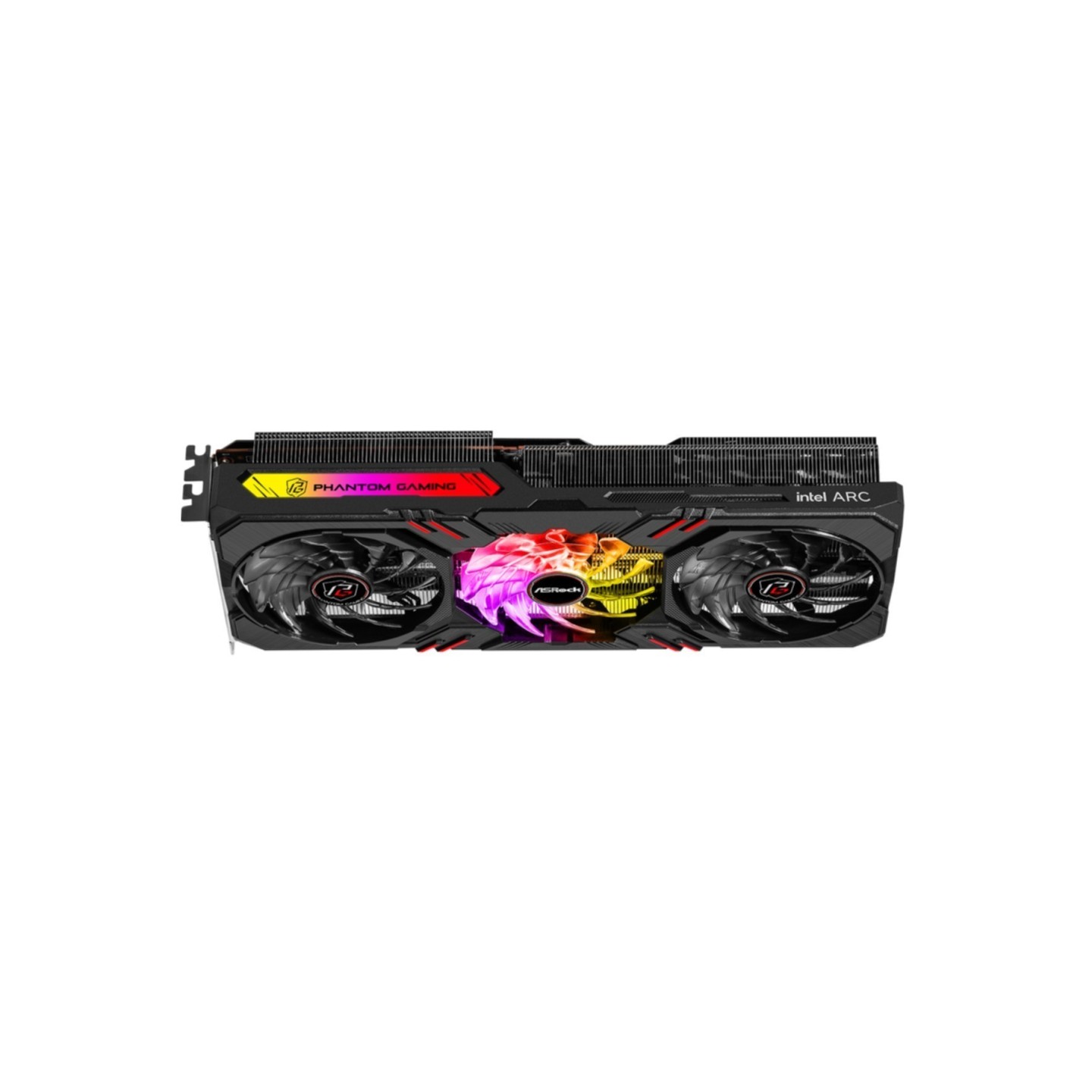

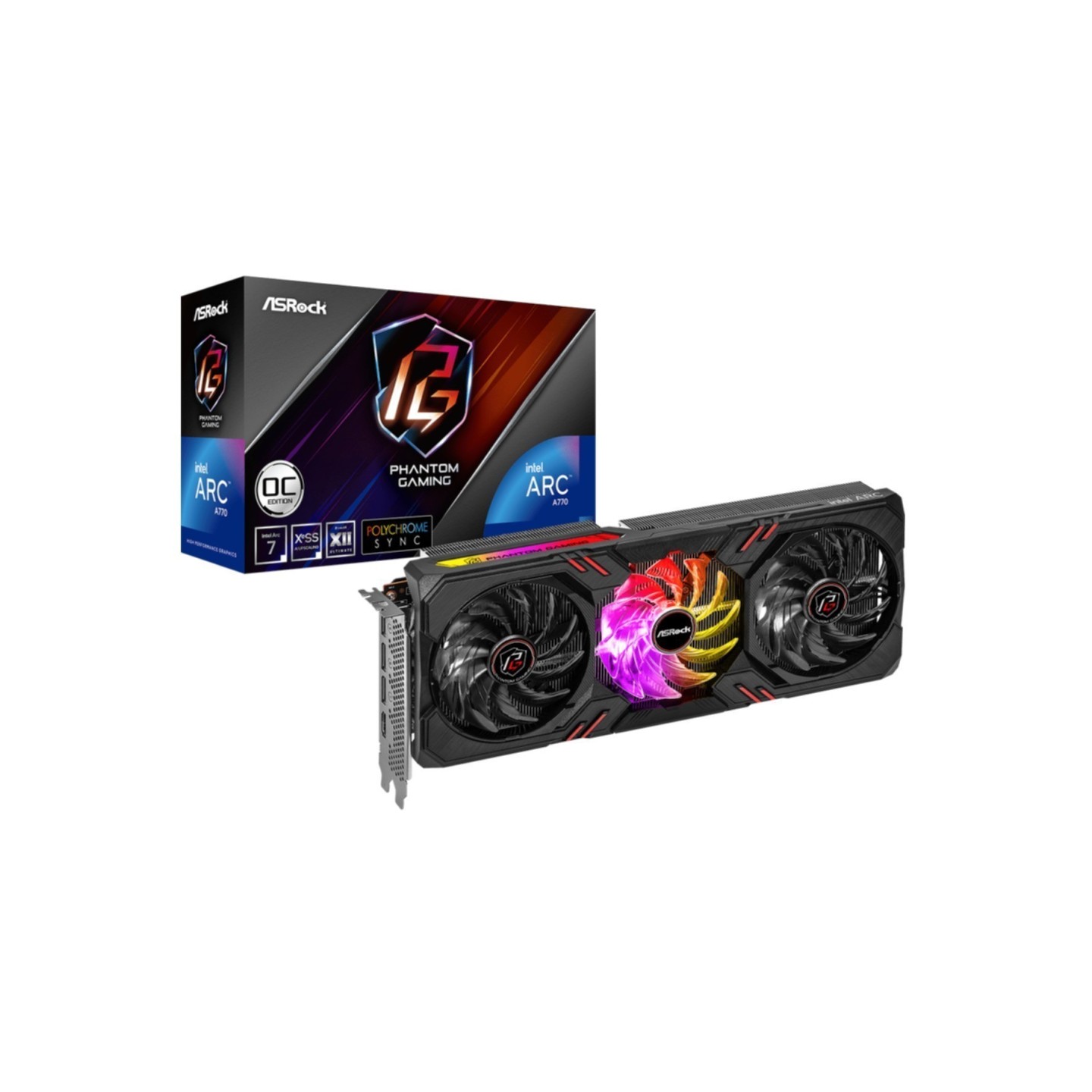

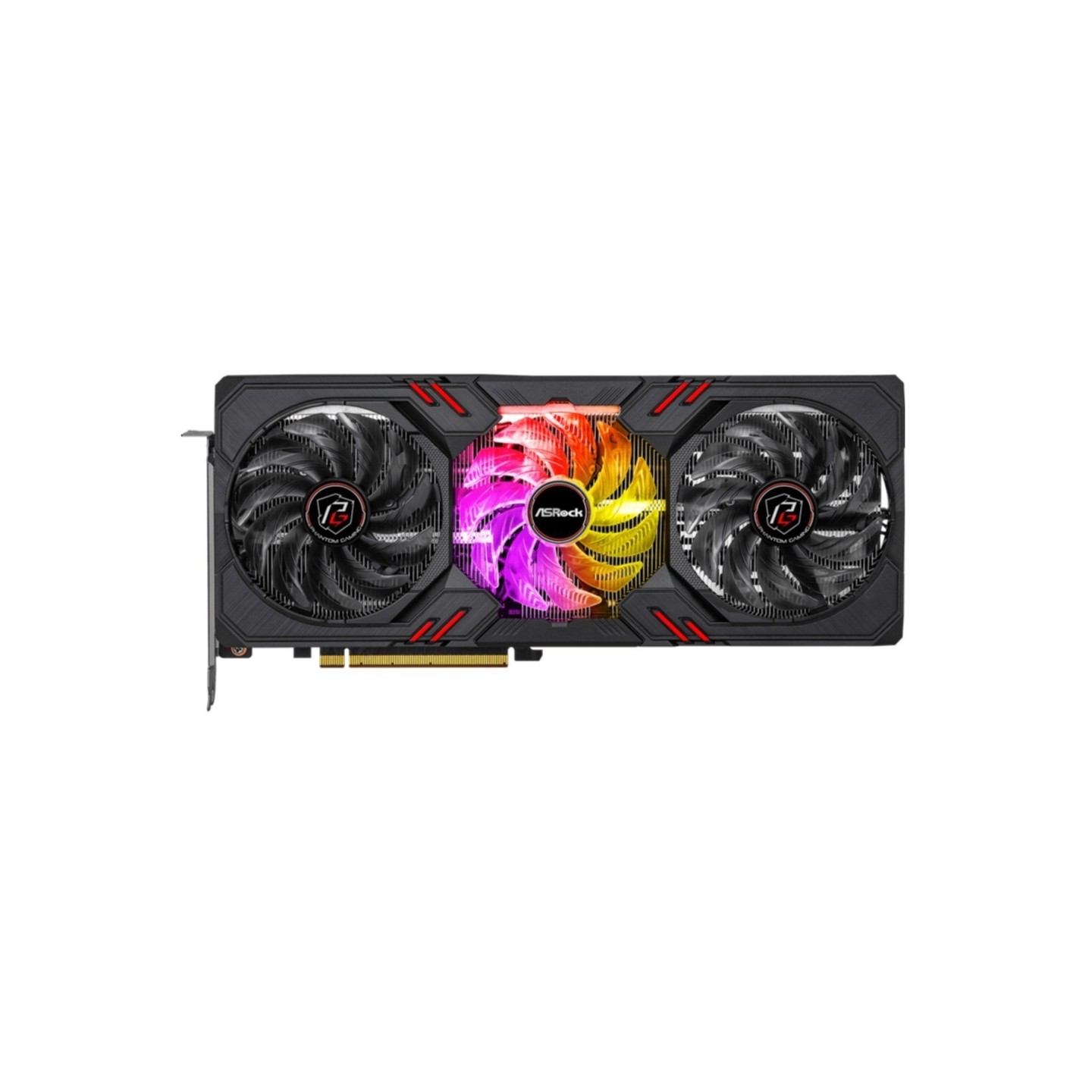

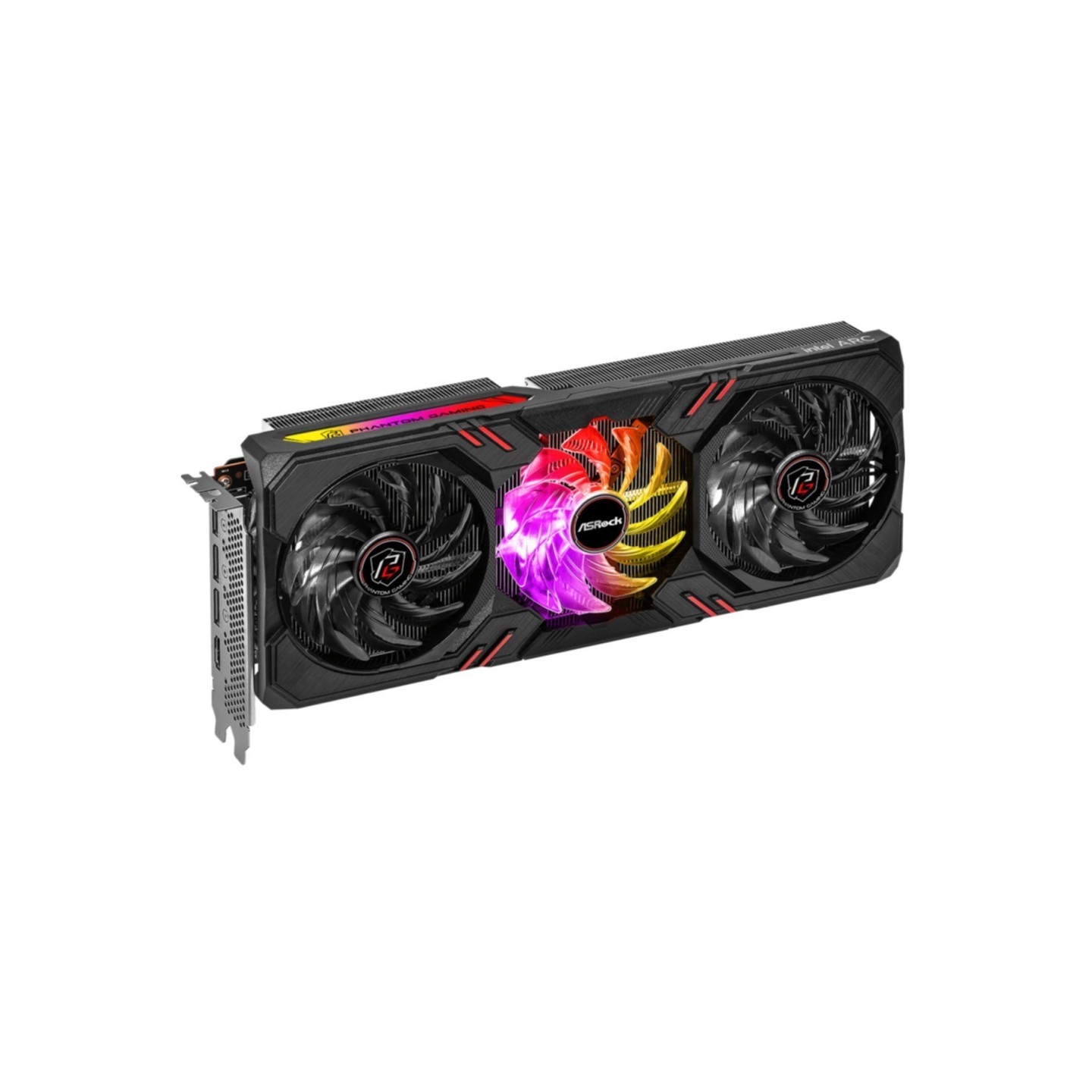

ASRock Phantom Gaming OC Intel Arc A770 16GB GDDR6 - Triple Fan (Boxed)
ASRock Intel Arc A770 Phantom Gaming OC 16GB GDDR6 GPU. 2200 MHz clock, triple-fan cooling, 2x8-pin power. Supports 8K@60Hz via 3xDP2.0/HDMI2.1. PCIe 4.0x16, metal backplate, 0dB silent mode.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | Intel Arc |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 4.0 x16 |
| GPU (Graphics Cards) - Cooler Type | Triple Fan |
| GPU (Graphics Cards) - Color | Black |
| GPU (Graphics Cards) - Backplate | Yes |
| GPU (Graphics Cards) - VRAM Capacity | 16 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR6 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.0 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 2x8-pin |
| GPU (Graphics Cards) - Card Length | Extended (301-320 mm) |
The ASRock Phantom Gaming OC Intel Arc A770 16GB GDDR6 delivers high-performance gaming with Intel's latest Arc architecture. Featuring a 2200 MHz GPU clock and 17.5 Gbps memory speed on a 256-bit bus, this OC edition handles 8K resolution and DirectX 12 Ultimate with ray tracing support. The Phantom Gaming 3X cooling system with triple striped axial fans, ultra-fit heatpipes, and 0dB silent operation keeps temperatures low even under heavy loads.

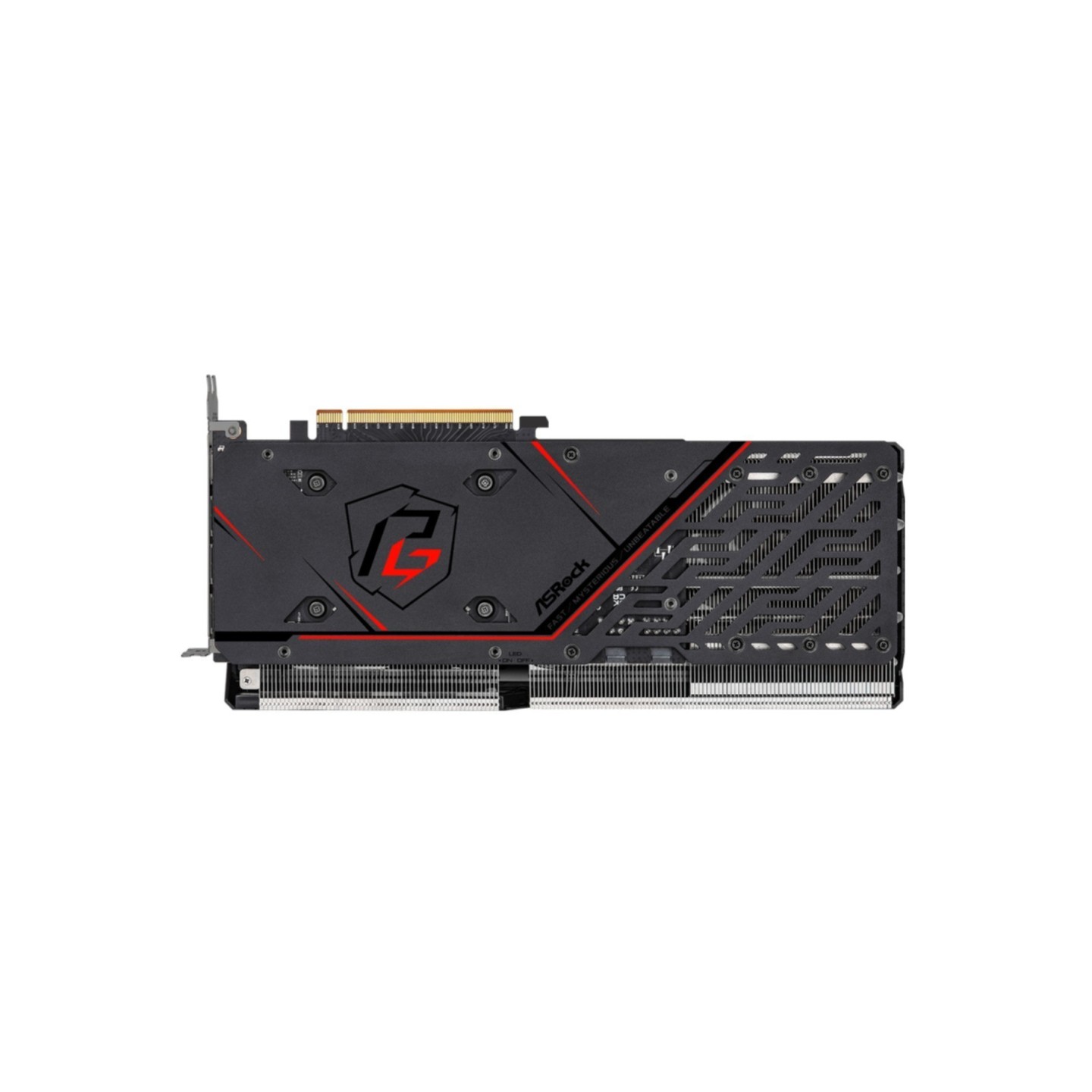

Equipped with a stylish metal backplate, premium 100A power chokes, and Polychrome SYNC RGB, it combines durability with aesthetics. Connectivity includes 3x DisplayPort 2.0 (UHBR10) and 1x HDMI 2.1 for multi-monitor setups up to 4 displays. Requires 700W PSU and 2x 8-pin connectors. Dimensions: 305 x 131 x 56 mm (2.8-slot), net weight 1146g.
- ✅ 16GB GDDR6 VRAM | 2200 MHz GPU / 17.5 Gbps Memory
- ✅ Triple-fan cooling | Metal backplate | PCIe 4.0 x16
- ✅ 8K support | XeSS AI upscaling | 512 XMX engines
- ✅ 2x 8-pin power | Recommended 700W PSU
| Graphics Engine | Intel Arc A770 Graphics |
| Bus Standard | PCI Express 4.0 x16 |
| GPU Clock | 2200 MHz |
| Memory Clock | 17.5 Gbps |
| Memory Size | 16GB GDDR6 |
| Memory Interface | 256-bit |
| Memory Type | GDDR6 |
| Intel XMX Engines | 512 |
| Resolution | Digital Max Resolution: 7680x4320 |

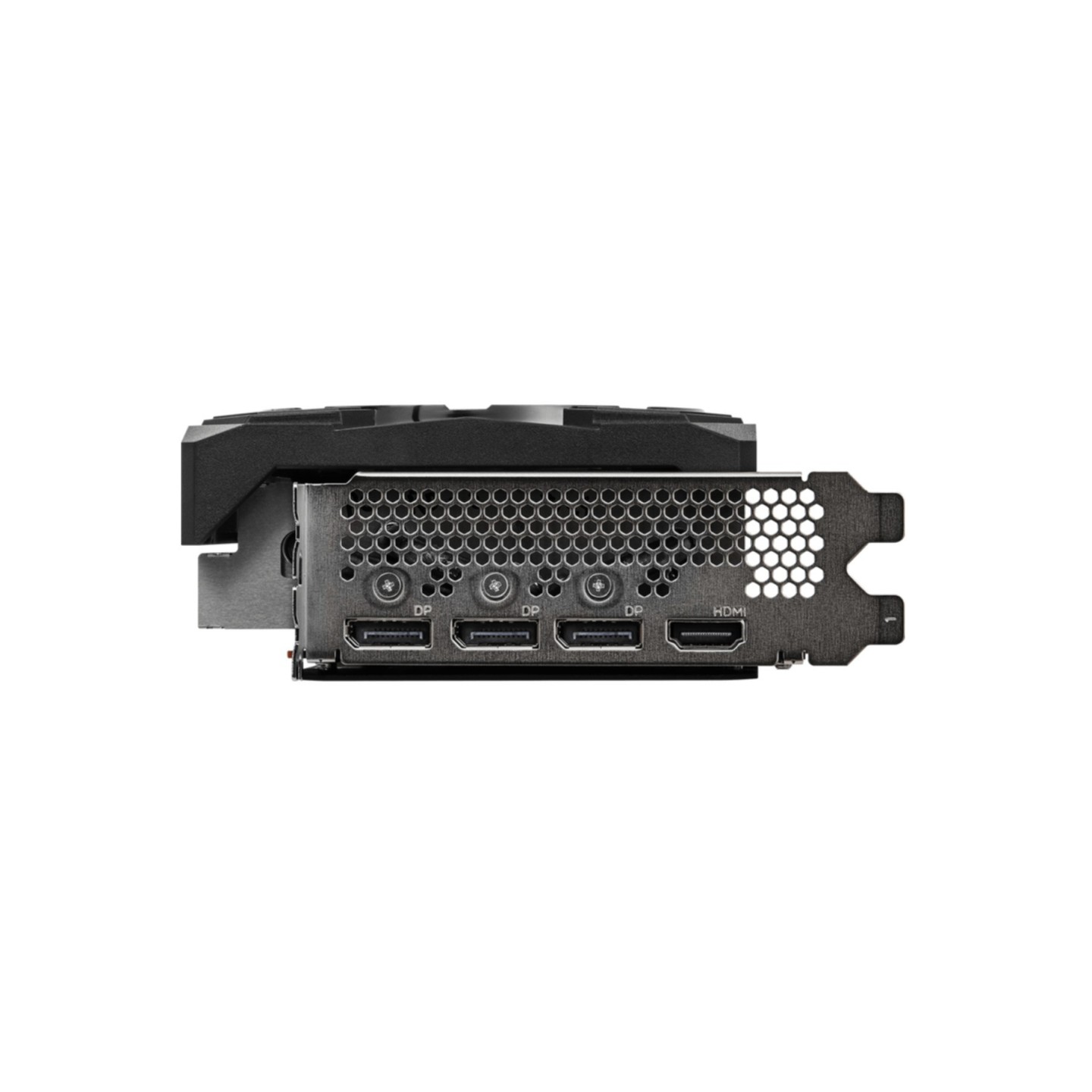

| Interface | 3 x DisplayPort 2.0 up to UHBR10, 1 x HDMI 2.1 |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Power Connector | 2 x 8-pin |
| Recommended PSU | 700W |
| Dimensions | 305 x 131 x 56 mm, 2.8-slot |
| Net Weight | 1146 g |
| Cooler Type | Phantom Gaming 3X Triple Fan |
| Backplate | Yes, Stylish Metal |
