PHC0200 25m BLACK SOLAR INSTALLATION CABLE (H1Z272-K) 6mm CU, LOGILINK
PHC0200 25m SOLAR INSTALLATION CABLE (H1Z272-K) 6mm CU BLACK, LOGILINK
Photovoltaic cable H1Z2Z2-K/PV1-F

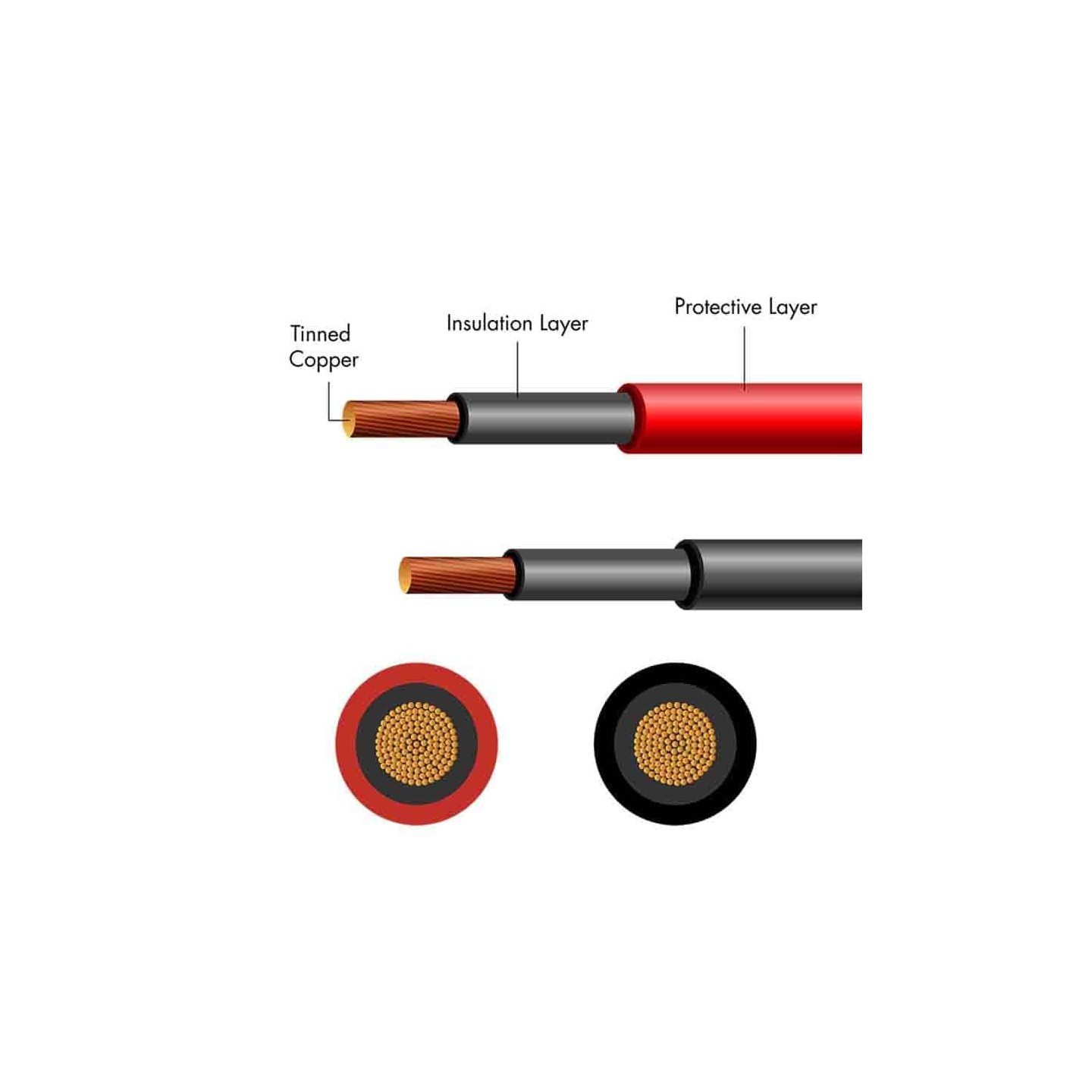

Copper wire 84 x 0.285 (6mm): Outer diameter: 6.6mm
Acid and alkali resistand according to I...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
PHC0200 25m SOLAR INSTALLATION CABLE (H1Z272-K) 6mm CU BLACK, LOGILINK
Photovoltaic cable H1Z2Z2-K/PV1-F
Copper wire 84 x 0.285 (6mm): Outer diameter: 6.6mm
Acid and alkali resistand according to IEC 60811-2-1
Ozone-resistant according to EN 50396: UV-resistant according to EN 50289-4-17
Continuous load test according to EN 60216-2:
Cold bending test according to EN 60811-1-4
Halogen test according to EN 60754-1 & EN 60754-2
Test of vertical flame propagation according to EN 60332-1-2
Max. DC resistance at 20c, 3.39Ohm/KM
Rated current: 60A
Color: Black

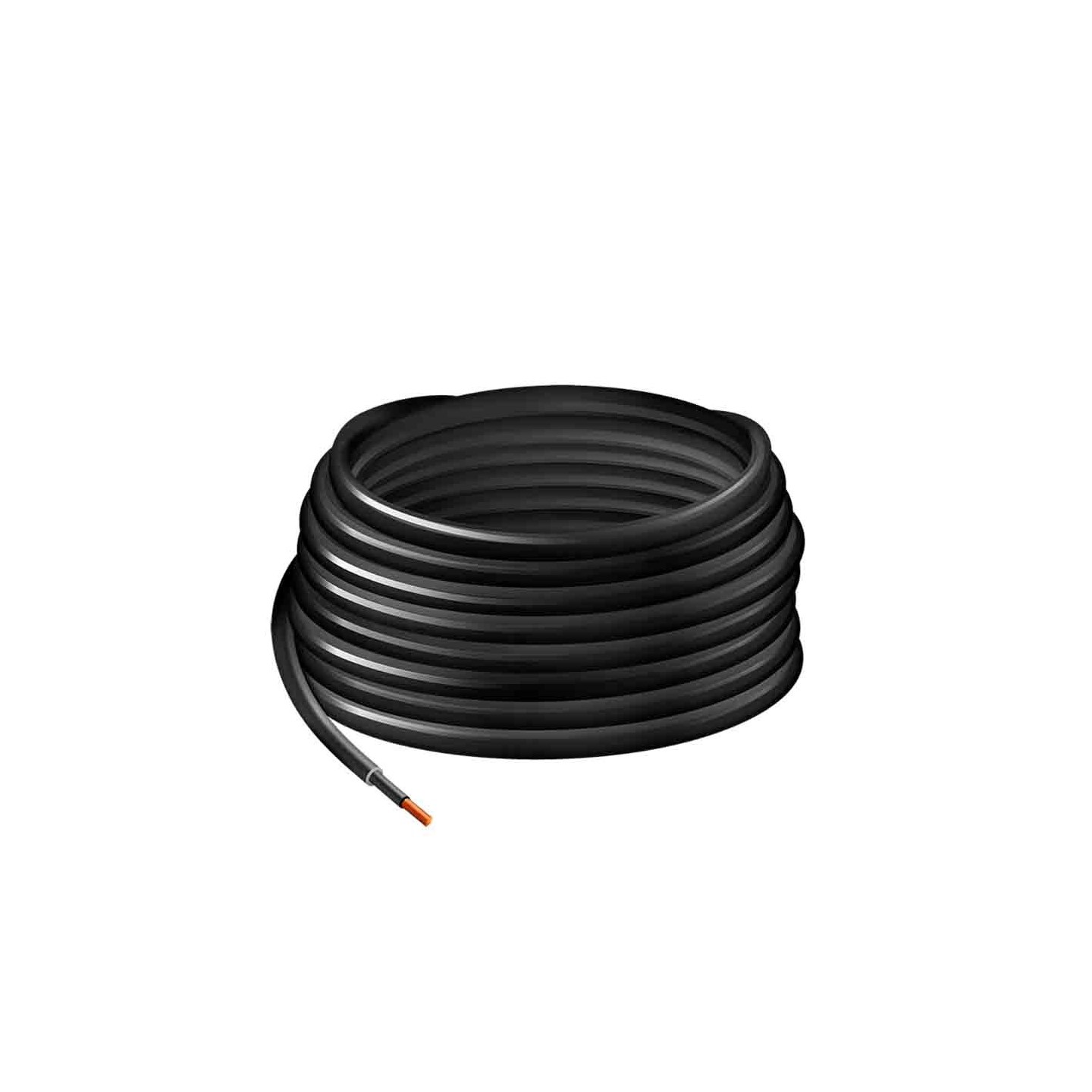

Cable length: 25m (coiled)
Packaging: Brown Box
Weight: 1.95kg
