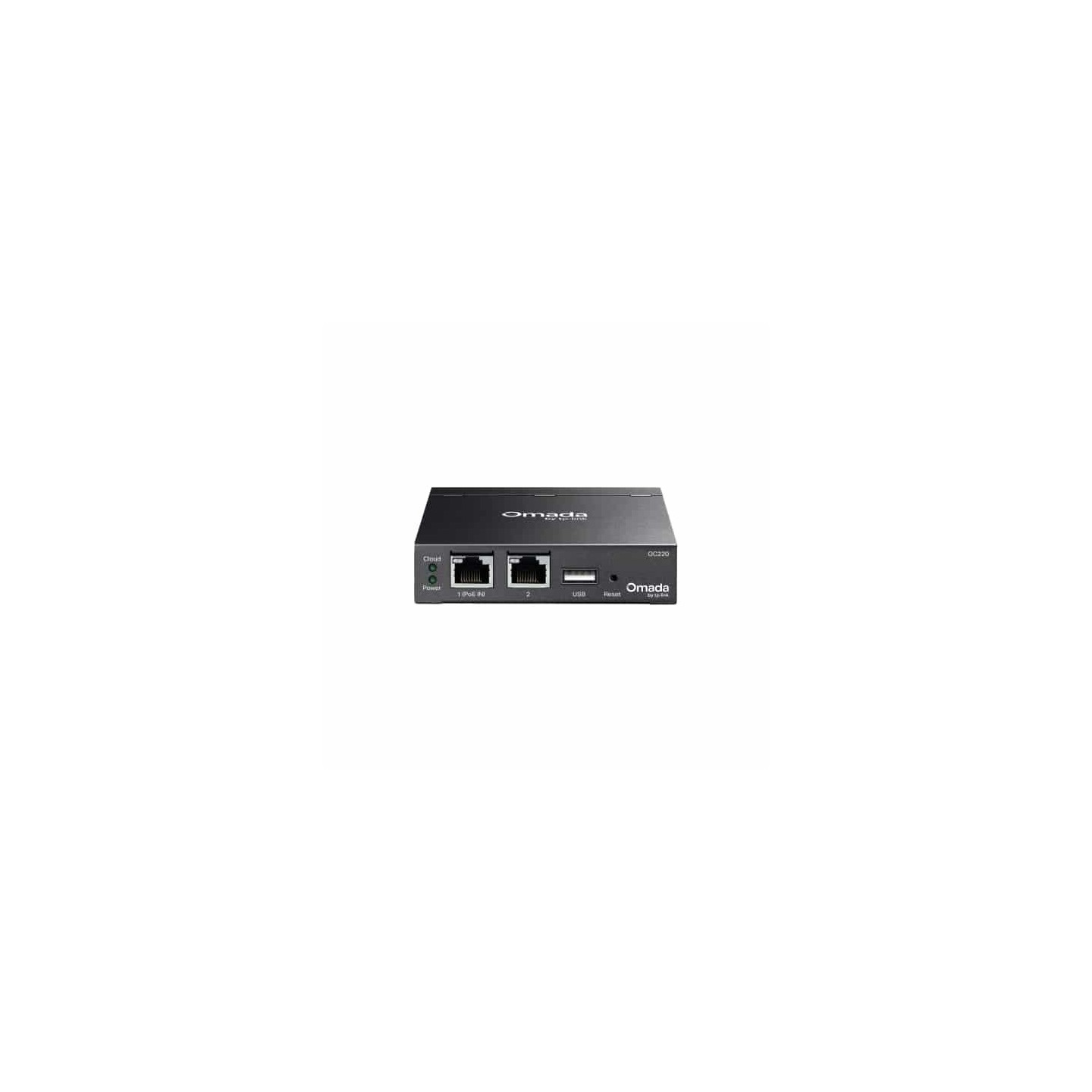

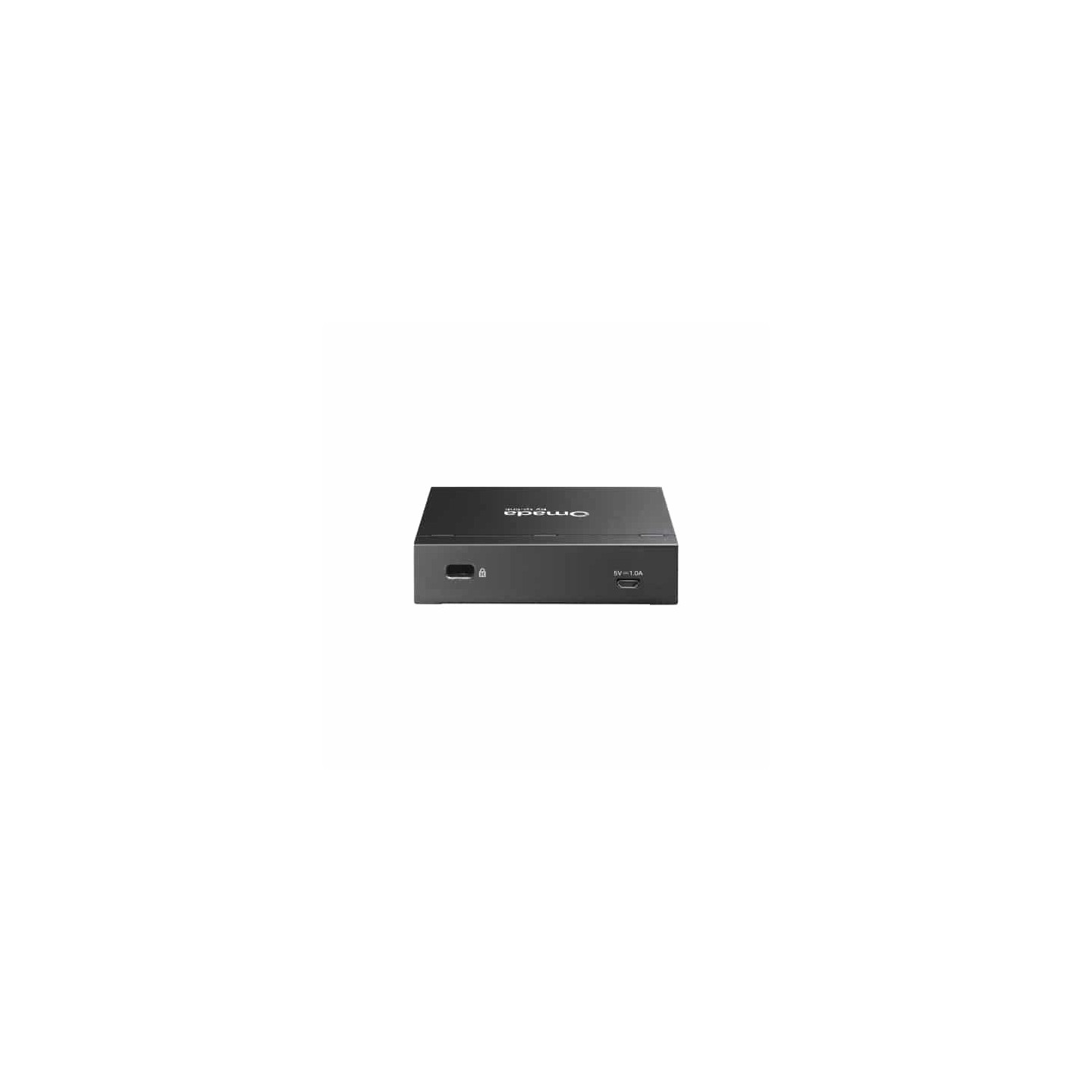

OC220 OMADA HARDWARE CONTROLLER TP-LINK
Processor: Quad-Core A53 @ 2.0 GHz/Core
Interface: 2× Gigabit Ethernet Ports, 1× USB 2.0 Port, 1× Micro-USB Port (only for power supply)
Physical Security Lock: Kensington Lock
Button: Reset Button
Power Supply: 802.3af/at PoE, Micro-USB (DC 5 V / Minimum 1 A)
Max. Power Consumption: 11.2 W (PoE with USB 2.0), 3.5 W (Micro-USB, no USB 2.0)
DRAM: 2 GB DDR4
Storage: 4MB Nor Flash, 8 GB eMMC
Weight: 0.305 kg
Dimensions (W x D x H): 3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm)
Omada App: √
Restore & Backup: √
Centralized Management: 100 APs, 10 gateways, 20 switches*, 2 DeltaStream GPON OLTs*
Cloud Access: √
L3 Management: √
Multi-site Management: √
Management Features: Wired Network, Wireless Network, WLAN Optimization, Network Security, Transmission, VPN, Portal, 802.1x, RADIUS
Monitoring: DPI, IPS/IDS, Dashboard, Statistics, Network Topology, Network Map, Devices List, Clients List, Insights, Logs
