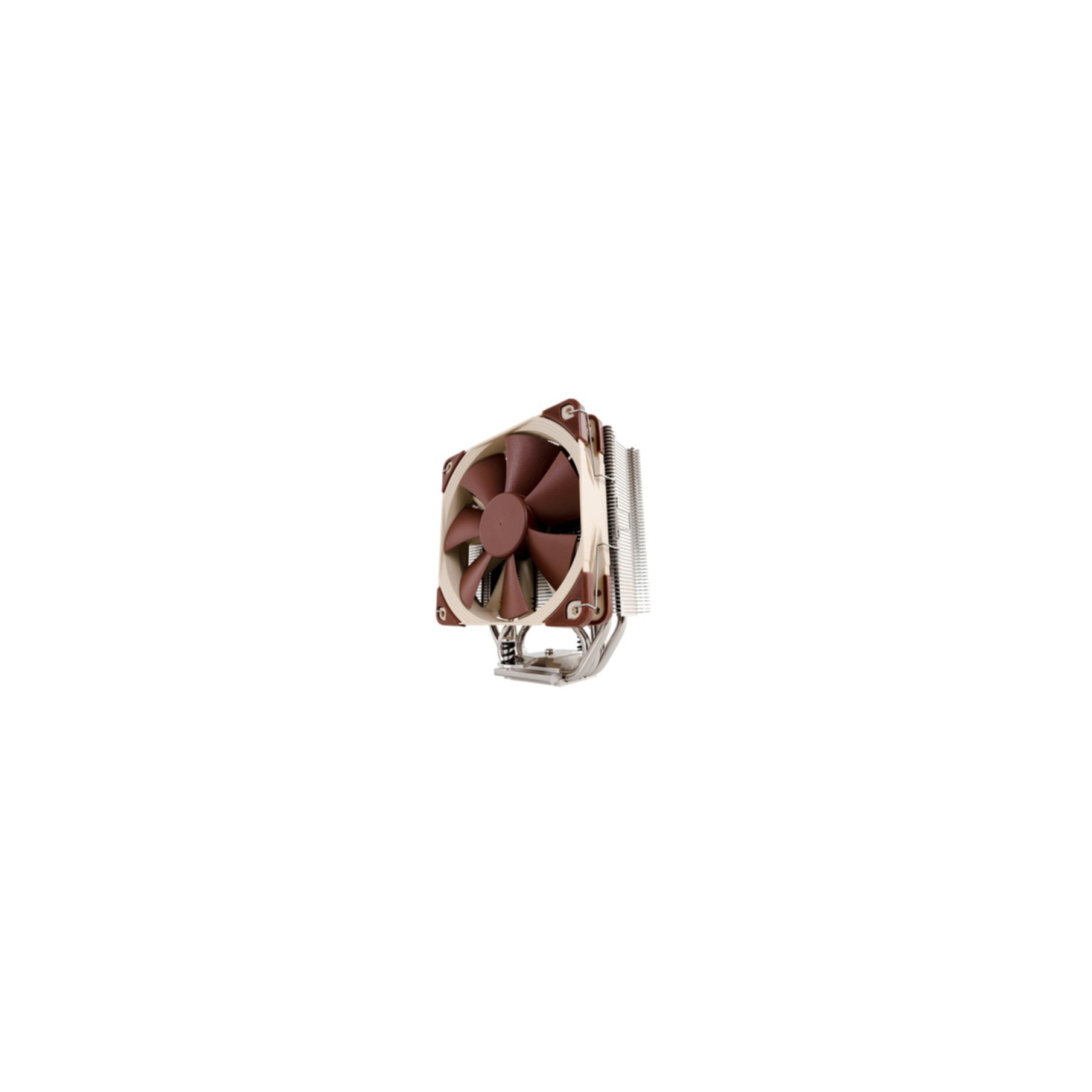

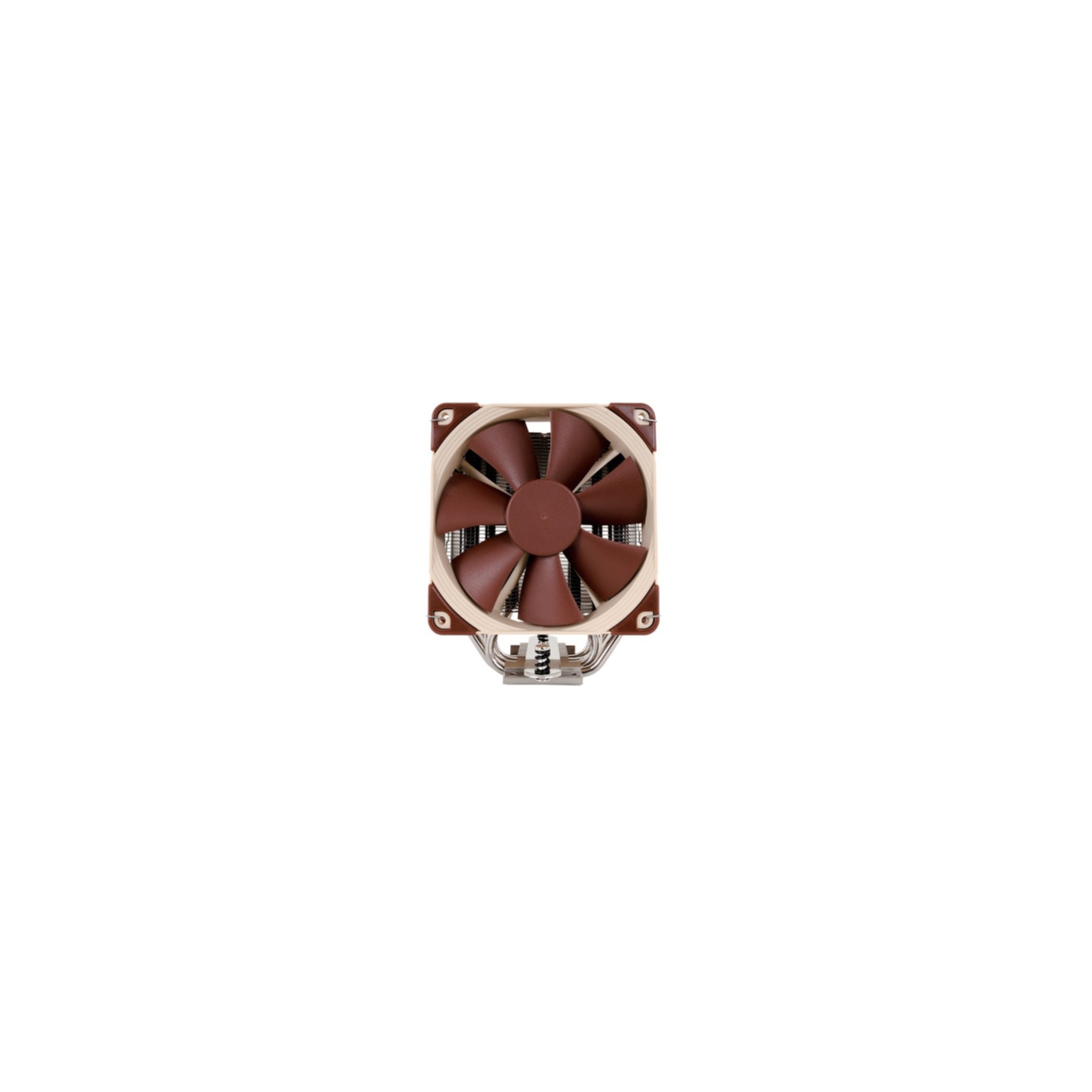

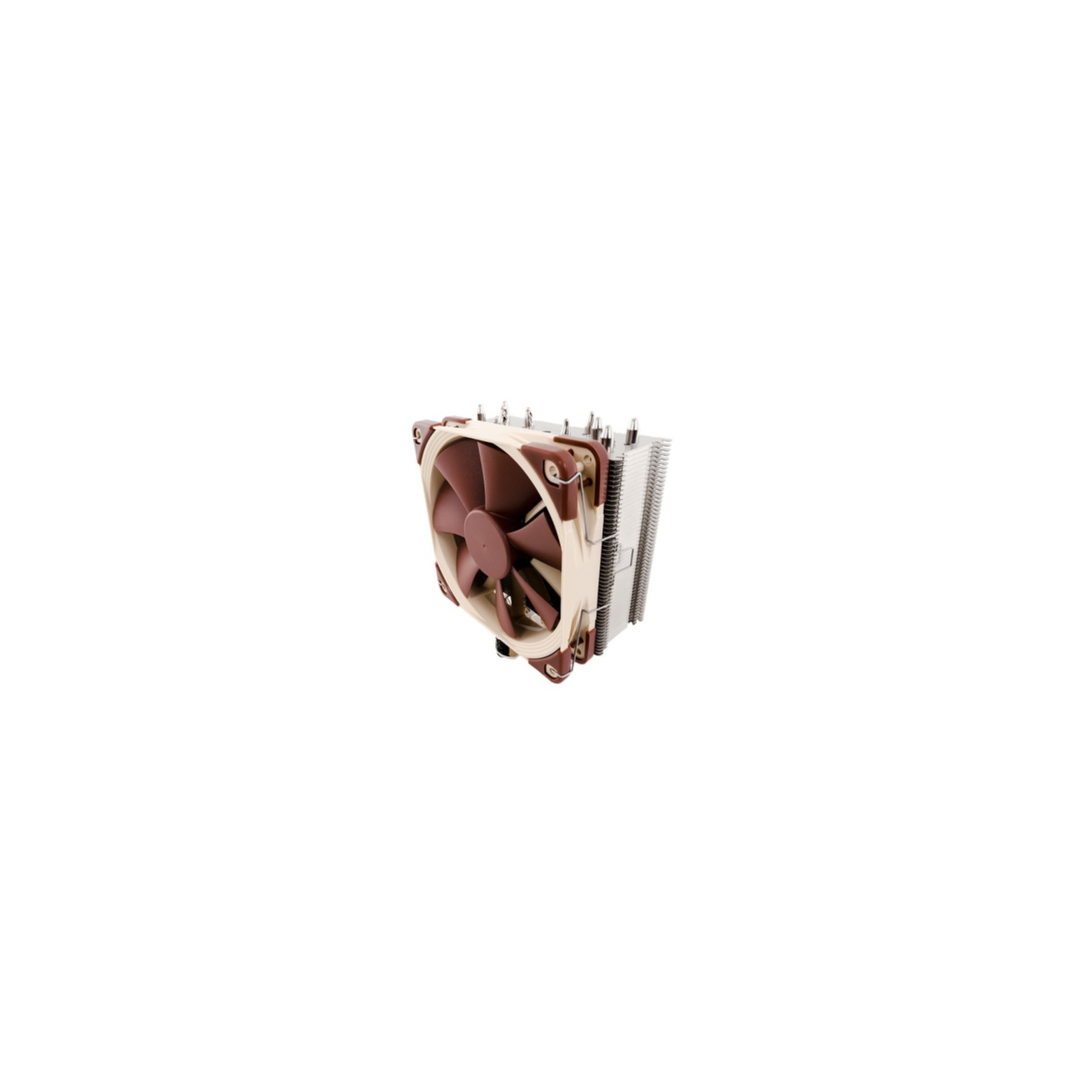

Noctua NH-U12A - CPU Air Tower Cooler with Dual 120mm PWM Fans - Beige/Brown/Silver, LGA1700 & AM5 Compatible
Noctua NH-U12A air cooler with dual 120x25mm PWM fans (SSO bearing), ultra-quiet 18.8–22.6 dB, 158 mm height, supports LGA1700/LGA1200 and AM5/AM4.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Cooling (CPU & Case) - Type (Cooler) | Air Tower |
|---|---|
| Cooling (CPU & Case) - Height (Air) | 156-165 mm |
| Cooling (CPU & Case) - Fans Included | 2x120 mm |
| Cooling (CPU & Case) - Noise Level | less than or equal to25 dBA |
| Cooling (CPU & Case) - RGB (Cooler) | None |
| Cooling (CPU & Case) - Fan Size | 120 mm |
| Cooling (CPU & Case) - Fan Thickness | 25 mm (standard) |
| Cooling (CPU & Case) - Fan Connector | 4-pin PWM |
| Cooling (CPU & Case) - Speed (RPM) | 1501-2000 |
| Cooling (CPU & Case) - Use Case | Airflow |
| Cooling (CPU & Case) - Lighting (Fan) | None |
Noctua NH-U12A. Type: Cooler. Fan diameter: 12 cm. Rotational speed (min): 450 RPM. Rotational speed (max): 2000 RPM. Airflow: 102.1 m³/h. Minimum air pressure: 1.65 mmH2O. Maximum air pressure: 2.34 mmH2O. Bearing type: Self-Stabilising Oil-pressure (SSO) bearing. Width: 125 mm. Depth: 112 mm. Height: 158 mm. Product colour: Beige. Brown. Silver
| Suitable location | Processor |
| Type | Cooler |
| Fan diameter | 12 cm |
| Rotational speed (min) | 450 RPM |
| Rotational speed (max) | 2000 RPM |
| Noise level (low speed) | 18.8 dB |
| Noise level (high speed) | 22.6 dB |
| Airflow | 102.1 m³/h |
| Minimum air pressure | 1.65 mmH2O |
| Maximum air pressure | 2.34 mmH2O |
| Feature | Mounting kit |
| Bearing type | Self-Stabilising Oil-pressure (SSO) bearing |
| Quantity per pack | 1 pc(s) |
| Mean time between failures (MTBF) | 150000 h |
| Product colour | Beige. Brown. Silver |
| Radiator material | Aluminum |
| Base plate material | Copper |
| Number of fans | 2 fan(s) |
| Number of fan blades | 9 |
| Fan connector | 4-pin |
| Rated voltage | 12 V |
| Width | 125 mm |
| Depth | 112 mm |
| Height | 158 mm |
| Weight | 1.22 kg |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Cables included | Fan |
| Harmonized System (HS) code | 84733080 |
