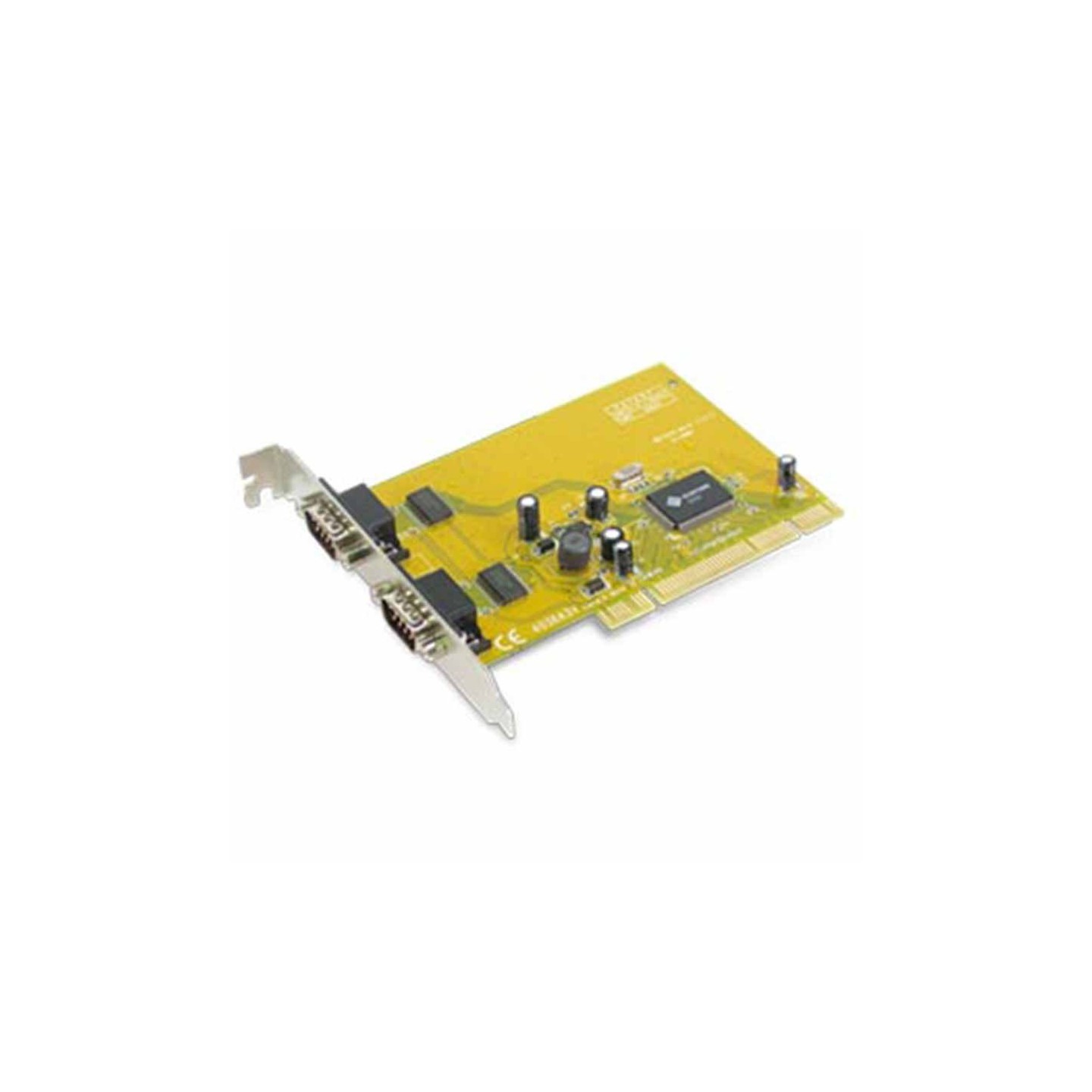

SUNIX 4036A3V 2-Port RS-232 PCI Serial Expansion Card (Boxed)
Industrial-grade 2-port RS-232 PCI serial expansion card with universal voltage support (3.3V/5V), PCI 2.2 compliance, and Plug-n-Play functionality for legacy system integration.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Expansion Cards - Product Type | IO Port Expansion |
|---|---|
| Expansion Cards - Host Interface | Legacy PCI |
| Expansion Cards - Form Factor | Standard Profile Full-Height |
| Expansion Cards - External Connectivity | Serial and Parallel |
The SUNIX 4036A3V is a professional-grade serial port expansion card designed for legacy and industrial computing systems. This 2-port RS-232 controller features a single-chipset ASIC design that delivers low RMA rates and exceptional reliability in demanding environments. The card is fully compliant with PCI 2.2 specifications and supports both 64-bit and 32-bit PCI bus architectures.
Built with universal voltage technology, the 4036A3V operates seamlessly across 3.3V and 5V PCI slots, making it compatible with virtually any PCI-based system. Its industrial-grade construction ensures stability and longevity, while Plug-n-Play functionality allows automatic I/O address and IRQ assignment via BIOS. The card features two DE-9/DB-9 serial connectors for RS-232 communication and is compatible with PCI-X systems and 64-bit architectures.
This expansion card is certified by WHQL, CE, and FCC, and provides broad operating system support including Microsoft Windows, Linux, and DOS environments. It is ideal for legacy system maintenance, industrial automation, and applications requiring reliable serial port connectivity.
- 2x RS-232 serial ports (DE-9/DB-9 connectors)
- PCI 2.2 specification compliant
- Supports 64-bit and 32-bit PCI bus slots
- Universal voltage: 3.3V and 5V compatible
- Plug-n-Play with automatic BIOS configuration
- Industrial-grade design for stability and reliability
- Compatible with PCI-X and 64-bit systems
- WHQL, CE, and FCC certified
- Operating system support: Windows, Linux, DOS
| Number of Serial Ports | 2 |
| Serial Interface Type | RS-232 |
| Connector Type | DE-9/DB-9 |
| Host Interface | PCI 2.2 |
| PCI Bus Support | 32-bit and 64-bit |
| Voltage Support | 3.3V and 5V |
| PCI-X Compatible | Yes |
| Chipset | SUNIX single-chipset ASIC design |
| Configuration | Plug-n-Play with automatic BIOS assignment |
| Operating System Support | Windows, Linux, DOS |
| Certifications | WHQL, CE, FCC |
| Design Grade | Industrial grade |
