PQ-434 ATA133 RAID Controller PCI IDE Card (Boxed)
PQ-434 ATA133 RAID Controller PCI card adds IDE ports for HDD, ZIP, MO, DVD drives. Supports RAID 0/1/0+1, dual Ultra ATA133 channels, PCI 2.2. Easy install in free PCI slot. Pentium II+, 32MB RAM req. Boosts legacy storage connectivity.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Expansion Cards - Product Type | Storage Controller and Adapter |
|---|---|
| Expansion Cards - Host Interface | Legacy PCI |
| Expansion Cards - Internal Connectivity | SATA Ports |
| Expansion Cards - Form Factor | Standard Profile Full-Height |
| Expansion Cards - External Connectivity | Internal Only |

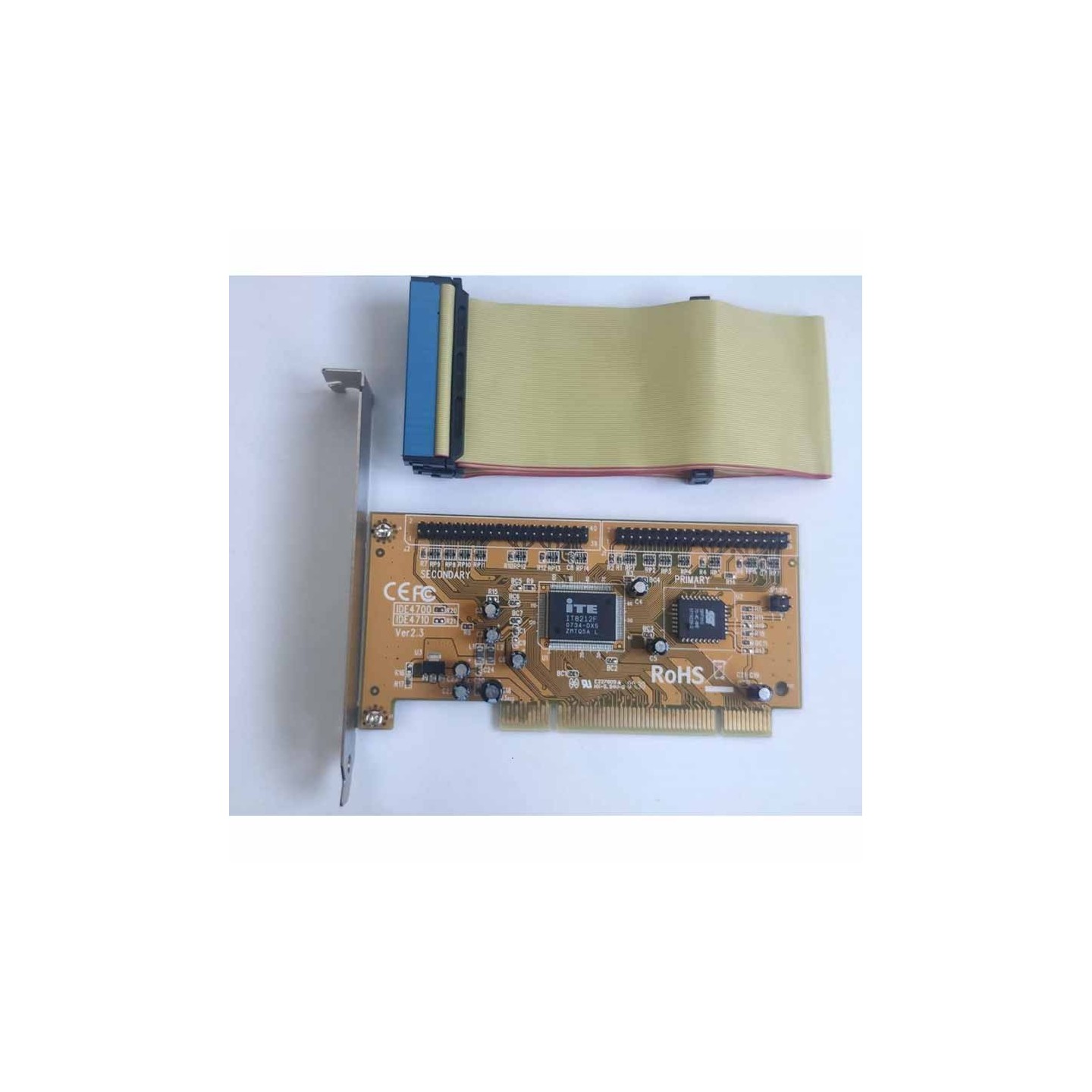

The PQ-434 ATA133 RAID Controller is a PCI interface card designed to expand IDE connectivity on desktop PCs. It installs easily into a motherboard PCI slot, enabling simple connection of legacy devices like HDDs, ZIP drives, MO drives, DVDs, and more.
Supporting UltraDMA6 ATA/133 with bus master DMA, it provides two independent channels for up to 4 drives total. RAID levels 0 (striping), 1 (mirroring), and 0+1 offer performance and fault tolerance. Backward compatible with ATA/100, 66, and older standards. Compliant with PCI 2.2 Plug-and-Play.
- Minimum requirements: Pentium II CPU or later, 1 free PCI slot, 32MB RAM, 2MB HD space
- Supports ATA DMA modes for optimal transfer rates up to 133 MB/s
- Ideal for adding storage to older systems without native IDE ports
- Internal 40-pin connectors (cables typically included)
| Product Type | Storage Controller and Adapter |
| Host Interface | Legacy PCI |
| Internal Connectivity | SATA Ports (IDE/ATA) |
| Chipset/Standard | UltraDMA6 ATA/133 |
| Channels | 2 independent Ultra ATA channels |
| Max Devices | Up to 4 IDE/ATA devices |
| RAID Support | RAID 0, 1, 0+1 |
| PCI Specification | PCI 2.2 Plug-and-Play |
| Data Transfer | 133 MB/s max |
| Connectors | 2x Internal 40-pin IDE |
| System Requirements | Pentium II or later, 1 PCI slot, 32MB RAM, 2MB HD space |
| Compatibility | Backward compatible ATA/100, 66, EIDE, ATAPI |
