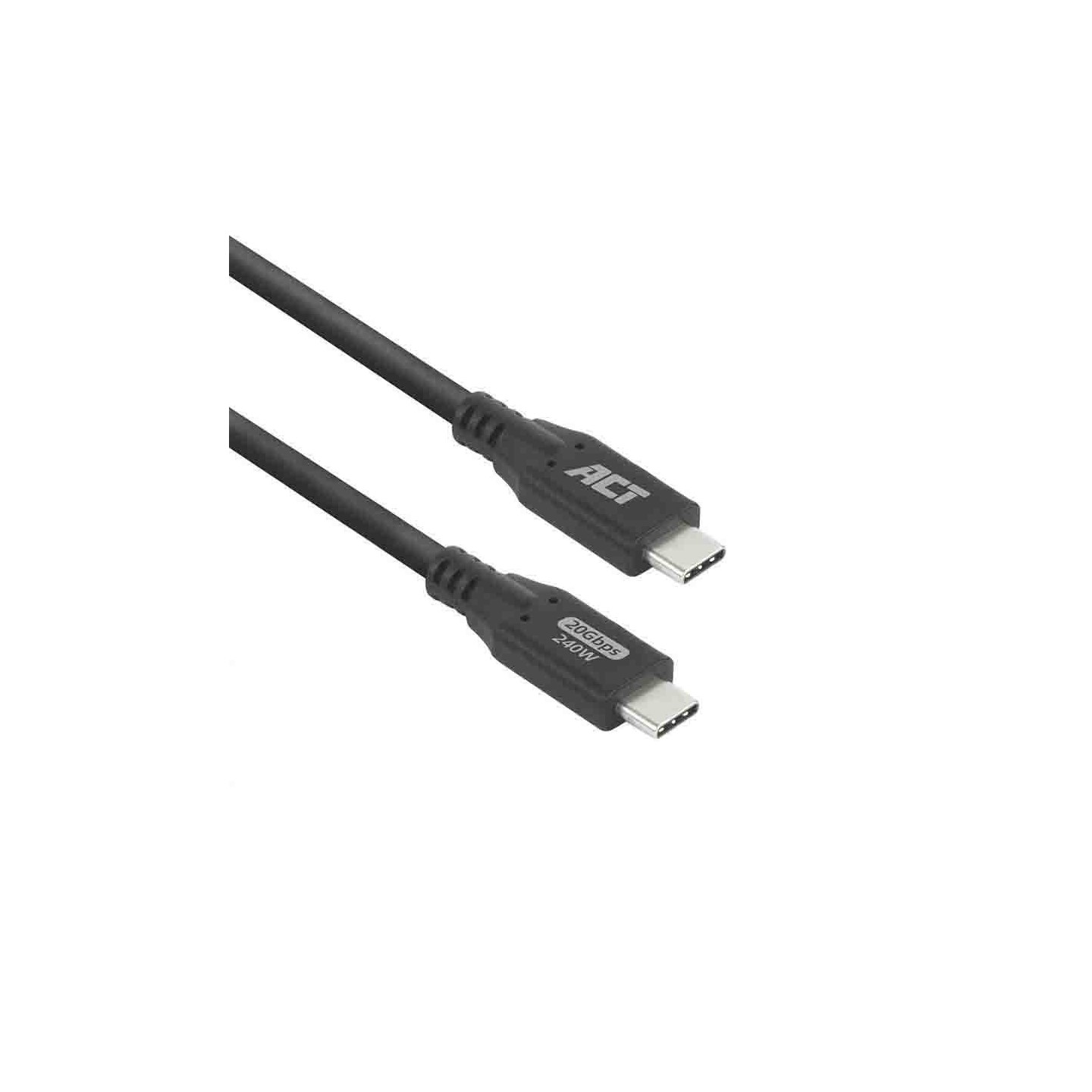

AC7421 1m 20Gbps USB4 240W USB-C Cable, Black - ACT (Bulk)
ACT AC7421 is a 1m USB4 USB-C to USB-C cable supporting 20Gbps data transfer, 240W Power Delivery (EPR with 48V), and DisplayPort 1.4 alt mode up to 8K@30Hz. Features 100% braided shielding, copper conductors (24/32 AWG), PVC jacket. Black color, no retail packaging.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| USB-C Cables - Source Connector | USB-C |
|---|---|
| USB-C Cables - Data Transfer Standard | USB 3.2 Gen 2x2 (20 Gbps) |
| USB-C Cables - Cable Length | Standard (1m - 2m) |
| USB-C Cables - Power Capacity | EPR (240W PD 3.1) |
| USB-C Cables - Special Features | Braided Nylon |
The ACT AC7421 is a high-performance USB4 cable designed for fast data transfer, high-power charging, and video output through a single USB Type-C connection. Measuring 1 meter in length, it supports USB4 technology at 20Gbps speeds, making it ideal for connecting laptops, docks, monitors, and peripherals requiring superspeed data.
Equipped with an intelligent e-marker chip, the AC7421 negotiates capabilities with connected devices to deliver up to 240W Power Delivery via Extended Power Range (EPR), including 48V profiles. It also supports DisplayPort 1.4 alternate mode for video resolutions up to 7680x4320@30Hz or 4096x2160@60/120Hz. The cable features robust construction with 100% braided shielding, pure copper conductors (24/32 AWG), PVC outer jacket, and 5mm diameter for durability and flexibility.
- Connector A: USB-C Male (x1)
- Connector B: USB-C Male (x1)
- Data Speed: 20Gbps USB4
- Power: 240W PD EPR (5V/9V/12V/15V/20V/36V/48V up to 5A)
- Video: DP 1.4 Alt Mode, max 8K@30Hz
- Shielding: 100% Braid
- Color: Black
- Thunderbolt: No
| Product category | USB cables |
| Cable length | 1M |
| USB Type-C | YES |
| Connector type | USB |
| Connector A | USB C male (x1) |
| Connector B | USB C male (x1) |
| Shielding type | 100% braid |
| Conductor material | Copper |
| Wire gauge | 24, 32 AWG |
| Outer Jacket | PVC |
| Outer diameter | 5mm |
| Cable color | Black |
| Max. power Delivery power | 240W |
| Supported power delivery profiles | 12V up to 5.0A, 15V up to 5A, 20V up to 5A, 36V up to 5A, 48V up to 5A, 5V up to 5A, 9V up to 5A |
| DP alt mode version | DP1.4 |
| Supported USB-C protocols | Displayport alternate mode, Power delivery (EPD), USB data |
| Thunderbolt support | NO |
| Max. Resolution @30Hz | 7680x4320 |
| Max. Resolution @60Hz | 4096 x 2160 |
| Max. Resolution @120Hz | 4096 x 2160 |
| USB Version | USB 4.0 – Superspeed 20Gbit/s |
| Speed | 20Gbps |
| Retail packaging | NO |
| E-marker chip | Yes |
