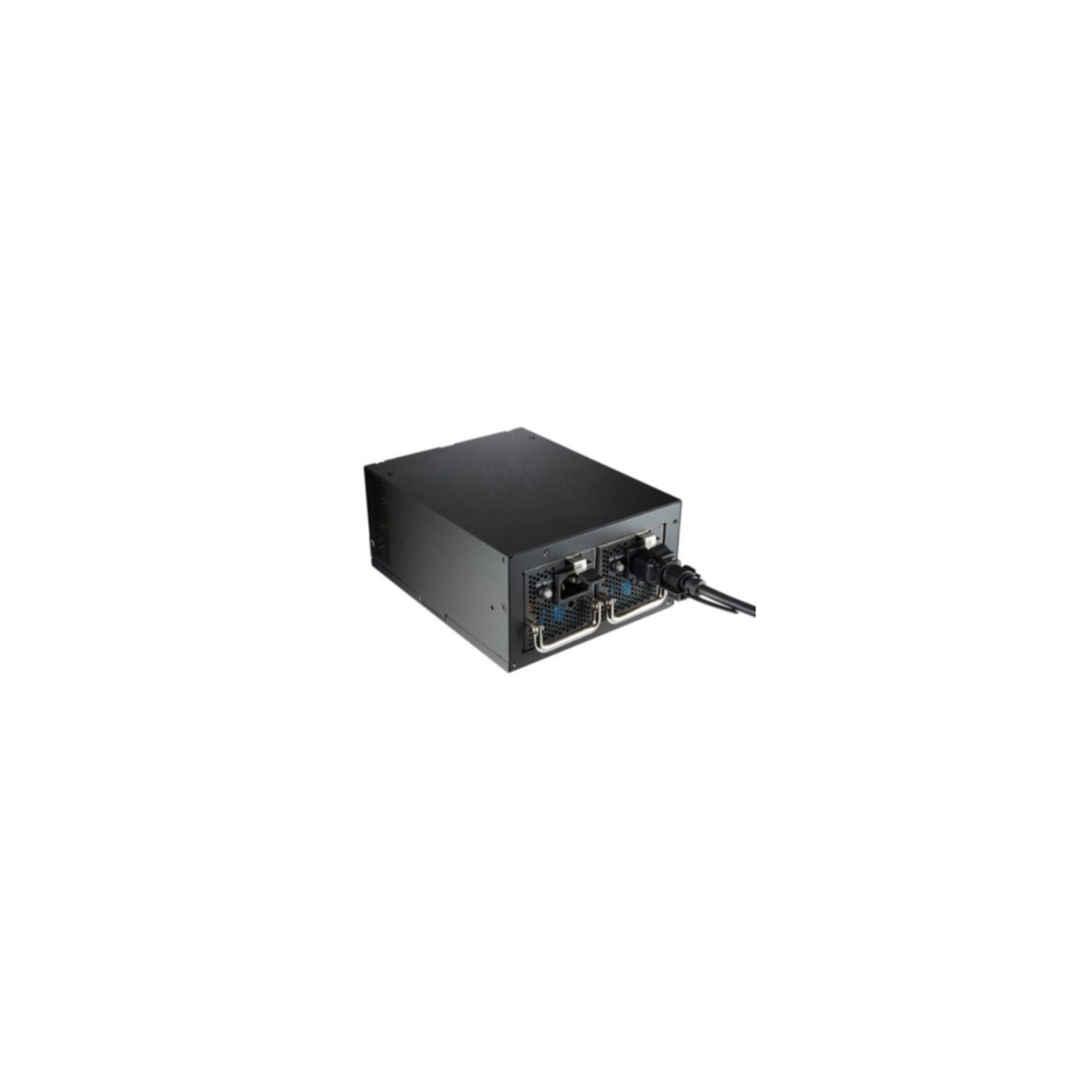

Fortron Twins PRO 500 Redundant 500W Hot-Swappable PSU 80 PLUS Gold PS/2 (Boxed)
Redundant 500W hot-swappable PSU with dual PS2 modules, 80 PLUS Gold efficiency, non-modular cables. Ideal for ATX/PS2 servers, home NAS; ensures zero downtime on failure.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 500 - 599 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 4x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |
The Fortron Twins PRO 500 is a redundant dual-module power supply designed for standard ATX or PS2 chassis, perfect for mail, web, or home servers. Its hot-swappable design ensures stable power; if one module fails, the other instantly takes over, preventing any downtime.
Featuring a modular system that distributes load for efficiency and quiet operation, it includes black ribbon cables for better heat dissipation, cable management, and aesthetics. A power cord locking device prevents accidental disconnects. Syncs with FSP Guardian software via USB for real-time monitoring of power, efficiency, and temperatures.
- 80 PLUS Gold certified, ≥90% efficiency
- Single +12V rail (41.76A), Active PFC
- Connectors: 20+4pin ATX, 4+4pin EPS, 4x PCIe (6+2pin), 6x SATA, 2x Molex
- 2x 40mm DBB fans, full protections (OCP/OVP/OPP/OTP/SCP/UVP)
- Dimensions: 190x150x86mm, made in China
| Total power | 500 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 8-4 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Combined power (+5V) | 130 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 41.76 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) | Yes |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | Server |
| Power supply unit (PSU) form factor | PS/2 |
| Bearing technology | DBB |
| Product colour | Black |
| Fan diameter | 4 cm |
| Number of fans | 2 fan(s) |
| Cables included | CPU, PCIe, SATA |
| Width | 86 mm |
| Depth | 150 mm |
| Height | 190 mm |
| Harmonized System (HS) code | 84733020 |
| Model / P/N | FSP500-50RAB |
