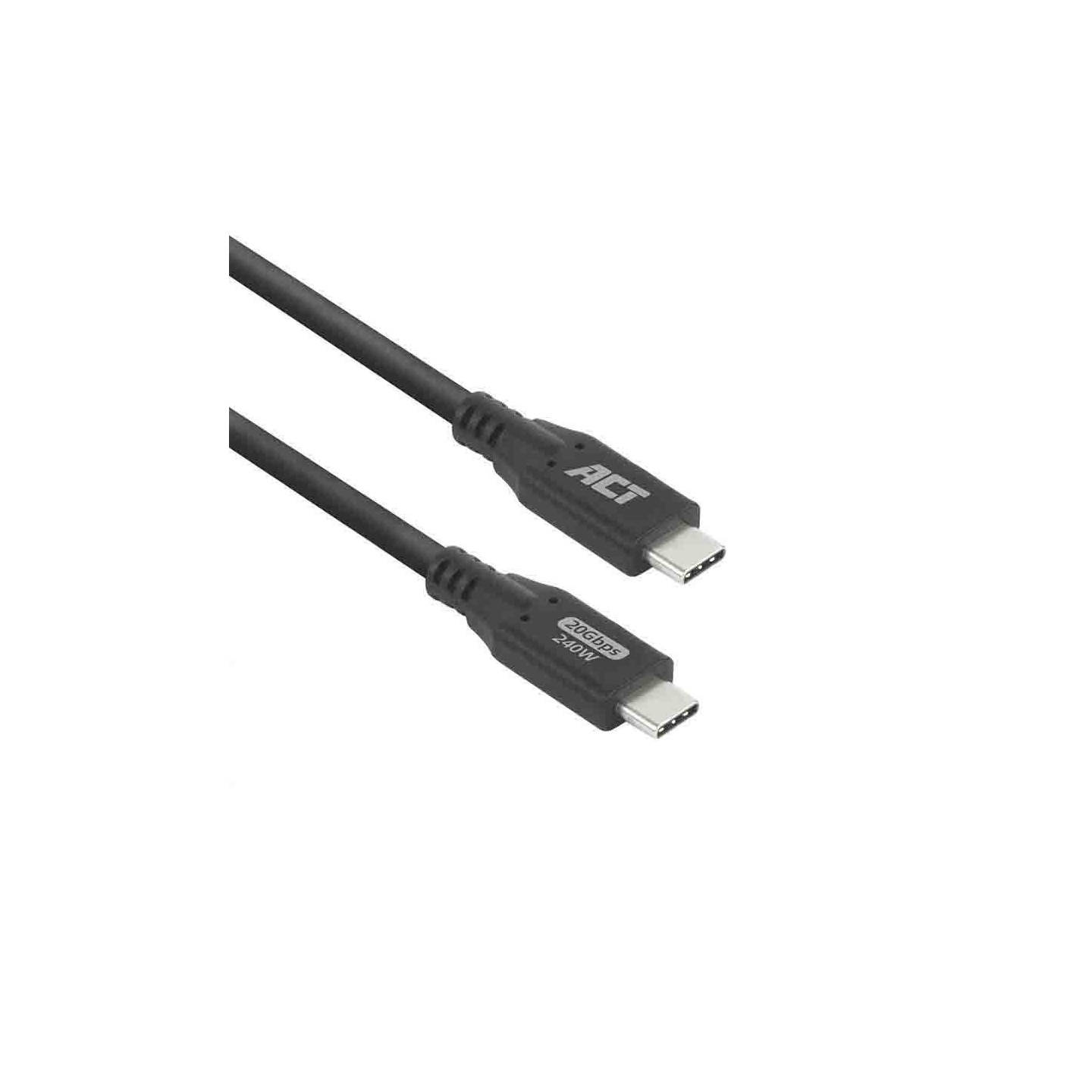

ACT AC7422 USB4 20Gbps 240W 2m USB-C Cable Black (Boxed)
ACT AC7422 USB4 cable delivers 20Gbps data transfer and 240W power delivery with Extended Power Range. Features DisplayPort 1.4 for 4K@60Hz video, e-marker chip, and 2-meter length with 100% braided shielding.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| USB-C Cables - Source Connector | USB-C |
|---|---|
| USB-C Cables - Data Transfer Standard | USB4 (40 Gbps) |
| USB-C Cables - Cable Length | Long (2m - 3m) |
| USB-C Cables - Power Capacity | EPR (240W PD 3.1) |
| USB-C Cables - Special Features | Braided Nylon |
The ACT AC7422 is a premium USB4 cable designed for high-performance connectivity between USB-C devices. With support for 20Gbps data transfer speeds, this 2-meter cable enables fast file synchronization and seamless device communication. The cable features Extended Power Range (EPR) technology supporting up to 240W power delivery through the 48V profile, making it suitable for charging high-power devices including laptops and external displays.
This cable incorporates an intelligent e-marker chip that communicates with connected devices to ensure optimal performance and safety. It supports DisplayPort Alternate Mode 1.4 with maximum resolution of 4K at 60Hz, allowing simultaneous data transfer and video output through a single connection. The AC7422 is fully backward compatible with USB 3.2, USB 3.1, USB 3.0, and USB 2.0 standards. Construction features include 100% braided shielding, copper conductors (24/32 AWG), PVC outer jacket, and 5mm outer diameter for durability and flexibility.
Key specifications and features:
- USB4 technology with 20Gbps SuperSpeed data transfer
- 240W power delivery with Extended Power Range (EPR) and 48V profile
- DisplayPort 1.4 Alternate Mode supporting 4K@60Hz video
- Intelligent e-marker chip for device communication
- 100% braided shielding with copper conductors
- 2-meter cable length with 5mm outer diameter
- Backward compatible with USB 3.x and USB 2.0
- Black color with PVC outer jacket
| USB Version | USB 4.0 |
| Data Transfer Speed | 20 Gbps |
| Cable Length | 2 m |
| Connector Type A | USB-C male |
| Connector Type B | USB-C male |
| Power Delivery | 240W (Extended Power Range) |
| Power Delivery Profiles | 5V/5A, 9V/5A, 12V/5A, 15V/5A, 20V/5A, 36V/5A, 48V/5A |
| DisplayPort Alternate Mode | DP 1.4 |
| Maximum Resolution @ 60Hz | 4096 x 2160 (4K) |
| Maximum Resolution @ 120Hz | 4096 x 2160 |
| Maximum Resolution @ 30Hz | 7680 x 4320 (8K) |
| Backward Compatibility | USB 3.2, USB 3.1, USB 3.0, USB 2.0 |
| Thunderbolt Support | No |
| E-Marker Chip | Yes |
| Shielding Type | 100% braided |
| Conductor Material | Copper |
| Wire Gauge | 24, 32 AWG |
| Outer Jacket | PVC |
| Outer Diameter | 5 mm |
| Cable Color | Black |
| Manufacturer | ACT |
| Model Number | AC7422 |
