be quiet! Dark Power Pro 13 BN331 1300W ATX 3.1 80+ Titanium Fully Modular (Boxed)
1300W ATX 3.1 PSU w/ 2x 12V-2x6 + 6x PCIe 6+2-pin, 80+ Titanium (94.4%), fully modular, frameless 135mm FDB fan, digital control, overclock key, 10yr warranty.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 1200 - 1499 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Titanium |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12V-2x6 6x 8/6 pins |
| PSU (Power Supplies) - Length | 180+ mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |

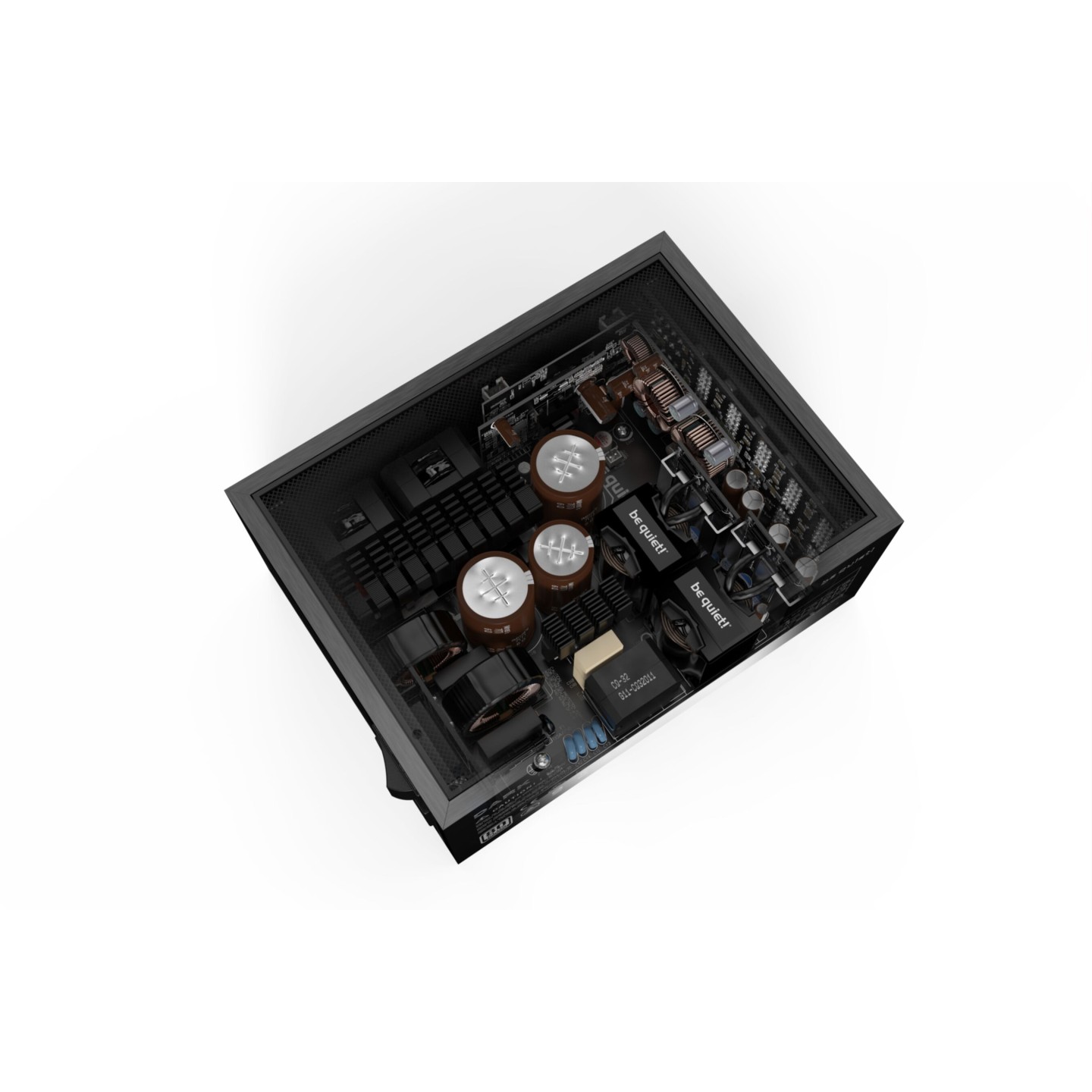

The be quiet! Dark Power Pro 13 1300W (BN331) is a flagship ATX 3.1 power supply designed for high-end systems and next-gen GPUs. It delivers 1300W continuous power (1400W peak) with 80 PLUS Titanium efficiency up to 94.4-94.5%, ensuring minimal energy waste, low heat, and quiet operation. Featuring fully digital control of PFC, LLC, SR, and full bridge topology, it provides superior voltage regulation, low ripple, and stability even under extreme GPU transient loads.

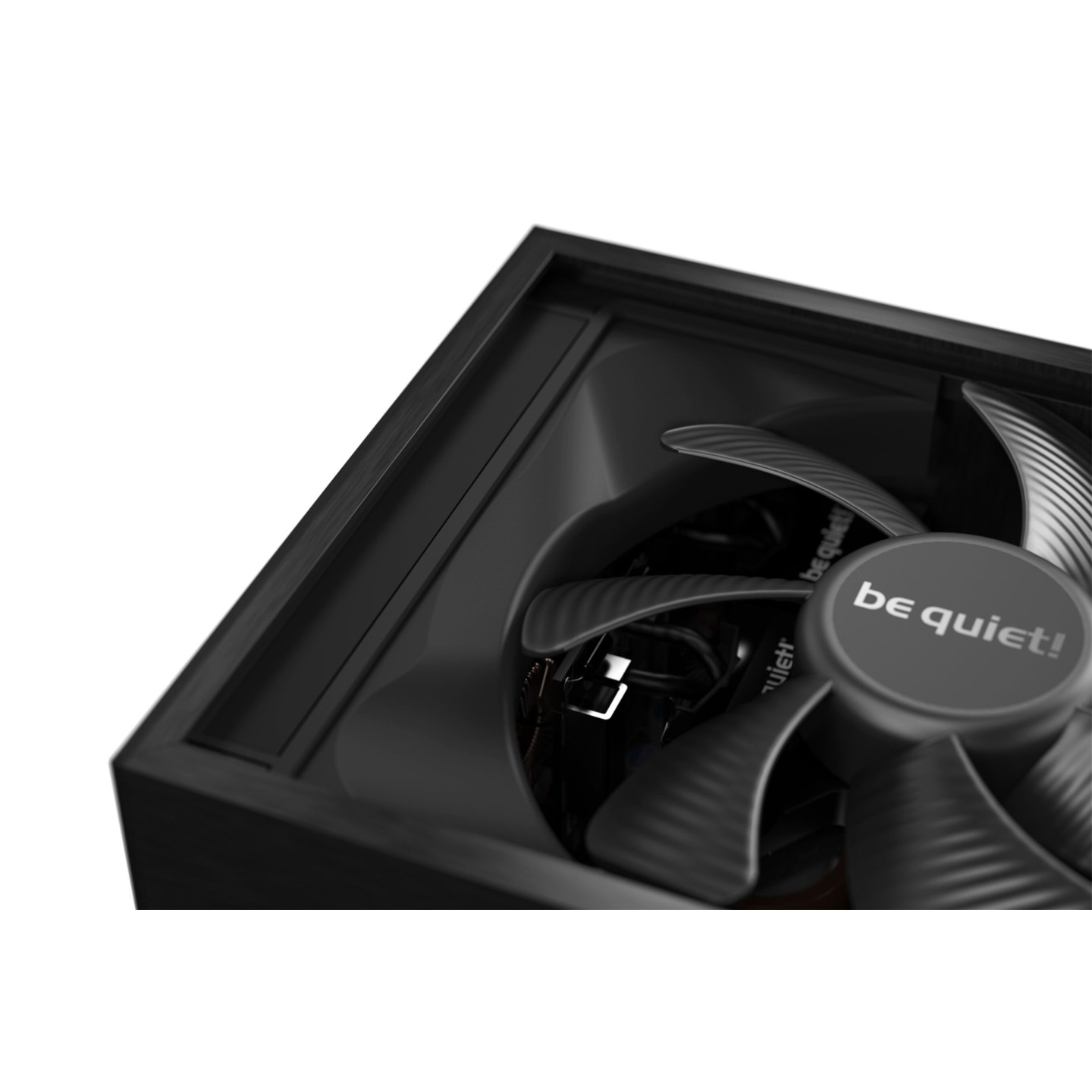

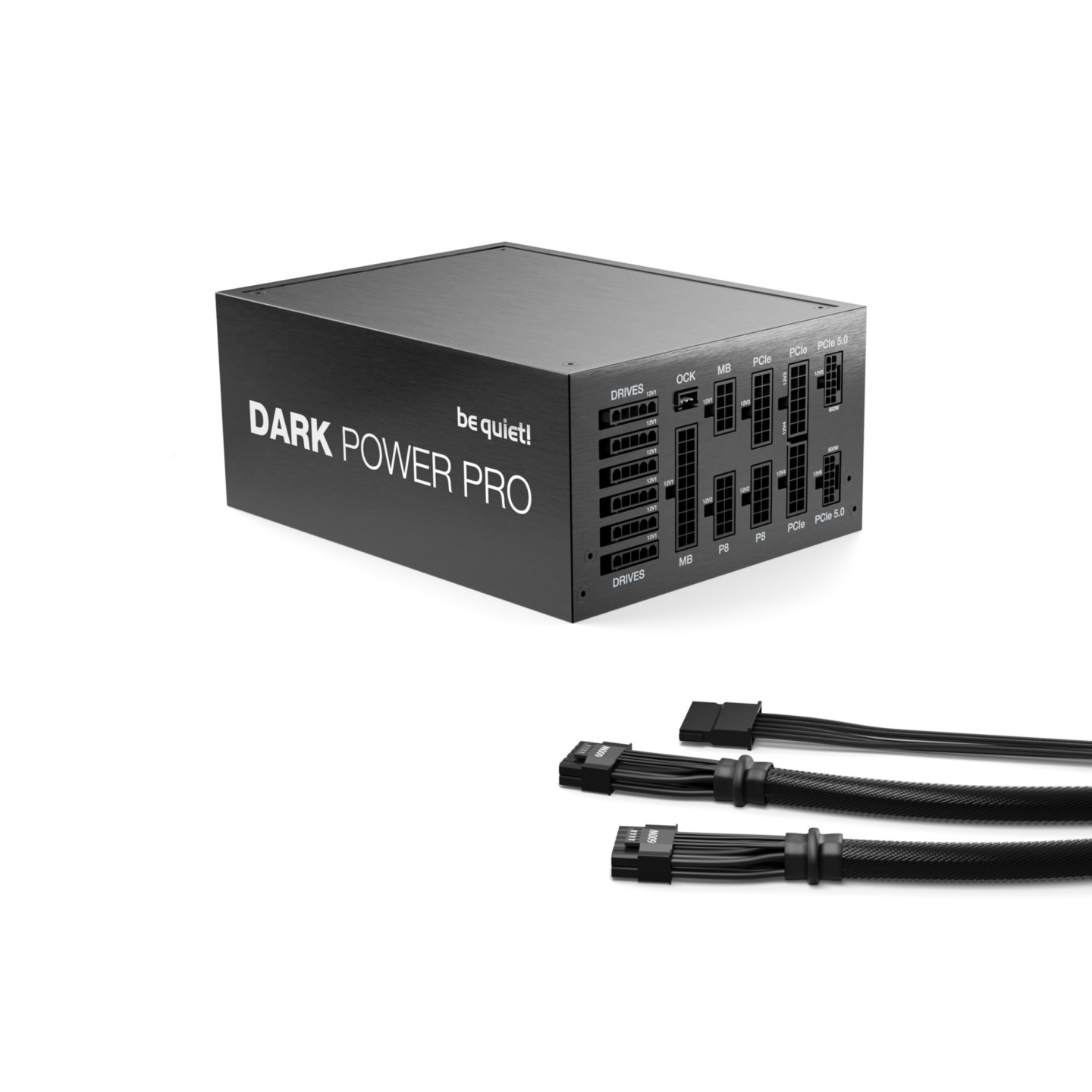

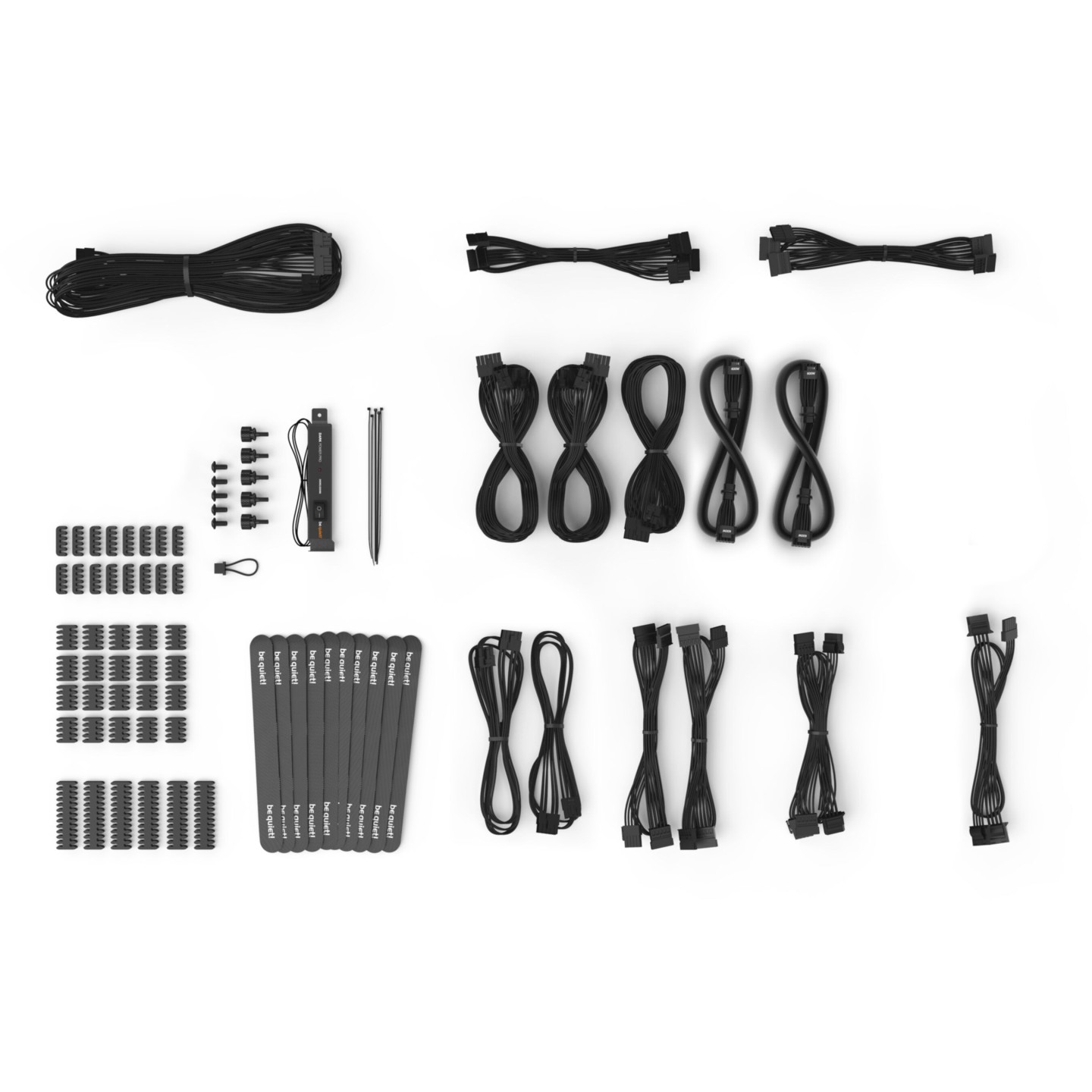

Key highlights include native 2x 12V-2x6 (PCIe 5.1) connectors for up to 600W each, plus 6x PCIe 6+2-pin for legacy compatibility, fully modular sleeved cables, and an overclocking key to merge six 12V rails into one massive rail. The patented frameless 135mm Silent Wings FDB fan with full mesh grill operates silently (down to 10.2 dB(A) at low loads), while Japanese 105°C capacitors and premium components ensure reliability with a 10-year warranty.
- ATX 3.1 / EPS 2.92 compliant, handles power excursions
- Standby power <0.1W, power factor >0.99
- Protection: OCP/OPP/OTP/OVP/SCP/UVP
- Dimensions: 150x86x200mm; Weight: 2.41kg (net)
- Topology: Full bridge + LLC + SR + DC/DC
| Total power | 1300 W |
| Peak power | 1400 W |
| AC input voltage | 115 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 15 / 9 A |
| Power factor | >0.99 |
| Combined power (+3.3V) | 150 W |
| Combined power (+12V) | 1300 W |
| Combined power (+5V) | 150 W |
| Combined power (+5Vsb) | 17.5 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+5V) | 25 A |
| Max output current (+12V) | 108.33 A |
| Max output current (+5Vsb) | 3.5 A |
| Max output current (-12V) | 0.5 A |
| Hold time | 18 ms |
| Efficiency | 94.4% |
| 80 PLUS certification | 80 PLUS Titanium |
| ATX version | 3.1 |
| EPS version | 2.92 |
| Cabling type | Fully-Modular |
| PCI Express power connectors (12V-2x6) | 2 |
| PCI Express power connectors (6+2 pin) | 6 |
| Fan diameter | 135 mm |
| Bearing technology | FDB |
| Noise level | 10.2 dB(A) at 20-50% load |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |
| Number of fans | 1 |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Warranty period | 10 year(s) |
| Width | 150 mm |
| Depth | 200 mm |
| Height | 86 mm |
| Weight | 2.41 kg |
| Package width | 253 mm |
| Package depth | 417 mm |
| Package height | 152 mm |
| Package weight | 6.8 kg |
