LogiLink PC0080 PCI Express Card 2x USB 3.1 Gen2 Type-A (Boxed)
PCI Express card with 2x USB 3.1 Gen2 Type-A ports (10Gbps). Asmedia ASM1142 chipset, PCIe Gen2 x2 interface. Backward compatible USB 3.0/2.0/1.1. Supports Win7/8/8.1.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Expansion Cards - Product Type | IO Port Expansion |
|---|---|
| Expansion Cards - Host Interface | PCIe x4 |
| Expansion Cards - Form Factor | Standard Profile Full-Height |
| Expansion Cards - External Connectivity | USB Type-A |

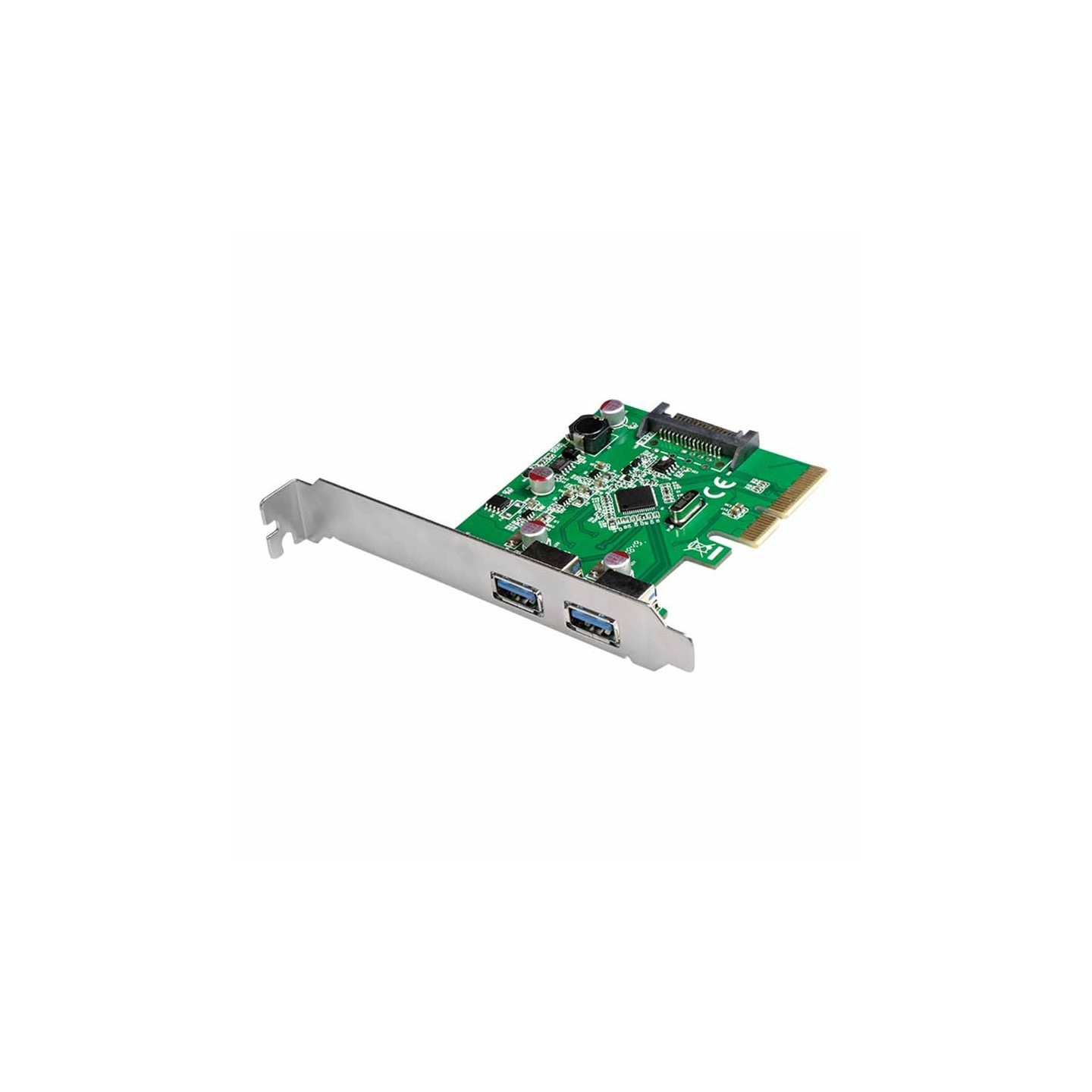

The LogiLink PC0080 is a high-performance PCI Express expansion card that adds two USB 3.1 Gen2 Type-A ports to your desktop PC, enabling super-fast data transfers up to 10 Gbit/s. Featuring the reliable Asmedia ASM1142 chipset and PCIe Gen2 x2 interface, it bridges high-speed USB connectivity with low latency. Ideal for connecting high-bandwidth peripherals like external SSDs, cameras, or docks.
Backward compatible with USB 3.0, 2.0, and 1.1 devices, the PC0080 ensures seamless integration with existing hardware. Each port supports 5V/2A (10W) power delivery and includes over-current protection, remote wakeup, and legacy USB support. Drivers required for Windows 7; plug-and-play on Win8/8.1. Compact design measures 120 x 73 x 20 mm, weighs just 50g.
- PCIe Gen2 x2 host interface
- 2x USB 3.1 Gen2 Type-A ports (10 Gbps max)
- Asmedia ASM1142 chipset
- Backward compatibility: USB 3.0/2.0/1.1
- Power per port: 5V/2A
- OS support: Windows 7/8/8.1
- Includes CD with drivers
| Product Type | USB 3.1 PCI Express Host Controller Card |
| Host Interface | PCI Express Gen2 x2 |
| Chipset | Asmedia ASM1142 |
| External Ports | 2x USB 3.1 Gen2 Type-A |
| Max Transfer Rate | 10 Gbit/s |
| Power per Port | 5V/2A (10W) |
| Backward Compatibility | USB 3.0/2.0/1.1 |
| OS Support | Windows 7/8/8.1 (Win8/8.1 Plug & Play) |
| Product Dimensions | 120 x 73 x 20 mm |
| Product Weight | 50 g |
| Package Contents | 1x Card, 1x CD |
