Thermaltake TR2 S 500W Power Supply - Non-Modular, 80 PLUS 230V (up to 86%), Quiet 120mm Fan, ATX
Thermaltake TR2 S 500W ATX PSU — 80 PLUS 230V efficiency up to 86%, non-modular sleeved cables, quiet 120mm fan, single +12V rail, Haswell ready.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| PSU (Power Supplies) - Modularity | Non-modular |
|---|---|
| PSU (Power Supplies) - Fan Size | 120 mm |

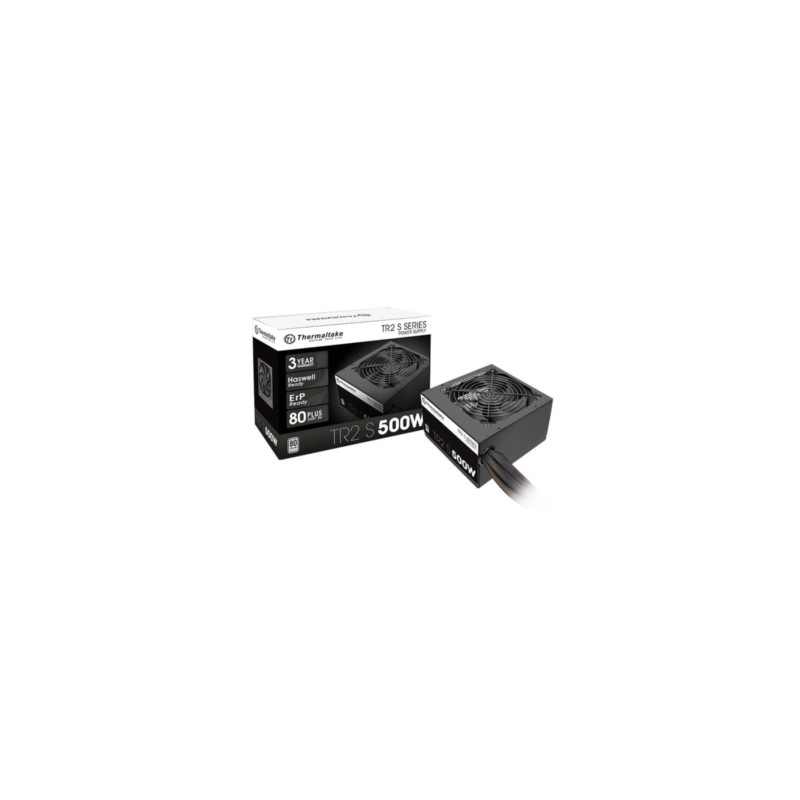

Thermaltake TR2 S 500W
Incorporating various high-quality components, the new TR2 S Series – models are rated from 500W to 700W – saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.

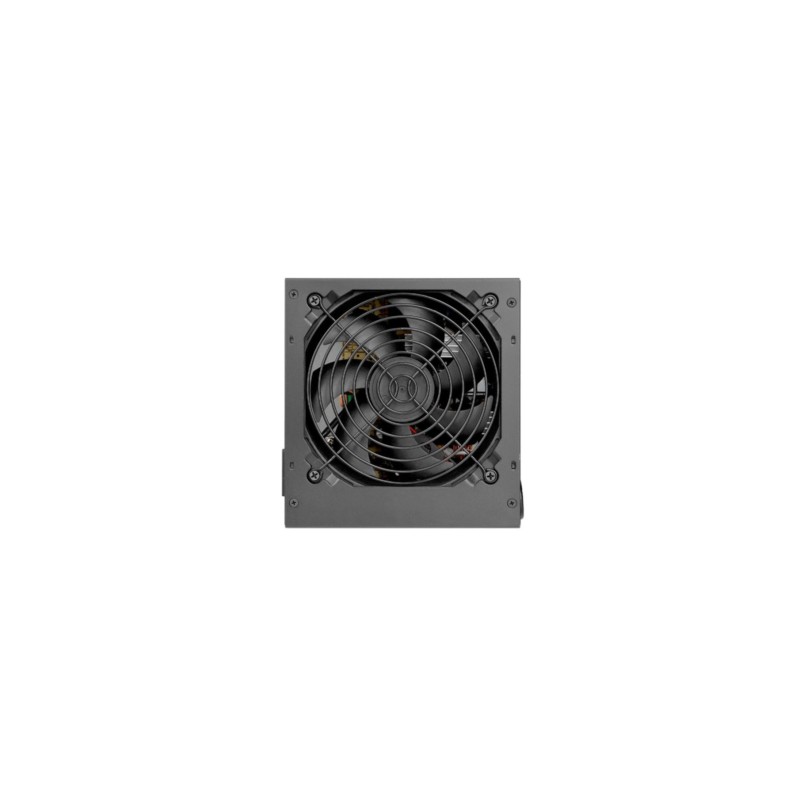

Ultra Quiet 120mm Fan
TR2 S Series adopt 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.
Multiple Connectors
The cables used for TR2 S Series are all sleeved. TR2 S 500W connector’s specification as below:
80 PLUS 230V Standard Certified and Haswell Ready
TR2 S Series saves energy through its high energy efficiency of up to 86% and is 80 PLUS® 230V Standard Certified.

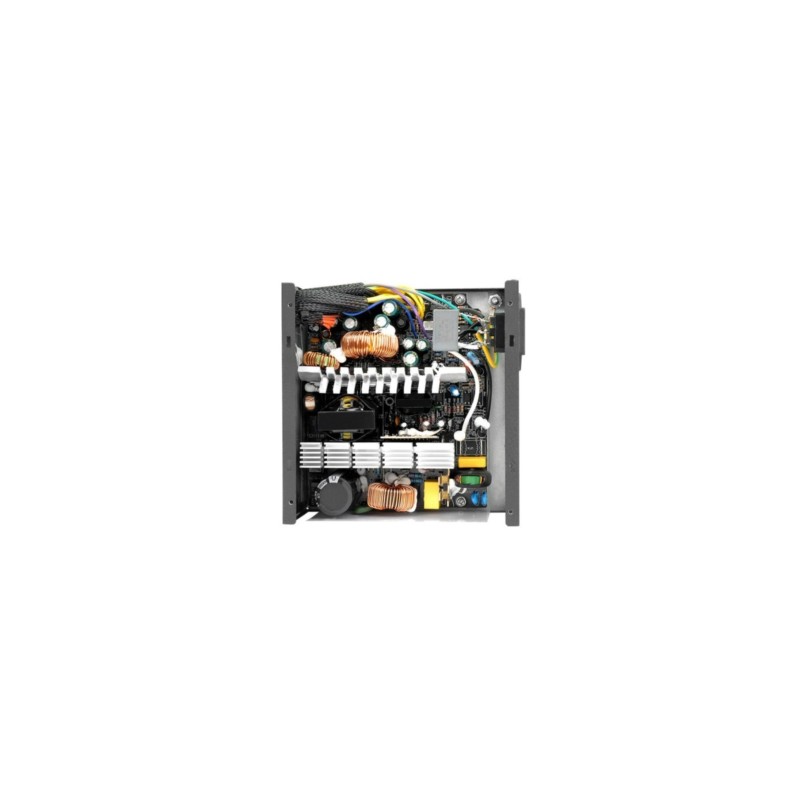

High-Quality Components
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.
Single +12V Output
TR2 S Series is equipped with powerful +12V rails, superior performance under all types of system loading. Please see the output specification below:
| Total power | 500 W |
| AC input voltage | 230 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 8 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 420 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 35 A |
| Max output current (+5V) | 15 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2.5 A |
| Hold time | 16 ms |
| Efficiency | 86% |
| Power Good signal delay range | 100 - 500 ms |
| Motherboard power connector | 20+4 pin ATX |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 2 |
| Floppy disk drive connector | Yes |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.3 |
| Mean time between failures (MTBF) | 100000 h |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan speed | 1800 |
| Fan location | Top |
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -40 - 55 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 10 - 95% |
| Certification | CE/CB/TUV |
| Width | 86 mm |
| Depth | 140 mm |
| Height | 150 mm |
| Harmonized System (HS) code | 84733020 |
