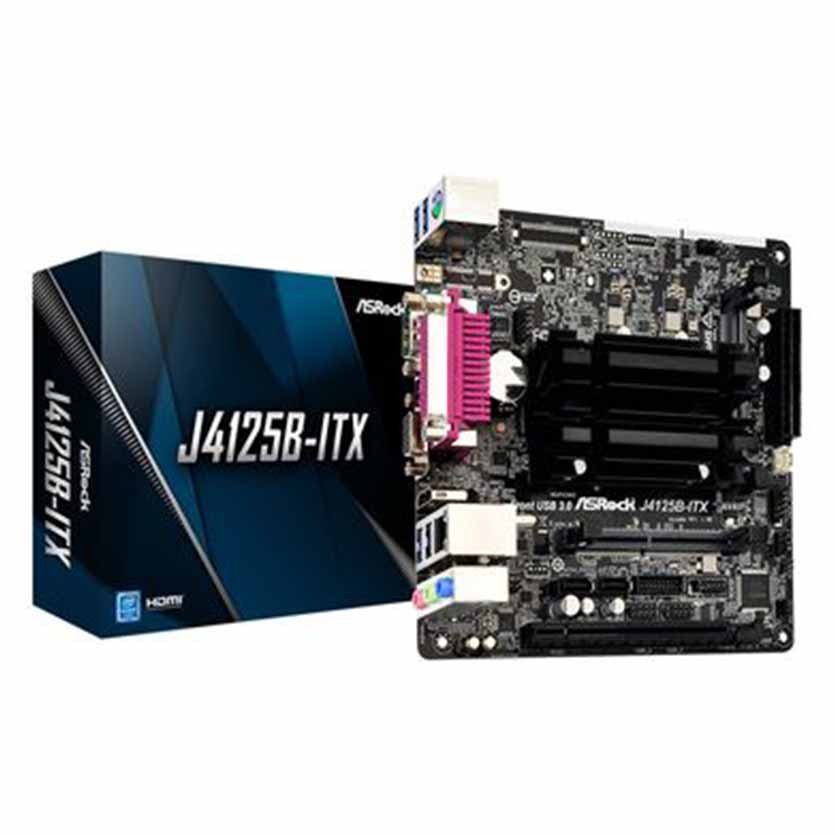

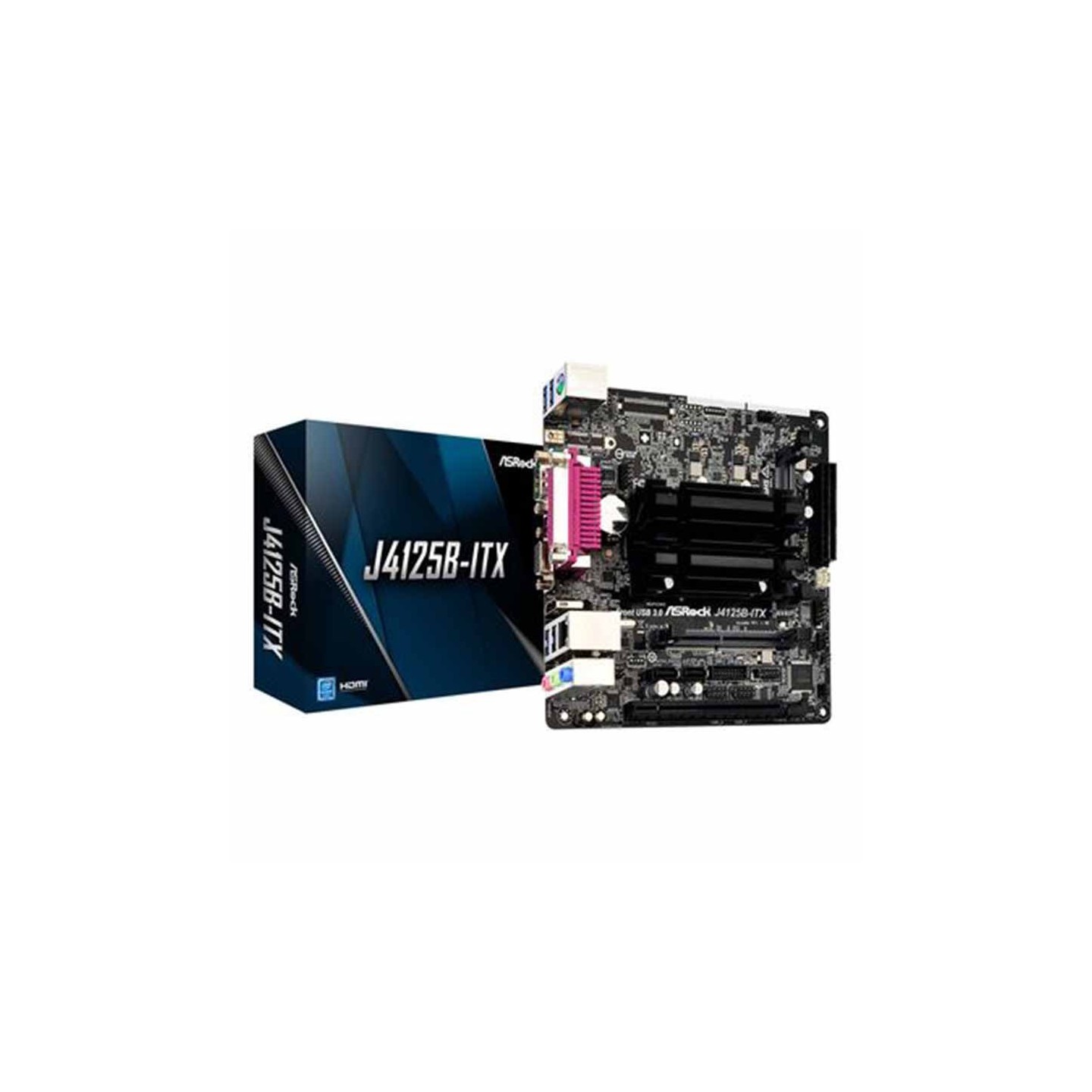

ASRock J4125B-ITX Intel Celeron J4125 Mini-ITX Motherboard (Boxed)
ASRock J4125B-ITX is a fanless mini-ITX motherboard featuring Intel Celeron J4125 quad-core processor (up to 2.7GHz), DDR4 memory support, and integrated Intel UHD Graphics 600.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | Socket AM1 |
|---|---|
| Motherboards - Chipset | AMD A300 |
| Motherboards - Form Factor | Mini-ITX |
| Motherboards - Memory Type | SO-DIMM DDR4 |
| Motherboards - Memory Profile Support | None |
| Motherboards - Memory Slots | 2 |
| Motherboards - Max Memory Capacity | 64 GB |
| Motherboards - Main Slot PCIe Version | PCIe 3.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 1 |
| Motherboards - SATA Ports | 2 |
| Motherboards - USB-C Support | None |
| Motherboards - RGB Headers | None |
| Motherboards - Wireless Connectivity | None |
The ASRock J4125B-ITX is a compact fanless mini-ITX motherboard designed for cost-effective, low-power computing applications. It features the Intel Celeron J4125 quad-core processor running up to 2.7GHz with integrated Intel UHD Graphics 600 (12 EUs, up to 750MHz), eliminating the need for a dedicated graphics card. The motherboard supports DDR4 2400/2133 MHz memory with a maximum capacity of 8GB across 2 SO-DIMM slots, making it suitable for light workloads, office applications, and embedded systems.
Connectivity is comprehensive for its size, featuring 3x USB 3.2 Gen1 ports, 1x USB 2.0 port, and Gigabit Ethernet via Realtek RTL8111H controller. Storage options include 2x SATA-600 connectors and 1x PCIe 2.0 x16 slot (operating in x2 mode). The board includes Sapphire Black PCB for enhanced durability and features a fanless design, making it ideal for silent operation in HTPC, NAS, and industrial applications. Audio is handled by Realtek ALC887 codec supporting 8-channel High Definition Audio.
Key Features:
- Fanless design for silent, maintenance-free operation
- Intel Celeron J4125 quad-core processor up to 2.7GHz
- Integrated Intel UHD Graphics 600
- DDR4 2400/2133 MHz support, max 8GB
- Gigabit Ethernet connectivity
- Multiple USB 3.2 Gen1 and USB 2.0 ports
- 2x SATA-600 storage connectors
- Compact mini-ITX form factor (17cm x 17cm)
- Sapphire Black PCB for durability
| Processor | Intel Celeron J4125 Quad-Core |
| Processor Speed | Up to 2.7GHz |
| Integrated Graphics | Intel UHD Graphics 600 (12 EUs, up to 750MHz) |
| Form Factor | Mini-ITX |
| Memory Type | DDR4 SO-DIMM |
| Memory Speed | DDR4 2400 MHz, DDR4 2133 MHz |
| Memory Slots | 2 x 260-pin SO-DIMM |
| Maximum Memory | 8GB |
| Memory Configuration | Dual Channel, Non-ECC, Unbuffered |
| SATA Ports | 2 x SATA-600 |
| PCIe Slots | 1 x PCIe 2.0 x16 (x2 mode) |
| USB 3.2 Gen1 Ports | 3 (Rear) + 2 (Headers) |
| USB 2.0 Ports | 1 (Rear) + 4 (Headers) |
| Network | Gigabit Ethernet (Realtek RTL8111H) |
| Audio | Realtek ALC887, 8-channel High Definition Audio |
| Power Connector | 24-pin ATX |
| BIOS | 128Mb AMI UEFI with GUI, Plug and Play, ACPI 5.0, SMBIOS 3.0 |
| PCB Color | Sapphire Black |
| Cooling | Fanless Design |
| Dimensions (PCB) | 17cm x 17cm |
