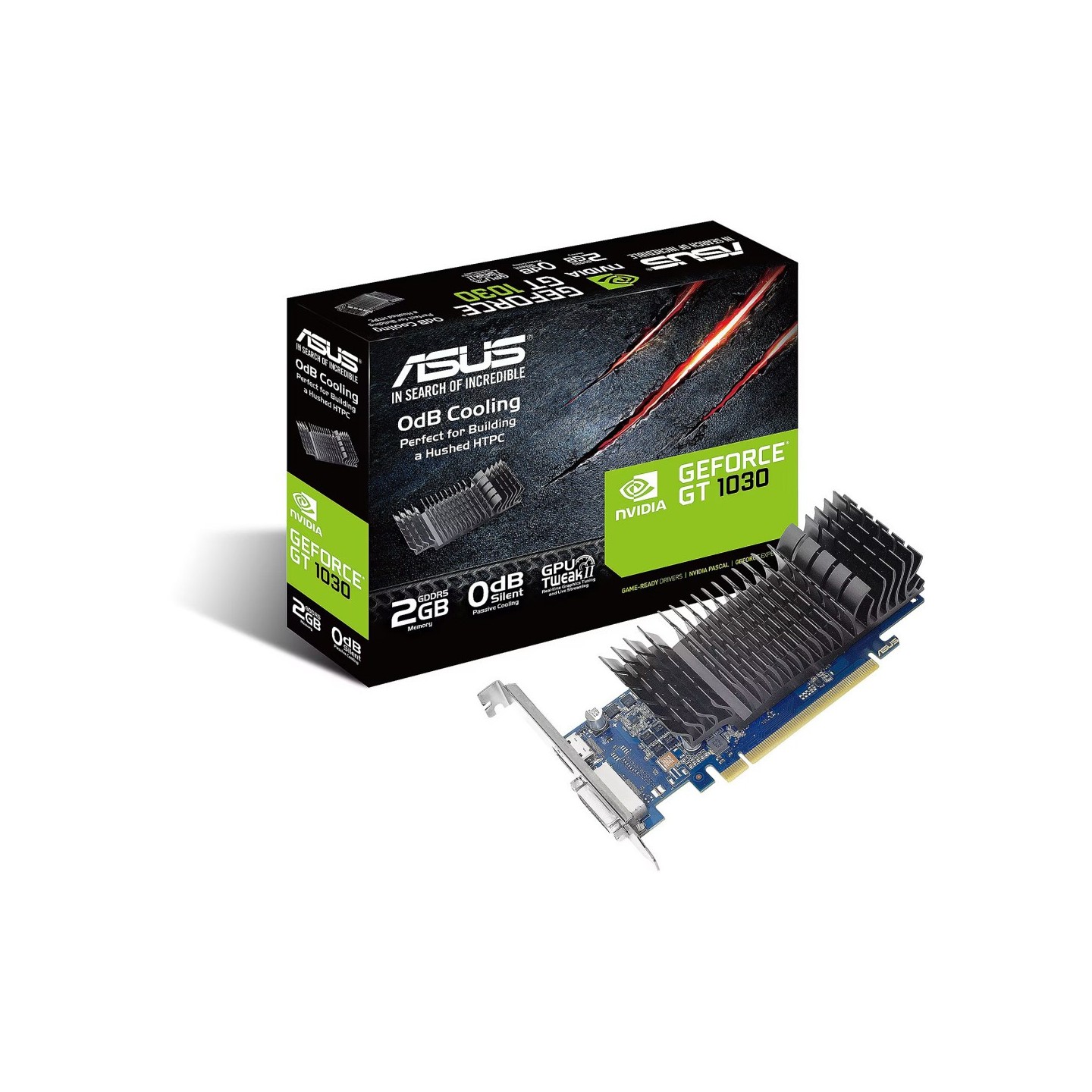

ASUS GeForce GT 1030 SL 2GB GDDR5 Low-Profile Passive - 1506 MHz (Boxed)
ASUS GeForce GT 1030 2GB GDDR5 passive low-profile GPU with 1506 MHz boost, PCIe 3.0, HDMI 2.0b + DVI-D, 30W TDP, perfect for silent HTPC builds.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | NVIDIA GeForce GT |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 4.0 x4 |
| GPU (Graphics Cards) - Cooler Type | Passive |
| GPU (Graphics Cards) - Color | Black |
| GPU (Graphics Cards) - Backplate | No |
| GPU (Graphics Cards) - VRAM Capacity | 2 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR5 |
| GPU (Graphics Cards) - Outputs | DVI-D HDMI 2.0 |
| GPU (Graphics Cards) - Power Connector | None |
| GPU (Graphics Cards) - Card Length | Low Profile (Under 170 mm) |
Silent Performance for Home Theater and Multimedia
The ASUS GeForce GT 1030 SL 2GB is engineered with a highly-efficient passive thermal design that dissipates heat in complete silence, making it the perfect choice for slimline home-theater PC (HTPC) builds and multimedia centers. Featuring 2GB of GDDR5 memory, 384 CUDA cores, and a boost clock of 1506 MHz, this low-profile graphics card delivers reliable performance for eSports titles, video playback, and content creation tasks while consuming just 30W of power.
Premium Build Quality and Easy Overclocking
Built with ASUS AUTO-EXTREME Technology—an industry-first, 100% automated production process—this card ensures consistent quality, improved performance, and longevity while being environmentally friendly. The included GPU Tweak II software provides intuitive overclocking controls with a visual interface, plus a one-click Gaming Booster function that optimizes system performance by removing redundant processes and allocating resources automatically. With dual digital outputs (HDMI 2.0b and DVI-D), support for DirectX 12.0 and OpenGL 4.5, and a single-slot form factor, this card fits seamlessly into compact builds.
Key Features:
- 0dB passive cooling—absolutely silent operation
- 2GB GDDR5 memory with 64-bit bus
- PCIe 3.0 x4 interface
- HDMI 2.0b and DVI-D outputs (supports up to 1920×1200 native, 4K via HDMI)
- Low-profile, single-slot design for compact systems
- 30W TDP—no external power connector required
- GPU Tweak II software for performance tuning
- AUTO-EXTREME manufacturing for premium reliability
| GPU Processor | NVIDIA GeForce GT 1030 |
| CUDA Cores | 384 |
| Memory | 2GB GDDR5 |
| Memory Bus | 64-bit |
| Memory Clock Speed | 6008 MHz |
| Base Clock Speed | 1266 MHz |
| Boost Clock Speed | 1506 MHz (OC Mode) |
| PCIe Interface | PCIe 3.0 x4 |
| DirectX | 12.0 |
| OpenGL | 4.5 |
| Maximum Resolution | 1920 x 1200 pixels (native), 4K via HDMI 2.0b |
| Video Outputs | 1x HDMI 2.0b, 1x DVI-D |
| Power Consumption (TDP) | 30W |
| Power Connector | None (powered by PCIe slot) |
| Cooling Type | Passive (0dB silent) |
| Form Factor | Low-profile, single-slot |
| Card Length | 173 mm |
| Card Height | 69 mm |
| Card Depth | 40 mm |
| Backplate | No |
| PhysX Support | Yes |
| HDCP Support | Yes |
| Texture Units | 24 |
| ROPs | 16 |
| Floating-Point Performance | 1.127 TFLOPS |
| Manufacturing Process | AUTO-EXTREME Technology (100% automated) |
| Included Software | GPU Tweak II with Gaming Booster |
