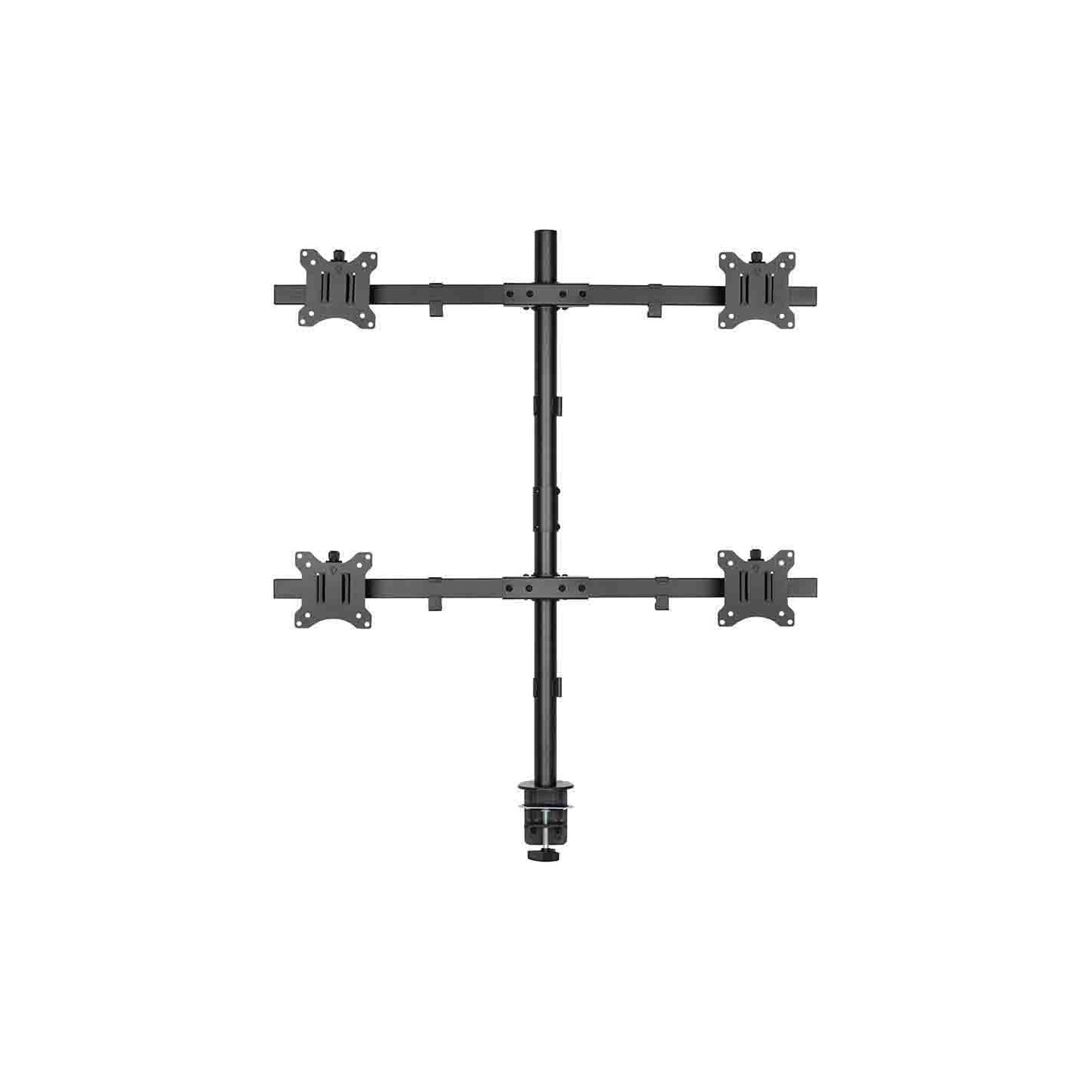

Inline 23108H Desk Bracket for 4 Monitors up to 32" 9kg (Boxed)
Inline 23108H desk mount for 4 flat monitors up to 32"/81cm, 9kg each. VESA 75/100mm, +/-45° tilt, 360° rotate, height adj. to 86cm. Clamp/grommet mount, incl. screws & tools.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Monitor Stands & Mounts - Supported Devices | Monitor |
|---|---|
| Monitor Stands & Mounts - Screen Capacity | 4 Screens |
| Monitor Stands & Mounts - Max Screen Size | Up to 32 inch |
| Monitor Stands & Mounts - Mount Type | Desk Clamp Grommet |
| Monitor Stands & Mounts - VESA Compatibility | 100x100 mm 75x75 mm |
| Monitor Stands & Mounts - Weight Capacity | Heavy Duty (8-12 kg) |
| Monitor Stands & Mounts - Adjustment Type | Not Specified |
| Monitor Stands & Mounts - Special Features | Rotatable VESA Plate |
The Inline 23108H is a robust desk bracket designed for mounting up to four flat screen monitors, each up to 32 inches (81cm) and 9kg. It provides flexible positioning with +/-45° tilt, 360° rotatable displays, and joints for optimal orientation. Ideal for multi-monitor setups in home offices, trading desks, or creative workspaces.
Installation is straightforward using screw clamp (up to 85mm table edge) or grommet (up to 40mm thick tabletop). Height is adjustable up to approximately 86cm, supporting two levels for two monitors each. Includes all necessary accessories: table holder, M4/M5 screw set, 2 Allen keys, and installation instructions. VESA compatible with 75x75mm and 100x100mm patterns.
- Supports 4 monitors up to 32" / 9kg each
- Height adjustable to ~86cm (2 levels)
- Tilt: +/-45°, Rotation: 360°
- Mount: Desk clamp or grommet
- VESA: 75x75 / 100x100 mm
- Complete installation kit included
| Model | 23108H |
| Brand | Inline |
| Monitor Capacity | 4 |
| Max Screen Size | 32 inch / 81cm |
| Max Load per Monitor | 9 kg |
| VESA Compatibility | 75x75 mm, 100x100 mm |
| Tilt Range | +/-45° |
| Rotation | 360° |
| Height Adjustment | Up to 86 cm (2 levels) |
| Mount Types | Screw clamp (up to 85mm), Grommet (up to 40mm) |
| Material | Aluminium, Steel, Plastic |
| Color | Fine Texture Grey |
| Dimensions (assembled) | 906 x 198 x 580/1008 mm |
| Accessories Included | Screws M4/M5, 2x Allen keys, Installation instructions |
