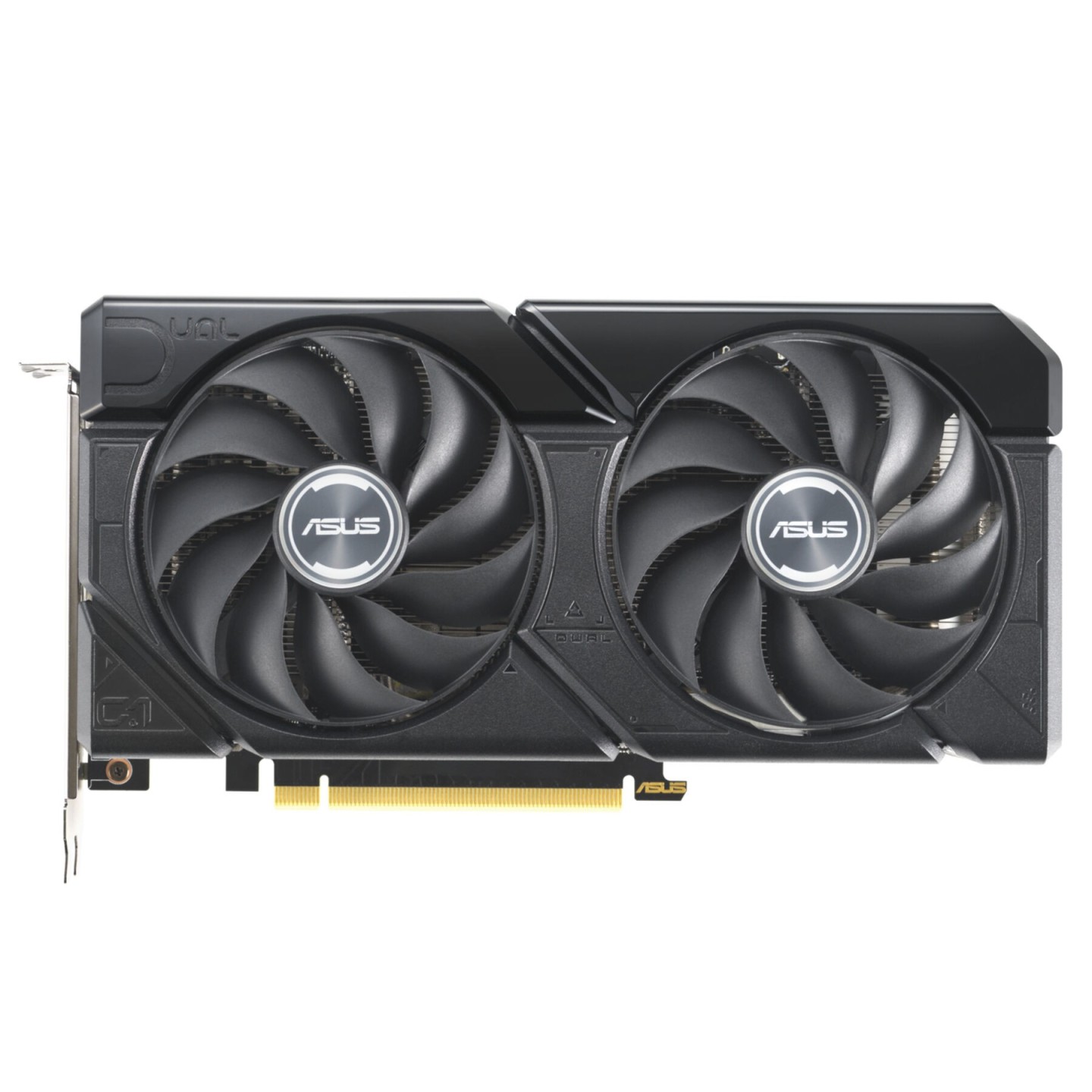

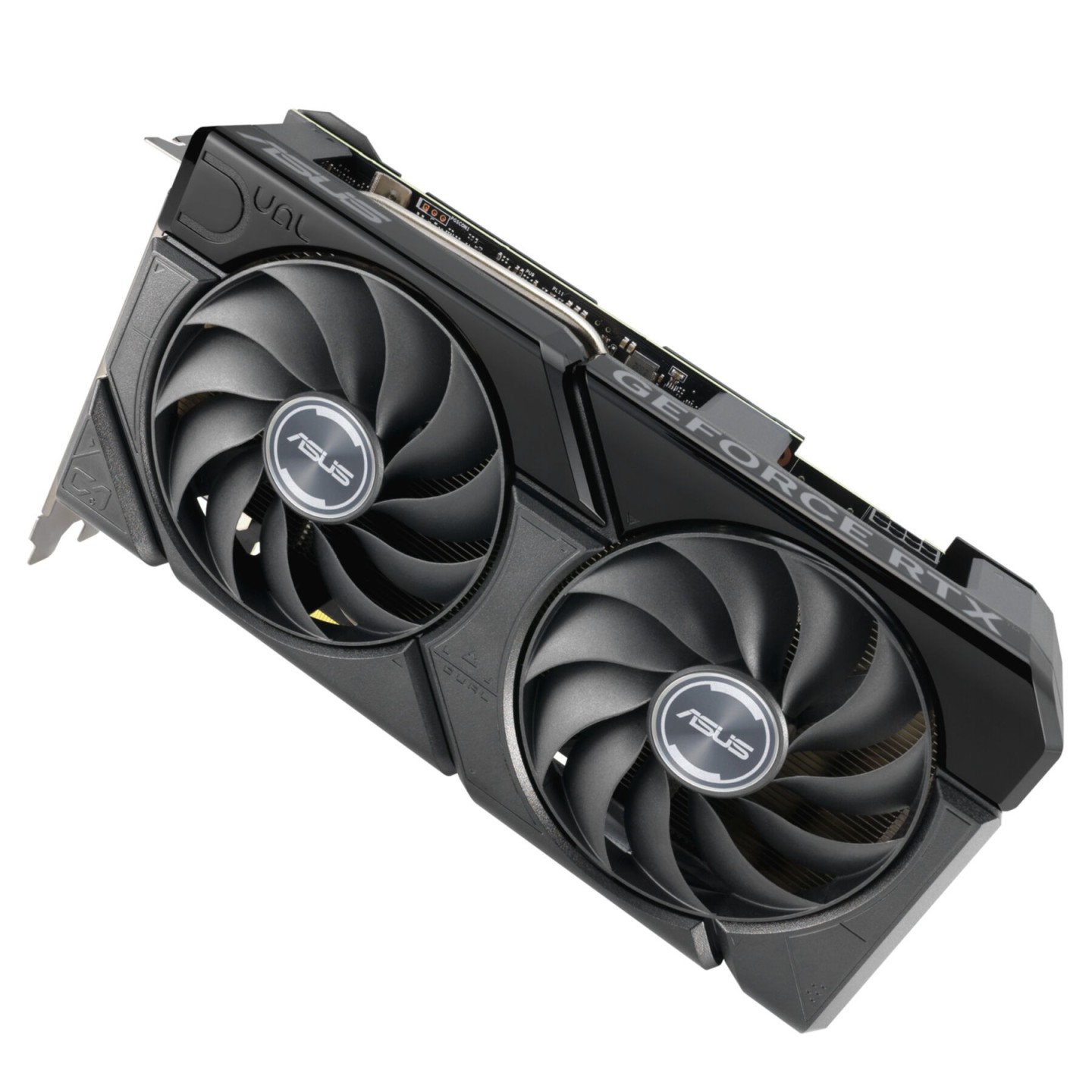

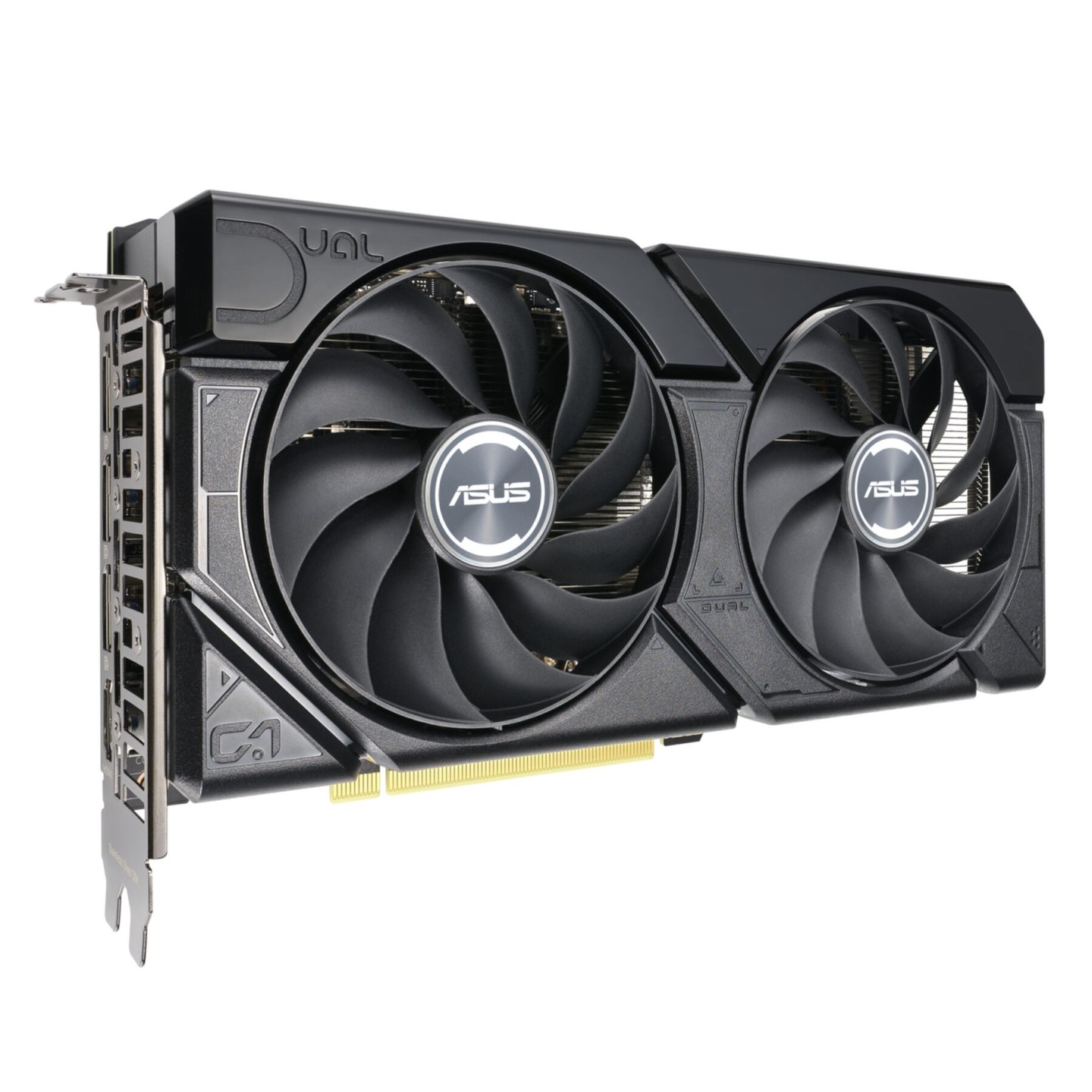

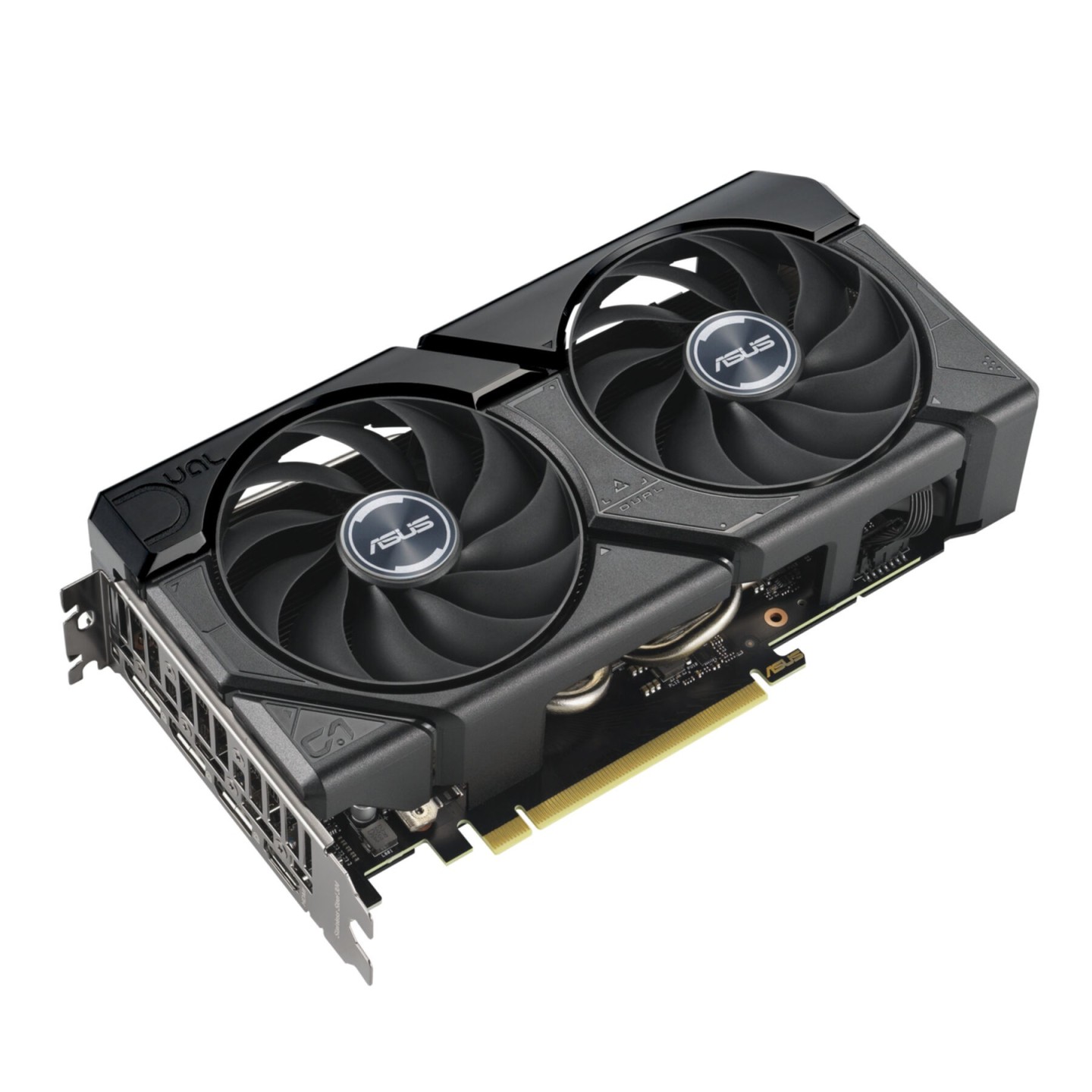

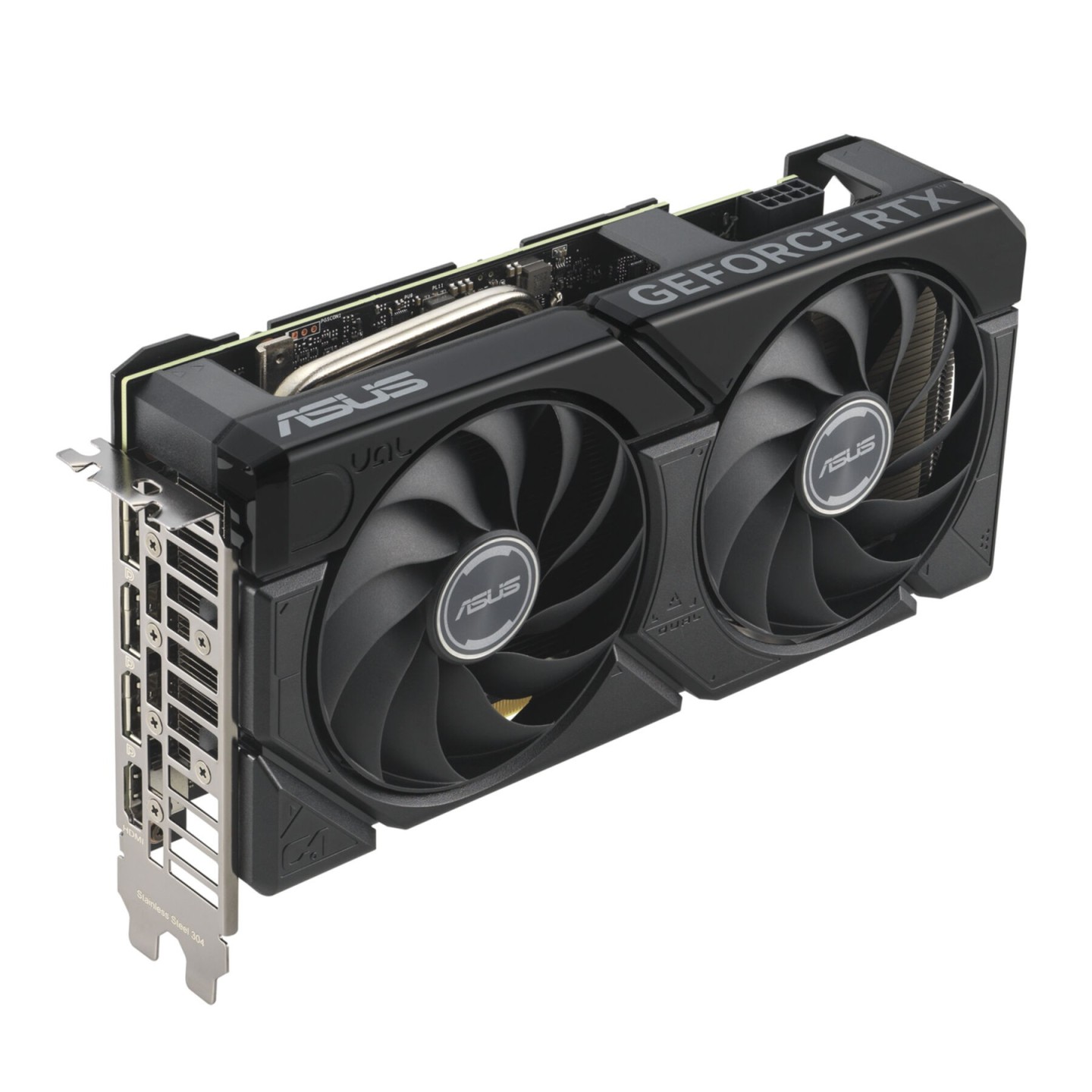

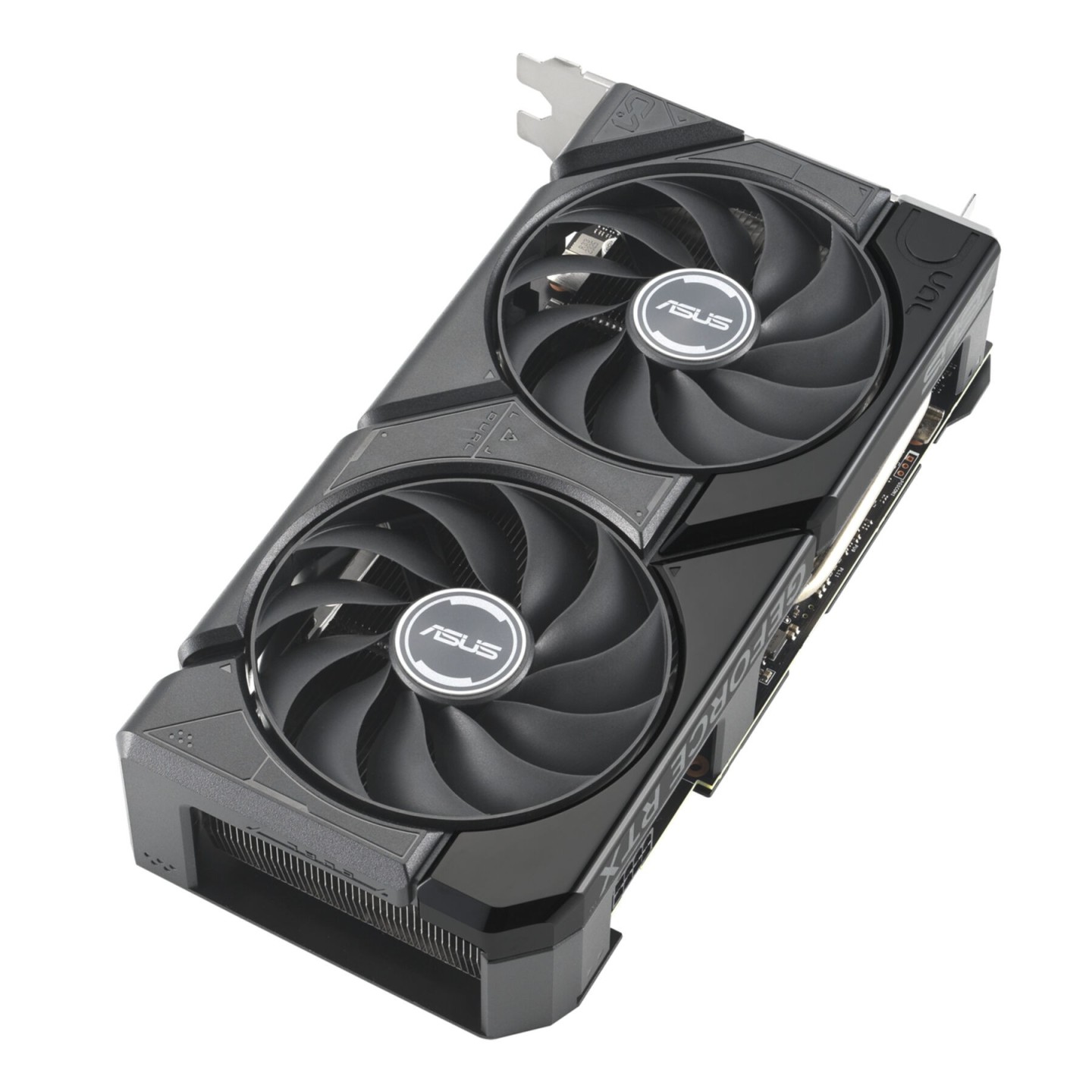

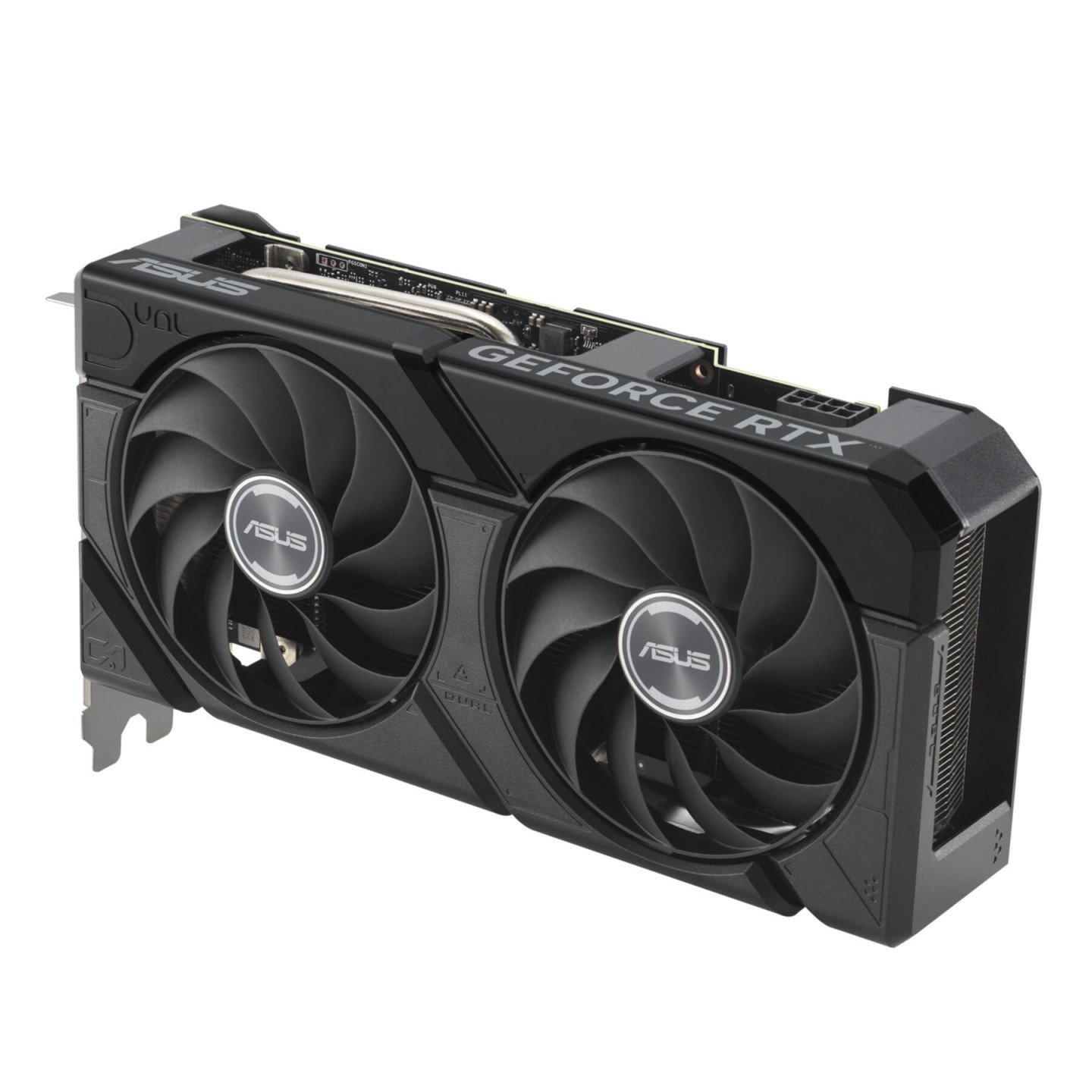

ASUS Dual GeForce RTX 4060 Ti EVO OC 8GB GDDR6 2565MHz 2-slot (Boxed)
ASUS Dual RTX 4060 Ti EVO OC: 8GB GDDR6, 2565MHz boost (2595 OC), dual Axial-tech fans, 2.5-slot (22.7cm), PCIe 4.0, 1xHDMI 2.1a+3xDP 1.4a, DLSS 3, 160W TDP.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | NVIDIA GeForce RTX |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 4.0 x16 |
| GPU (Graphics Cards) - Cooler Type | Dual Fan |
| GPU (Graphics Cards) - Color | Black |
| GPU (Graphics Cards) - Backplate | Yes |
| GPU (Graphics Cards) - VRAM Capacity | 8 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR6 |
| GPU (Graphics Cards) - Outputs | DisplayPort 1.4 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 1x8-pin |
| GPU (Graphics Cards) - Card Length | Standard (221-260 mm) |
2x Fans. 2x Fun.
ASUS Dual GeForce RTX™ 4060 Ti EVO OC Edition delivers powerful performance in a compact 2.5-slot, 22.7 cm design. Featuring two Axial-tech fans with longer blades and barrier ring for superior airflow, 0dB Technology for silent operation below 55°C, and dual ball bearings for 2x lifespan. Powered by NVIDIA Ada Lovelace with 4352 CUDA cores, 4th Gen Tensor Cores for DLSS 3, and 3rd Gen RT Cores.
Engineered with Auto-Extreme manufacturing, aluminum backplate, and stainless steel bracket for durability. Includes GPU Tweak III for monitoring/tuning and QuantumCloud for earning via spare GPU power. Supports 7680x4320, 4 displays, VR ready. 1x 8-pin power, 650W PSU recommended.
- ✅ Dual Axial-tech fans + 0dB tech
- ✅ 8GB GDDR6 18Gbps 128-bit
- ✅ Boost: 2565MHz (2595 OC)
- ✅ PCIe 4.0 x8, 160W TDP
- ✅ HDMI 2.1a + 3x DisplayPort 1.4a
- ✅ NVIDIA DLSS 3, Reflex, Broadcast
| CUDA | Yes |
| CUDA cores | 4352 |
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 4060 Ti |
| Processor boost clock speed | 2565 MHz |
| Processor frequency (OC mode) | 2595 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Maximum displays per videocard | 4 |
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 128 bit |
| Data transfer rate | 18 Gbit/s |
| Interface type | PCI Express 4.0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1a |
| DisplayPorts quantity | 3 |
| DisplayPort version | 1.4a |
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| Virtual Reality (VR) ready | Yes |
| HDCP | Yes |
| HDCP version | 2.3 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| NVIDIA Ansel | Yes |
| Cooling type | Active |
| Cooling technology | ASUS Axial-tech |
| Number of fans | 2 fan(s) |
| Form factor | Full-Height/Half-Length (FH/HL) |
| Number of slots | 2.5 |
| Product colour | Black |
| Minimum system power supply | 650 W |
| Supplementary power connectors | 1x 8-pin |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Weight | 644 g |
| Length | 227.2 mm |
| Depth | 49.6 mm |
| Height | 123.2 mm |
| Package width | 368 mm |
| Package depth | 220.5 mm |
| Package height | 68 mm |
| Package weight | 1.09 kg |
| Package type | Box |
| Manual | Yes |
| TDP | 160 W |
