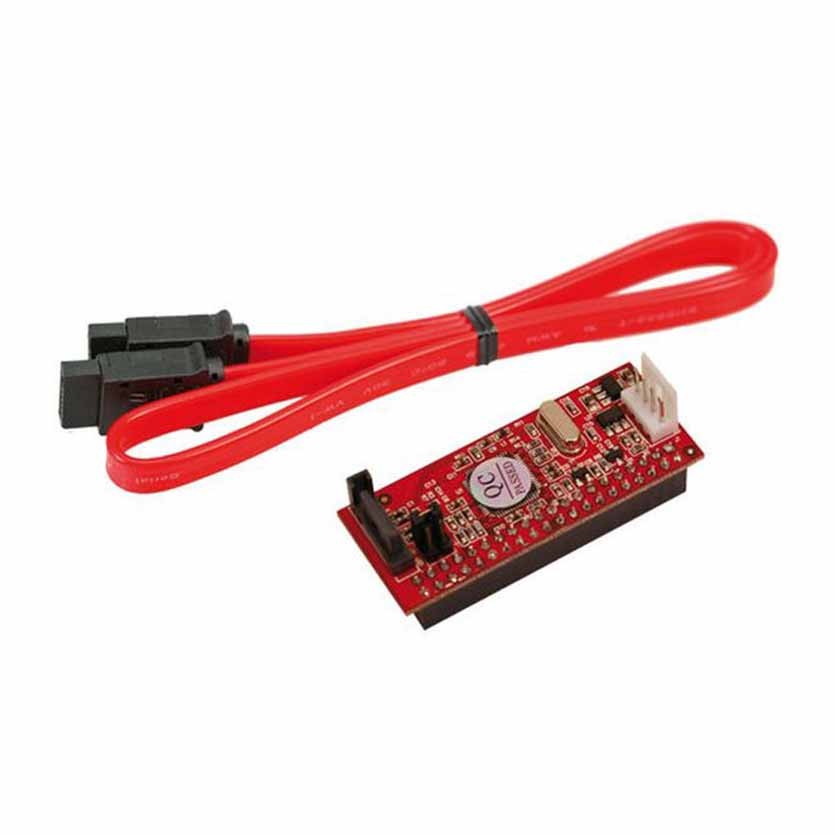

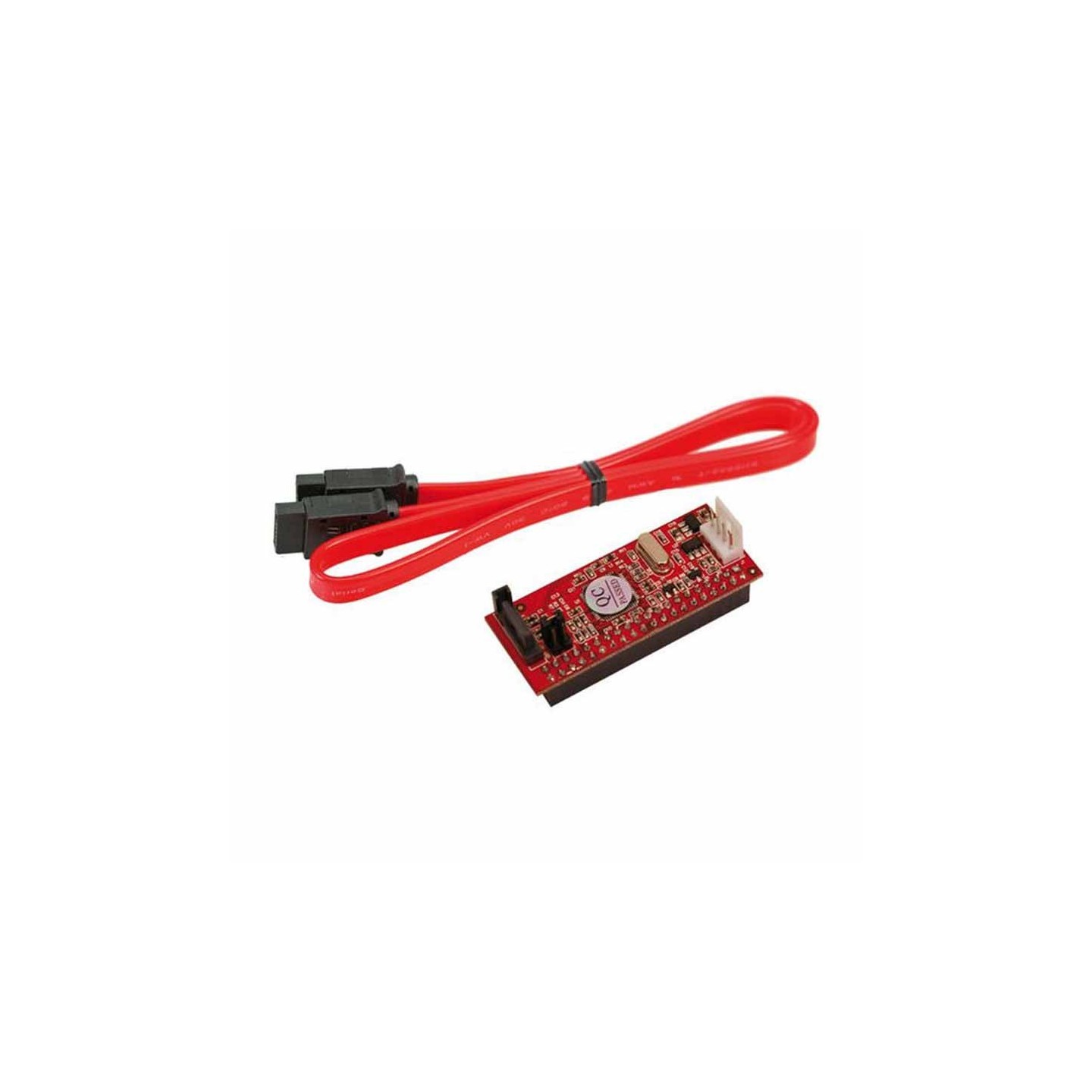

LogiLink AD0005B SATA to IDE (PATA) Adapter (Boxed)
LogiLink AD0005B allows connecting legacy IDE/PATA hard drives, CD/DVD drives to modern SATA controllers. Supports Serial ATA 1.0 up to 3Gbps and UDMA/133. Includes converter, SATA cable, power cables. Plug & Play, no drivers needed.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Expansion Cards - Product Type | Storage Controller and Adapter |
|---|---|
| Expansion Cards - External Connectivity | Internal Only |
The LogiLink AD0005B is a cost-effective IDE to SATA converter designed to bridge older IDE/ATAPI (PATA) devices with modern SATA interfaces. It enables seamless connection of legacy hard drives, CD/DVD drives, and other IDE devices to SATA controllers on mainboards or add-in cards.
Featuring simple Plug and Play installation, this adapter requires no additional drivers and supports high-speed data transfer up to Serial ATA 1.0 standard (3.0Gbps) and UDMA/133 drives. It mounts easily behind the drive for a clean setup and is compatible with most SATA controllers.
- Connector 1: SATA 7-pin male (source: mainboard/controller)
- Connector 2: IDE 40-pin female (target: HDD, CD, DVD etc.)
- Power: 4-pin Molex connector
- Includes: Converter, SATA signal cable, Y-splitter power cable, LP4 to SATA 15-pin power cable, user manual
- Compliant with Serial ATA 1.0, backward compatible
| Art. No. | AD0005B |
| Type | IDE ATAPI (PATA) to SATA Converter |
| Serial ATA Standard | 1.0 up to 3.0Gbps |
| Drive Support | UDMA/133 Drives |
| Installation | Plug and Play |
| Connector 1 | SATA 7-pin male |
| Connector 2 | IDE 40-pin female |
| Power Connector | 4-pin Molex |
| Package Contents | Converter, Y-Splitter Power Cable, SATA Cable, LP4 to SATA 15PIN Cable, User Manual |
