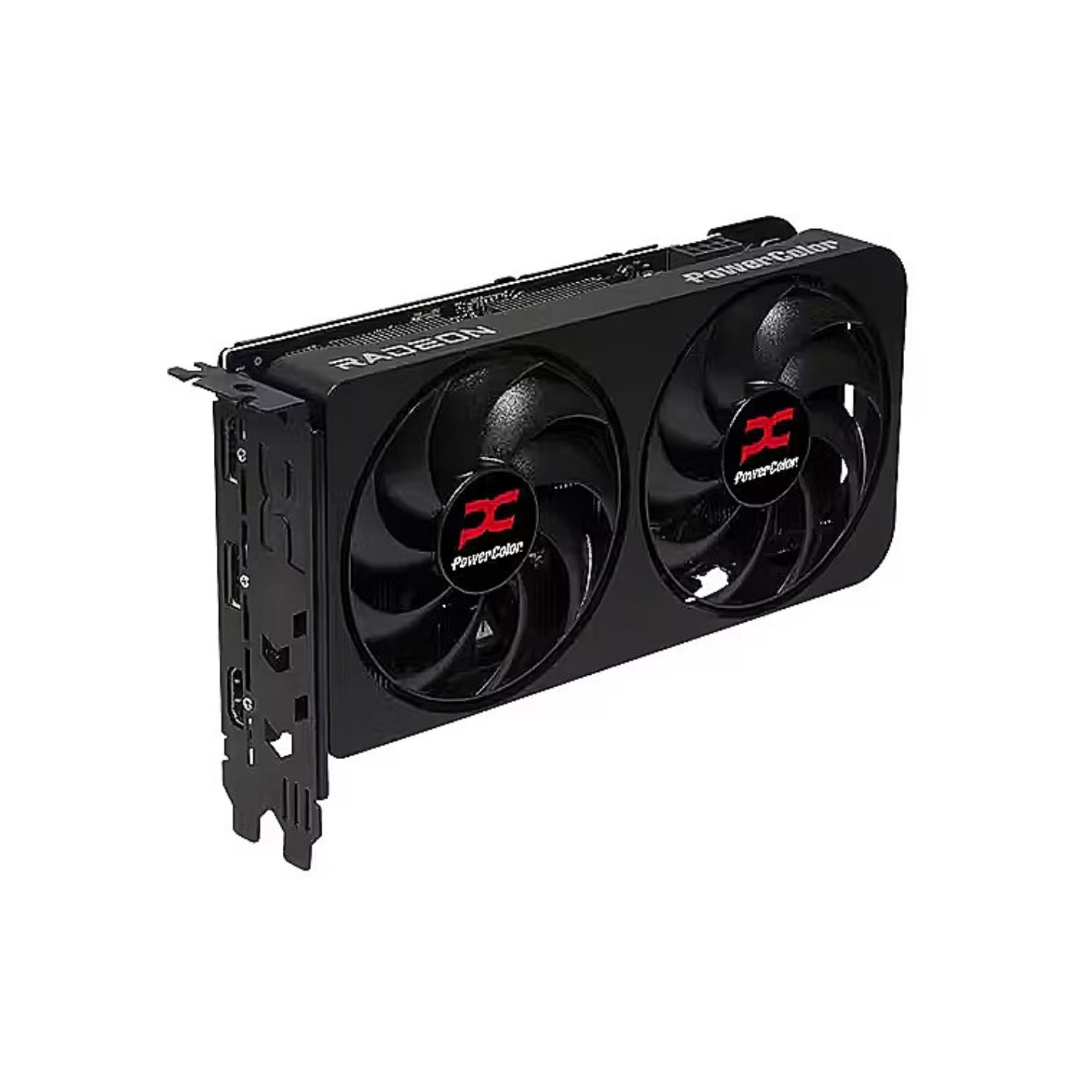

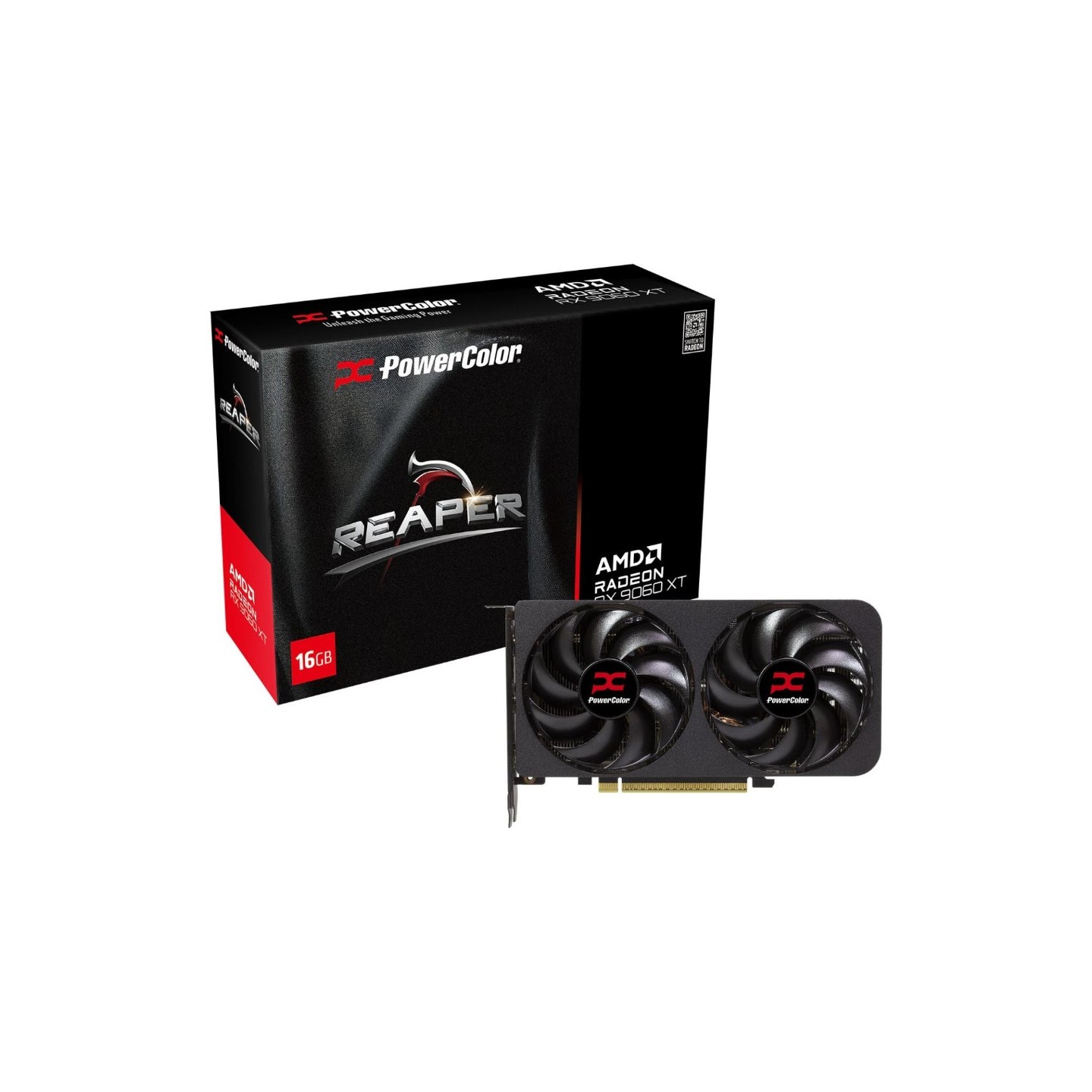

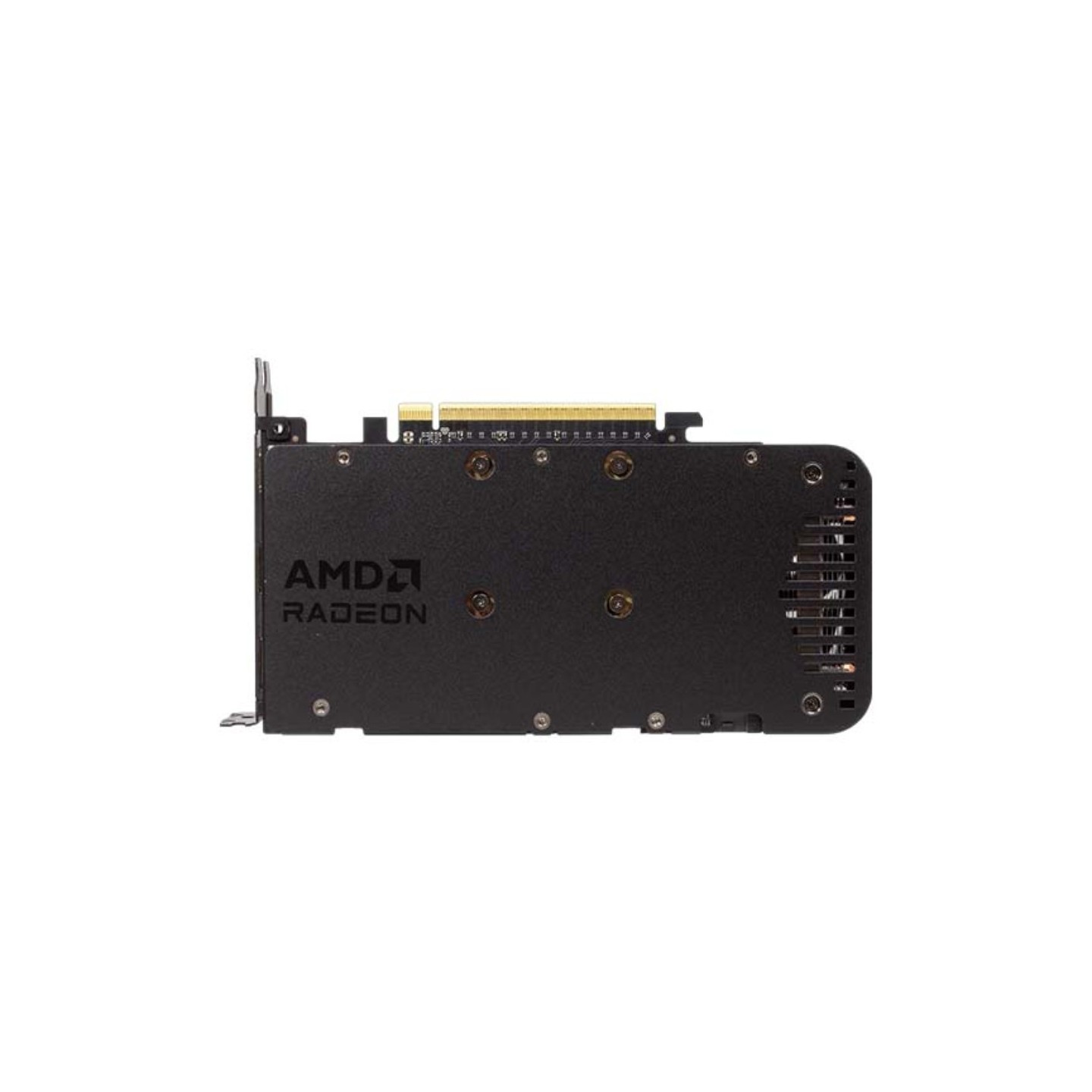

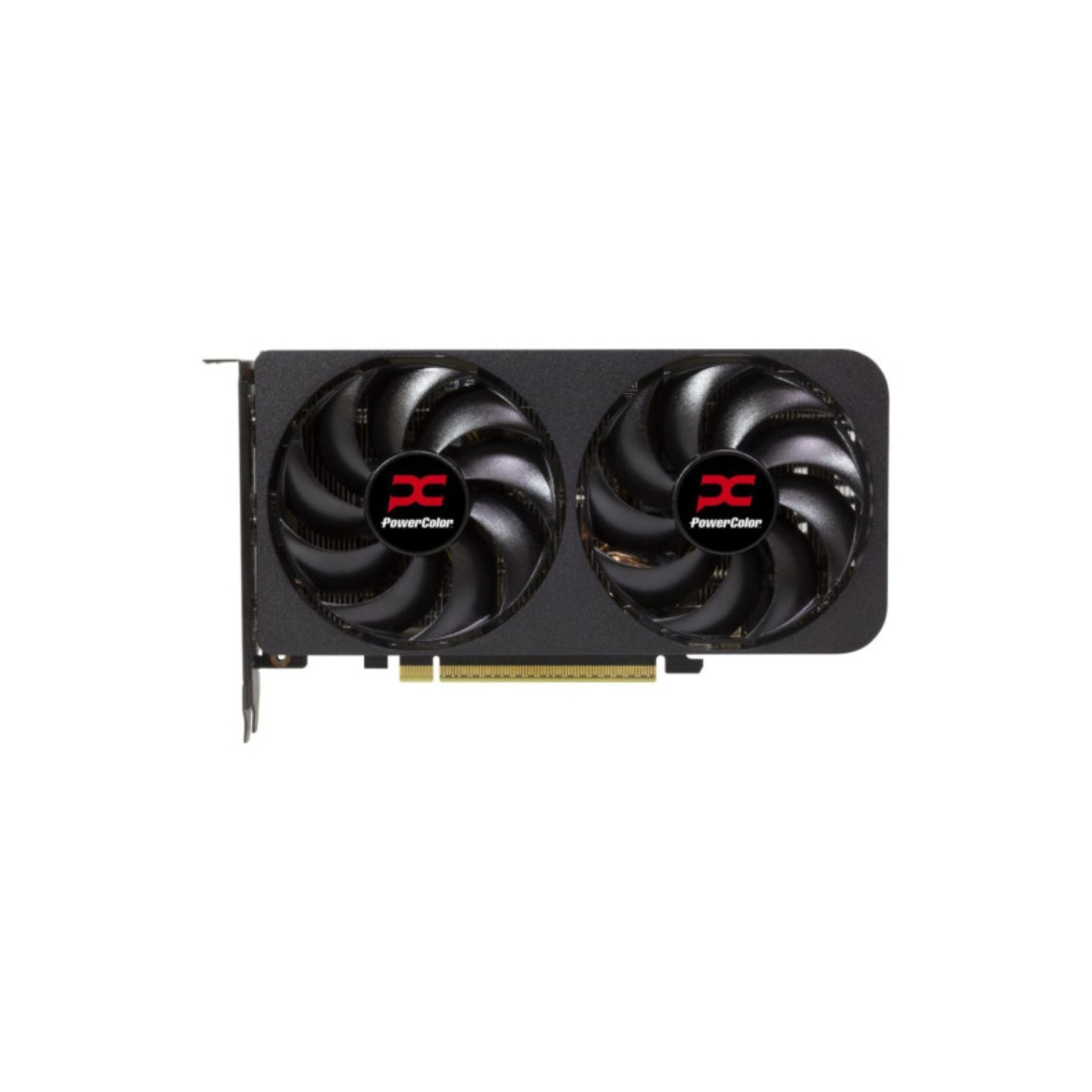

PowerColor Radeon Reaper RX 9060 XT 16GB GDDR6 - 3230 MHz Boost, PCIe 5.0 x16 (Boxed)
PowerColor Reaper RX 9060 XT 16GB GDDR6 GPU boosts to 3230MHz with RDNA 4 architecture. Dual-fan cooling, PCIe 5.0 x16, 1xHDMI 2.1b & 2xDP 2.1a. Ideal for 1440p gaming with 16GB VRAM, FSR4 & ray tracing support. 160W TBP.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | AMD Radeon RX |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 5.0 x16 |
| GPU (Graphics Cards) - Cooler Type | Dual Fan |
| GPU (Graphics Cards) - Color | Black |
| GPU (Graphics Cards) - Backplate | No |
| GPU (Graphics Cards) - VRAM Capacity | 16 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR6 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 1x8-pin |
| GPU (Graphics Cards) - Card Length | Short (200-220 mm) |
Relentless by Design: The Reaper Series
The PowerColor Reaper Series delivers reliable performance for demanding gamers. Featuring a robust dual-fan open-air cooler with Japanese dual ball bearings, high-efficiency 9-blade ring fans, and a nickel-plated copper base with Honeywell PTM7950 phase-change material for superior thermal efficiency. Fans activate at 60°C and stop below 50°C for quiet operation.
Powered by AMD RDNA™ 4 architecture, the Radeon RX 9060 XT offers 2048 stream processors, up to 3230MHz boost clock, and 16GB GDDR6 memory at 20Gbps on a 128-bit bus. Supports PCIe 5.0 x16, AMD FidelityFX Super Resolution 4, HYPR-RX, and advanced ray tracing for smooth 1440p gaming. Total board power 160W (up to 176W), requires 1x8-pin connector and 500W PSU.
- Boost Clock: Up to 3230 MHz (Game: 2620 MHz)
- Memory: 16GB GDDR6, 20 Gbps, 128-bit
- Outputs: 1x HDMI 2.1b, 2x DisplayPort 2.1a
- Cooling: Dual fans, 2-slot design, 220x120x40 mm
- Features: AMD FreeSync, DirectX 12 Ultimate
| Graphics processor family | AMD |
| Graphics processor | Radeon RX 9060 XT |
| Processor boost clock speed | 3230 MHz |
| Processor boost clock speed (Gaming mode) | 2620 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Stream processors | 2048 |
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 128 bit |
| Data transfer rate | 20 Gbit/s |
| Interface type | PCI Express x16 5.0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 2 |
| DisplayPort version | 2.1a |
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| AMD FreeSync | Yes |
| Cooling type | Active |
| Number of fans | 2 fan(s) |
| Number of slots | 2 |
| Product colour | Black |
| Minimum system power supply | 500 W |
| Supplementary power connectors | 1x 8-pin |
| Length | 220 mm |
| Depth | 40 mm |
| Height | 120 mm |
| Package type | Box |
| Total board power (TBP) | 160 W |
| Architecture | RDNA 4 |
