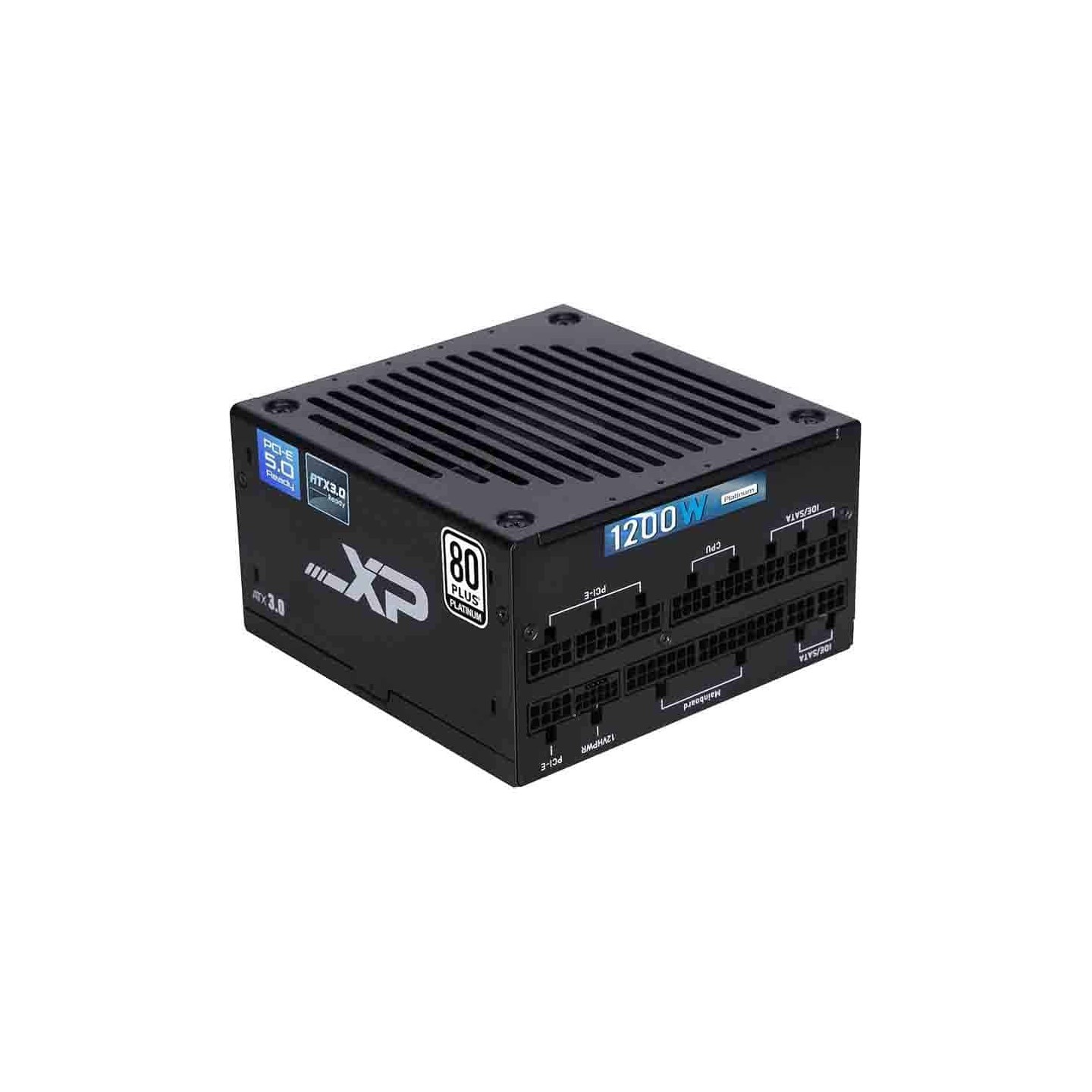

XPH-1200W ATX 3.0 Platinum Power Supply SAMA
High-end 1200W ATX 3.0 PSU with 80 PLUS Platinum efficiency, fully modular design, PCIe 5.0 12VHPWR support. Features 100A on +12V rail, Japanese capacitors, comprehensive protections, and 140mm FDB fan for quiet cooling.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 1200 - 1499 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Platinum |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12VHPWR 16-pin |
The XPH-1200W ATX 3.0 Platinum Power Supply SAMA delivers robust 1200W power for demanding gaming and workstation builds. Compliant with Intel ATX 3.0 standard, it supports PCIe 5.0 12VHPWR connector for modern high-end GPUs, ensuring compatibility with next-gen graphics cards. With 80 PLUS Platinum certification, it achieves up to 92% efficiency at 50% load, reducing energy waste and heat.
Fully modular ribbon cables simplify cable management, while 100% Japanese 105°C capacitors guarantee long-term reliability. A 140mm ECO intelligent FDB fan provides quiet, efficient cooling. Comprehensive protections including OVP, OCP, OPP, SCP, UVP, OTP, no-load, surge, and inrush safeguard your components. Active PFC with 100-240VAC universal input supports global use.
- Wattage: 1200W continuous
- +12V Rail: 100A (1200W)
- Efficiency: ~90% at 20%, ~92% at 50%, ~89% at 100% load
- Modular: Fully modular with ribbon cables
- Fan: 140mm FDB
| Wattage | 1200 W |
| Standard | Intel ATX 3.0 |
| Certification | 80 PLUS Platinum, CE, CB, TUV, cTUVus, FCC, RoHS |
| Input Voltage | 100–240 VAC |
| Input Frequency | 50–60 Hz |
| Active PFC | Yes (auto full-range voltage detection) |
| +3.3 V Rail Max Current | 20 A |
| +5 V Rail Max Current | 20 A |
| Combined +3.3 V +5 V Output | 100 W |
| +12 V Rail Max Current | 100 A (1200 W) |
| –12 V Rail | 0.4 A (4.8 W) |
| +5 VSB | 2.5 A (15 W) |
| PCIe 5.0 12VHPWR Connector | Supported |
| Fan | 140 mm ECO intelligent fluid-dynamic-bearing (FDB) fan |
| Efficiency | ~90% @20%, ~92% @50%, ~89% @100% load |
| Capacitors | 100% Japanese 105 °C capacitors |
| Protections | OVP, OCP, OPP, SCP, UVP, OTP, No-load, Surge & Inrush |
| Modular | Fully modular ribbon cables |
