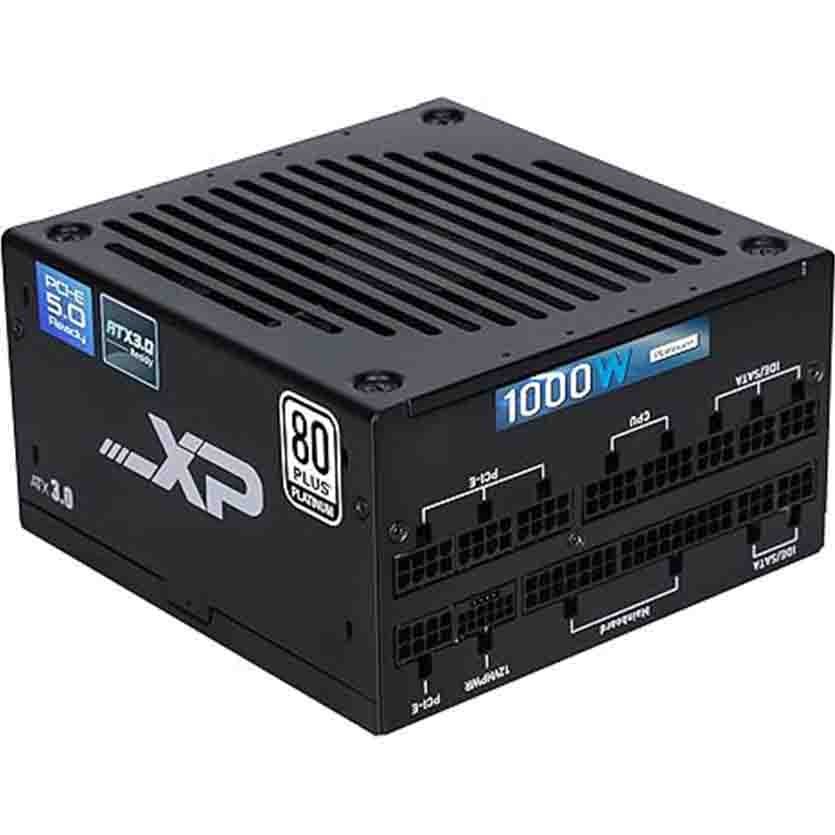

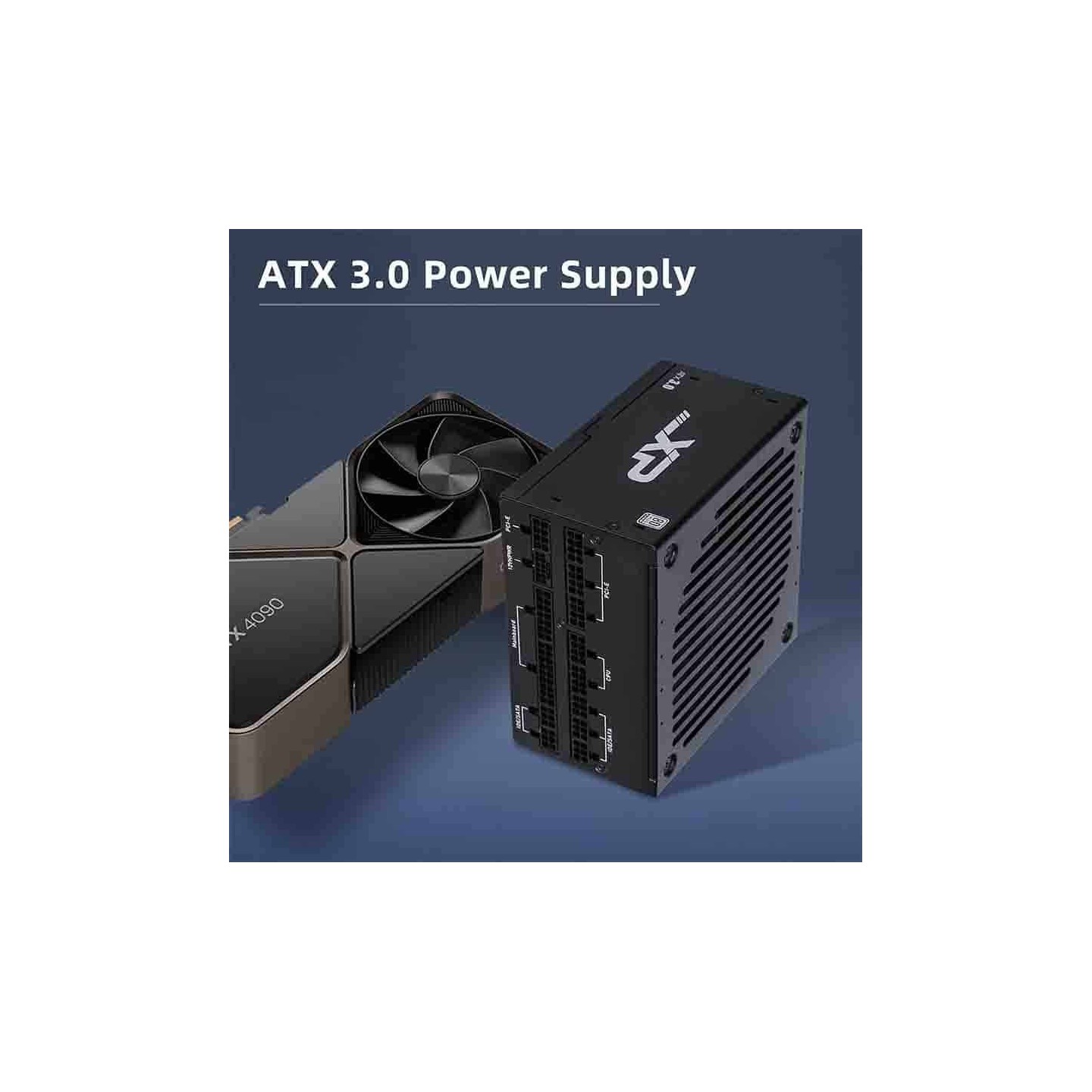

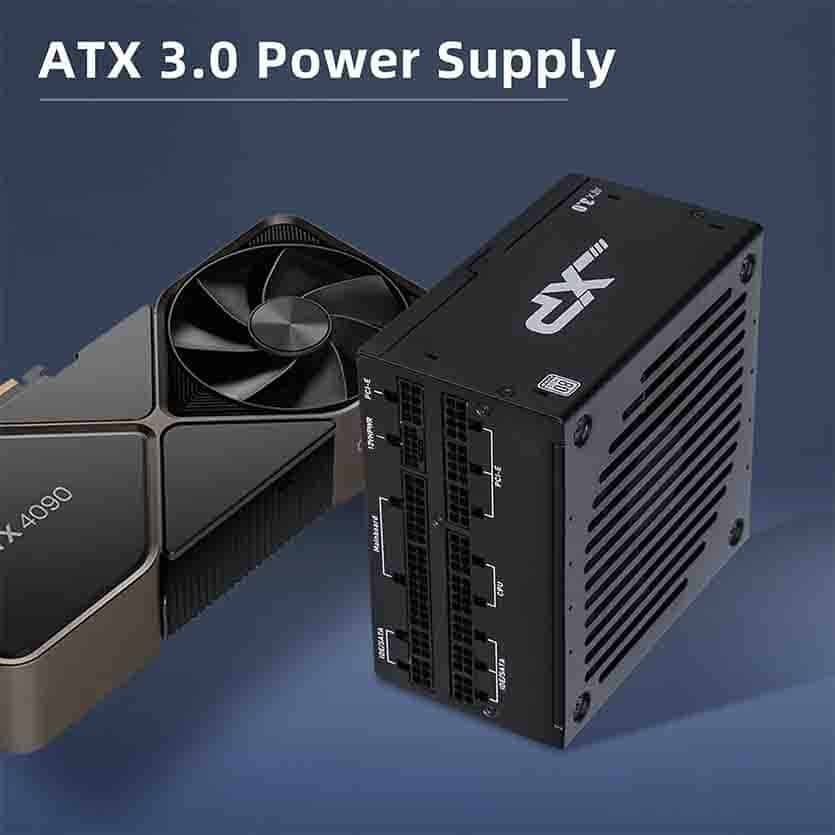

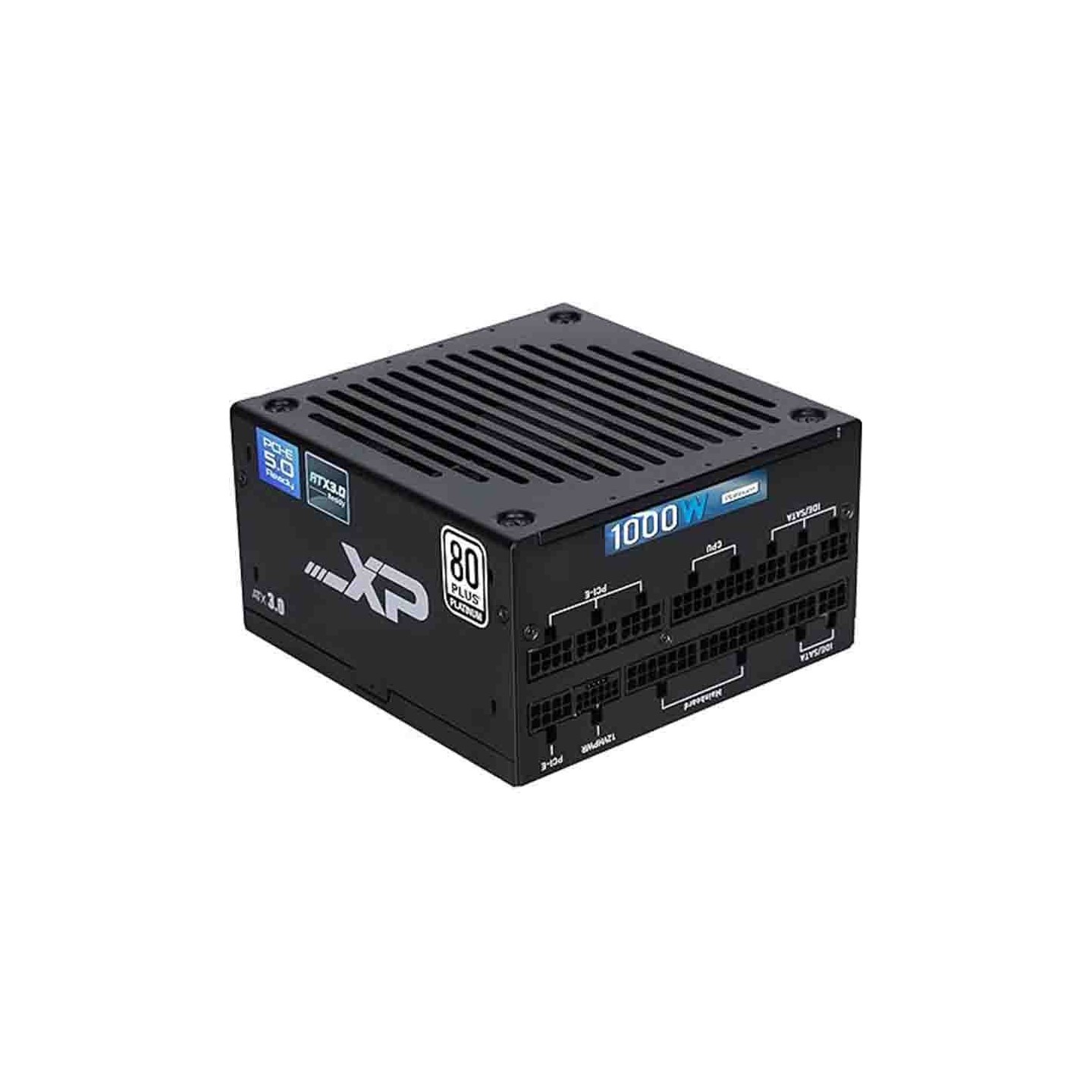

XPH-1000W ATX 3.0 Platinum Power Supply SAMA (Boxed)
High-end 1000W ATX 3.0 PSU with 80+ Platinum efficiency, fully modular design, 1x PCIe 5.0 12VHPWR (600W), 140mm FDB fan, Japanese capacitors & full protections. Ideal for demanding gaming rigs with RTX 40/50 GPUs.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 1000 - 1199 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Platinum |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12VHPWR 16-pin |
| PSU (Power Supplies) - Length | 180+ mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |
The XPH-1000W ATX 3.0 Platinum Power Supply from SAMA delivers reliable 1000W power for high-performance PCs. Compliant with Intel ATX 3.0 standards, it features a single PCIe 5.0 12VHPWR connector rated at 600W, perfect for modern GPUs like NVIDIA RTX 40/50 series. With 80 PLUS Platinum certification, it achieves up to 92% efficiency at 50% load, reducing heat and energy waste.
Fully modular ribbon cables simplify cable management, while the 140mm ECO Intelligent FDB fan ensures quiet, temperature-controlled cooling. Built with 100% Japanese 105°C capacitors and comprehensive protections (OVP, OCP, OPP, SCP, UVP, OTP, surge, inrush, no-load), it guarantees stability during power spikes up to 200%. Active PFC and universal 100-240VAC input support global use.
- Wattage: 1000W continuous
- Rails: +12V 80A (999.6W), +3.3V/5V combined 100W
- Connectors: 1x 12VHPWR, fully modular
- Efficiency: ~90% @20%, ~92% @50%, ~89% @100% load
- Certifications: 80+ Platinum, CE, CB, TUV, cTUVus, FCC, RoHS
| Wattage | 1000 W |
| Standard | Intel ATX 3.0 |
| Certification | 80 PLUS Platinum, CE, CB, TUV, cTUVus, FCC, RoHS |
| Input Voltage | 100–240 VAC |
| Input Frequency | 50–60 Hz |
| Input Current | up to 15 A |
| Active PFC | Yes |
| +3.3 V Rail Max Current | 20 A |
| +5 V Rail Max Current | 20 A |
| Combined +3.3 V & +5 V Output | 100 W |
| +12 V Rail Max Current | 80 A (999.6 W) |
| –12 V Rail | 0.4 A (4.8 W) |
| +5 VSB | 2.5 A (15 W) |
| PCIe 5.0 12VHPWR Connector | 1 × 600 W |
| Fan | 140 mm ECO Intelligent FDB fan, temperature-controlled |
| Efficiency | ~90% @20%, ~92% @50%, ~89% @100% load |
| Capacitors | 100% Japanese 105 °C capacitors |
| Protections | OVP, OCP, OPP, SCP, UVP, OTP, No-load, Surge & Inrush |
| Modular | Fully modular ribbon cables |
