76616I PCI to PCIe x1/x4/x8/x16 Adapter Card (Boxed)
PCI-Express to 1x PCI adapter expands modern motherboards with limited PCI slots. Converts x1/x4/x8/x16 PCIe to independent 32-bit PCI slot. PCI-E 1.1 compliant, 2.5Gbps, 3.3V signaling. Includes adapter and manual.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Expansion Cards - Product Type | IO Port Expansion |
|---|---|
| Expansion Cards - Host Interface | PCIe x1 PCIe x16 PCIe x4 PCIe x8 |
| Expansion Cards - External Connectivity | Internal Only |

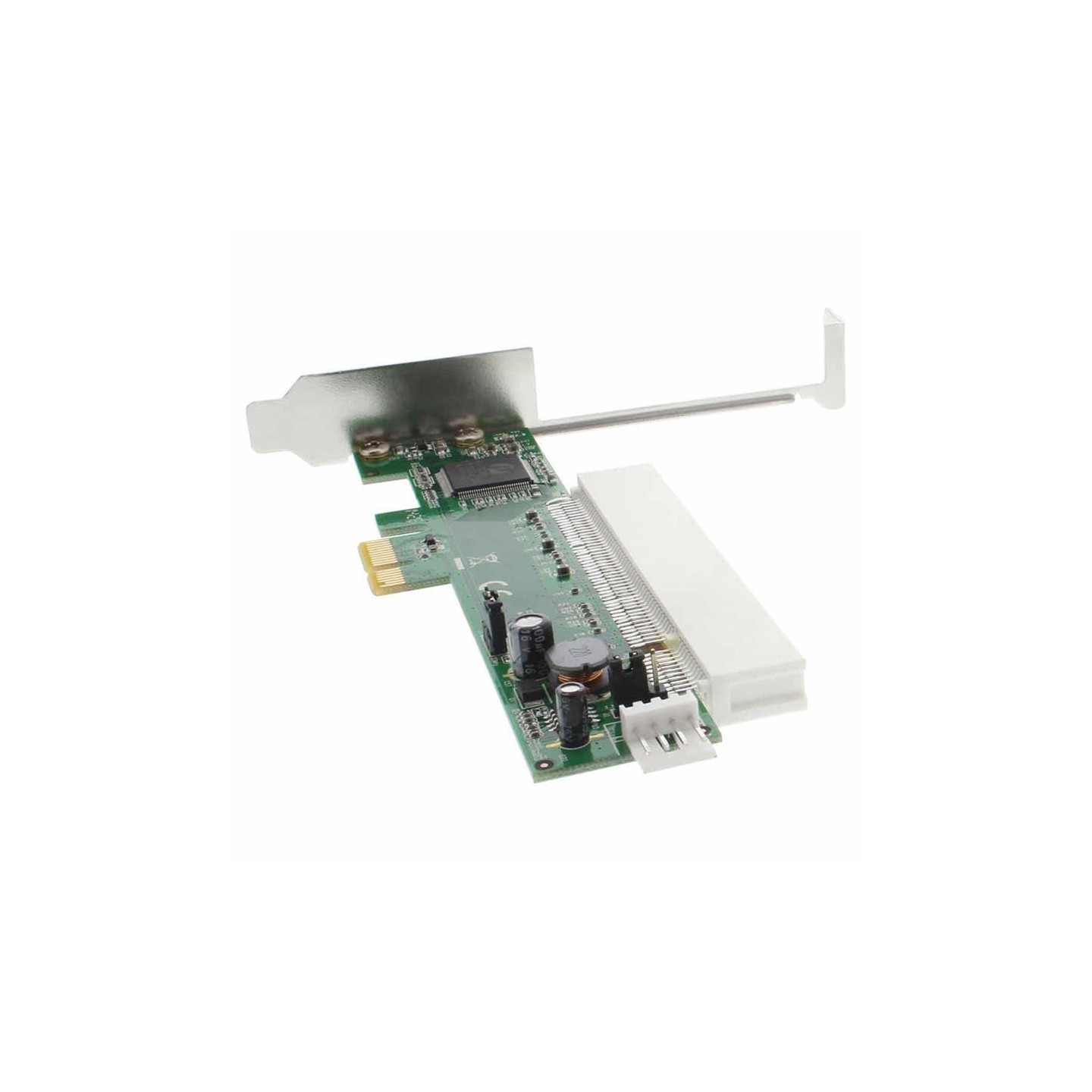

This InLine 76616I PCI Interface Adapter allows use of legacy PCI cards in modern systems lacking PCI slots. It converts any standard PCIe x1, x4, x8, or x16 slot into one independent 32-bit PCI slot, supporting expansion on contemporary motherboards.
Fully compliant with PCI Express Base Specification Revision 1.1, PCI Express to PCI/PCI-X Bridge Spec 1.0, and PCI Local Bus Spec 3.0. Features PCIe x1 link at 2.5Gbps data rate with 3.3V PCI signaling and 5V I/O tolerance. Compatible with Windows, Linux, Mac OS/X, and DOS.
- Requires free PCIe x1/x4/x8/x16 slot
- Package: 1x Adapter, 1x User's Manual
- Ideal for legacy sound cards, capture cards, or industrial PCI devices
| Type | Adapterkarte |
| PCIe Interface | x1/x4/x8/x16 compatible |
| PCI Interface | 1x 32-bit PCI slot |
| PCI Express Specification | Base Revision 1.1 |
| PCI Express Bridge Spec | to PCI/PCI-X Revision 1.0 |
| PCI Local Bus Spec | Revision 3.0 |
| Data Rate | PCIe x1 2.5Gbps |
| PCI Signaling | 3.3V with 5V I/O tolerance |
| System Requirement | PC with free PCIe x1/x4/x8/x16 slot |
| Package Contents | PCI-Express to PCI Adapter x1, User's Manual x1 |
