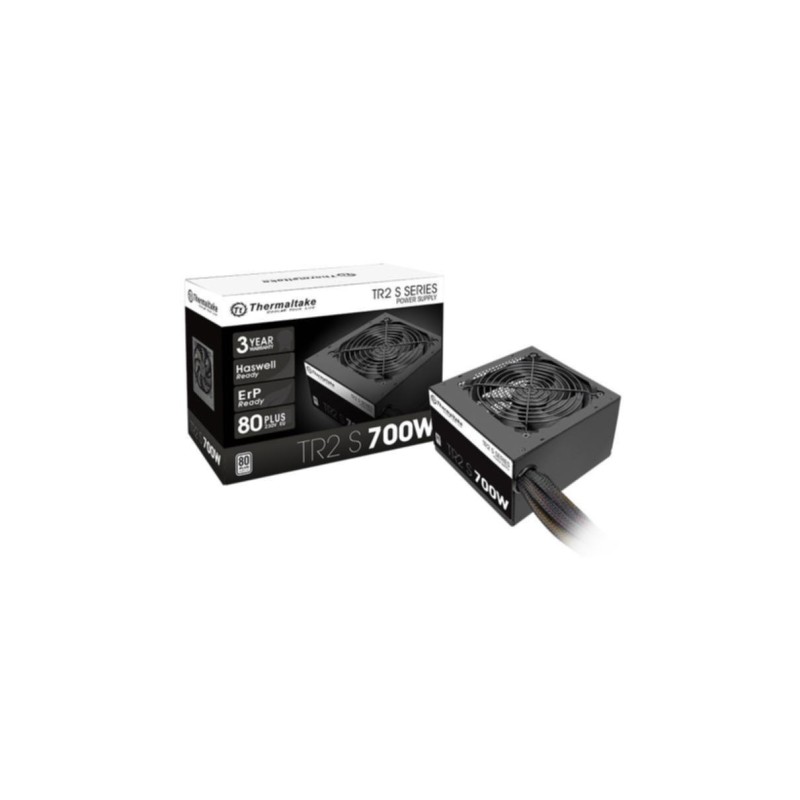

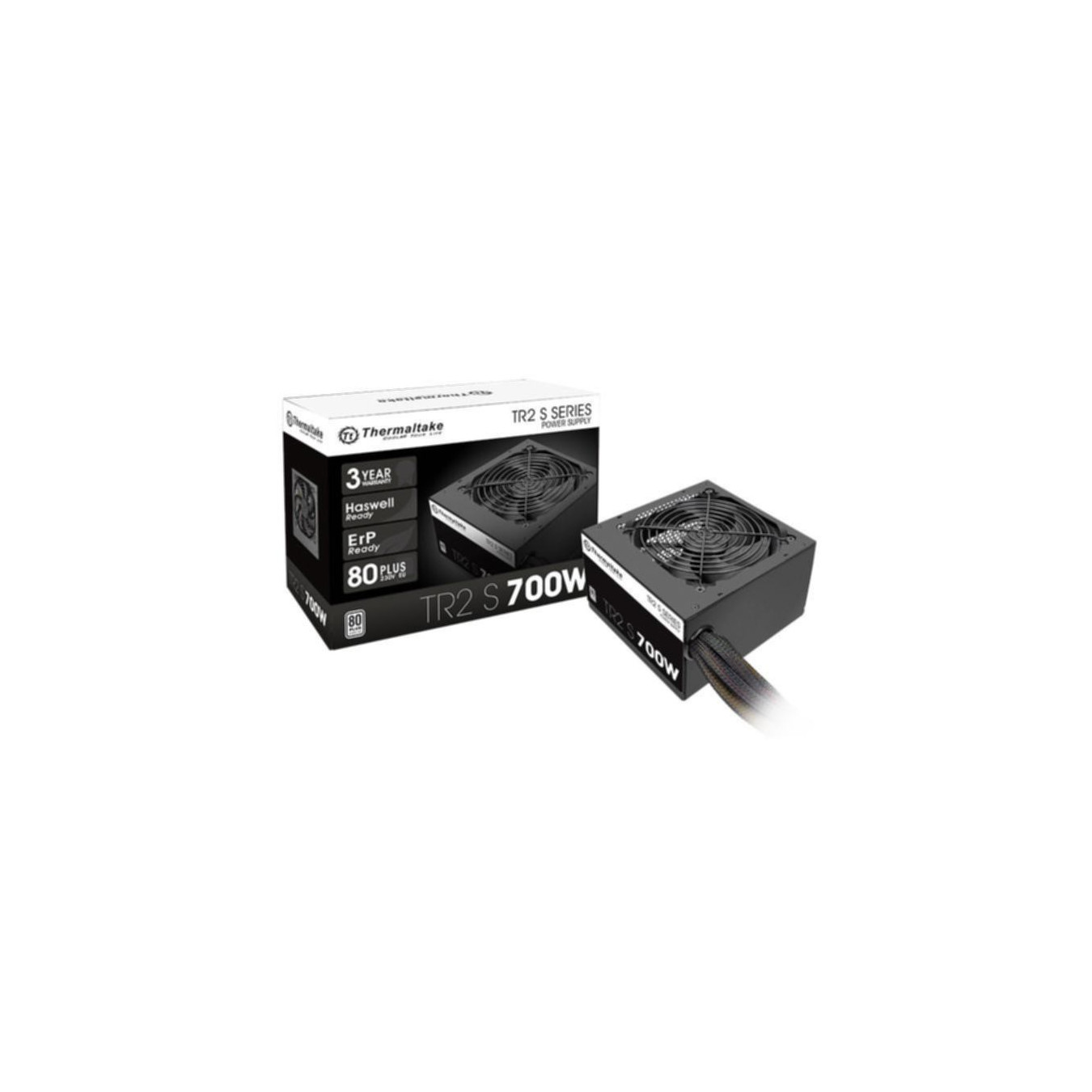

Thermaltake TR2 S 700W - Non-Modular ATX PSU, Black, 700W (80 PLUS)
700W Thermaltake TR2 S non-modular ATX power supply with 80 PLUS efficiency, 120mm fan, 20+4 ATX & 4+4 CPU connectors, 2x PCIe (6+2), 6x SATA, 5x Molex.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - ATX Standard | ATX 2.x |
|---|---|
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 2x8-pin |
| PSU (Power Supplies) - EPS CPU Connectors | 1x8-pin |
| PSU (Power Supplies) - Fan Size | 120 mm |
| PSU (Power Supplies) - Length | less than or equal to140 mm |

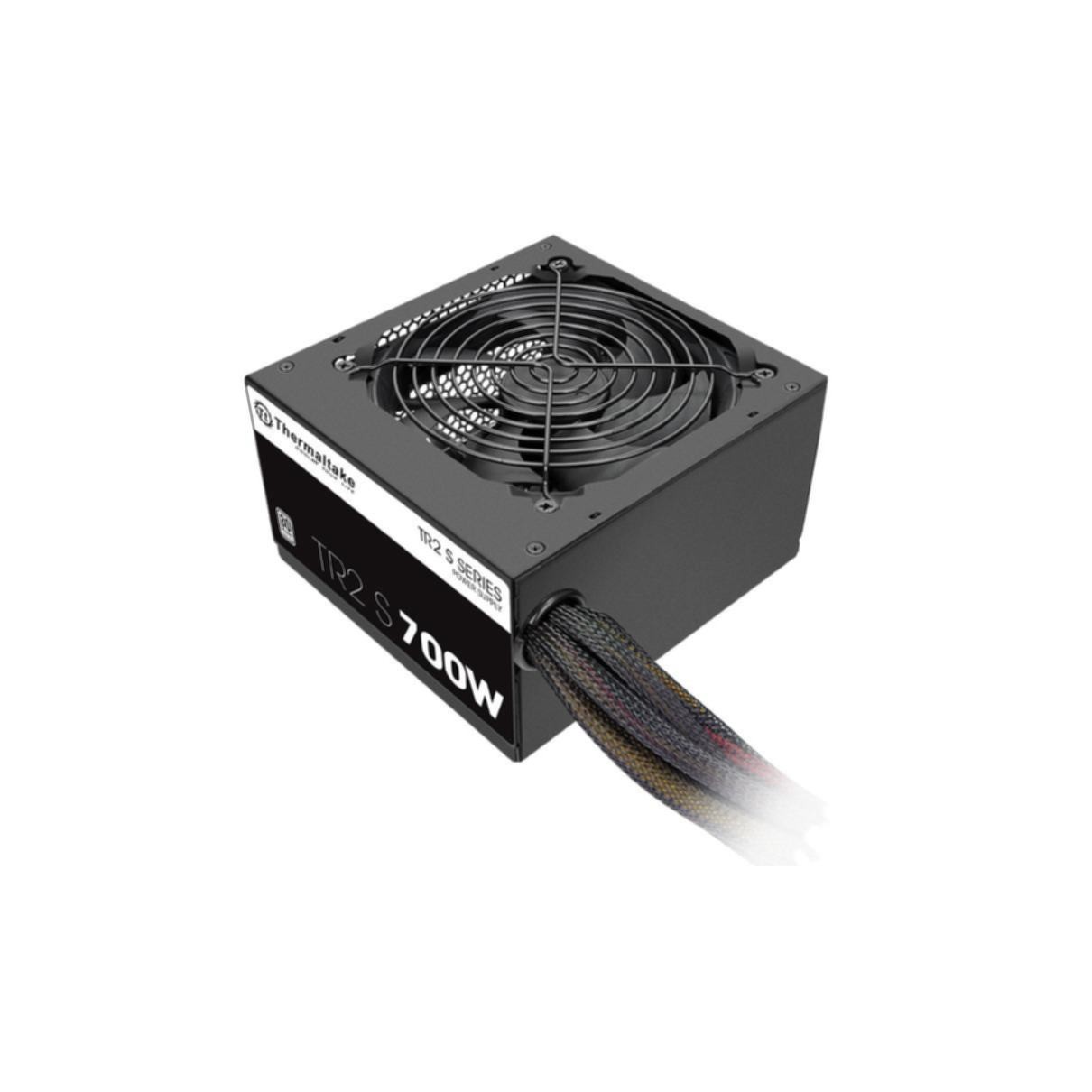

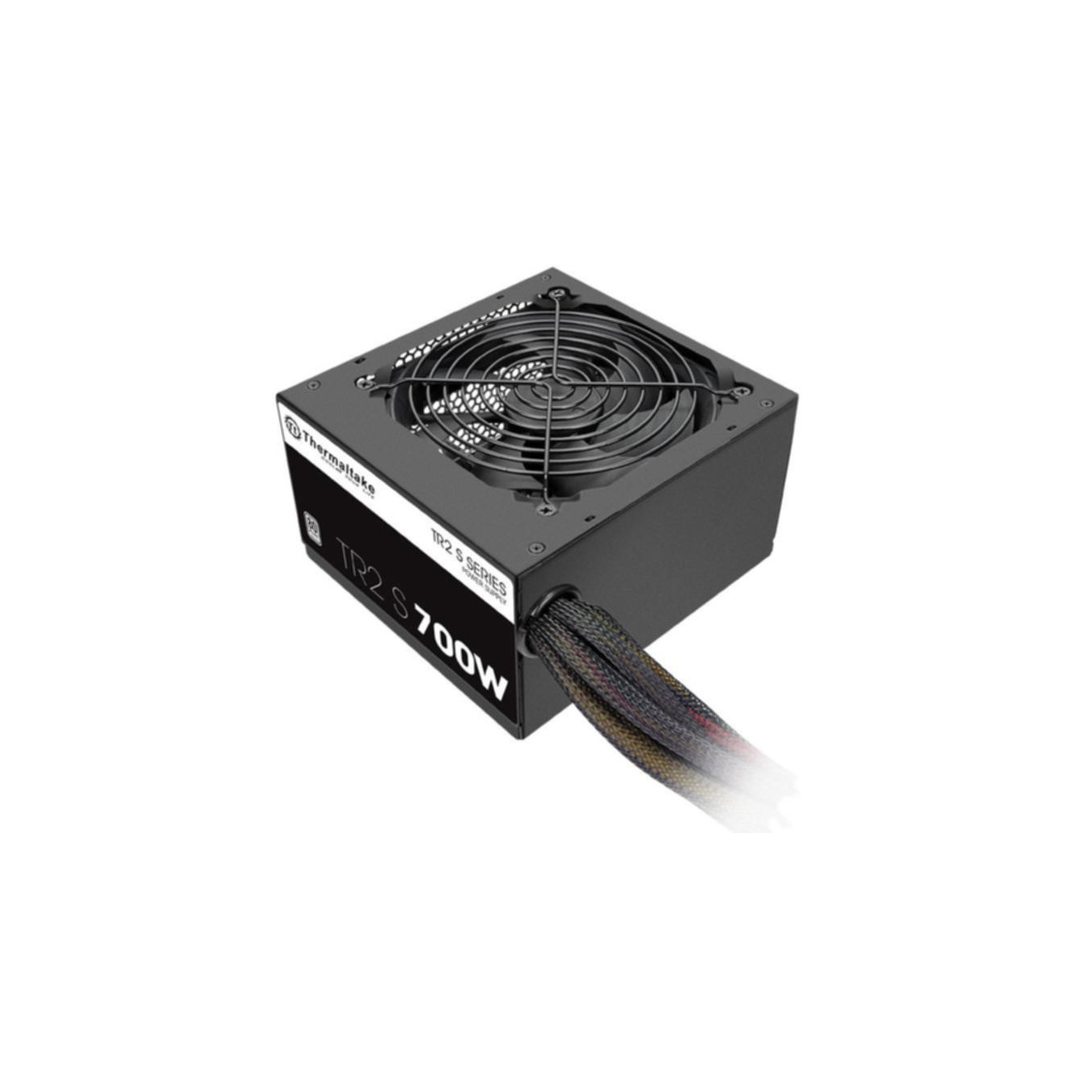

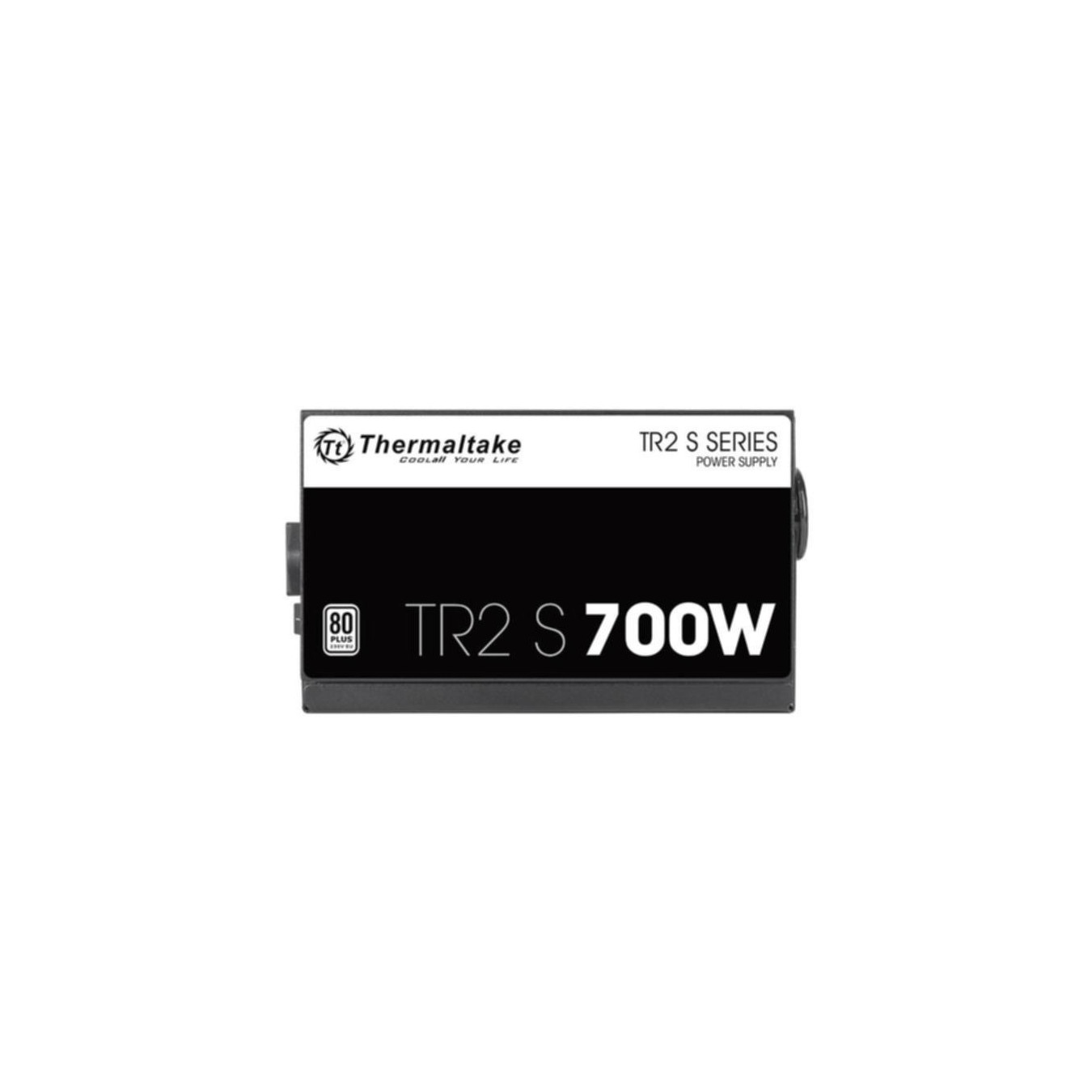

Thermaltake TR2 S 700W
Incorporating various high-quality components, the new TR2 S Series – models are rated from 500W to 700W – saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.

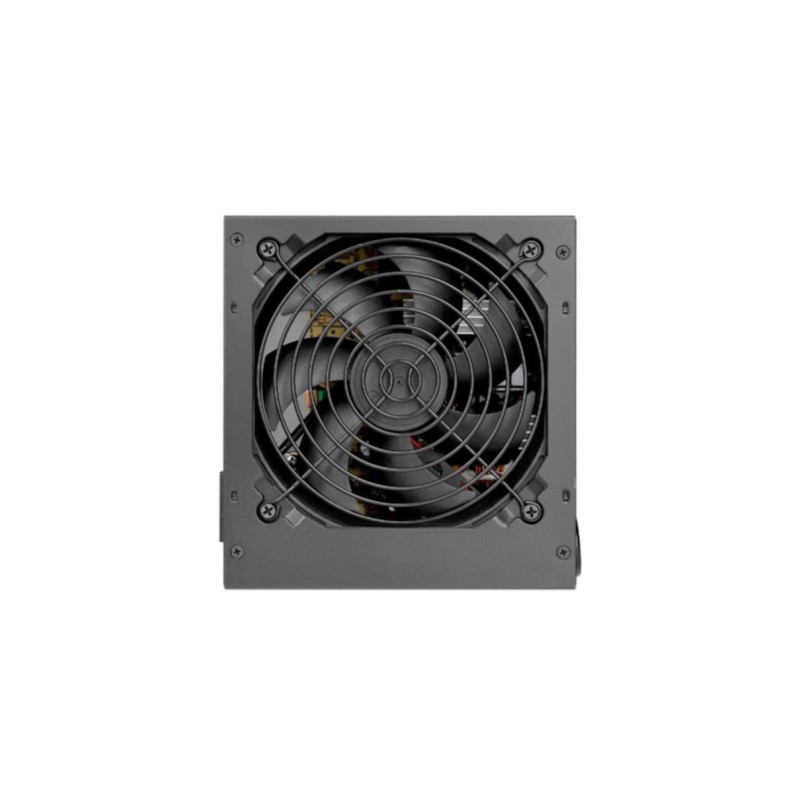

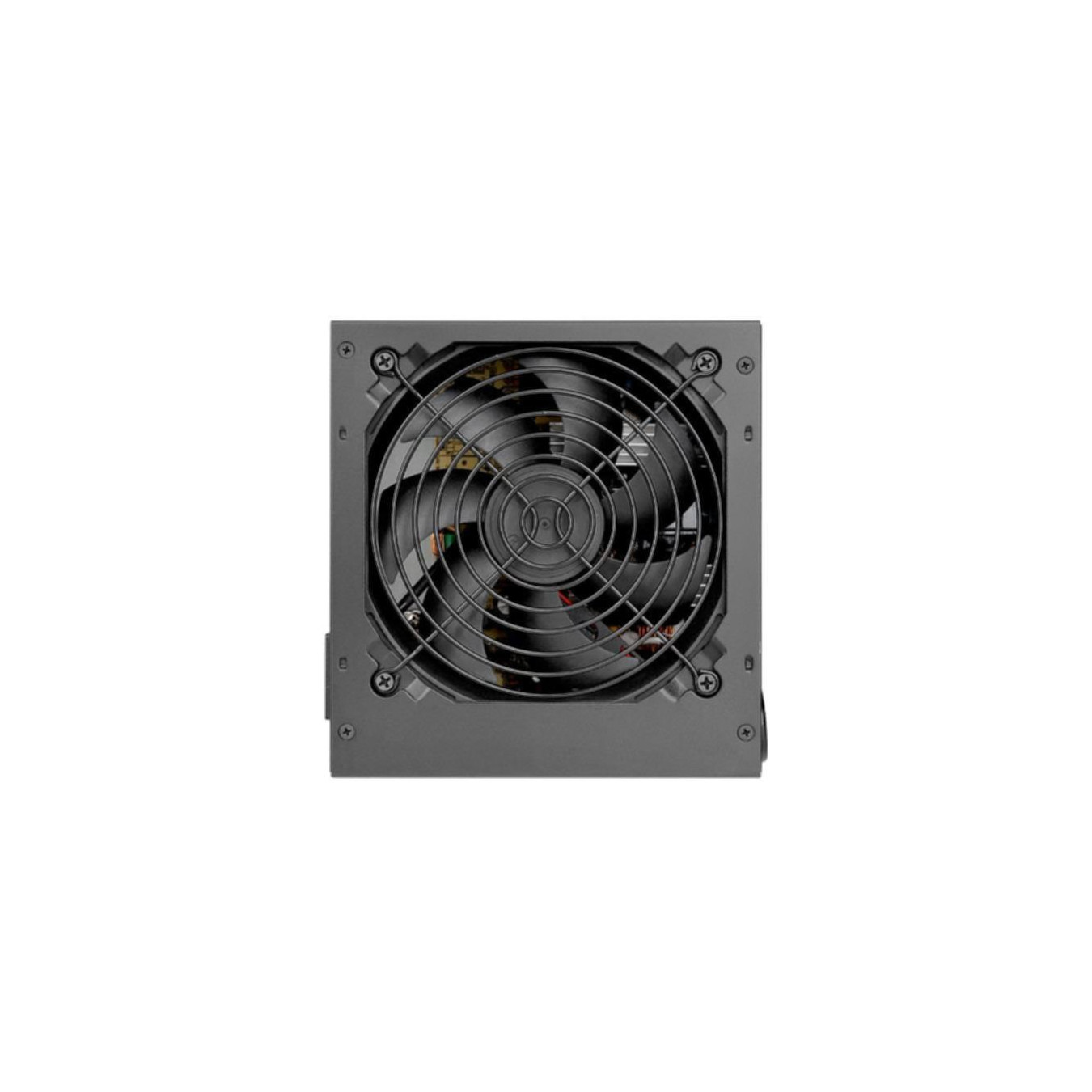

Ultra Quiet 120mm Fan
TR2 S Series adopt 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.
80 PLUS 230V Standard Certified and Haswell Ready
TR2 S Series saves energy through its high energy efficiency of up to 86% and is 80 PLUS® 230V Standard Certified.

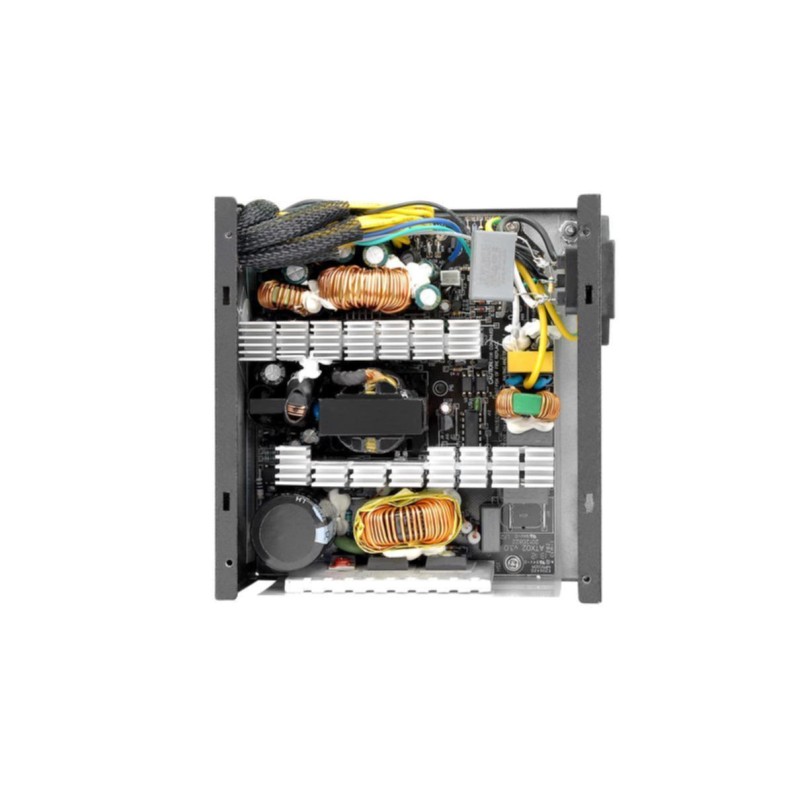

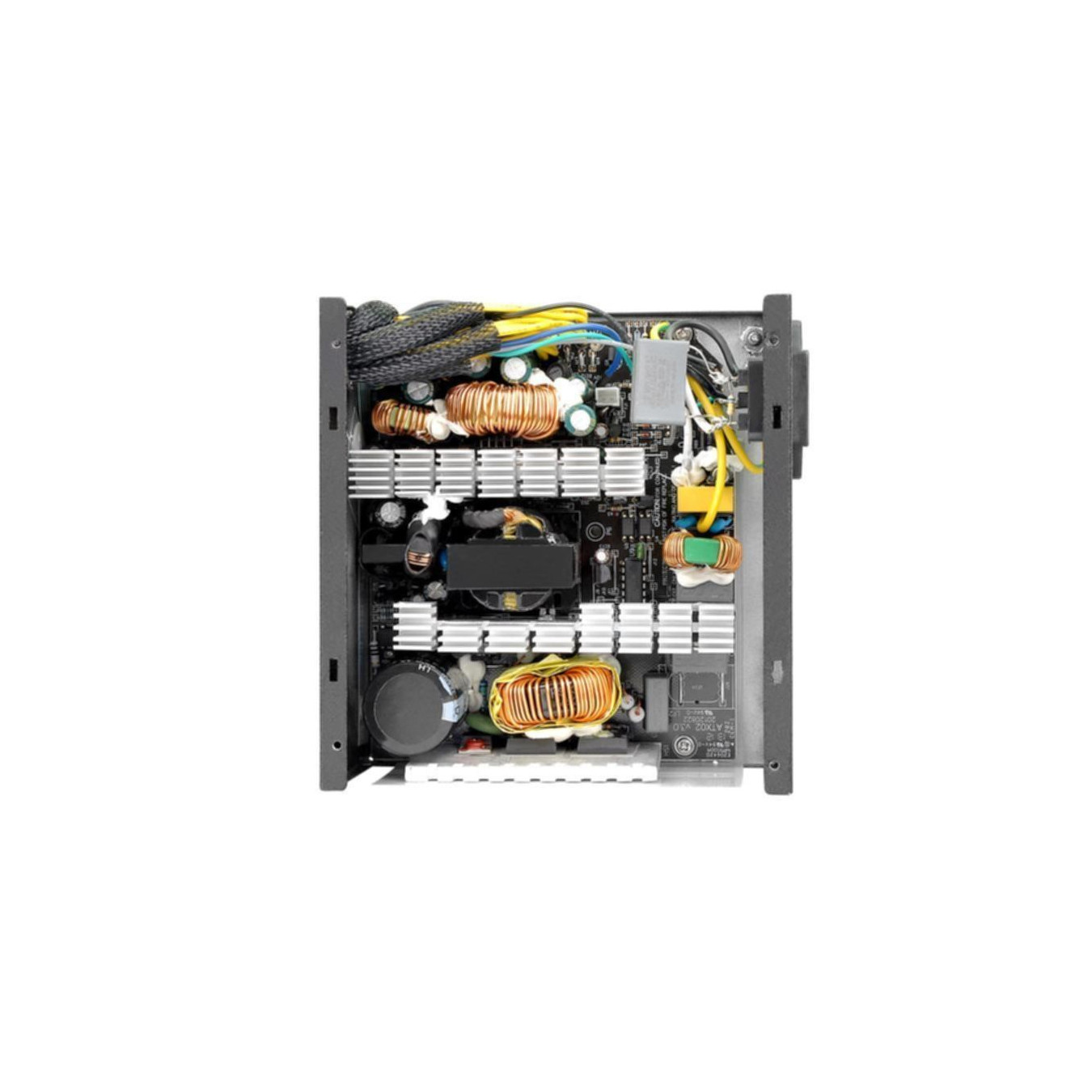

High-Quality Components
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.
Single +12V Output
TR2 S Series is equipped with powerful +12V rails, superior performance under all types of system loading.
| Total power | 700 W |
| AC input voltage | 230 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 9 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 648 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V) | 54 A |
| Max output current (+5V) | 17 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2.5 A |
| Hold time | 16 ms |
| Efficiency | 86% |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 5 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.3 |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan speed | 1800 |
| Fan location | Top |
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -40 - 55 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 10 - 95% |
| Certification | CE/CB/TUV |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Package type | Box |
| Harmonized System (HS) code | 84733020 |
