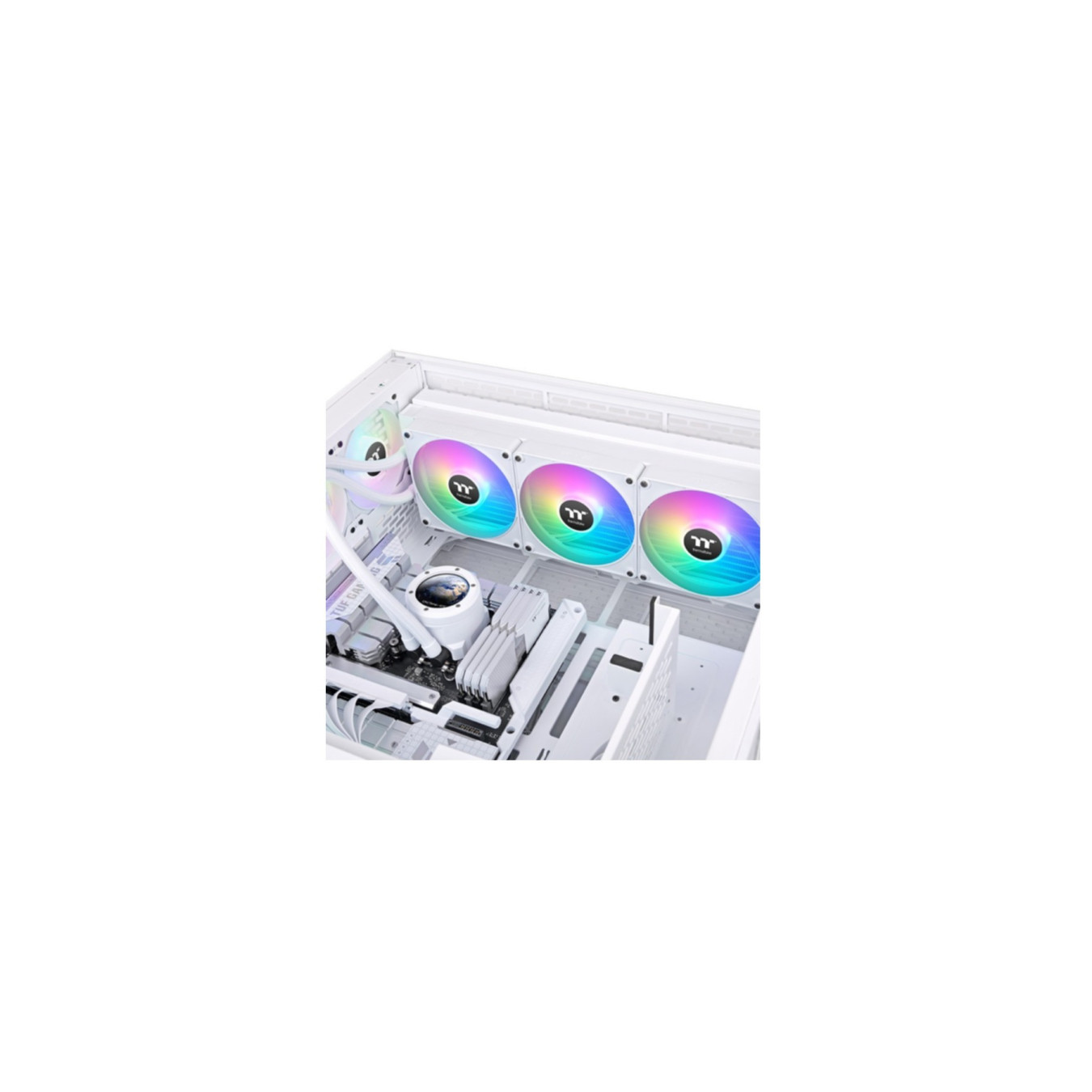

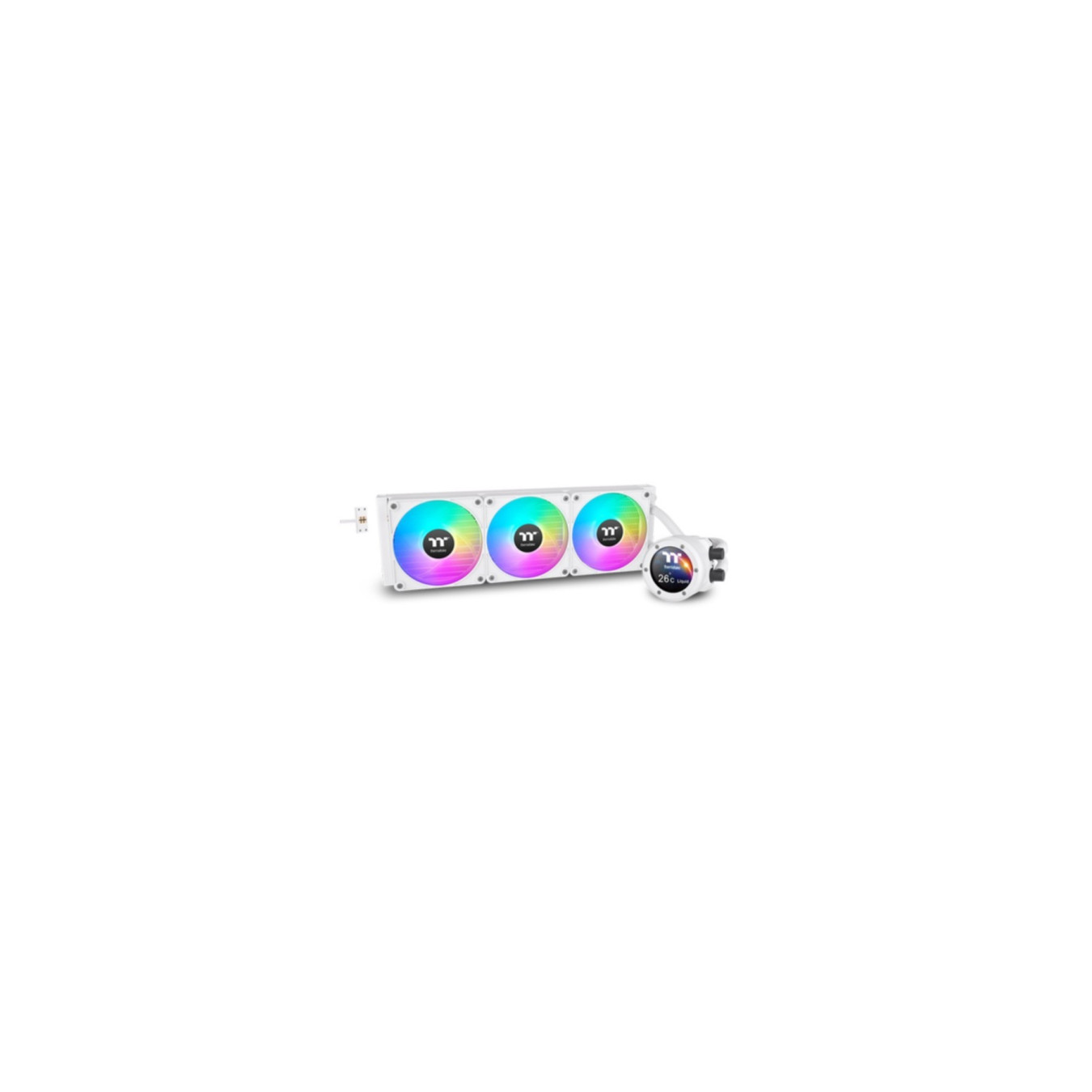

Thermaltake TH420 V2 Ultra EX ARGB Snow Edition - 420mm AIO Liquid Cooler, White, 3x140mm Fans
420mm all-in-one liquid CPU cooler in white with 3x 140x25mm ARGB PWM fans, TFT-LCD pump display, PWM control, wide socket support including LGA1700.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Cooling (CPU & Case) - Type (Cooler) | AIO Liquid 420 |
|---|---|
| Cooling (CPU & Case) - Socket Support | LGA1700 |
| Cooling (CPU & Case) - Noise Level | 31-35 dBA |
| Cooling (CPU & Case) - RGB (Cooler) | ARGB (5V) |
| Cooling (CPU & Case) - Fan Size | 140 mm |
| Cooling (CPU & Case) - Fan Thickness | 25 mm (standard) |
| Cooling (CPU & Case) - Fan Connector | 4-pin PWM |
| Cooling (CPU & Case) - Speed (RPM) | 1501-2000 |
| Cooling (CPU & Case) - Use Case | Static Pressure (radiator) |
| Cooling (CPU & Case) - Lighting (Fan) | ARGB (5V) |
Full Modular Design
The CT EX ARGB Fans come with the new MagForce 2.0 which allows you to easily connect AIO fans with only one cable. Alternatively, you may also use them as individual fans with the two different cables in the package.
Steady Connection with MagForce 2.0
Evolved from SWAFAN EX’s Magnetic Force Design, the new MagForce 2.0 Pogo pin contact pads are TWO times larger for greater tolerance. This enhancement significantly reduces the potential faulty alignment no matter you are daisy-chaining fans together or connecting fans with cable, further boosting the installation efficiency and streamlining the building experience.
Say Goodbye to Excessive Cables
Connect your fans with CT EX’s MagForce 2.0 Quick Connect Design and be free from messy cables!

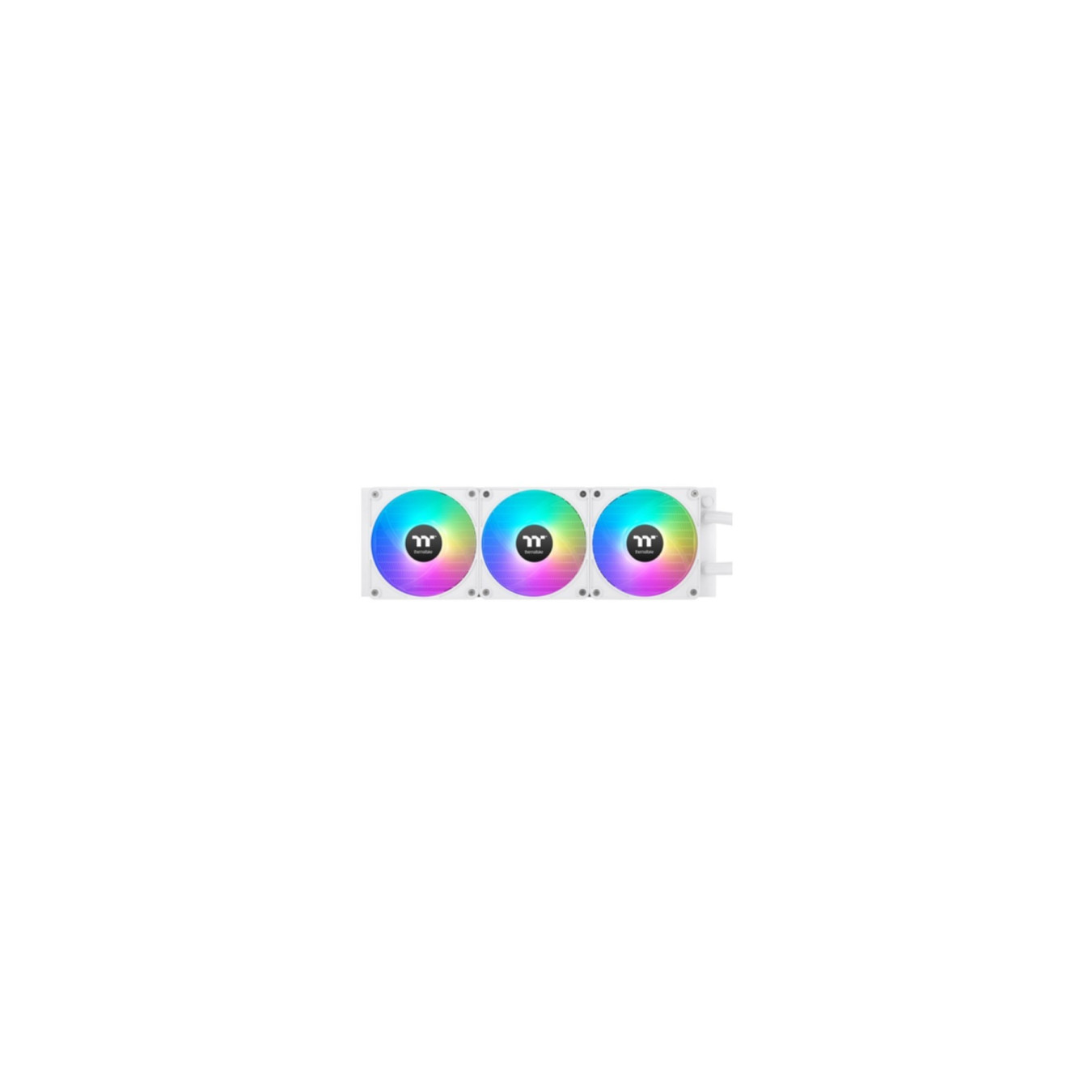

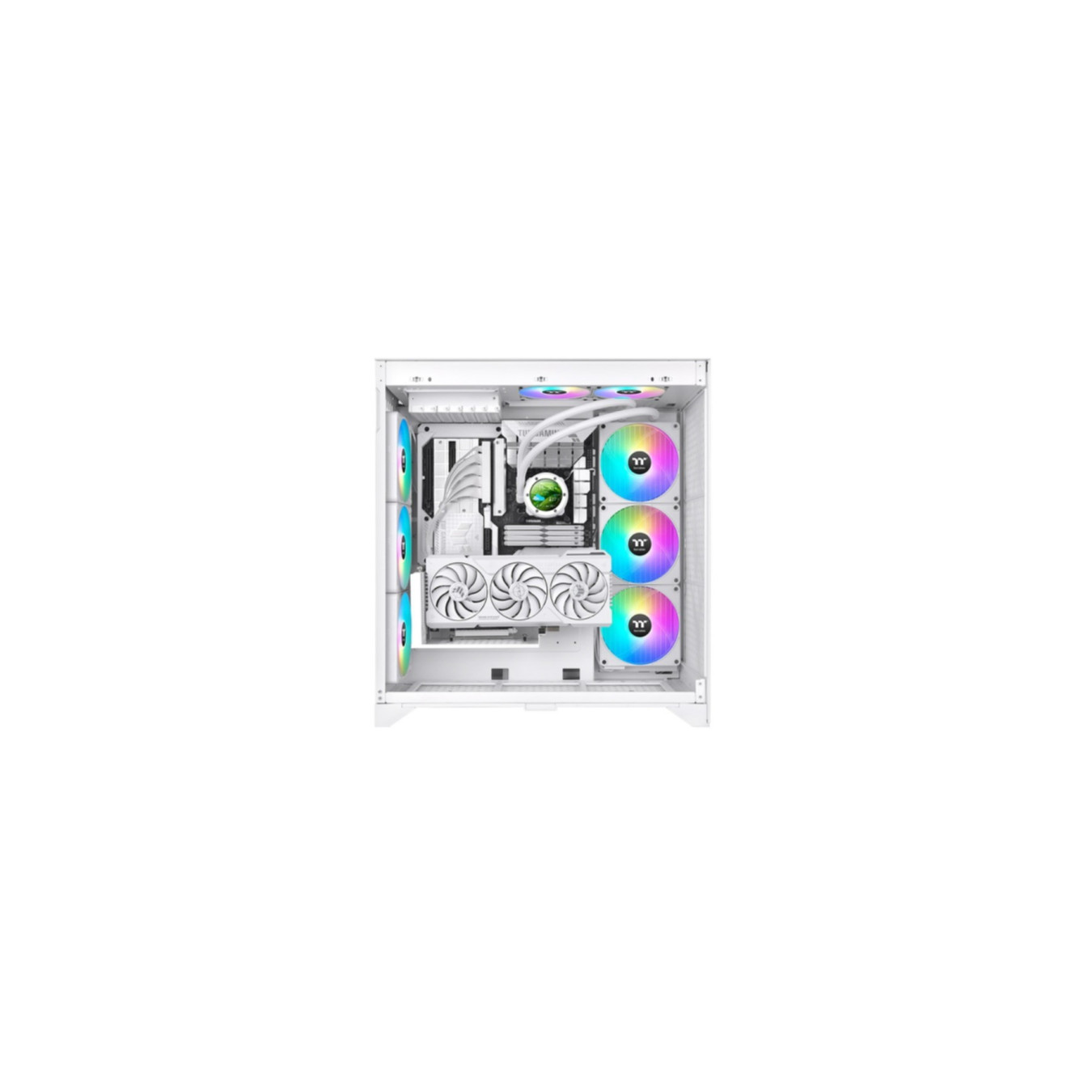

Sync with CT140 EX ARGB Sync Fans
Utilizing the CT140 EX ARGB Sync White Fans on this model, not only you can match up some of our chassis’ pre-installed fans, but you can unify your fans with your build! The CT140 EX ARGB Sync White provides an 90.3 CFM of air flow with 3.07 mm-H2O static pressure while maintaining 30.7 dB-A noise levels.

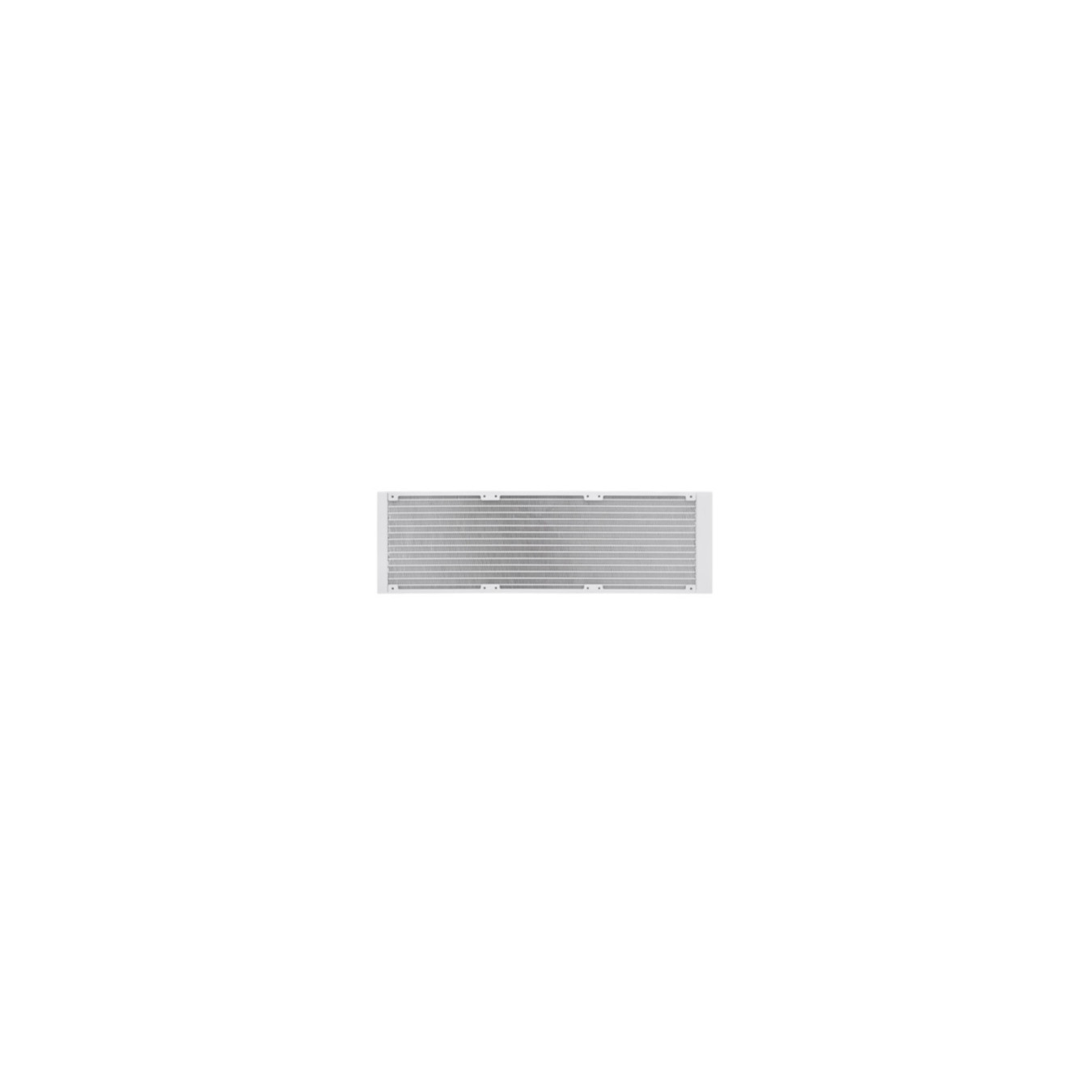

Enhanced Cooling Surface With A Compact Design
The TH V2 Ultra EX ARGB Sync Snow Series has a 27mm slim radiator with a thickened 20mm copper chamber, ensuring the same easy installation but with even better cooling performance.

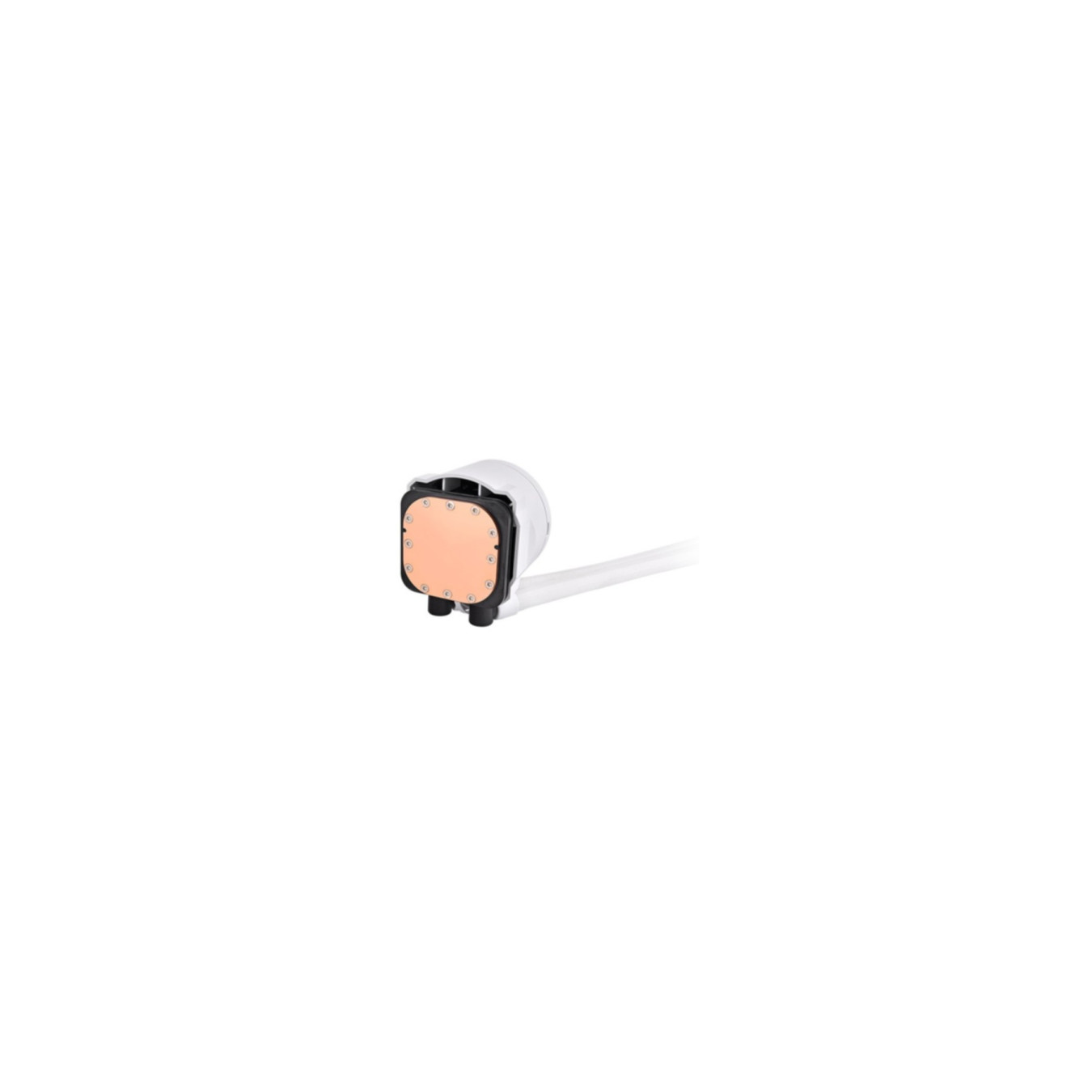

Keep it COLD with Copper
The high-performance copper base plate accelerates heat conductivity. The high-quality and reliable pump enables maximum water circulation, keeping the copper plate continuously cool. The low evaporation tube effectively decreases the loss of coolant; therefore, no refill is required.

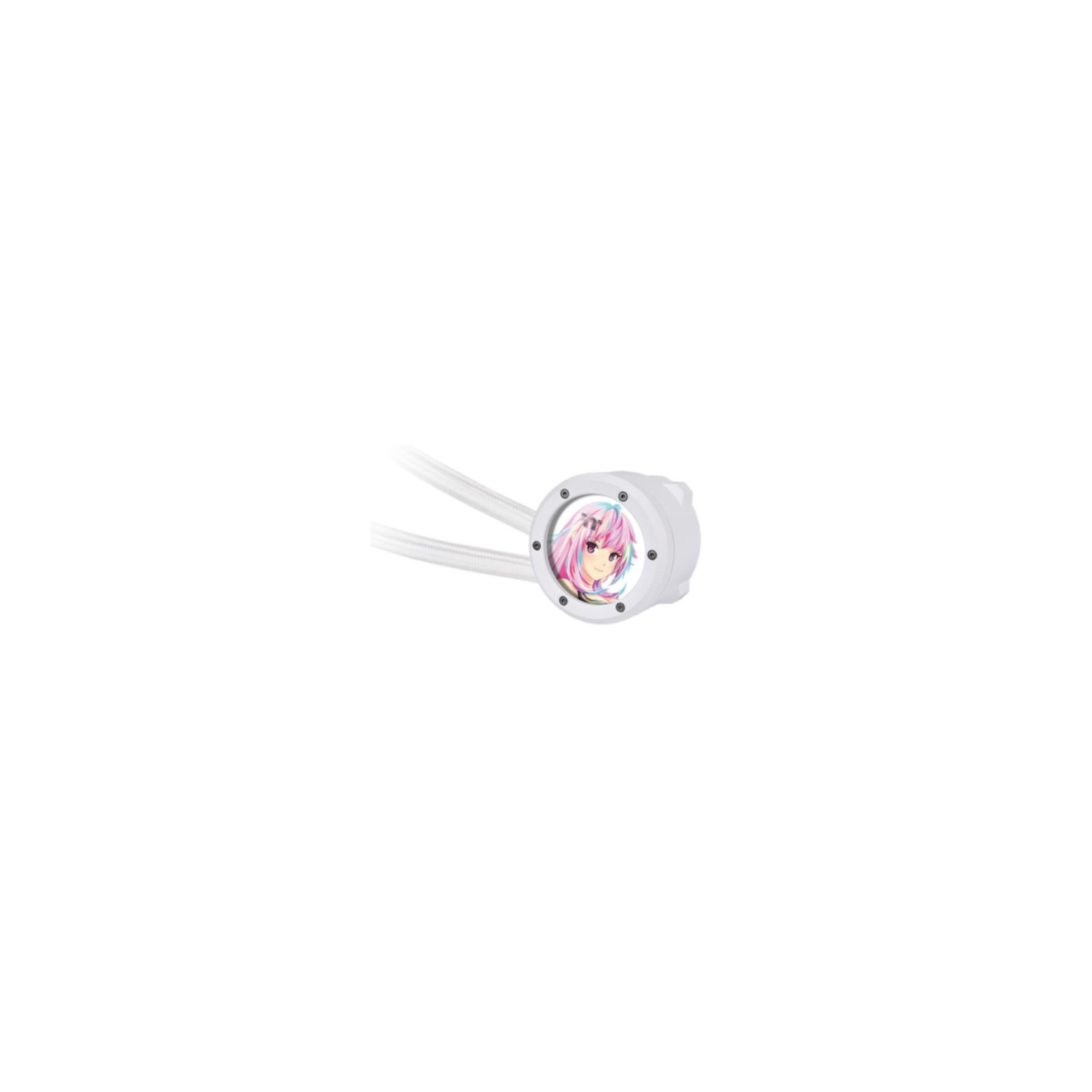

Personalize Your LCD Display
The TH V2 Ultra EX ARGB Sync Snow Series features an industrial-inspired design to freshen up its 2.1” LCD Display. The highly customizable LCD Display has a 480*480 high resolution, allowing you to showcase 16.8M color videos or photos effortlessly, enhancing the visual aesthetics of your build.
Fully Customizable with TT RGB Plus 2.0
Monitor frequency and real-time temperature directly from the 2.1” LCD display, or customize start-up and standby screens by uploading images or GIFs to add extra flair with the TT RGB Plus 2.0 software.
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
| Suitable location | Processor |
| Type | All-in-one liquid cooler |
| Fan diameter | 14 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 1851, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066 |
| Rotational speed (min) | 500 RPM |
| Rotational speed (max) | 1800 RPM |
| Noise level (high speed) | 30.7 dB |
| Maximum airflow | 90.3 cfm |
| Maximum air pressure | 3.07 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Quantity per pack | 1 pc(s) |
| Pump motor speed (min) | 1500 RPM |
| Pump motor speed (max) | 3300 RPM |
| Product colour | White |
| Radiator material | Aluminum |
| Base plate material | Copper |
| Number of fans | 3 fan(s) |
| Illumination LED | Yes |
| Illumination colour | Multi |
| Water block material | Copper |
| Display type | TFT-LCD |
| Pump power consumption | 5.16 W |
| Pump voltage | 12 V |
| Pump current | 430 mA |
| Fan voltage | 12 V |
| Radiator width | 45.6 cm |
| Radiator depth | 13.9 cm |
| Radiator height | 2.7 cm |
| Tube length | 46 cm |
| Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
| Mounting kit | Yes |
| Screws included | Yes |
| Installation instruction | Yes |
| CPU bracket(s) | Yes |
