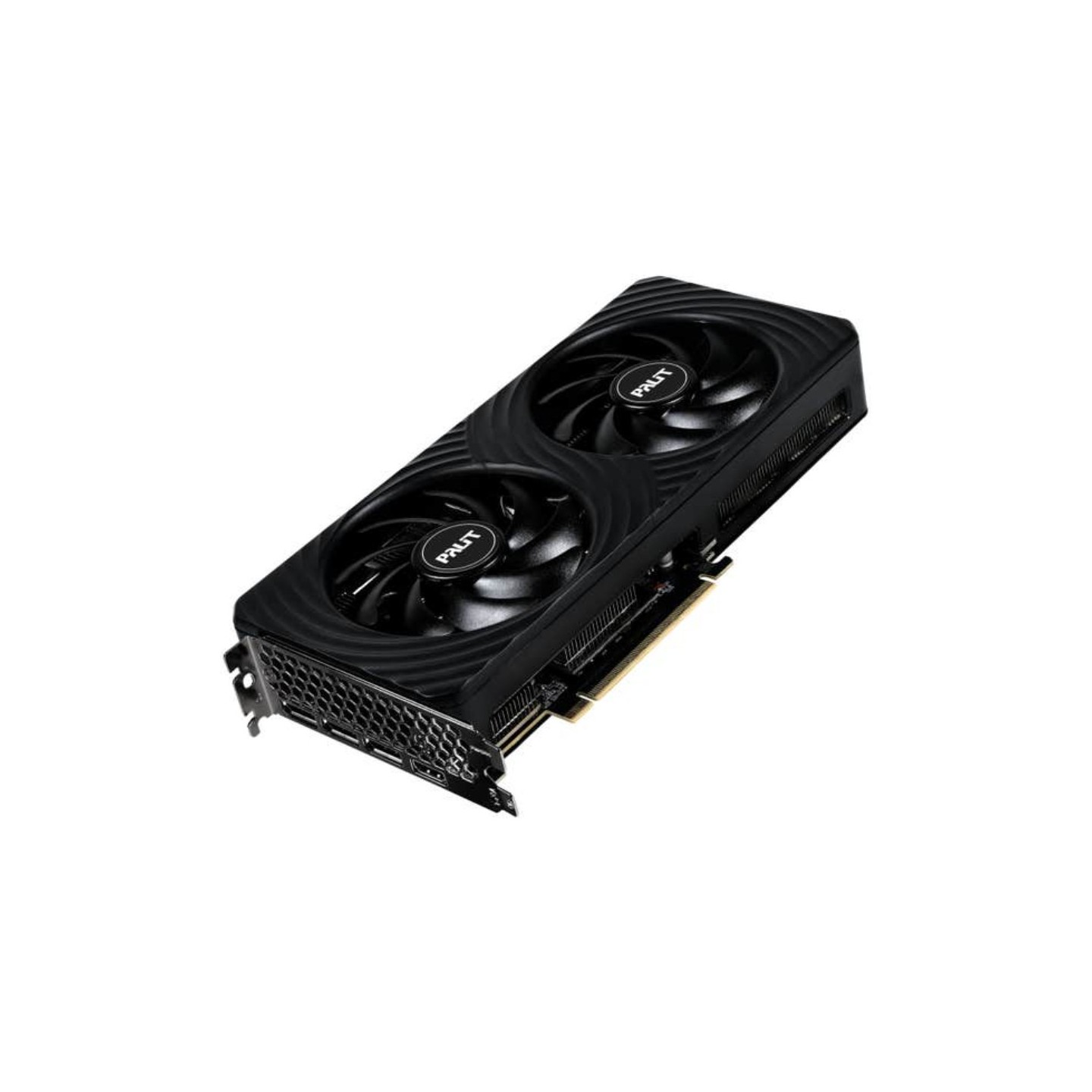

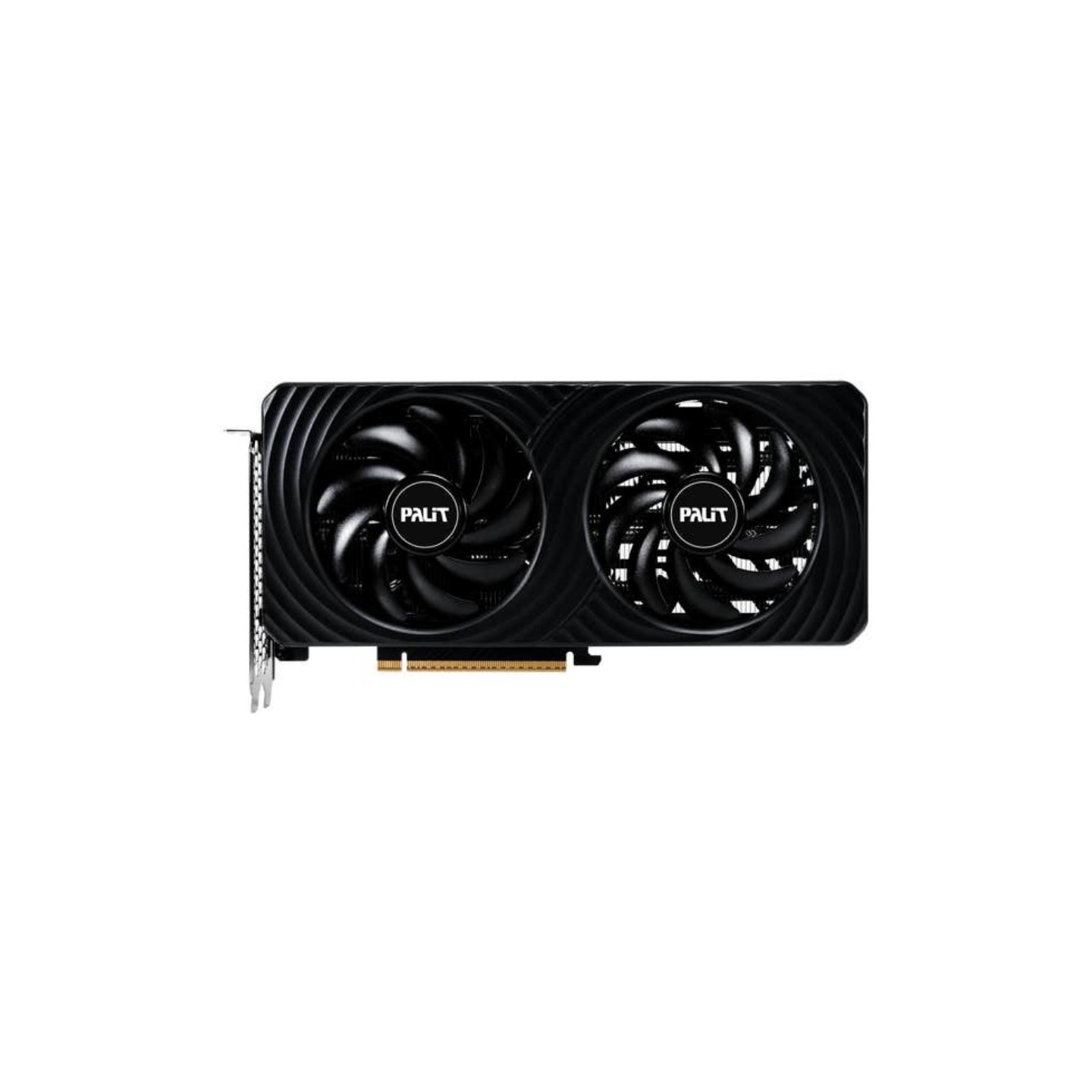

Palit GeForce RTX 5060 Dual - Black, 8GB GDDR7, Boost 2497 MHz, PCIe 5.0 (Boxed)
Palit RTX 5060 Dual 8GB GDDR7 GPU: 2497MHz boost, PCIe 5.0, dual 95mm fans, 145W, Blackwell AI tech w/DLSS 4. Compact 2-slot black design w/RGB, ideal for 1080p gaming matching 4060 Ti perf[1][2][3].
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | NVIDIA GeForce RTX |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 5.0 x16 |
| GPU (Graphics Cards) - Cooler Type | Dual Fan |
| GPU (Graphics Cards) - Color | Black |
| GPU (Graphics Cards) - Backplate | Yes |
| GPU (Graphics Cards) - VRAM Capacity | 8 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR7 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 1x8-pin |
| GPU (Graphics Cards) - Card Length | Mid Length (261-280 mm) |
The Palit GeForce RTX™ 5060 Dual in sleek black delivers efficient twin 95mm fan cooling and quiet operation in a compact 2-slot form factor, perfect for small builds. Features sturdy backplate, subtle RGB lighting, and Palit Maker customization without voiding warranty. Powered by NVIDIA Blackwell architecture with 3840 CUDA cores, 8GB GDDR7 on 128-bit bus, it excels at 1080p gaming, matching RTX 4060 Ti/3070 performance while leveraging DLSS 4 Multi Frame Gen for AI-boosted FPS[1][2][3].
RTX technologies shine: full ray tracing via 4th-gen RT Cores, Reflex 2 for low latency, and AI tools like NVIDIA Broadcast/RTX Video. Supports 4 displays up to 8K via 1x HDMI 2.1b & 3x DP 2.1b. ThunderMaster software enables OC, fan/LED control. Zero-fan mode until 60°C for silence; 550W PSU recommended w/1x 8-pin[2][3].
- Key Specs: Boost 2497MHz, 145W TDP, PCIe 5.0 x16, VR Ready, G-SYNC
- Cooling: Dual fans, Composite Heat Pipe (+32% efficiency)
- Dimensions: 262x126x40mm
- Software: Game Ready/Studio Drivers, NVIDIA App
| CUDA | Yes |
| CUDA cores | 3840 |
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5060 |
| Processor frequency | 2280 MHz |
| Processor boost clock speed | 2497 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 128 bit |
| Data transfer rate | 28 Gbit/s |
| Memory bandwidth (max) | 448 GB/s |
| Interface type | PCI Express 5.0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| DisplayPort version | 2.1b |
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| Virtual Reality (VR) ready | Yes |
| HDCP | Yes |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| NVIDIA Ansel | Yes |
| Cooling type | Active |
| Number of fans | 2 fan(s) |
| Fan diameter | 9.5 cm |
| Number of slots | 2 |
| Illumination | Yes |
| Illumination colour | Multi |
| Product colour | Black |
| Minimum system power supply | 550 W |
| Supplementary power connectors | 1x 8-pin |
| Power consumption (max) | 145 W |
| Length | 262.1 mm |
| Depth | 40.1 mm |
| Height | 126.3 mm |
| Package type | Box |
| Architecture | Blackwell |
