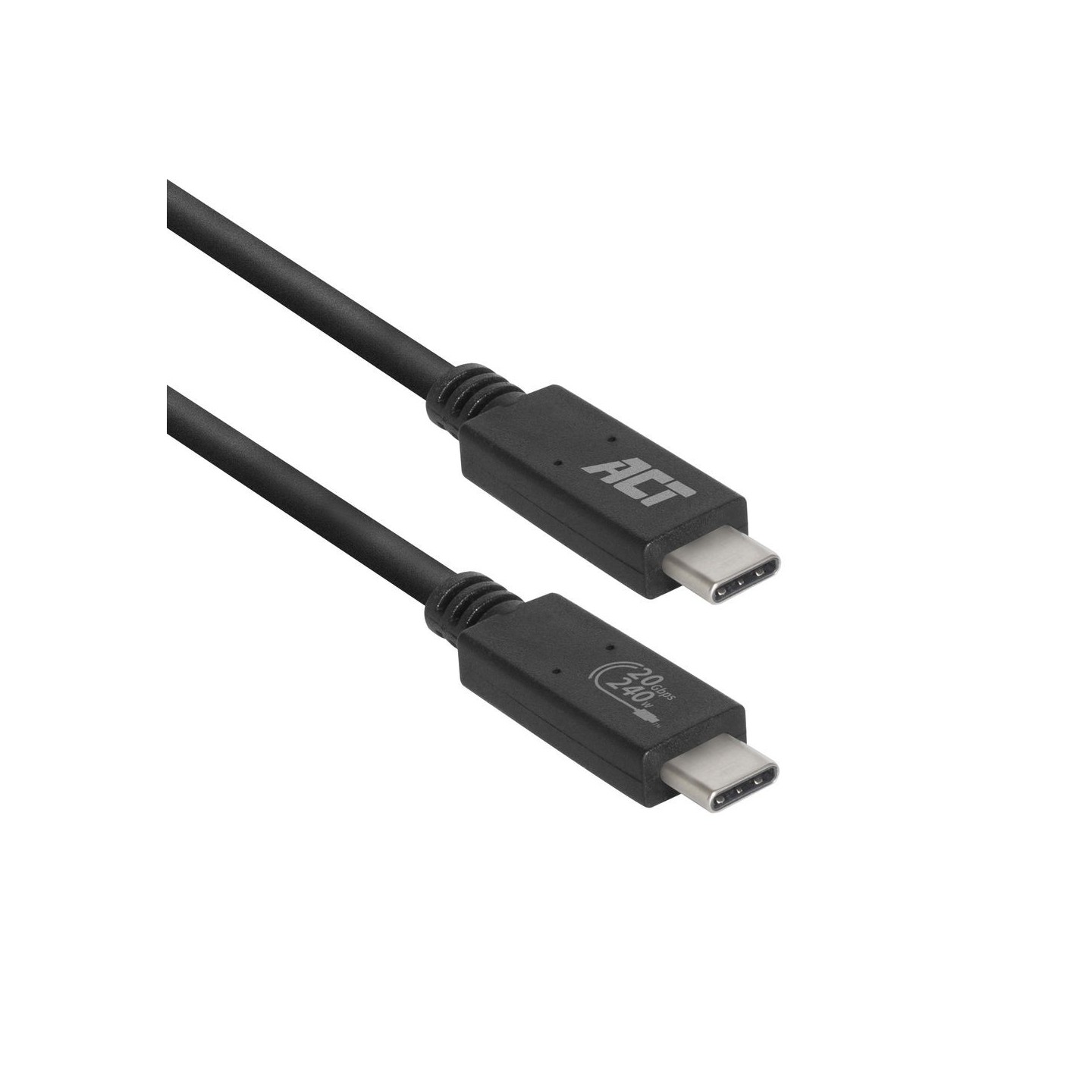

AC7431 ACT USB4 20Gbps 1m USB-C M/M Cable USB-IF Certified (Boxed)
AC7431 is USB-IF certified USB4 cable, 1m USB-C male-to-male. Supports 20Gbps data, 240W EPR power, 1x5K or 2x4K@60Hz video. Backward compatible with Thunderbolt 3, USB 3.2/2.0.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| USB-C Cables - Source Connector | USB-C |
|---|---|
| USB-C Cables - Data Transfer Standard | Thunderbolt 3 USB 3.2 Gen 2x2 (20 Gbps) |
| USB-C Cables - Cable Length | Standard (1m - 2m) |
| USB-C Cables - Power Capacity | EPR (240W PD 3.1) |
The AC7431 from ACT is an official USB-IF certified USB4 cable designed for high-performance connections. This 1-meter USB-C male-to-male cable delivers data transfer speeds up to 20Gbps, supports Extended Power Range (EPR) up to 240W (48V @ 5A), and handles video output for one 5K@60Hz monitor or two 4K@60Hz monitors in daisy-chain mode.
Equipped with an intelligent e-marker chip, it optimizes data, power, and video functions based on connected devices. Fully backward compatible with Thunderbolt 3, USB 3.2, USB 3.1, USB 3.0, and USB 2.0, making it versatile for laptops, monitors, docks, and peripherals. Wire gauge: 26/30/32/34 AWG ensures durability and performance.
- USB4 20Gbps data transfer
- 240W EPR Power Delivery (5V-48V profiles up to 5A)
- Video: 1x 5K@60Hz or 2x 4K@60Hz
- USB-IF certified for reliability
- 1m length, USB-C M/M connectors
| Model | AC7431 |
| Brand | ACT |
| Cable Length | 1 meter |
| Connector Type | USB-C male to USB-C male |
| Data Transfer Speed | Up to 20Gbps (USB4 Gen 2x2) |
| Power Delivery | Extended Power Range (EPR) up to 240W (48V @ 5A) |
| Supported PD Profiles | 5V/5A, 9V/5A, 12V/5A, 15V/5A, 20V/5A, 28V/5A, 36V/5A, 48V/5A |
| Video Support | 1x 5K@60Hz or 2x 4K@60Hz (daisy chain) |
| Certification | USB-IF certified USB4 |
| Backwards Compatibility | Thunderbolt 3, USB 3.2, USB 3.1, USB 3.0, USB 2.0 |
| Wire Gauge | 26, 30, 32, 34 AWG |
| Protocols | USB4, Power Delivery EPR, Thunderbolt 3, USB Data |
| E-Marker Chip | Yes (intelligent chip for optimization) |
