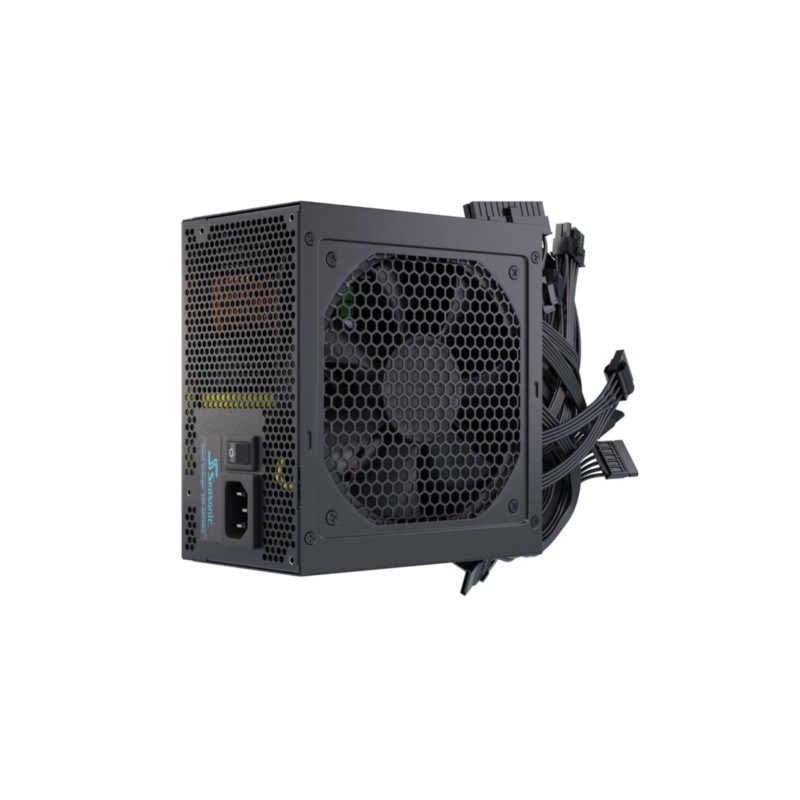

Seasonic Focus GM-850 - 850W 80 PLUS Gold ATX Internal Power Supply
850W ATX internal PSU, 80 PLUS Gold efficiency (90% at 50% load), Active PFC, LLC resonant converter and S2FC smart & silent fan control.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 850 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80+ Gold |
The G12 GM Series is available in the standard ATX Form Factor and in wattages that are most common for a PC system. The Seasonic G12 GM-Series achieves 80 PLUS® Gold standard of providing at least 87 %, 90 % and 87 % power usage efficiency at 20 %, 50 % and 100 % operating loads, respectively. This efficiency, combined with Active Power Factor Correction, enables the G12 GM series power supplies to lessen energy waste, which translates into savings on the costs of energy costs for its users. In addition to being greatly efficient, the G12 GM units utilize the LLC resonant converter design, and the industry’s leading Smart and Silent Fan Control (S2FC).
80 PLUS GOLD
The G12 GC achieves 80 PLUS Gold certification with its 90 % efficiency at 50 % system load.
S2FC - SMART AND SILENT FAN CONTROL
The intelligent thermal circuit feature is designed to find the optimal balance between the necessity to cool the components and the need to run the power supply in the most silent manner possible.
| Total power | 850 W |
| AC input voltage | 100 - 240 V |
| Input current | 10 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 840 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over current, Over voltage, Short circuit |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Peripheral (Molex) power cable length | 690 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power cable length | 70 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 60 cm |
| Cabling type | Semi-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Bearing technology | Sleeve |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Operating temperature (T-T) | 0 - 50 °C |
| Cables included | AC, PCIe, Peripheral (Molex), SATA |
| Cable tie(s) included | Yes |
| Certification | cTUVus, TUV, CB, CCC, BSMI, CE, FCC, RoHS, WEEE, ErP Lot 6, REACH |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Package type | Box |
