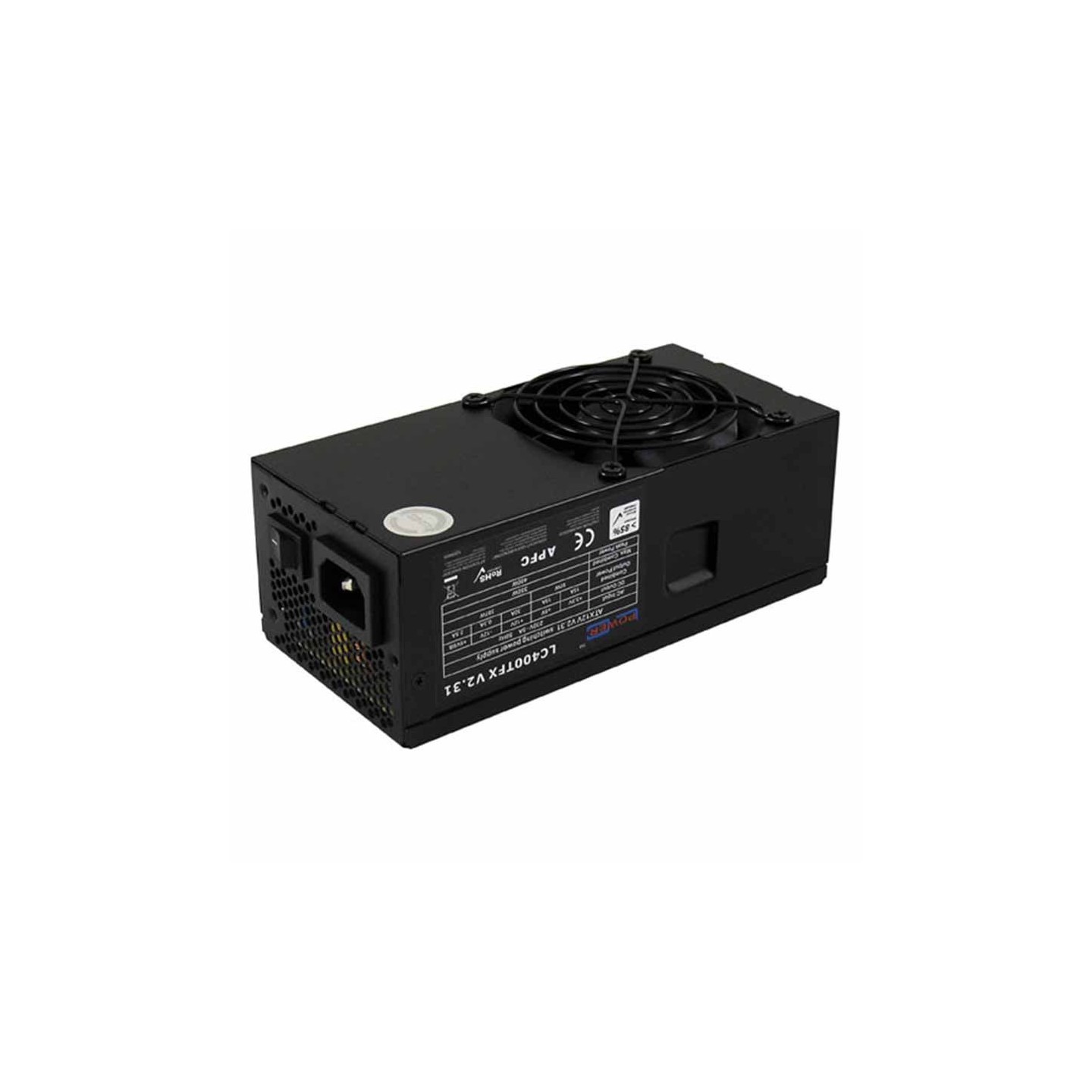

LC-Power LC400TFX V2.31 350W TFX Power Supply - 80mm Fan Active PFC (Boxed)
Compact 350W TFX V2.31 PSU with 80mm fan, active PFC, >85% efficiency. Non-modular cables, dual PCIe (6-pin + 6+2), 4x SATA for SFF/HTPC systems. 400W peak, full protections.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | Under 400 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | Other |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 8/6 pins 2x 8/6 pins |
| PSU (Power Supplies) - Length | 161-180 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |

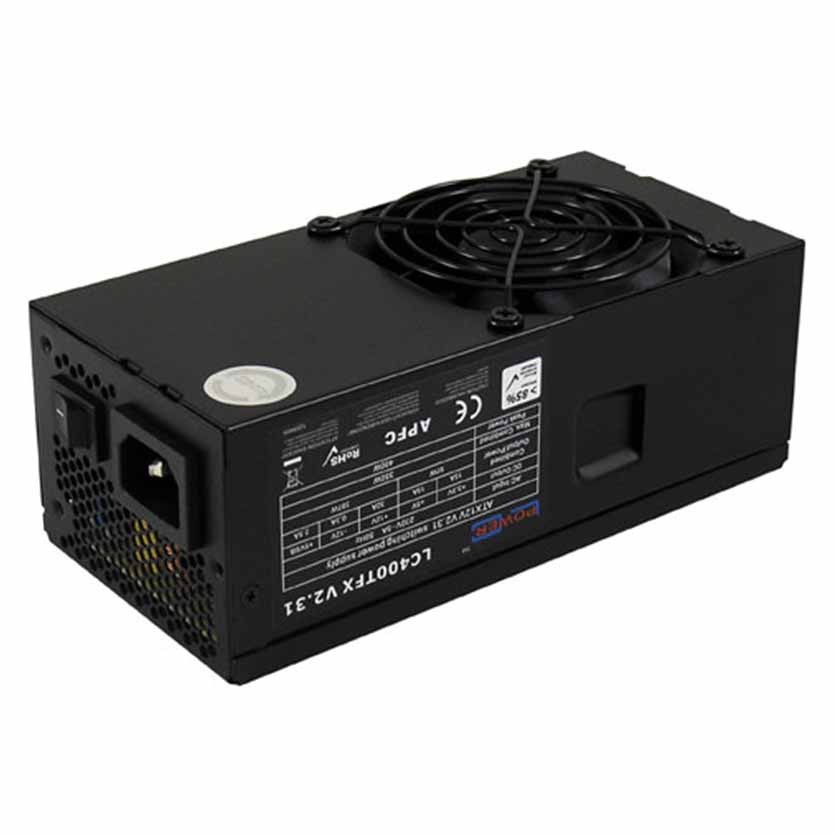

The LC-Power LC400TFX V2.31 is a 350W TFX12V 2.31 compliant power supply for compact HTPCs and SFF systems. Peak load reaches 400W with reliable non-modular cabling and quiet 80mm fan plus rear ventilation for noise-sensitive setups.
Featuring active PFC and >85% efficiency, it minimizes energy waste and costs. Full-range input (110-240V), Haswell compatible, with protections: OCP, OVP, OPP, SCP. CE certified, <0.5W standby (ErP 2013).
Connectors: 20+4 pin ATX (370mm), 4+4 pin EPS (400mm), PCIe 6-pin (400mm) + 6+2 pin (520mm), SATA x4 (400/550/700/850mm), PATA x2 (550/700mm), FDD x1 (850mm). Dimensions: 85x175x69mm.
- Power: 350W / 400W peak
- Cooling: 80mm fan
- Efficiency: >85% active PFC
- PCIe: 1x6-pin + 1x6+2 pin
- Safety: OCP/OVP/OPP/SCP
- Input: 110-240V
| Power Rating | 350W |
| Maximum Peak Load | 400W |
| Type | TFX V2.31 |
| Form Factor | TFX12V 2.31 |
| Efficiency | >85% |
| Power Factor Correction | Active PFC |
| Cooling Fan | 80mm |
| Number of Fans | 1 |
| Mainboard Connector (20+4 pin ATX) | 1x 370mm |
| CPU Power Connector (4+4 pin EPS) | 1x 400mm |
| PCIe Power Connector (6-pin) | 1x 400mm |
| PCIe Power Connector (6+2 pin) | 1x 520mm |
| SATA Connectors | 4 (400mm, 550mm, 700mm, 850mm) |
| PATA Connectors | 2 (550mm, 700mm) |
| FDD Connector | 1x 850mm |
| +3.3V Rail | 15A |
| +5V Rail | 15A |
| +3.3V and +5V Combined | 100W |
| +12V Rail | 33A |
| +12V Maximum Combined | 396W |
| Standby Consumption | <0.5W (ErP 2013) |
| Safety Circuits | OCP, OVP, OPP, SCP |
| Input Voltage Range | 110-240V |
| Haswell Compatible | Yes |
| Certification | CE |
| Product Dimensions (H x W x D) | 69 x 85 x 175 mm |
| Package Dimensions (H x W x D) | 140 x 300 x 80 mm |
| Product Weight | 1.10 kg |
| Package Weight | 1.24 kg |
| Color | Black |
| Cabling Type | Non-modular |
| Manufacturer Code | LC400TFX V2.31 |
| EAN13 | 4260070124792 |
