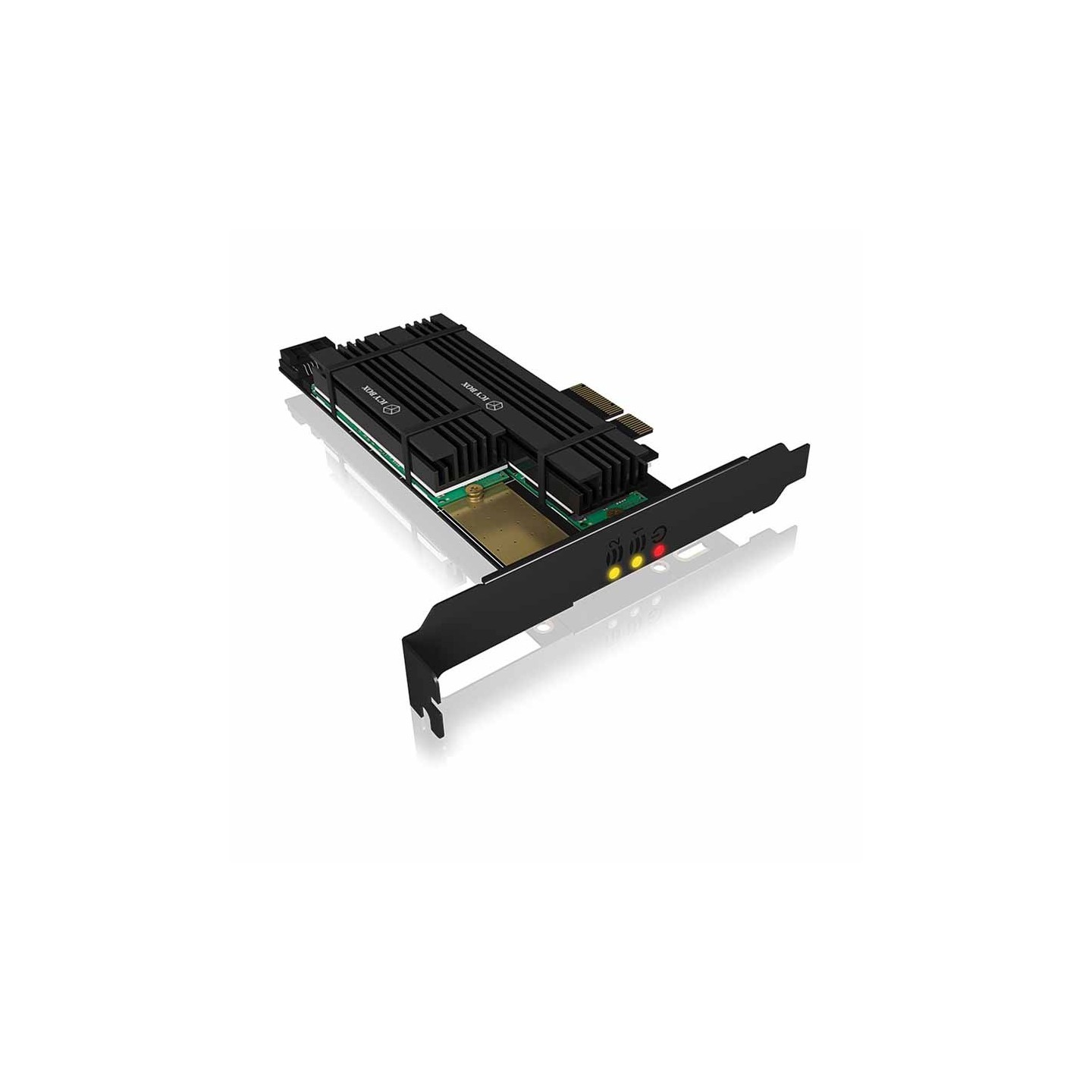

IB-PCI215M2-HSL PCIe Card for 2x M.2 SSDs w/ Heatsinks ICY BOX (Boxed)
PCIe card for 1x M.2 SATA (6 Gbit/s) + 1x M.2 NVMe SSD (up to 64 Gbit/s). Supports 22x30-110mm sizes, incl. heatsinks for 2280/22110, modular low/full profile brackets.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Expansion Cards - Product Type | Storage Controller and Adapter |
|---|---|
| Expansion Cards - Host Interface | PCIe x4 |
| Expansion Cards - Internal Connectivity | M.2 NVMe and SATA |
| Expansion Cards - Form Factor | Low Profile Half-Height Standard Profile Full-Height |
| Expansion Cards - External Connectivity | Internal Only |
The ICY BOX IB-PCI215M2-HSL is a versatile PCIe extension card that adds support for two M.2 SSDs to your system: one SATA (B-Key or B+M-Key) with up to 6 Gbit/s transfer rate and one PCIe NVMe (M-Key) with up to 64 Gbit/s bandwidth.
It supports various M.2 sizes from 22x30/42/60/80/110 mm and includes passive heatsinks for 2280 and 22110 SSDs, with customizable thermal pads for optimal cooling. Modular slot covers allow use in both low-profile (80mm) and full-height (120mm) cases.
- Easy PCIe installation for enhanced storage
- 1x SATA M.2 + 1x NVMe M.2 slots
- Included heatsinks prevent thermal throttling
- Backward compatible with PCIe 3.0 systems
| Product Type | M.2 SATA/NVMe SSD to PCIe Adapter |
| MPN | IB-PCI215M2-HSL |
| M.2 Slots | 1x B-Key (SATA AHCI) + 1x M-Key (PCIe NVMe) |
| SATA Transfer Rate | up to 6 Gbit/s |
| PCIe Transfer Rate | up to 64 Gbit/s (PCIe x4) |
| Supported M.2 Sizes | 22x30/42/60/80/110 mm |
| Heatsinks Included | For 2280 and 22110 M.2 SSDs |
| Bracket Options | Low-profile 80mm / Full-height 120mm |
| Weight (unboxed) | 64 g |
