Enermax Revolution 3 650W ATX 3.1 PSU - 80 PLUS Gold, Fully-Modular, 12VHPWR (Black)
650W ATX 3.1 power supply, 80 PLUS Gold, fully-modular, PCIe 5.1/12VHPWR support for RTX 50 series, 120mm fan, 20+4 ATX & 4+4 EPS connectors, black.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 650 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80+ Gold |
| PSU (Power Supplies) - ATX Standard | ATX 3.1 |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 12VHPWR (16-pin) |
| PSU (Power Supplies) - EPS CPU Connectors | 1x8-pin |
| PSU (Power Supplies) - Fan Size | 120 mm |
| PSU (Power Supplies) - Length | less than or equal to140 mm |
80 PLUS® GOLD CERTIFIED
REVOLUTION III 650W power supply is 80 PLUS® Gold certified with efficiency up to 93% on standard loading.
ATX 3.1 READY
REVOLUTION III 650W power supply meets the Intel ATX 3.1 standards to ensure top-notch performance of power hungry graphics cards.
100% JAPANESE CAPACITORS
REVOLUTION III 650W power supply incorporates 100% industrial-grade Japanese capacitors with high-quality materials and manufacturing processes, ensuring stable and consistent performance.

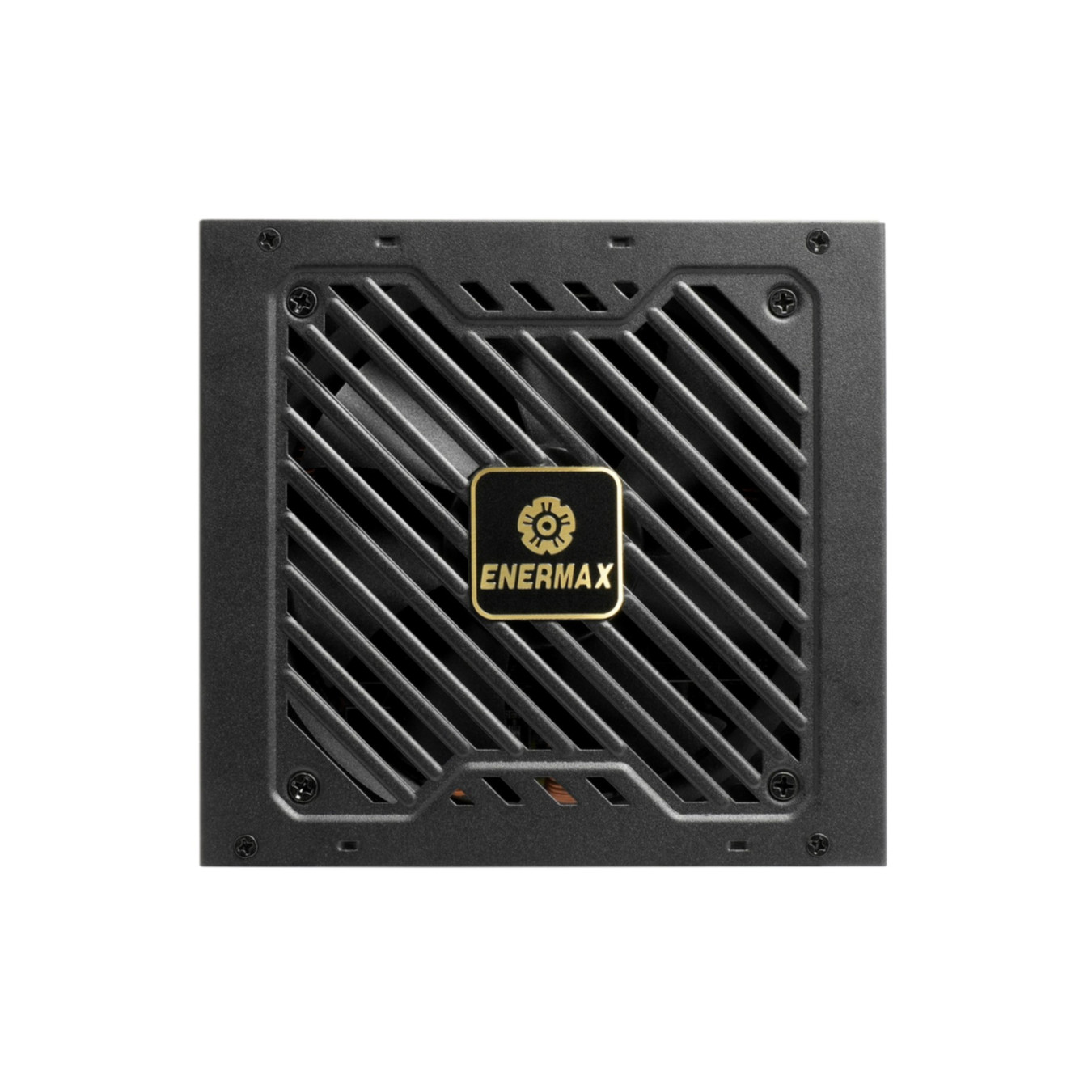

FLUID DYNAMIC BEARING FAN
The F.D.B. (Fluid Dynamic Bearing) fan delivers a quiet operation while maintaining the cooling performance.
CERTIFIED FOR OPERATION AT 5000M ALTITUDE AREA
REVOLUTION III 650W power supply is designed with high-quality components and optimized layout for superior insulation and cooling performance. It can continually operate at 40°C and at altitudes up to 5,000 meters, making it suitable for a wide range of environments.
PREMIUM MESH-SLEEVED CABLES

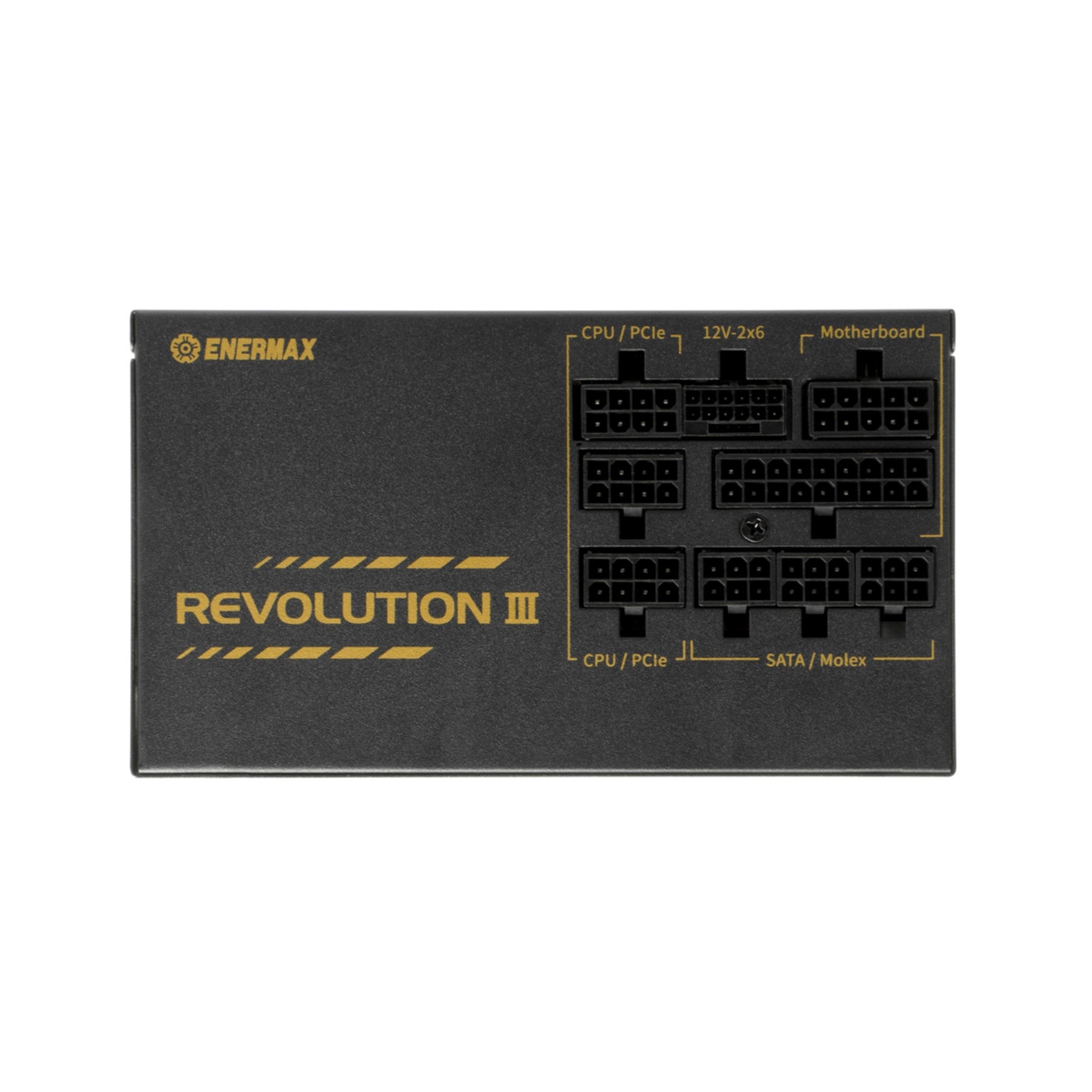

The REVOLUTION III 650W power supply features premium, individually mesh-sleeved cables with cable combs for a clean and organized build. The modular sockets, inclined to one side, offer effortless cable routing and management.
| Total power | 650 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 10-6 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 649.2 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 4.8 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 54.1 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.4 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| EPS power connector (4+4 pin) | Yes |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Fan diameter | 12 cm |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Package width | 190 mm |
| Package depth | 310 mm |
| Package height | 110 mm |
| Package weight | 1.5 kg |
| Package type | Box |
