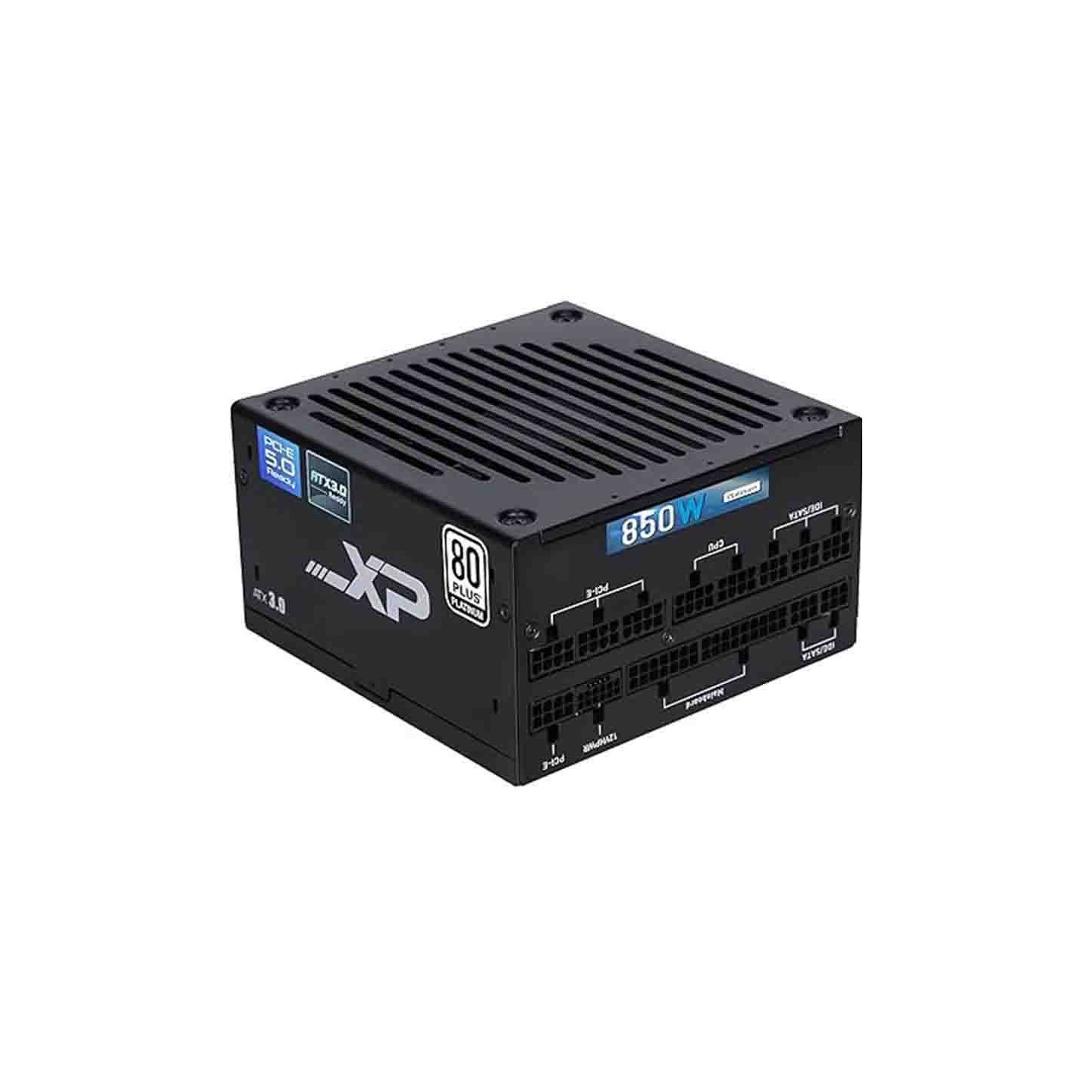

XPH-850W ATX 3.0 Platinum Power Supply SAMA (Boxed)
850W ATX 3.0 PSU with 80 PLUS Platinum efficiency. Features 70.8A on 12V rail, PCIe 5.0 12VHPWR connector, full protections (OPP/OCP/OVP/UVP/SCP/NLP). Universal input 100-240V, Active PFC >0.90.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 800 - 899 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Platinum |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12VHPWR 16-pin |
The XPH-850W ATX 3.0 Platinum Power Supply from SAMA delivers reliable 850W power for high-end gaming and workstation builds. Compliant with Intel ATX 3.0 standards, it supports modern GPUs via a dedicated PCIe 5.0 12VHPWR connector rated at 600W. 80 PLUS Platinum certified for superior efficiency, it includes CE, CB, TUV, cTUVus, FCC, and RoHS approvals.
Key electrical specs include +12V rail at 70.8A (849.6W), combined +3.3V/+5V at 100W, and full suite of protections: Over Power (OPP), Over Current (OCP), Over Voltage (OVP), Under Voltage (UVP), Short Circuit (SCP), and No Load (NLP). Universal input (100-240VAC, 50-60Hz) with Active PFC (>0.90 PF) ensures stable operation worldwide.
- Wattage: 850W
- Standards: ATX 3.0, 80 PLUS Platinum
- PCIe Connectors: 1x 12VHPWR (600W)
- Protections: OPP, OCP, OVP, UVP, SCP, NLP
- Input: 100-240V, Active PFC
| Wattage | 850 W |
| Standard | Intel ATX 3.0 |
| Certification | 80 PLUS Platinum, CE, CB, TUV, cTUVus, FCC, RoHS |
| Input Voltage | 100–240 VAC |
| Input Frequency | 50–60 Hz |
| Input Current | 10 A @ 115 V, 8 A @ 230 V |
| Active PFC | Yes, PF > 0.90 |
| +3.3 V Rail | 20 A |
| +5 V Rail | 20 A |
| Combined +3.3 V and +5 V Output | 100 W |
| +12 V Rail | 70.8 A (849.6 W) |
| –12 V Rail | 0.4 A (4.8 W) |
| +5 VSB | 3 A (15 W) |
| PCIe 5.0 12VHPWR Connector | 1 × 600 W |
| Over Power Protection (OPP) | Yes |
| Over Current Protection (OCP) | Yes |
| Over Voltage Protection (OVP) | Yes |
| Under Voltage Protection (UVP) | Yes |
| Short Circuit Protection (SCP) | Yes |
| No Load Protection (NLP) | Yes |
