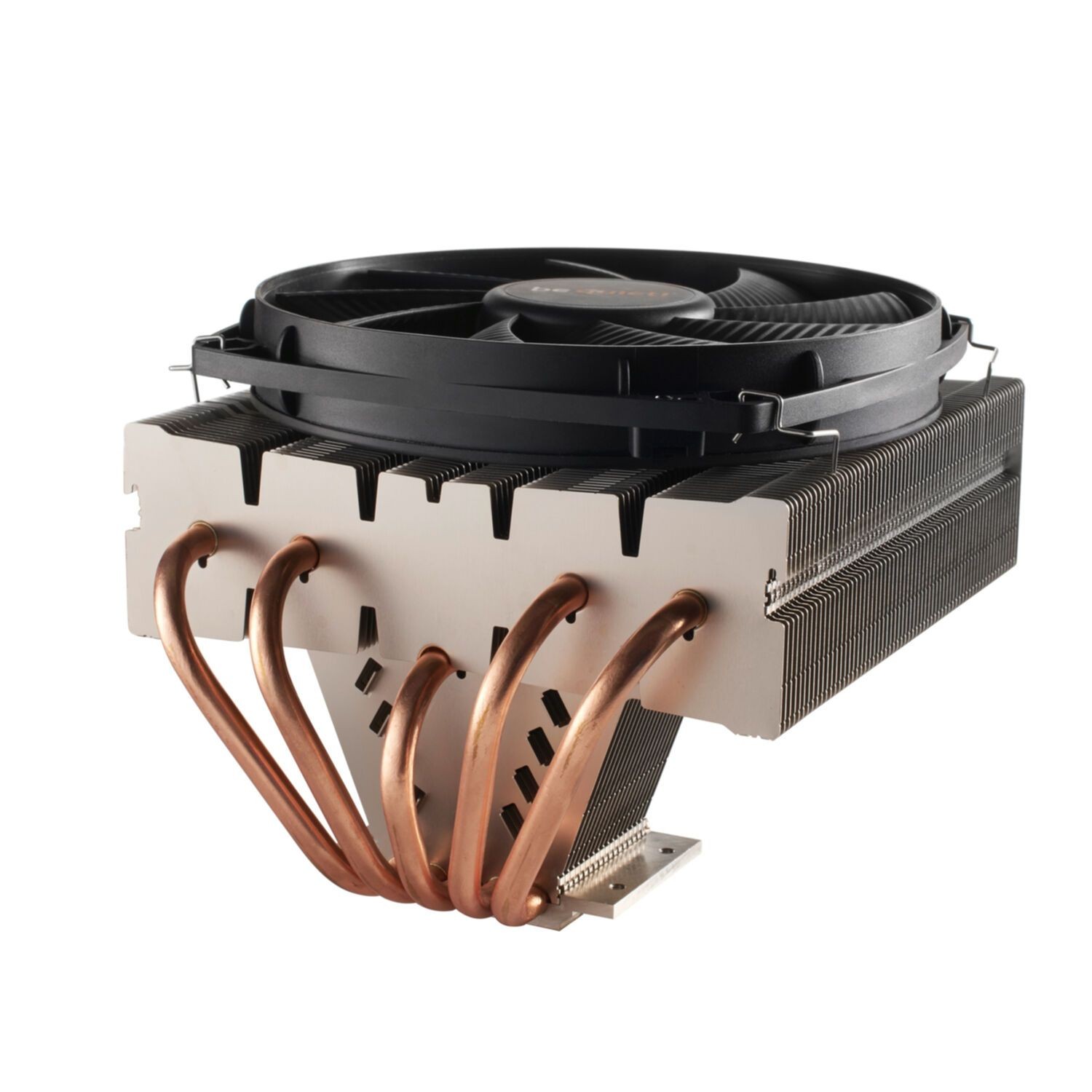

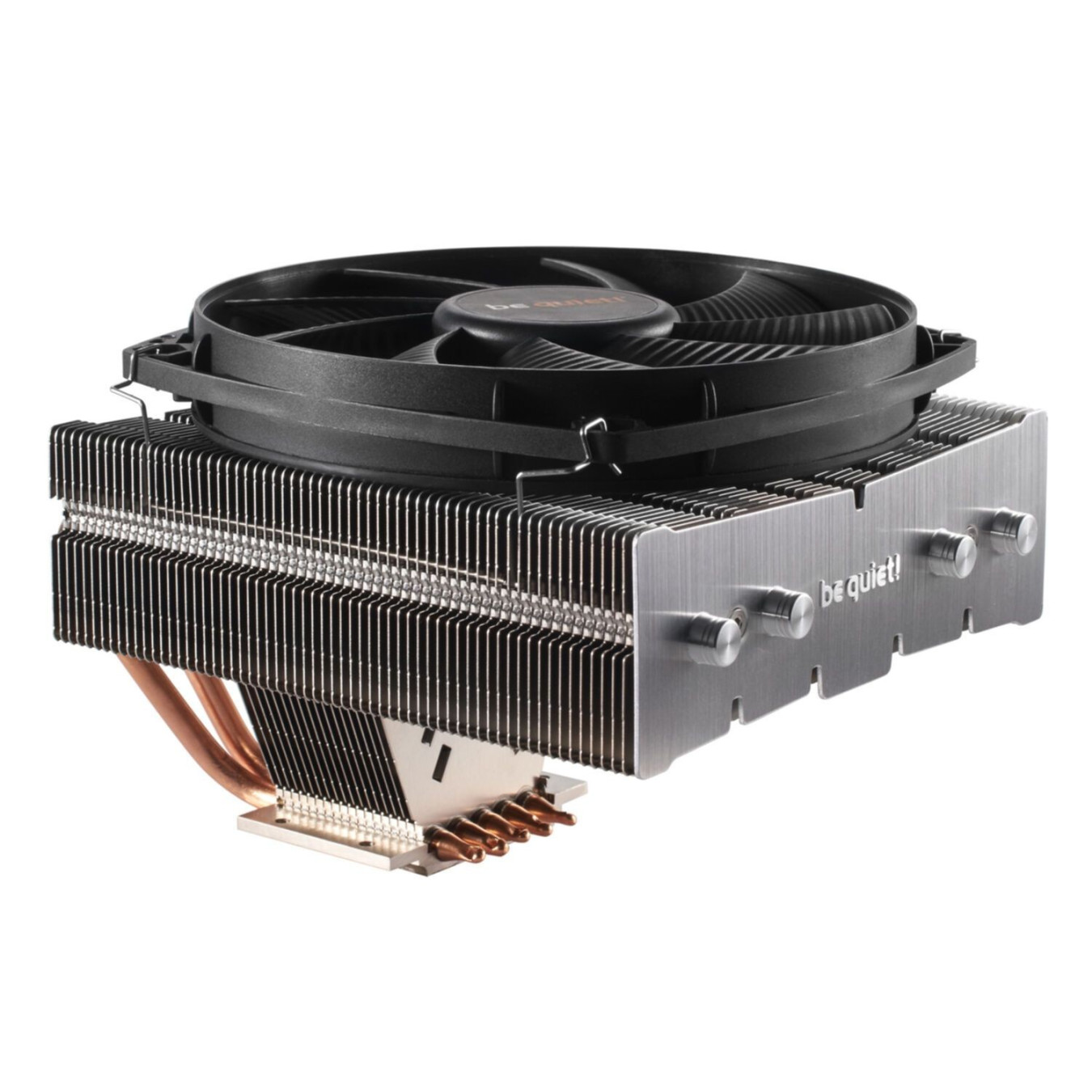

be quiet! Shadow Rock TF2 - Top-Flow CPU Cooler - Black/Copper/Silver, 135mm PWM Fan, 5 Heatpipes
Top-flow CPU cooler with 135mm PWM fan (1400–2000 RPM), 5x 6mm heatpipes, 57 aluminium fins, compatible with LGA1200 & AM4, ultra-low noise down to 11.9 dB.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Cooling (CPU & Case) - Type (Cooler) | Top-flow/Low-profile |
|---|---|
| Cooling (CPU & Case) - Height (Air) | 48-155 mm |
| Cooling (CPU & Case) - Noise Level | less than or equal to25 dBA |
| Cooling (CPU & Case) - RGB (Cooler) | None |
| Cooling (CPU & Case) - Fan Connector | 4-pin PWM |
| Cooling (CPU & Case) - Lighting (Fan) | None |

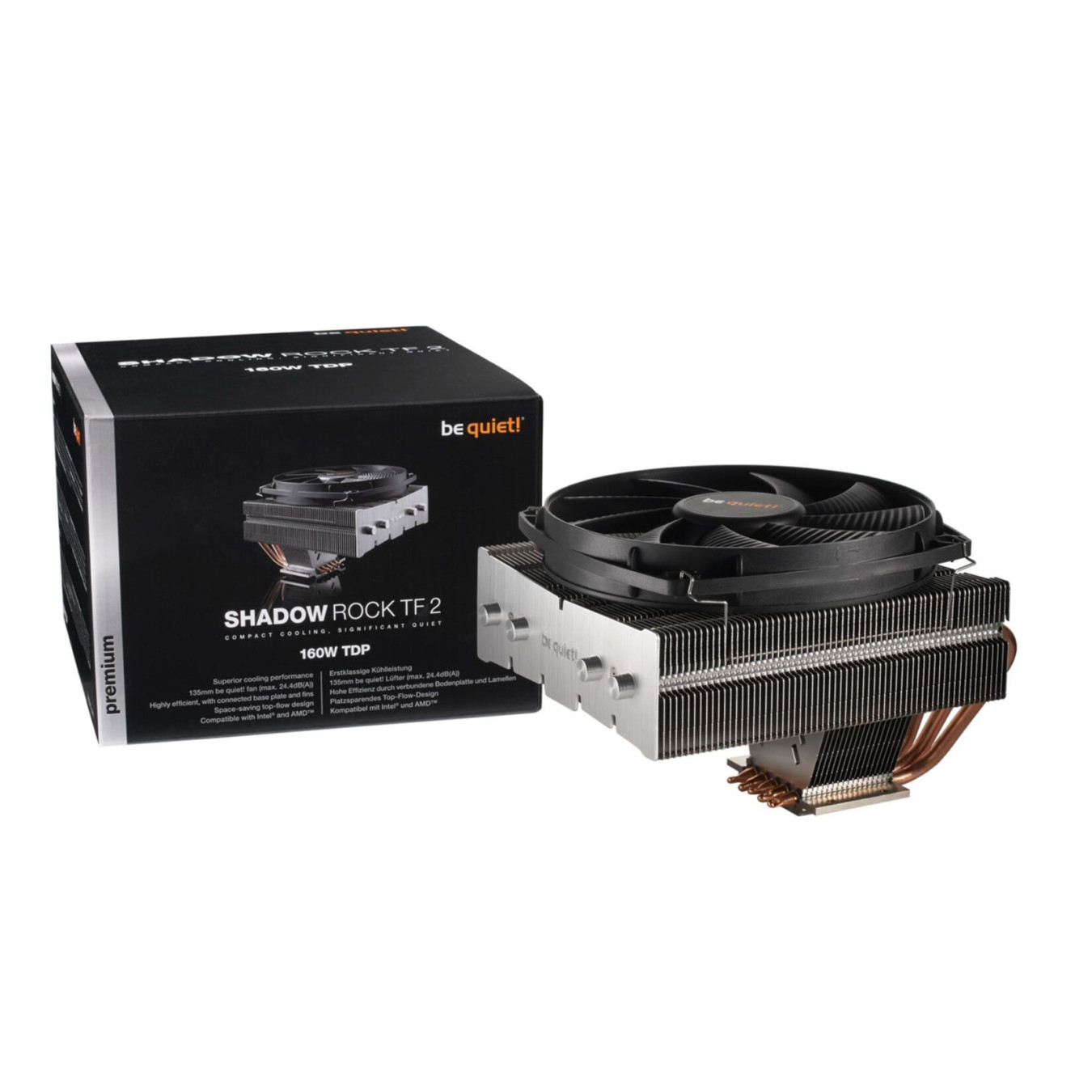

SHADOW ROCK TF 2
Compact Cooling, Significantly Quiet
Shadow Rock TF 2 is the perfect cooler for PC systems with restricted space. It offers the best mix of performance and price in the premium compact CPU cooler segment.

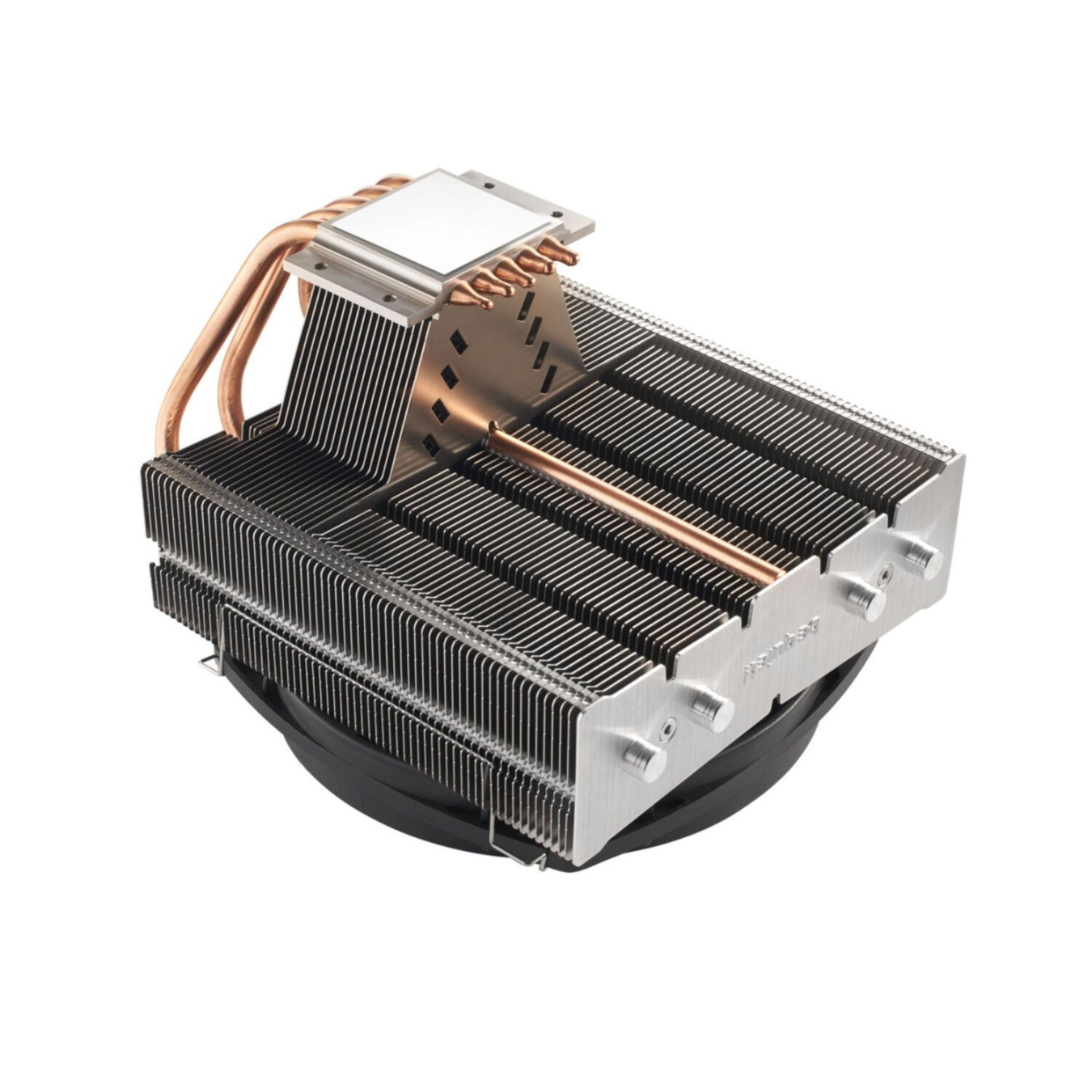

HIGH-PERFORMANCE HEATPIPES
Offering the system an impressive cooling performance
Shadow Rock TF 2 is equipped with five 6mm heat pipes. They carry the heat straight to optimal locations on the cooling fins and provide the system with a remarkable compact cooling capacity of 160W TDP.
DIRECT CONNECTION OF BASE PLATE AND FINS
For highly effective cooling power
An ingenious cooling concept: The baseplate and the cooling fins of Shadow Rock TF 2 are directly connected. This ensures fast heat transfer and optimum cooling efficiency.
EXTREMELY SILENCE-OPTIMIZED OPERATION
Even at 100% fan speed the overall noise is merely 24.4dB(A)
Silent operation typical for be quiet! products is achieved by the silence-optimized 135mm be quiet! fan. Delivering the best balance between cooling performance and quietness its smooth operation is thanks to the 9 airflow-optimized fan blades and durable rifle-bearing technology.
SMALL, DIAGONALLY ARRANGED FINS
Produce the perfect airflow
The small diagonal fins on the back of the cooler direct the airflow to guarantee efficient cooling for the CPU as well as components around the Intel® or AMD™ socket.

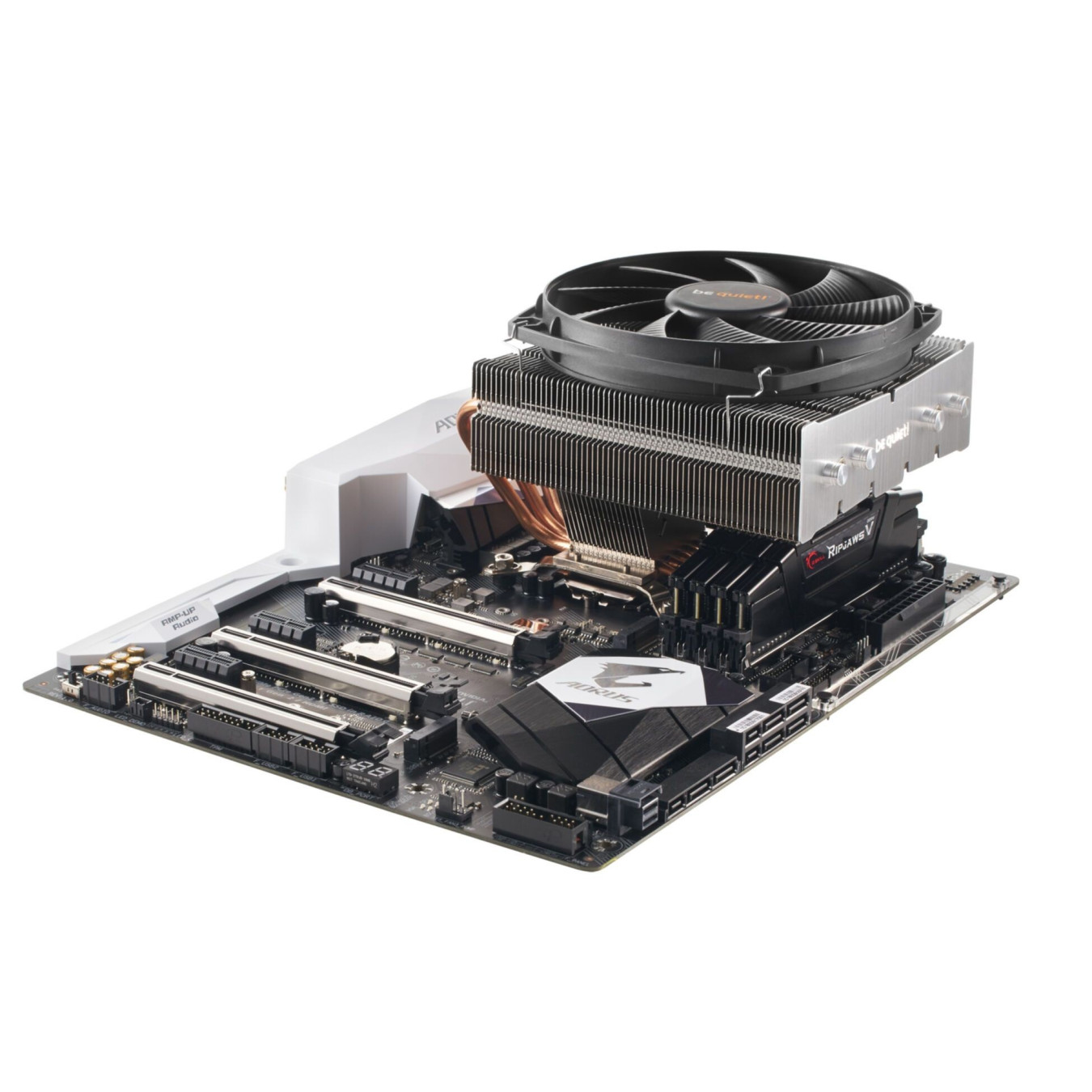

SPACE-SAVING TOP-FLOW DESIGN
Benefit from this highly functional concept
The top-flow design is perfect for anyone who has to cope with limited space restrictions when building a system. Shadow Rock TF 2 more than solves this problem
| Suitable location | Processor |
| Type | Cooler |
| Fan diameter | 13.5 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 2011-v3 (Socket R), LGA 2066, LGA 775 (Socket T), Socket AM2+, Socket AM3+, Socket AM4, Socket FM1, Socket FM2+ |
| Rotational speed (min) | 1400 RPM |
| Rotational speed (max) | 2000 RPM |
| Noise level (low speed) | 11.9 dB |
| Noise level (high speed) | 24.4 dB |
| Maximum airflow | 67.8 cfm |
| Airflow | 113.8 m³/h |
| Maximum air pressure | 2.1 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Rifle bearing |
| Product colour | Black, Copper, Silver |
| Material | Aluminium, Copper |
| Number of fans | 1 fan(s) |
| Number of fan blades | 9 |
| Number of fins | 57 |
| Fins material | Aluminium |
| Number of heat pipes | 5 |
| Fan connector | 4-pin |
| Power supply | 1.32 W |
| Rated voltage | 12 V |
| Rated current | 0.11 A |
| Width | 137 mm |
| Depth | 165 mm |
| Height | 112 mm |
| Weight | 680 g |
| Fan dimensions (W x D x H) | 135 x 135 x 22 mm |
| Heat pipes diameter | 6 mm |
| Cable length | 0.2 m |
| Package width | 178 mm |
| Package depth | 203 mm |
| Package height | 130 mm |
| Package weight | 1.09 kg |

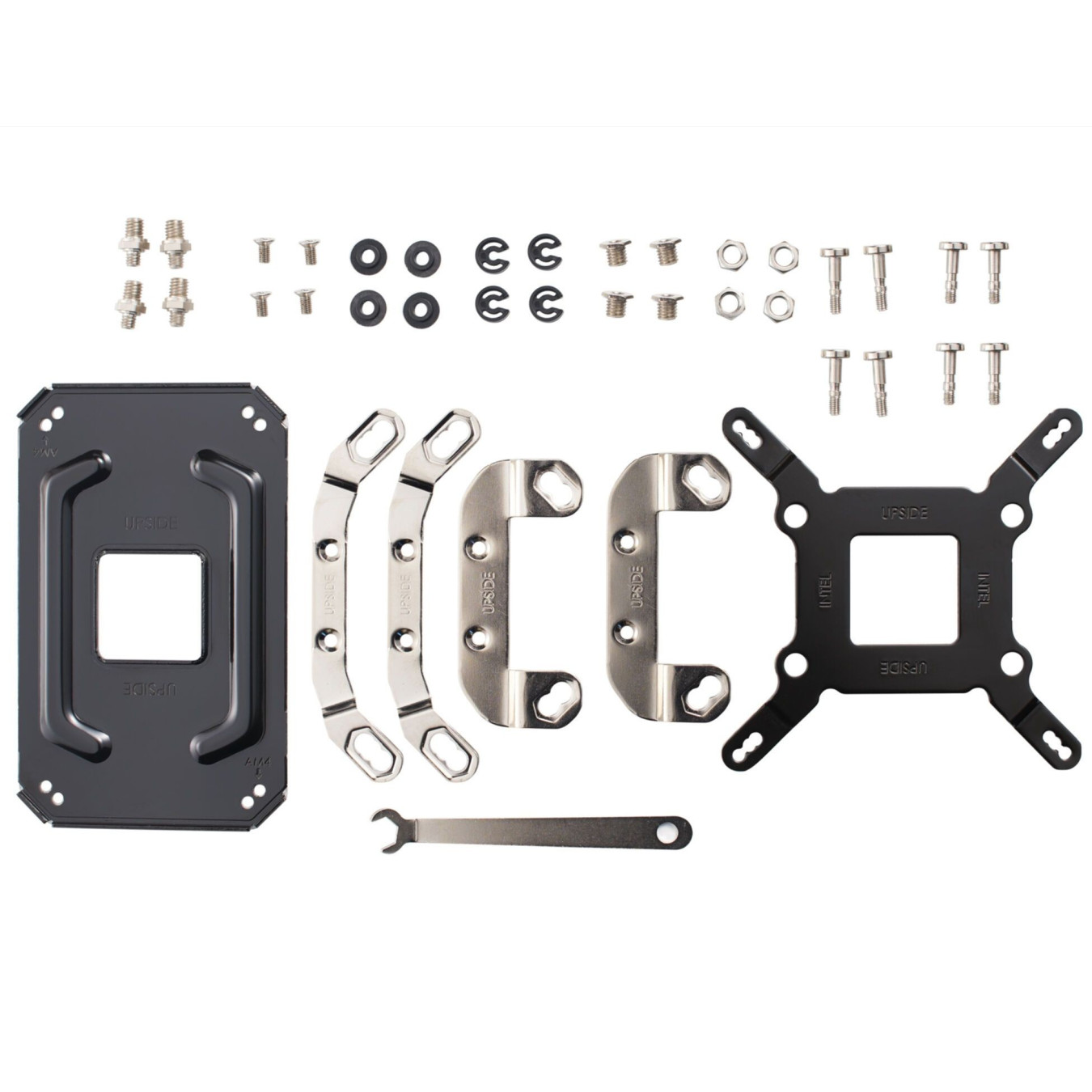

| Screws included | Yes |
| Thermal pad included | Yes |
| Heatsink dimensions (W x D x H) | 165 x 137 x 87 mm |
| Harmonized System (HS) code | 84733080 |
