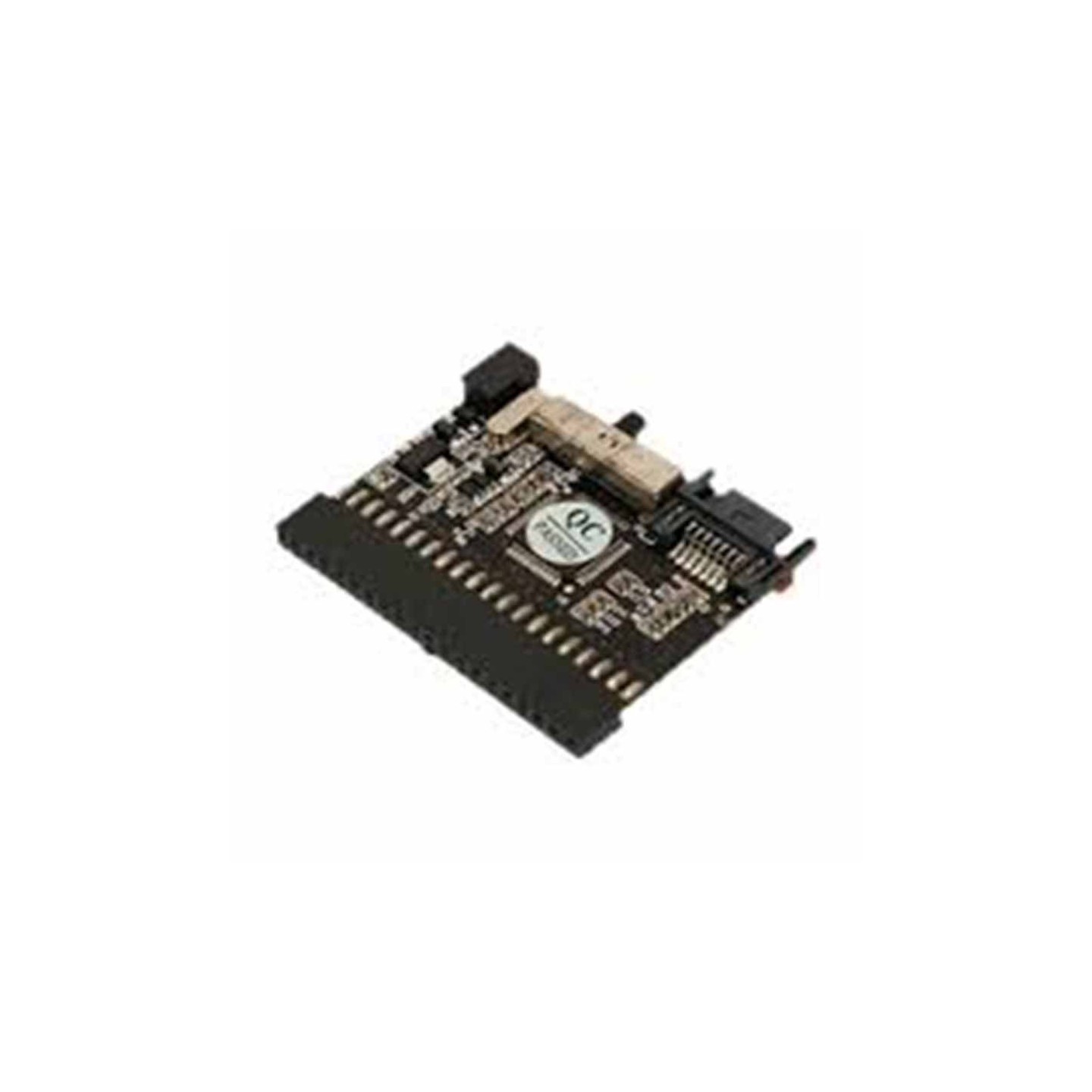

LogiLink AD0008 SATA to IDE Bi-Directional Adapter (Boxed)
Bi-directional SATA to IDE adapter (AD0008) with switch for conversion direction. Features SATA male to 40-pin IDE female connectors, 0.35m cable, LED indicator. Plug-and-play, no drivers needed for HDD/DVD.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Expansion Cards - Product Type | Storage Controller and Adapter |
|---|---|
| Expansion Cards - External Connectivity | Serial and Parallel |
The LogiLink AD0008 is a bi-directional converter that enables seamless connection between SATA and IDE (PATA) devices, allowing you to use older IDE hard drives or optical drives with modern SATA controllers or vice versa. It features a convenient switch to toggle between SATA-to-IDE and IDE-to-SATA modes, standardized connectors for broad compatibility, and an LED indicator for power and activity status.
Ideal for mainboards, controllers, hard disks, and DVD drives, this adapter supports Serial ATA 1.0 specification with automatic speed negotiation up to 1.5 Gbps. No additional drivers are required, making it a plug-and-play solution. Includes a 0.35m SATA connection cable for easy setup in desktop environments.
- Connectors: SATA male & IDE 40-pin female
- Switchable: Bi-directional conversion
- LED: Operation and activity indicator
- Cable: 0.35m SATA included
- Compatibility: HDD, DVD, mainboards, controllers
| Type | Converter S-ATA to IDE or backward (bi-directional) |
| Connector 1 | S-ATA male |
| Connector 2 | IDE 40-pin female (PATA) |
| Cable Length | 0.35 m |
| Switch | Conversion Type switch |
| LED | For operation and activity |
| Drivers | No drivers needed |
| Compatibility | Mainboard, Controller, Harddisk, DVD |
| Serial ATA Standard | 1.0 |
| Speed | Up to 1.5 Gbps (auto negotiation) |
| Gross Weight | 92.7 g |
