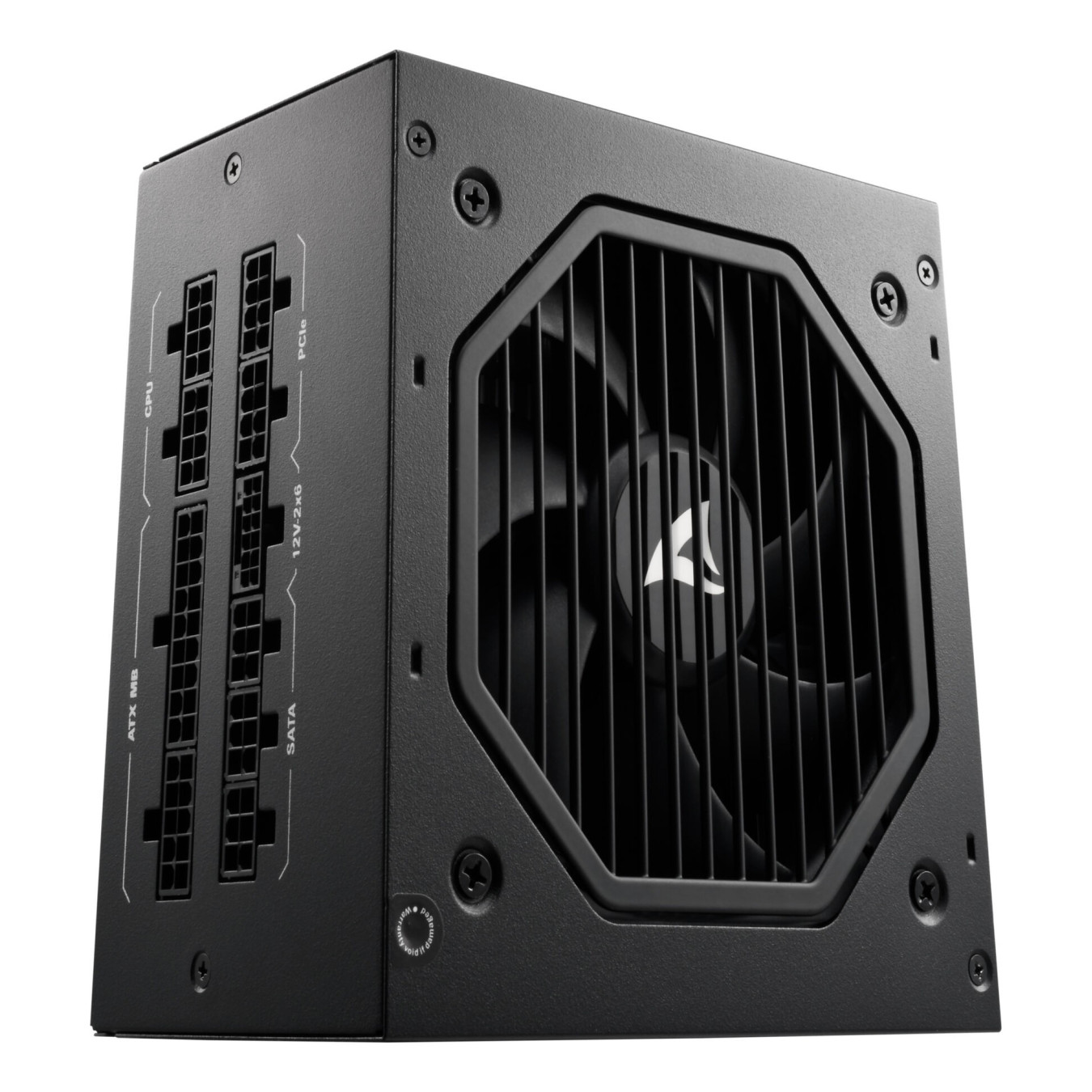

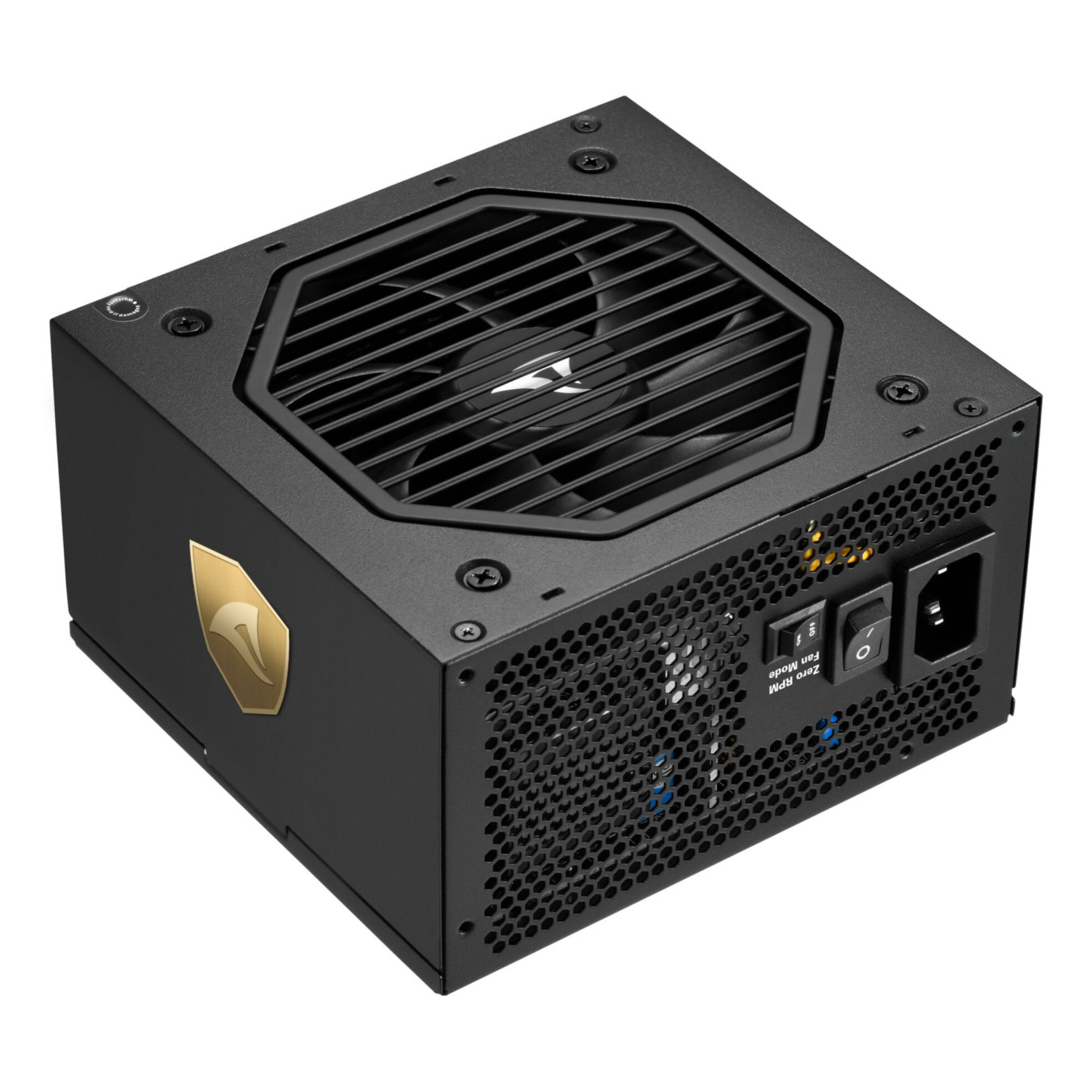

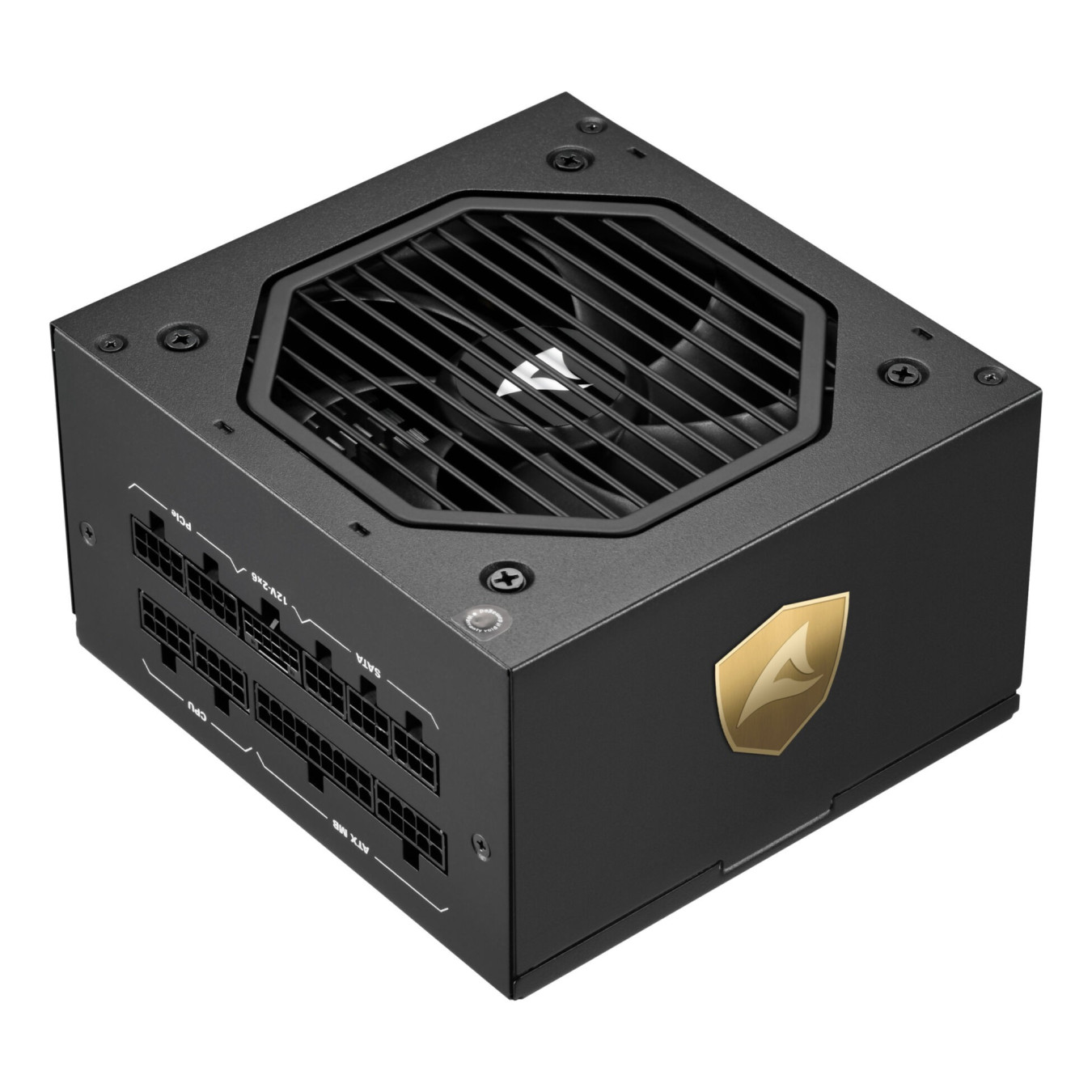

Sharkoon Rebel P20 - 1200W - Fully Modular, ATX 3.1, Cybenetics Platinum
1200W fully-modular ATX 3.1 power supply with Cybenetics Platinum efficiency, 120 mm Zero RPM fan and 12V-2x6 GPU connector—built for modern high-end graphics.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| PSU (Power Supplies) - Wattage | 1200 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80+ Platinum |
| PSU (Power Supplies) - ATX Standard | ATX 3.1 |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 12V-2x6 (revised) |
| PSU (Power Supplies) - Fan Size | 120 mm |
With full ATX 3.1 compatibility and an integrated 12V-2x6 connector, the Rebel P20 ensures reliable performance for hardware systems that are also equipped with modern graphics cards. With its fully modular cable set, the Cybenetics Gold-certified PSU can be installed neatly and tidily and runs especially quietly thanks to a 120 mm fan with Zero RPM mode.
Certified Efficiency
The Rebel P20 has been awarded the Gold certificate by the independent Cybenetics laboratory due to an overall efficiency of at least 87 % at 115 V and 89 % at 230 V, as well as a 5 VSB efficiency of 75 %. The Rebel P20 models with 1,000 and 1,200 watts have even achieved a Platinum certification.
Designed for Modern Graphics Cards
With its ATX 3.1 compatibility and a 12V-2x6 connection, the Rebel P20 is perfectly designed for the high-performance operation of modern high-end graphics cards.

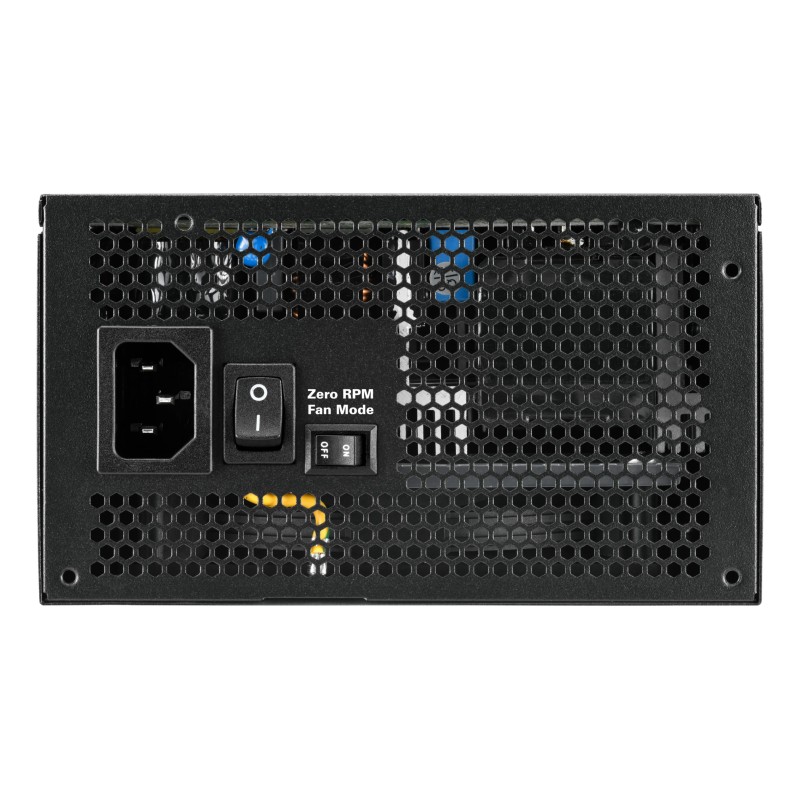

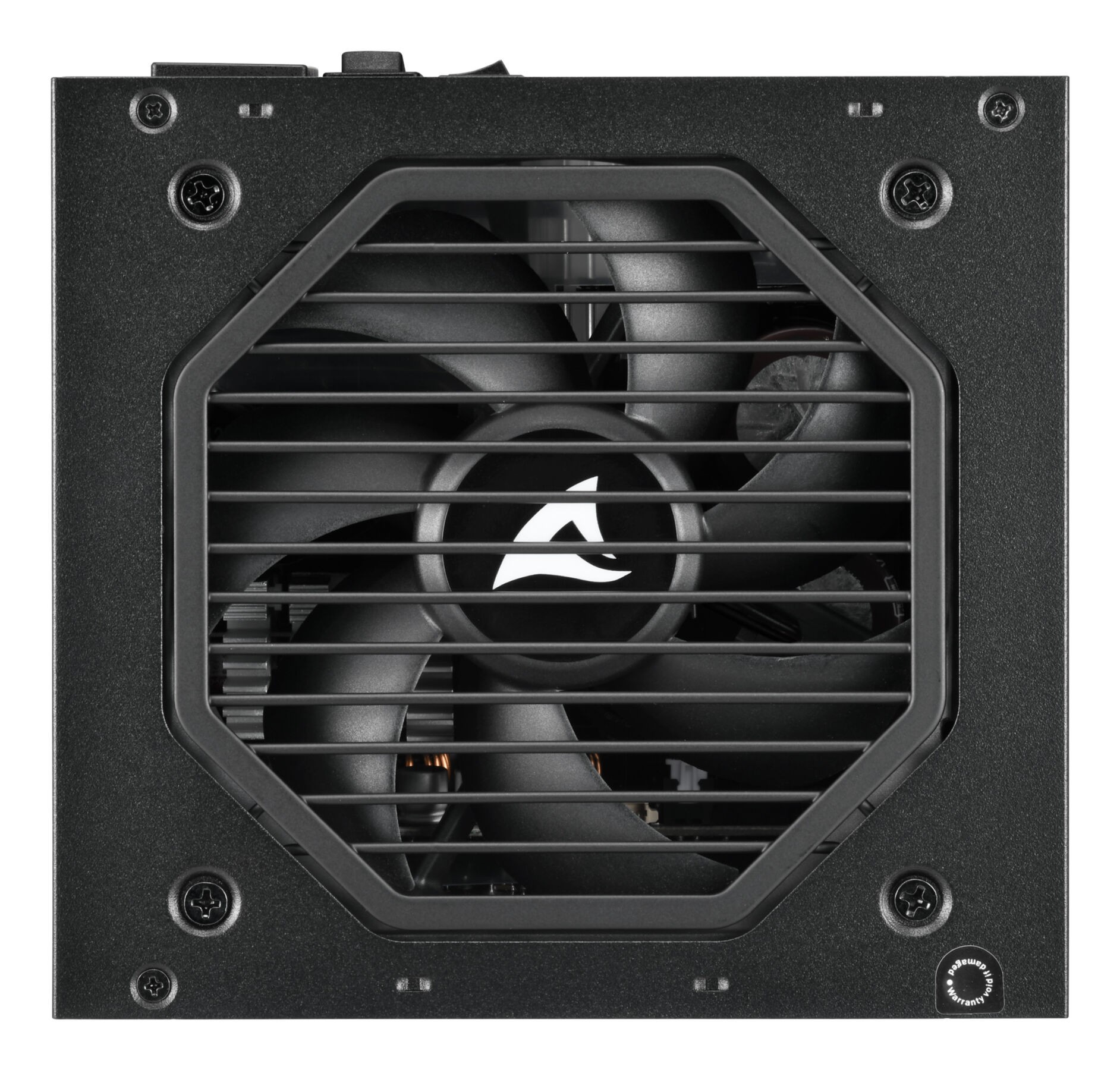

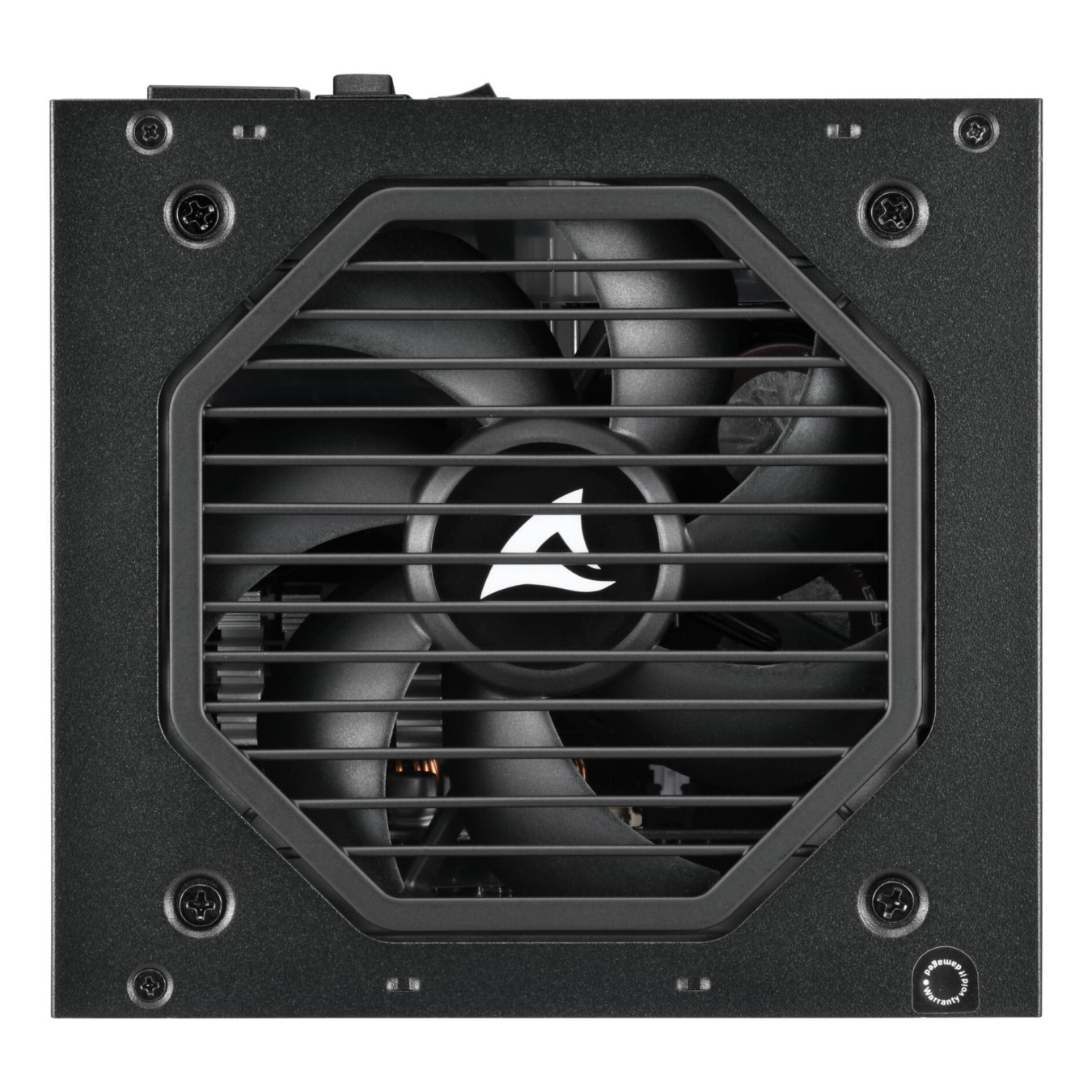

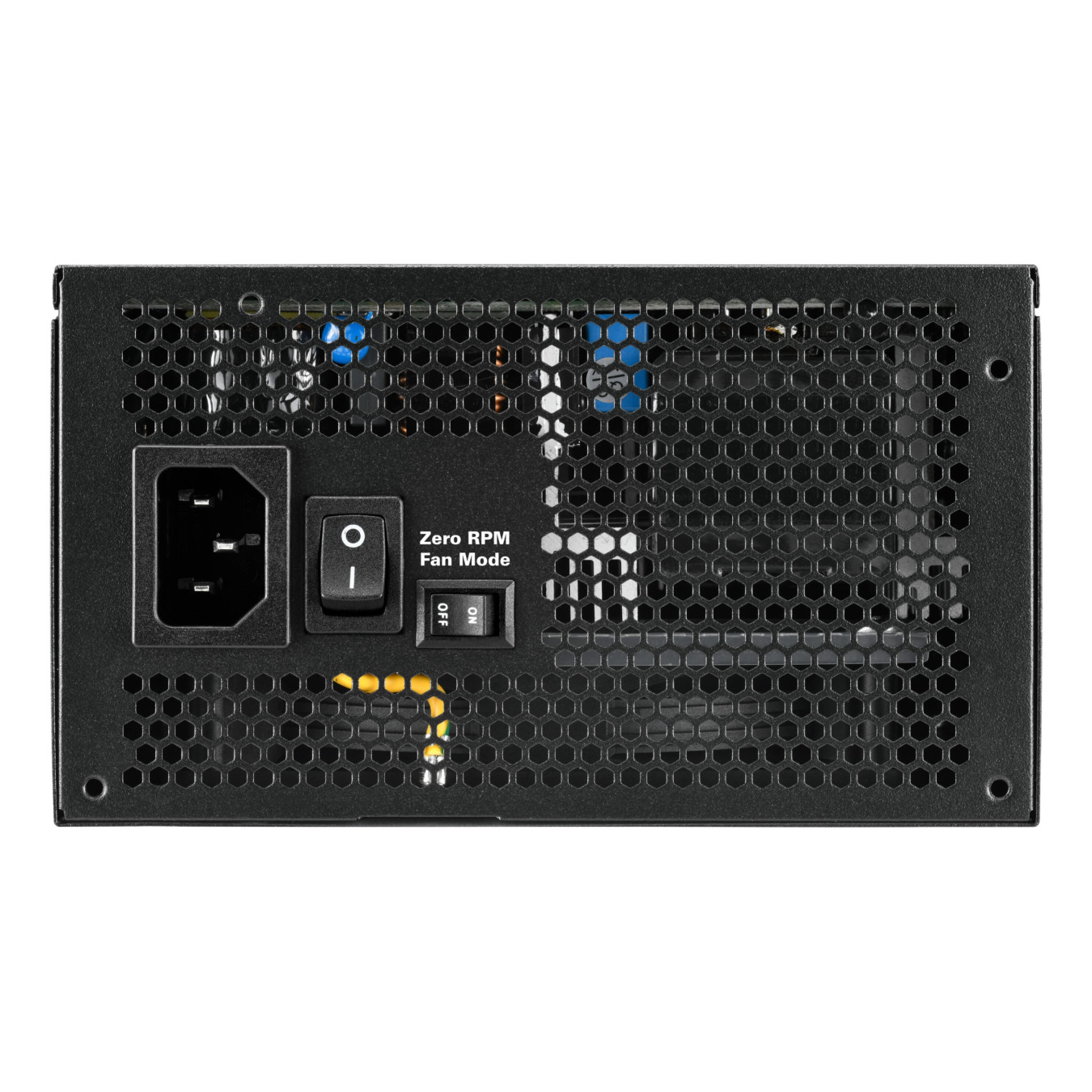

Quiet Fan with Zero RPM Mode
The Rebel P20 comes with 120 mm fan that is low-noise certified and is provided with a Zero PRM mode. At low and moderate loads, this will switch off the fan rotation completely for an almost silent operation.

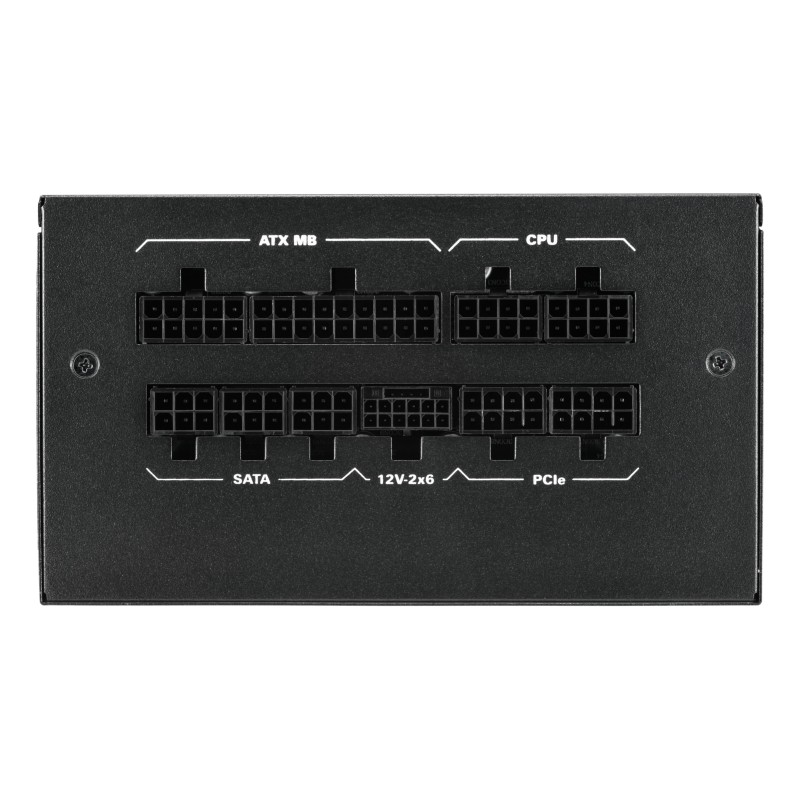

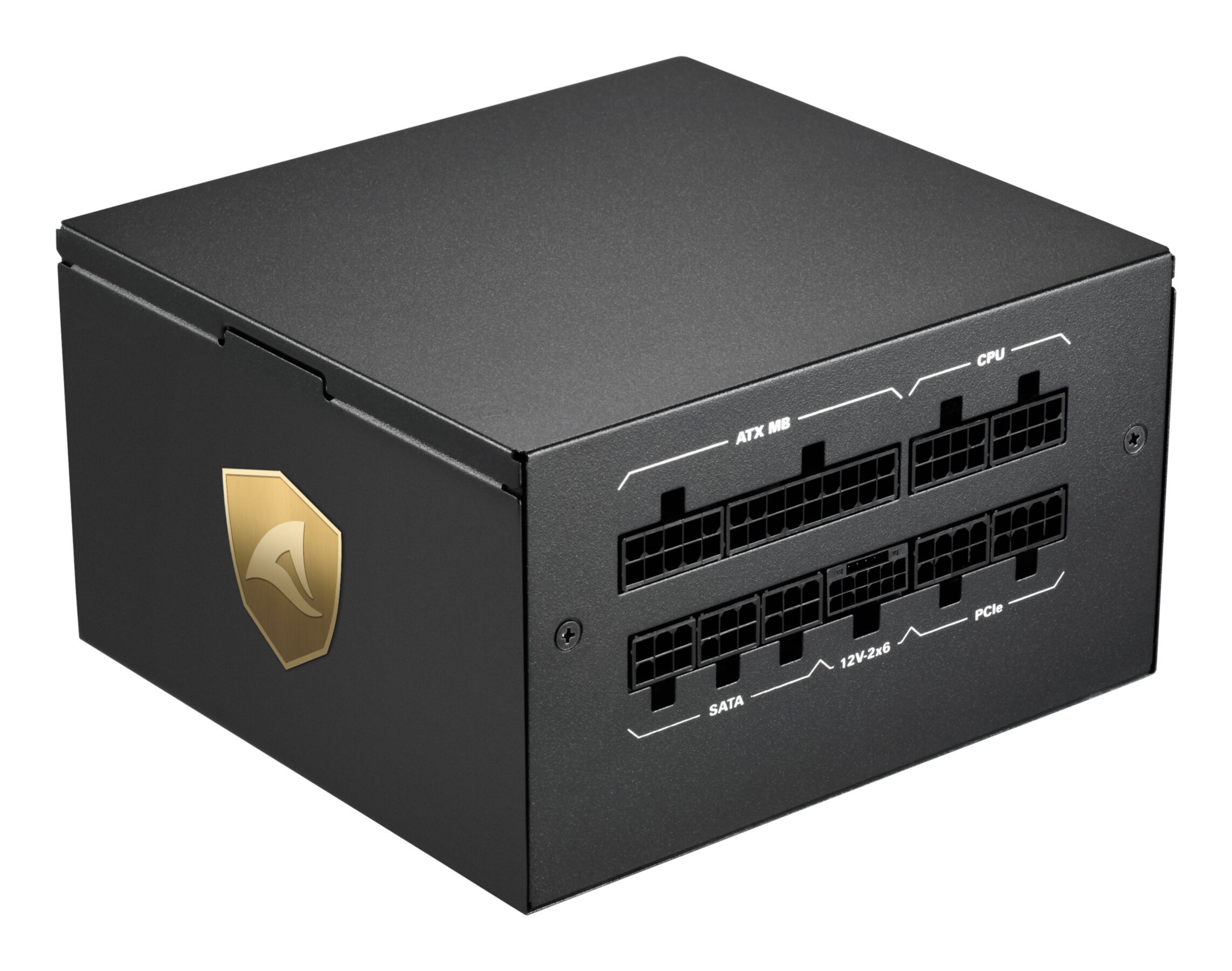

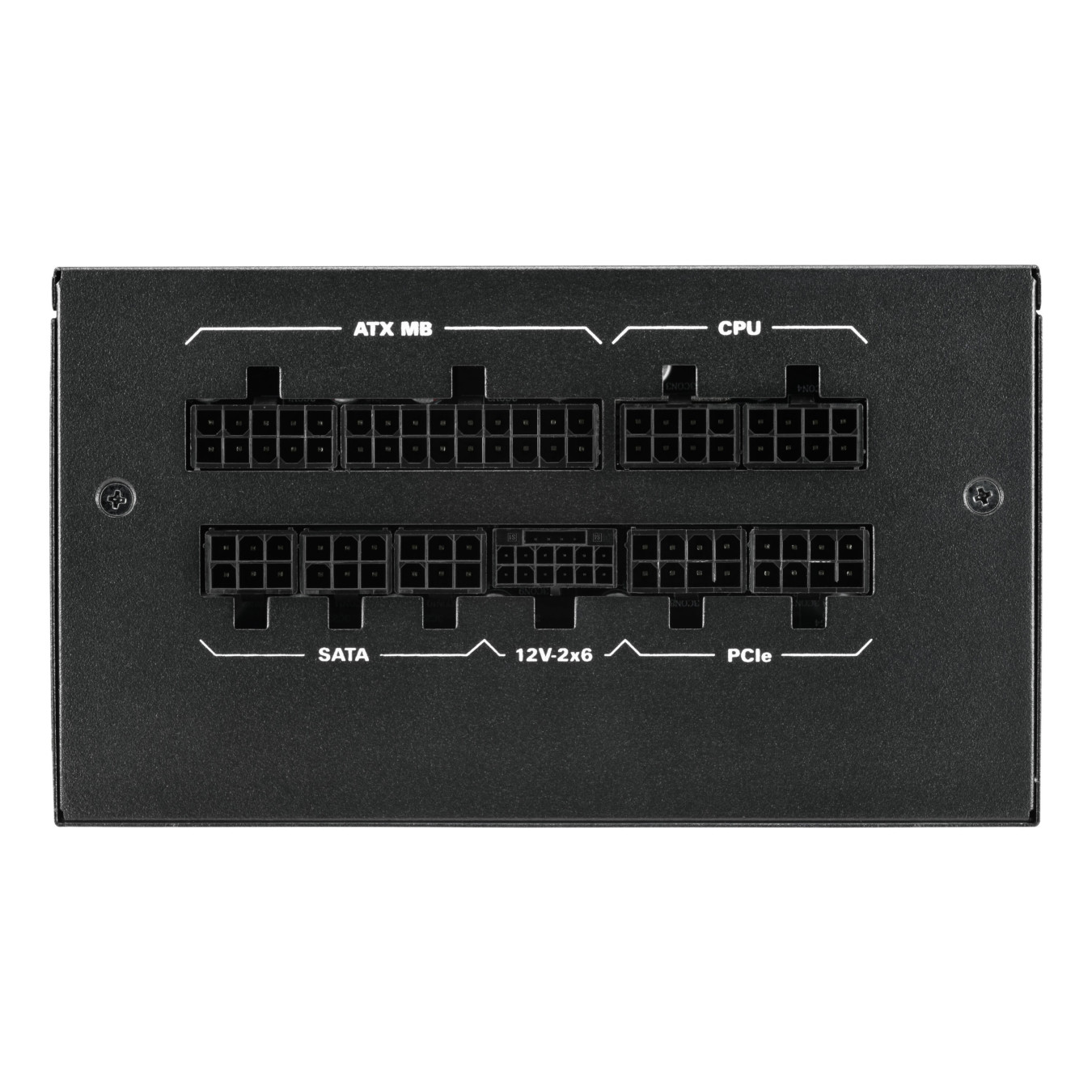

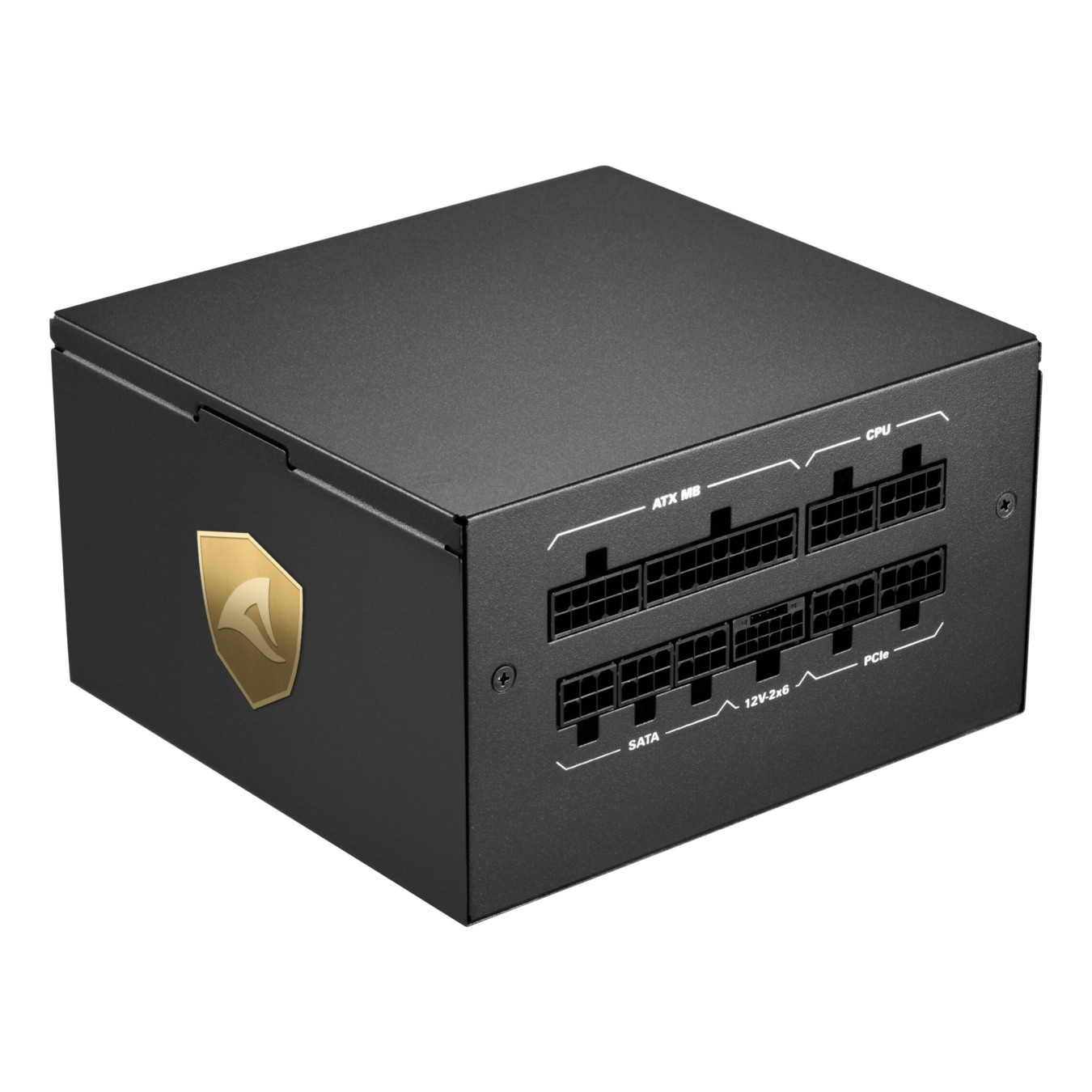

Fully Modular Cables
For more tidiness and better organization inside the PC case, the Rebel P20 is supplied with a fully modular cable set. This ensures that only the cables that are actually needed are connected to the PSU.
High-Quality Components
The Rebel P20 is equipped with all-Japanese capacitors, stable LLC resonant converters, and DC/DC technology to ensure a flawless operation.
Full Protection
Whether its over-current protection or over-power protection: The Rebel P20 is equipped with all protective functions to ensure a continuously safe operation within the hardware system.
| Total power | 1200 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 14 / 7 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 1200 W |
| Combined power (+5V) | 100 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V1) | 100 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 11 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power cable length | 70 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 70 cm |
| ATX Power connector (24-pin) | Yes |
| PCI Express connector | Yes |
| Cabling type | Fully-Modular |
| 80 PLUS certification | No |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Cables included | AC |
| Compliance certificates | CB, CE, Federal Communications Commission (FCC) |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 1.7 kg |
| Sustainability certificates | ErP |
