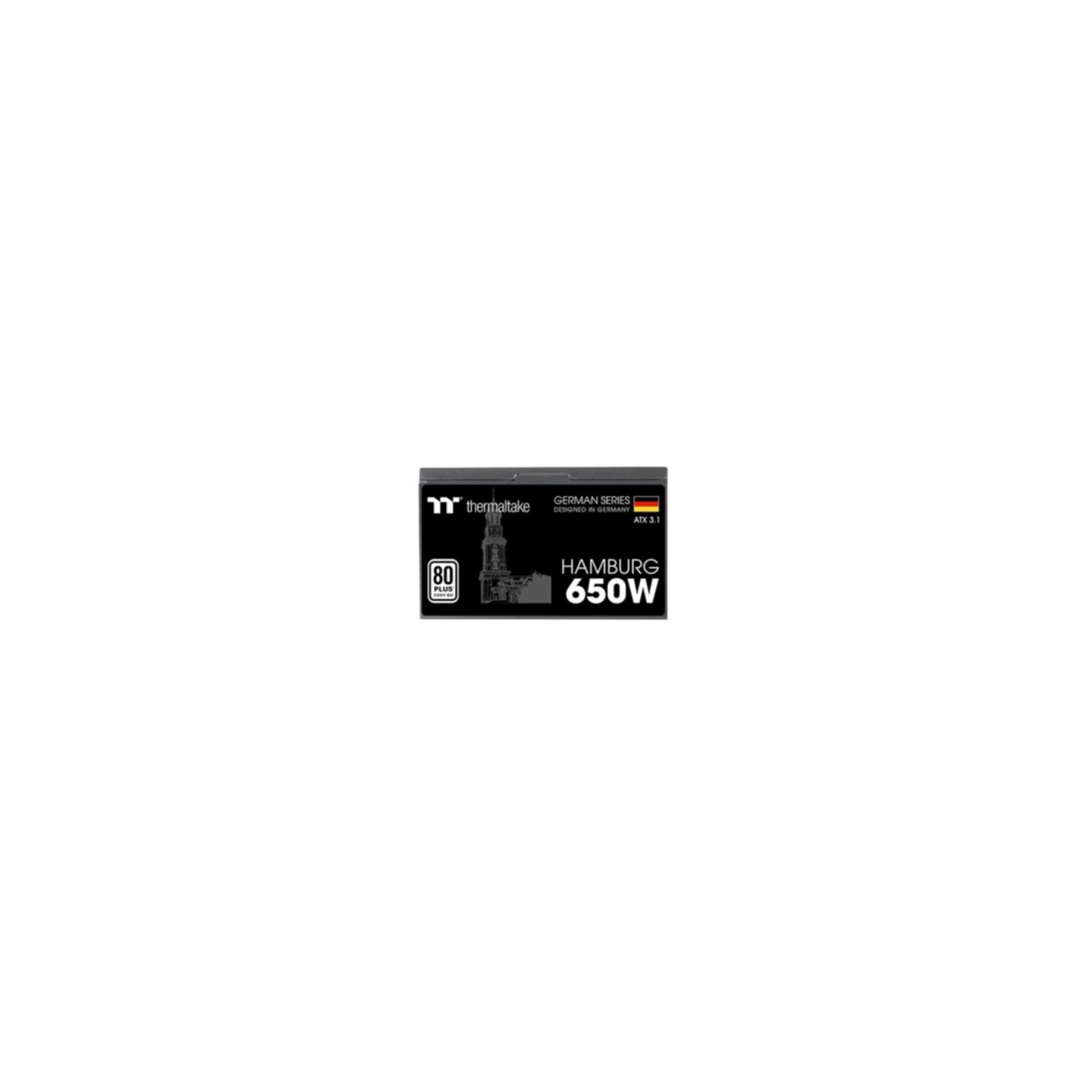

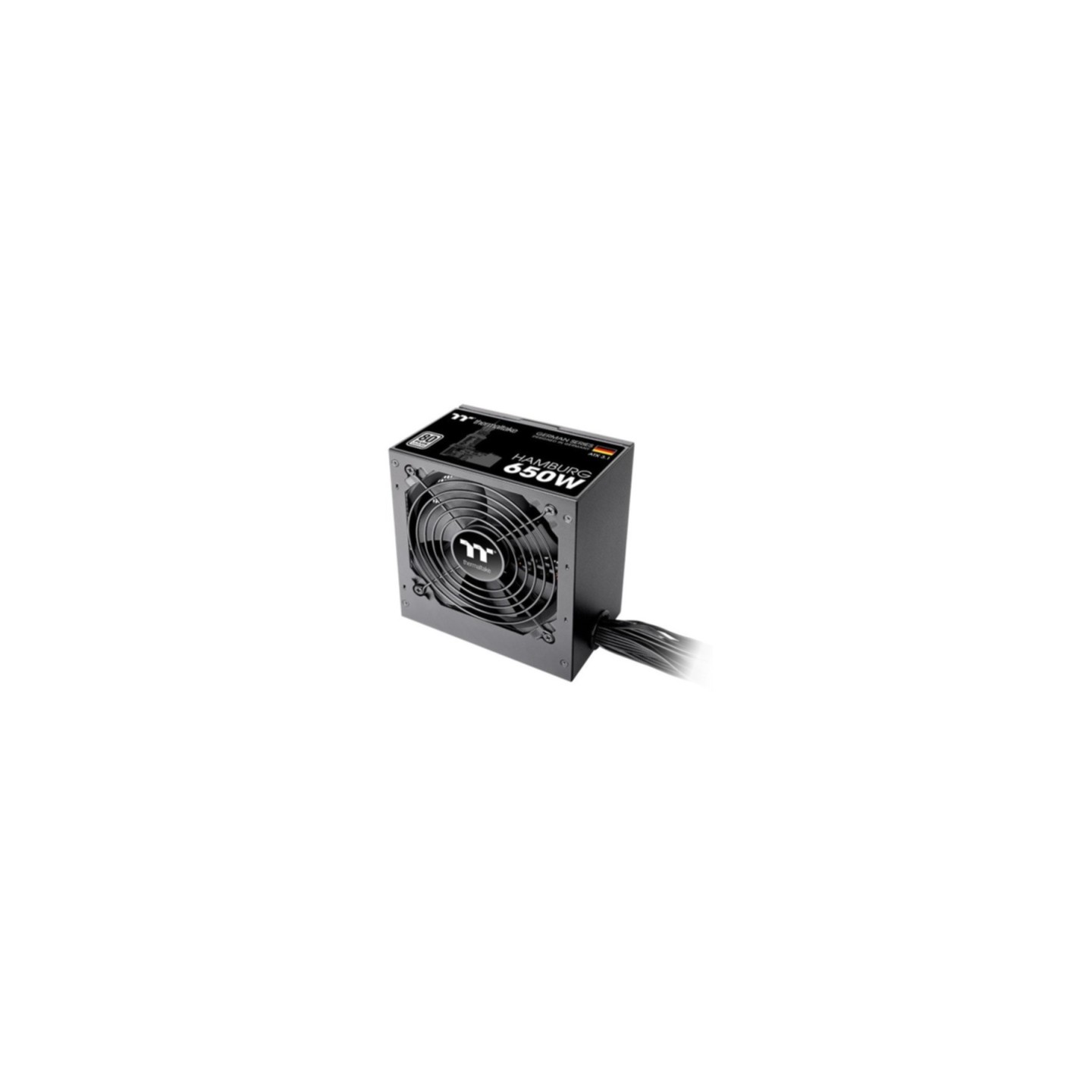

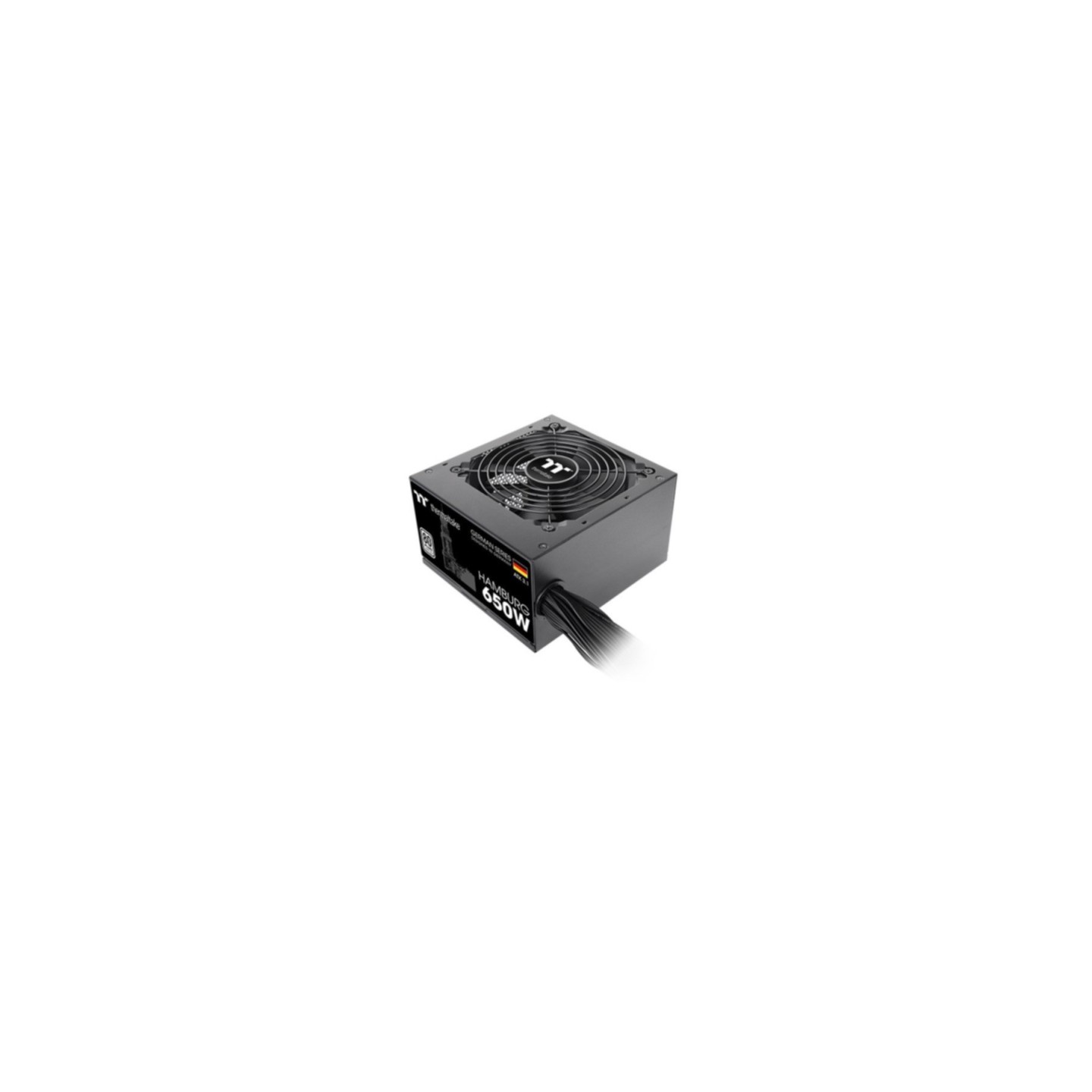

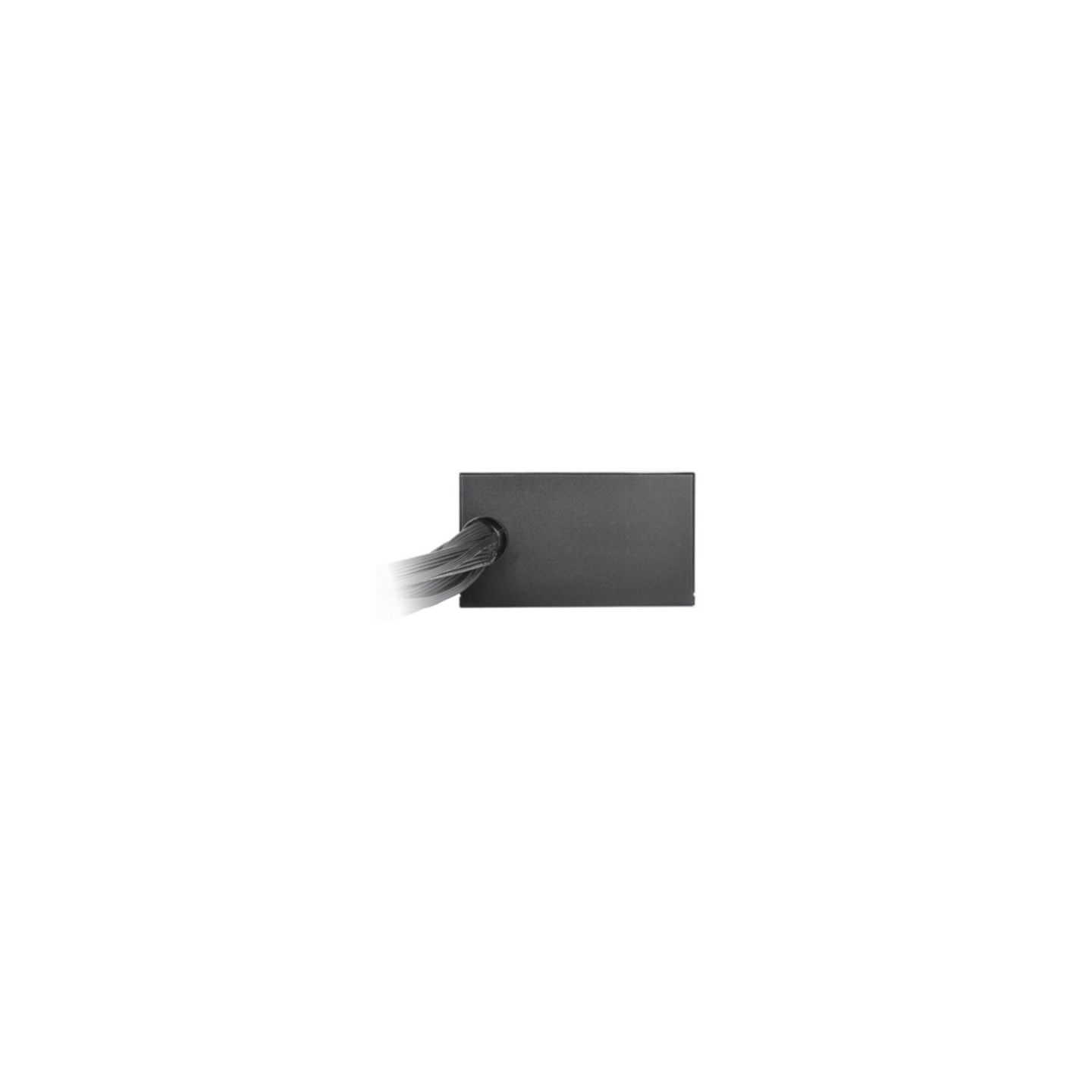

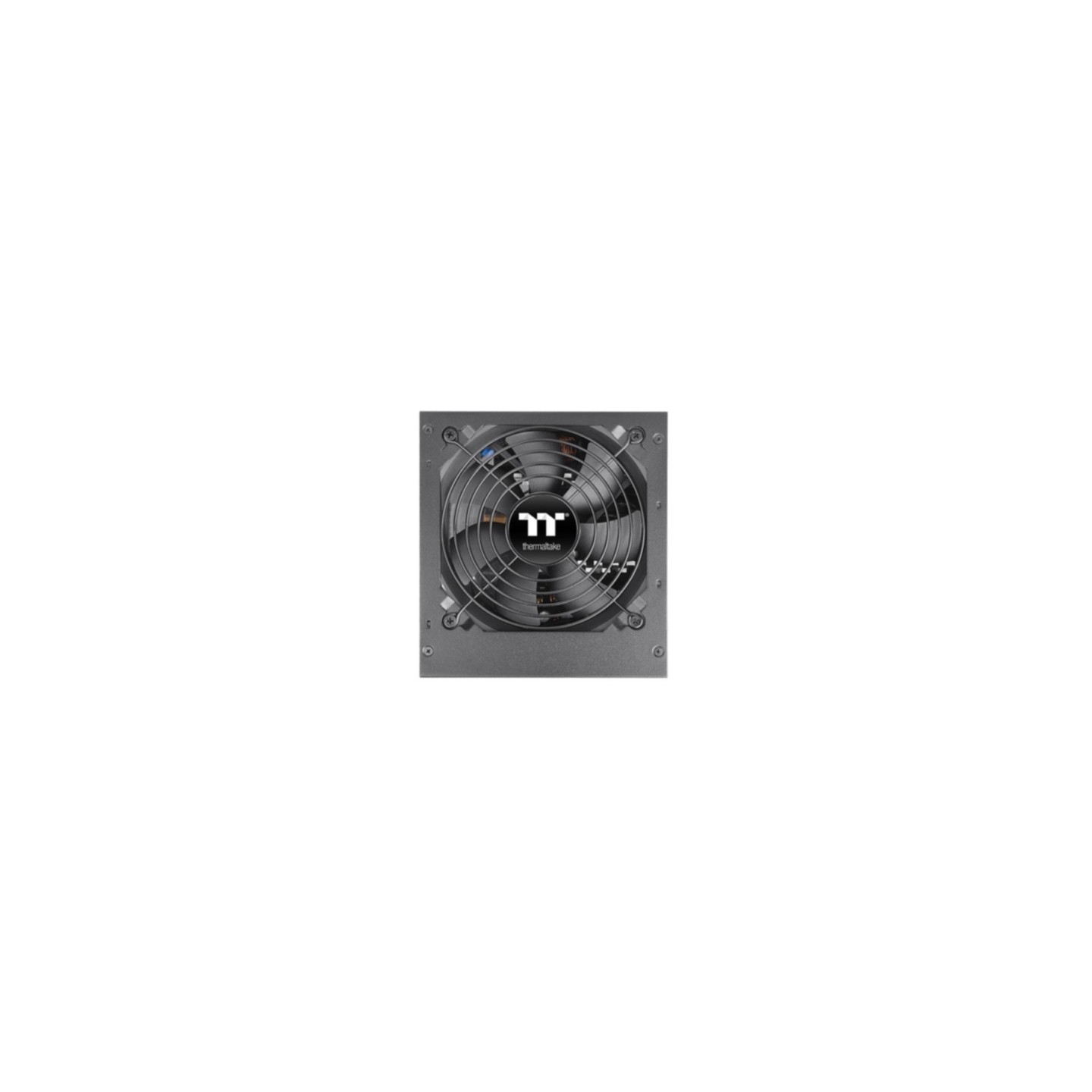

Thermaltake Hamburg 650W - ATX 3.1 Power Supply (4x 6+2 PCIe, 24-pin, 4x SATA) (Boxed)
650W ATX 3.1 PSU with 4x 6+2 PCIe, 24-pin ATX, 4x SATA, 2x CPU 4+4pin. OVP/OCP/UVP/OPP/OTP/SCP protections, 200-240VAC, 80 PLUS certified, ultra-quiet 120mm FDB fan. Ideal for mid/high-end gaming PCs.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 600 - 699 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 2x 8/6 pins |
| PSU (Power Supplies) - Length | Up to 140 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |
The Thermaltake Hamburg 650W from the German Series is a reliable non-modular ATX 3.1 power supply designed for mid-to-high-end gaming systems and workstations. Fully compliant with ATX 3.1 standards, it supports peak loads up to 200% and achieves 60% efficiency at light loads. Featuring a single powerful +12V rail delivering 54.2A (650W), it ensures stable power delivery via DC-to-DC technology for precise voltage regulation.
Equipped with an ultra-quiet 120mm Fluid Dynamic Bearing (FDB) fan for optimal cooling and low noise, this black PSU includes essential connectors: 24-pin ATX, 2x 4+4-pin EPS CPU, 4x 6+2-pin PCIe for GPUs, 4x SATA, and 4x Molex. Comprehensive protections (OVP/OCP/UVP/OPP/OTP/SCP) safeguard your components. Operating from 200-240VAC with active PFC, it boasts 100,000 hours MTBF and certifications like CB/CE/UKCA/RCM.
- ATX 3.1 Compliant with 200% peak load support
- Ultra-quiet 120mm FDB fan for silent operation
- 4x PCIe 6+2pin for modern GPUs
- Full protections: OVP/OCP/UVP/OPP/OTP/SCP
- 80 PLUS certified for efficiency
| Total power | 650 W |
| Peak power | 650 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 6 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 650 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V) | 54.2 A |
| Max output current (+5V) | 18 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 17 ms at 80% load |
| Power protection features | Over current, Over voltage, Under voltage, Over power, Over temperature, Short circuit |
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 4 |
| SATA power cable length | 500, 650, 800, 950 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Peripheral (Molex) power cable length | 500, 650, 800, 950 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU P4 connector (4-pin) | 2 (4+4 pin) |
| ATX Power connector (24-pin) | Yes |
| PCI Express connector | Yes |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Fan bearing type | Fluid Dynamic Bearing (FDB) |
| On/off switch | Yes |
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -40 - 55 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 10 - 95% |
| Compliance certificates | CB, CE, TUV, LVD, UKCA, RCM |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
