Seasonic FOCUS SGX-750 - 750W SFX PSU (ATX 2.4 Compatible) - 80 PLUS Gold, Fully-Modular
Compact 750W SFX power supply (125×100×63.5 mm) — 80 PLUS Gold, fully-modular, SFX-to-ATX bracket included, hybrid fan control for quiet cooling.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| PSU (Power Supplies) - Wattage | 750 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80+ Gold |
| PSU (Power Supplies) - ATX Standard | ATX 2.x |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - Length | less than or equal to140 mm |
FOCUS SGX (2021)

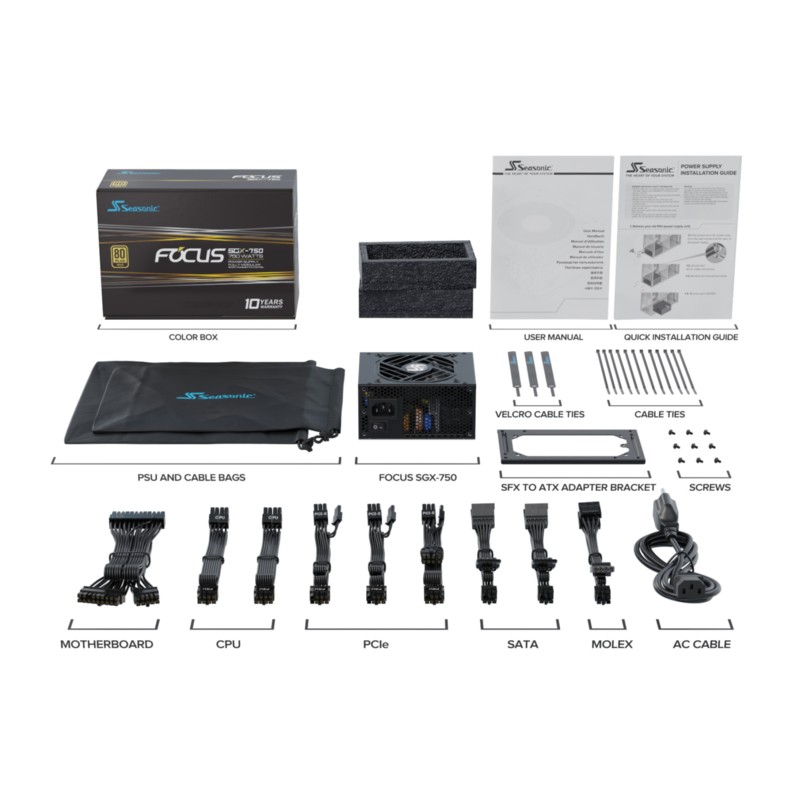

The new line of Seasonic's FOCUS SGX is versatile in its application and powerful with a small footprint. It is a standard SFX unit, measuring at 125 mm (L) x 100 mm (W) x 63.5 mm (H). The FOCUS SGX (2021) is shipped with an SFX to ATX adapter bracket in the box, which allows the power supply to be mounted not only in the SFX form factor chassis, but also a standard ATX chassis should the user prefers to reserve more space for airflow inside the PC case. The Seasonic hybrid fan control is always enabled to optimize the cooling according to necessity.
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum input current (@110V) | 10 A |
| Maximum input current (@220V) | 5 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 744 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 62 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 35 cm |
| Number of SATA power connectors | 6 |
| SATA power cable length | 600 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Peripheral (Molex) power cable length | 470, 700 mm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 40 cm |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | SFX |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 9.2 cm |
| Number of fans | 1 fan(s) |
| Operating temperature (T-T) | 0 - 50 °C |
| Width | 125 mm |
| Depth | 100 mm |
| Height | 63.5 mm |
| Package type | Box |
| Harmonized System (HS) code | 84733020 |
