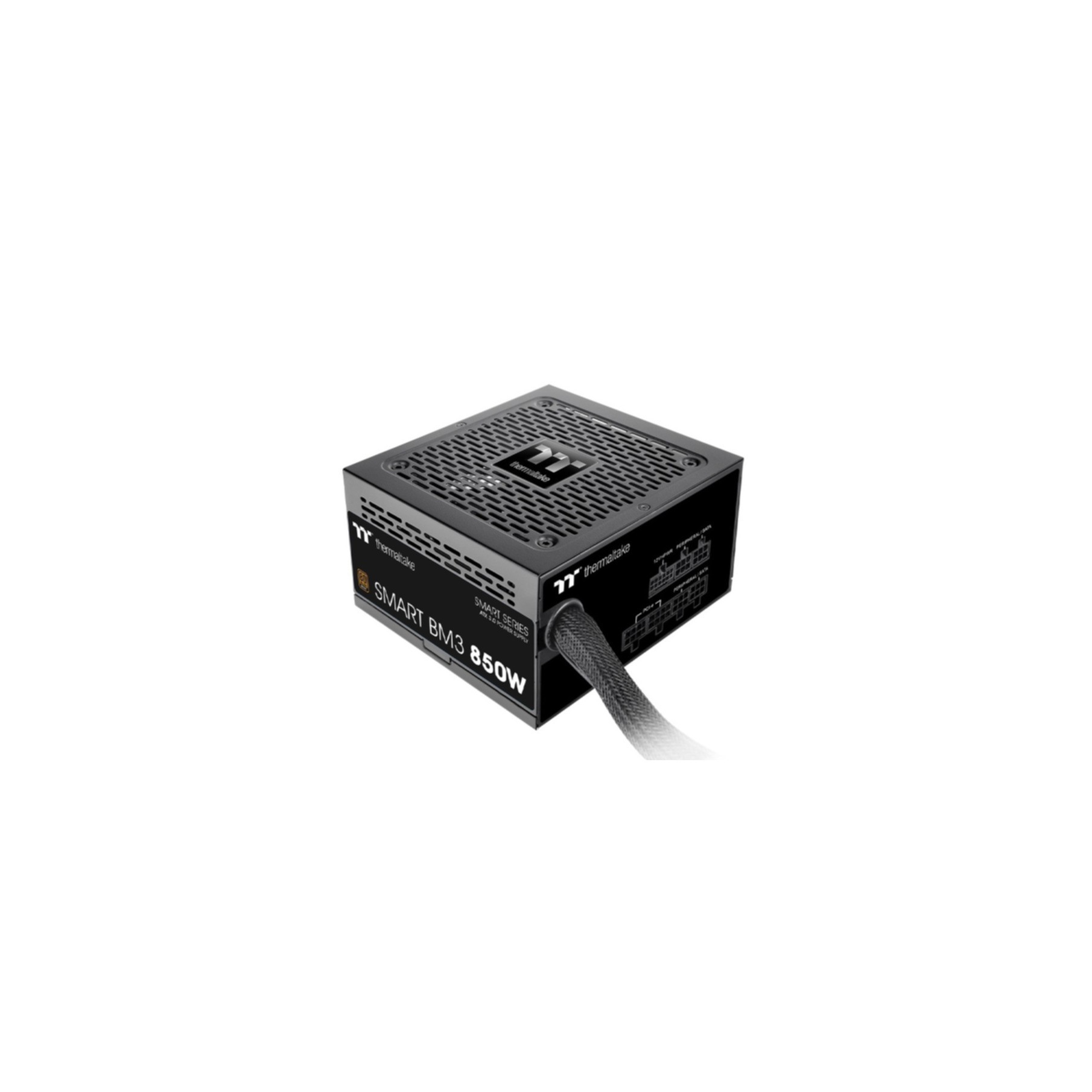

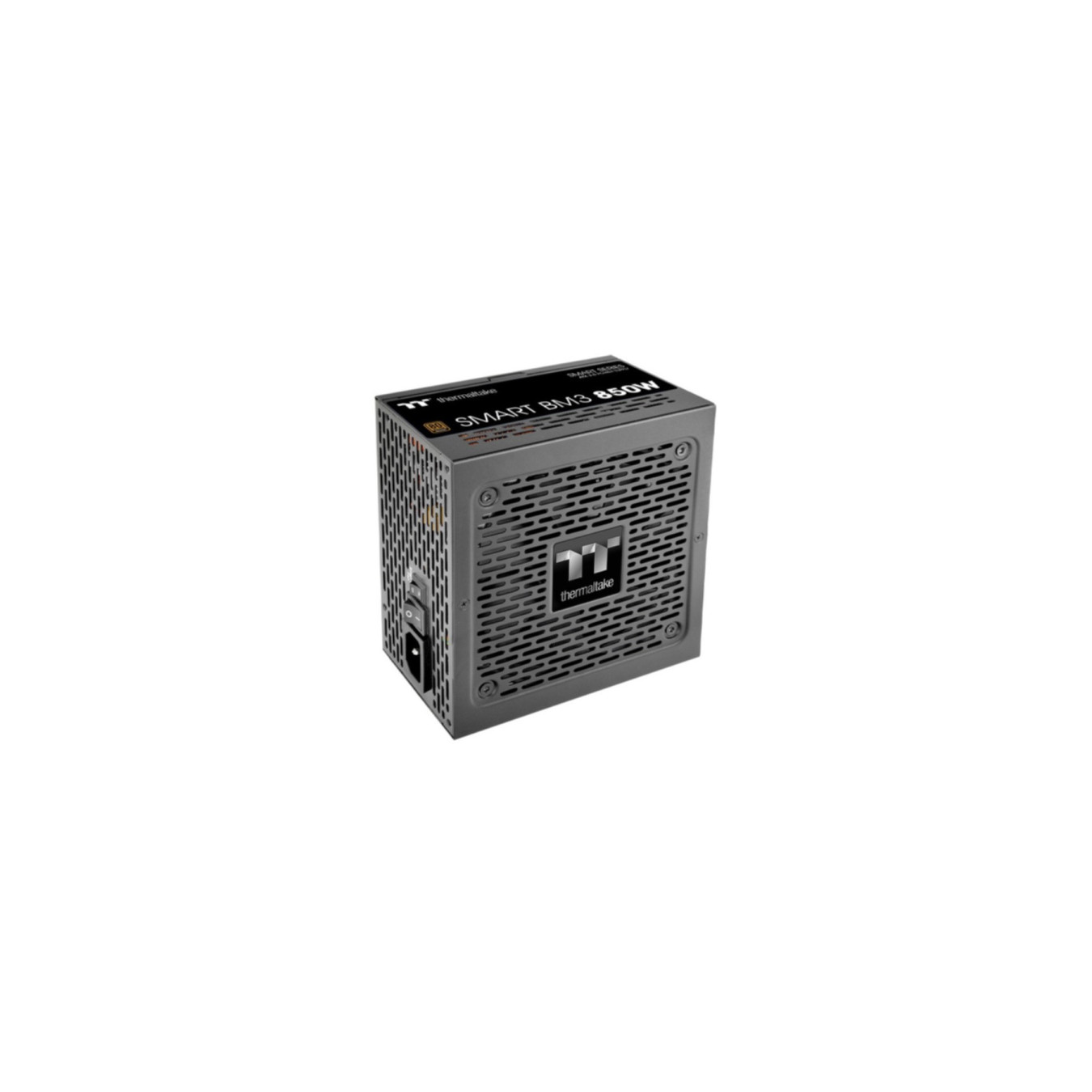

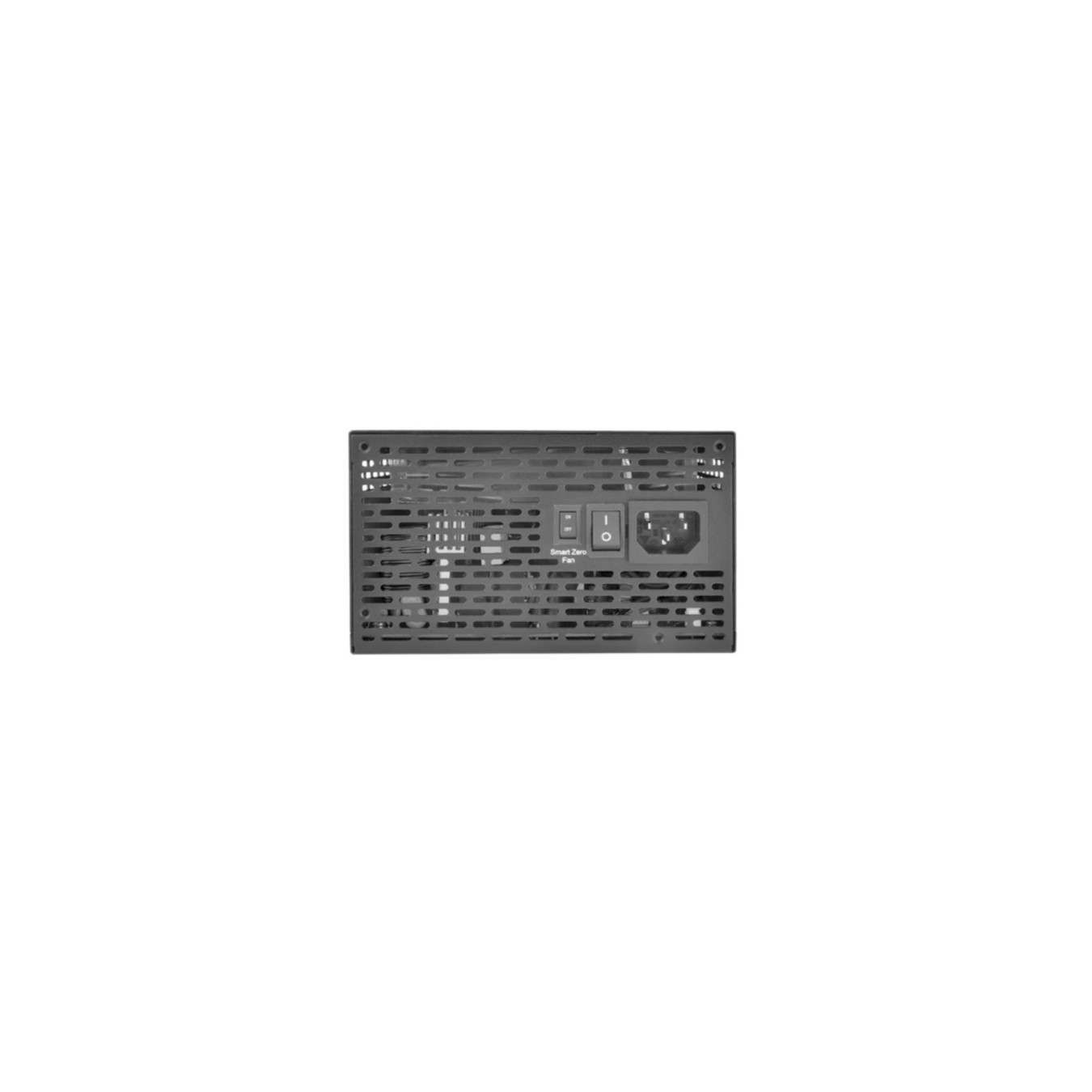

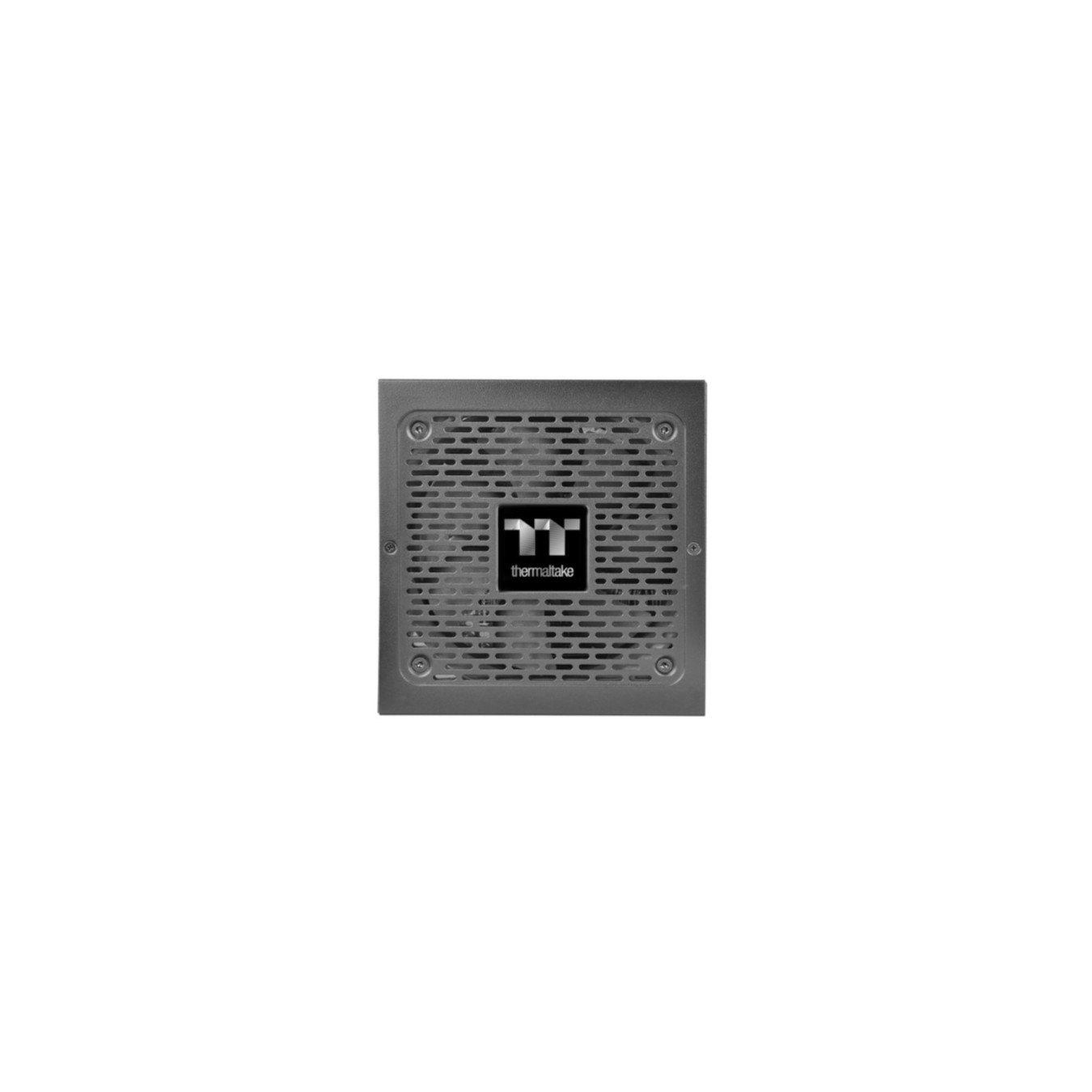

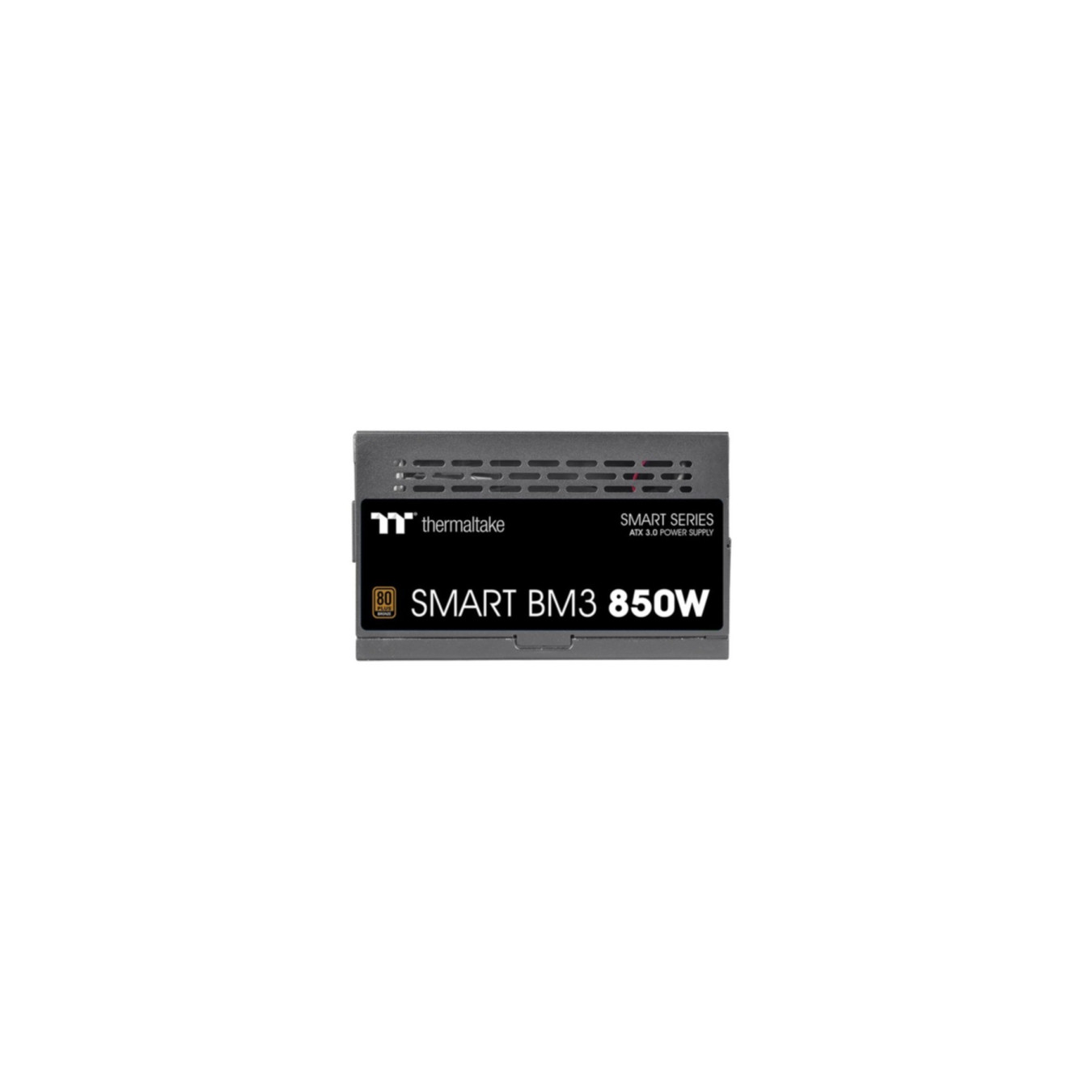

Thermaltake Smart BM3 850W PSU - PS-SPD-0850MNFABE-3 - Semi‑Modular, 80+ Bronze, ATX 3.0, Black

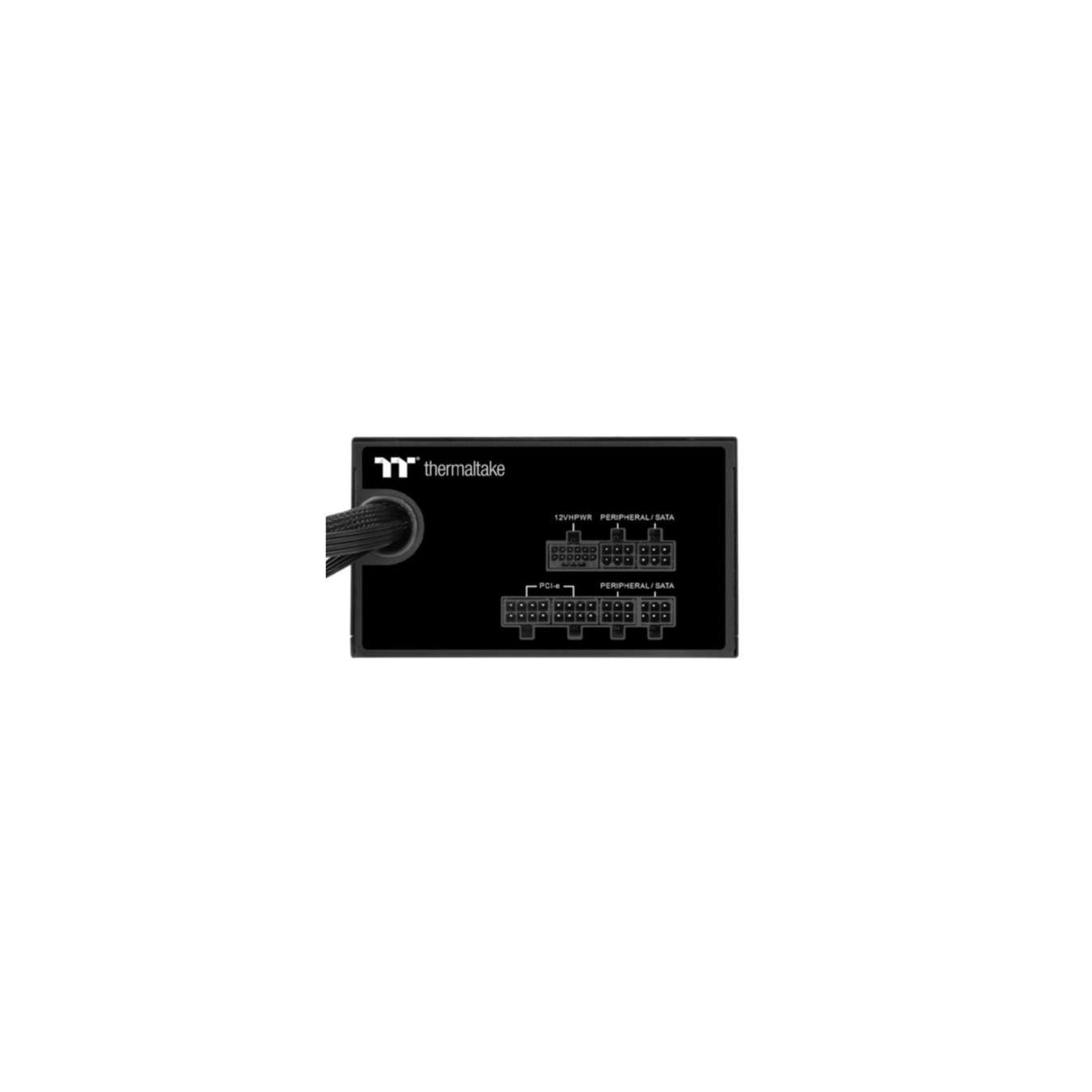

850W semi-modular ATX 3.0 power supply, 80 PLUS Bronze. Includes 1x 12VHPWR, four 6+2 PCIe, 4+4 CPU connector, 6 SATA, 120mm fan, black.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| PSU (Power Supplies) - Wattage | 850 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80+ Bronze |
| PSU (Power Supplies) - ATX Standard | ATX 3.0 |
| PSU (Power Supplies) - Modularity | Semi-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 12VHPWR (16-pin) |
| PSU (Power Supplies) - EPS CPU Connectors | 1x8-pin |
| PSU (Power Supplies) - Fan Size | 120 mm |
| PSU (Power Supplies) - Length | less than or equal to140 mm |
| Total power | 850 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 15 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 850 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V) | 70.85 A |
| Max output current (+5V) | 18 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 17 ms |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 6 |
| SATA power cable length | 150, 500 mm |
| Peripheral (Molex) power connectors (4-pin) | 7 |
| Peripheral (Molex) power cable length | 150, 500 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (12+4 pin) cable length | 600 mm |
| CPU power connector (4+4 pin) | Yes |
| Cabling type | Semi-Modular |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.0 |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Illumination | No |
| On/off switch | Yes |
| Operating temperature (T-T) | 5 - 45 °C |
| Storage temperature (T-T) | -40 - 55 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 10 - 95% |
| Certification | CE/UKCA/LVD/UKCA/FCC/ICES/TUV/CB/cTUVus/BSMI/CCC |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
