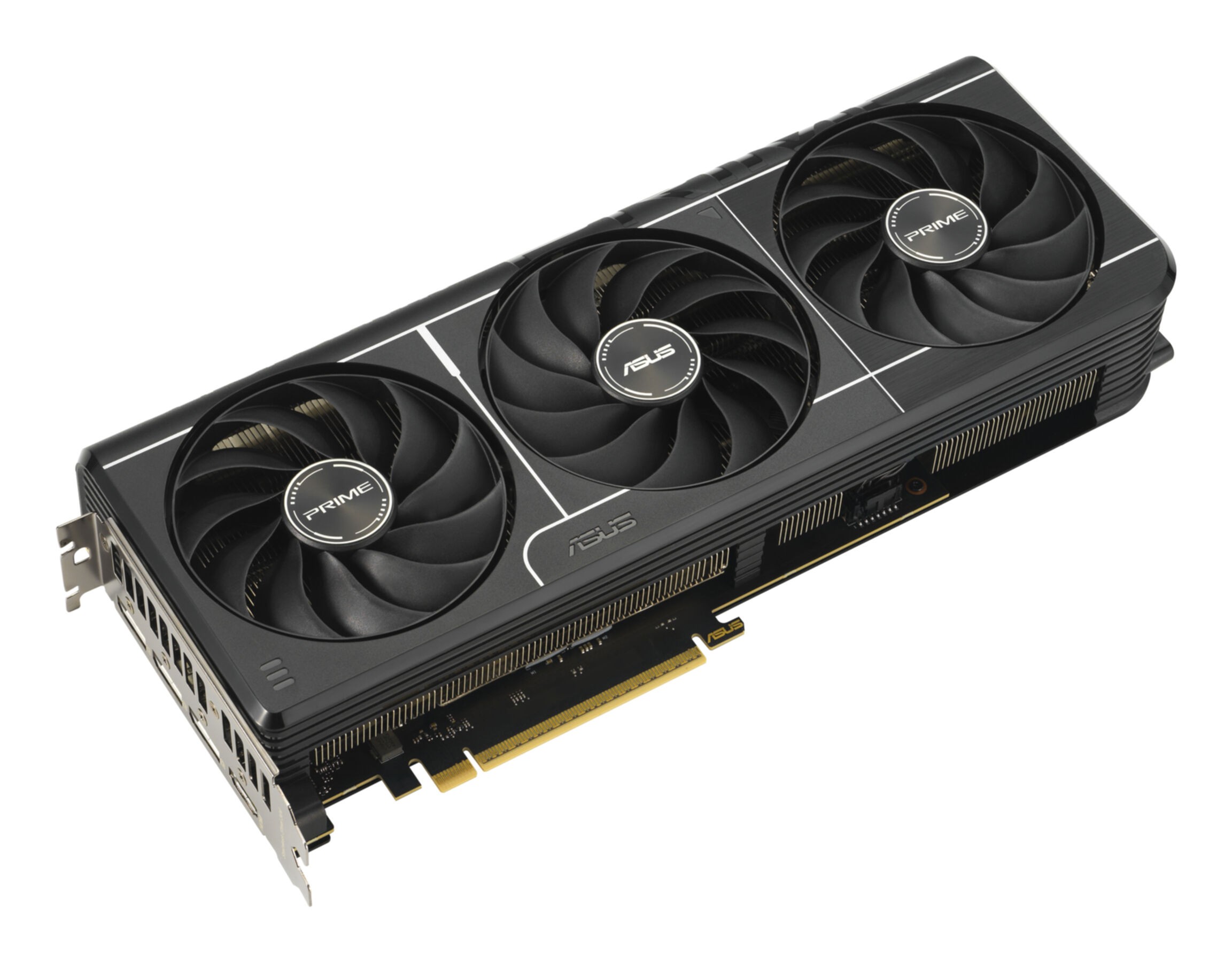

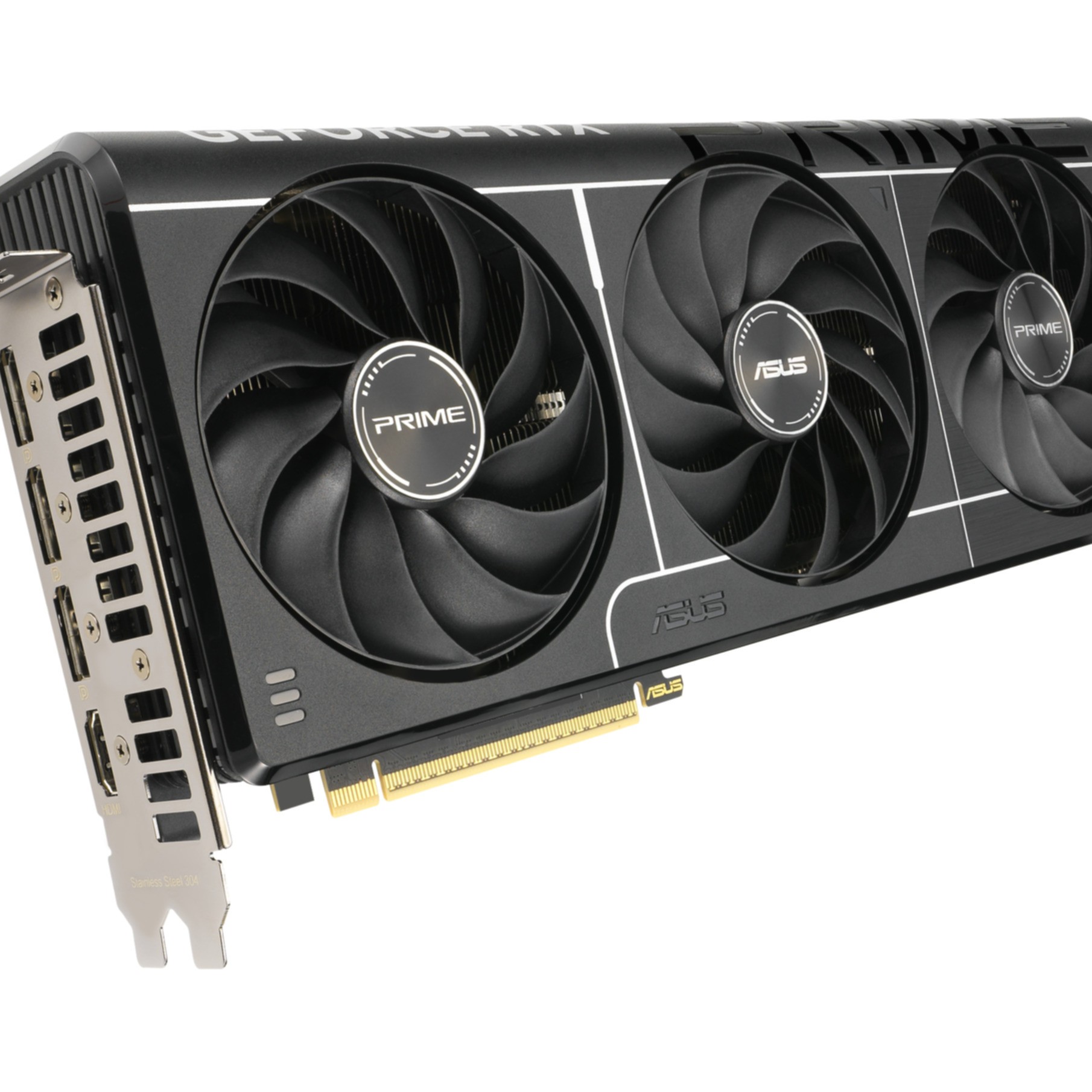

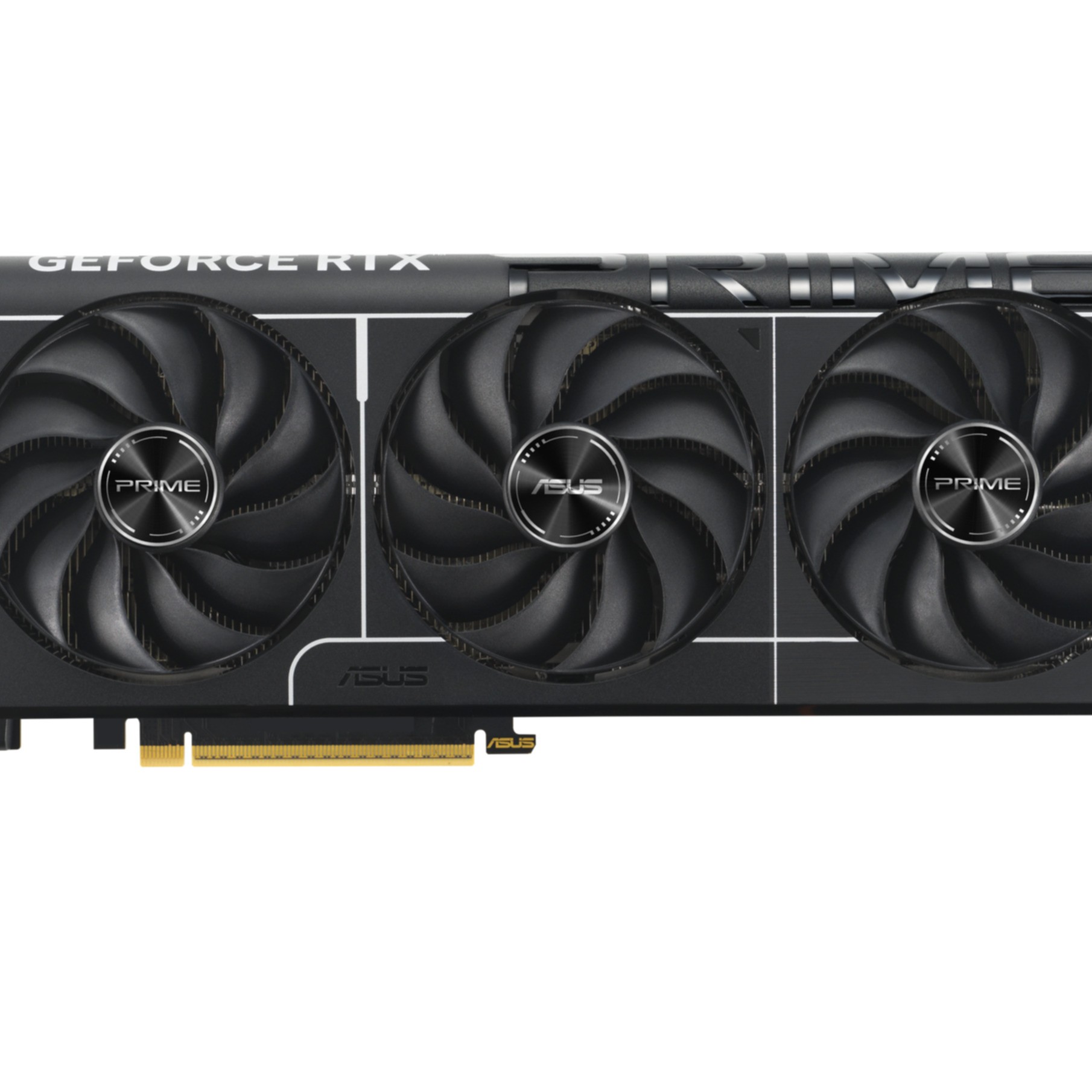

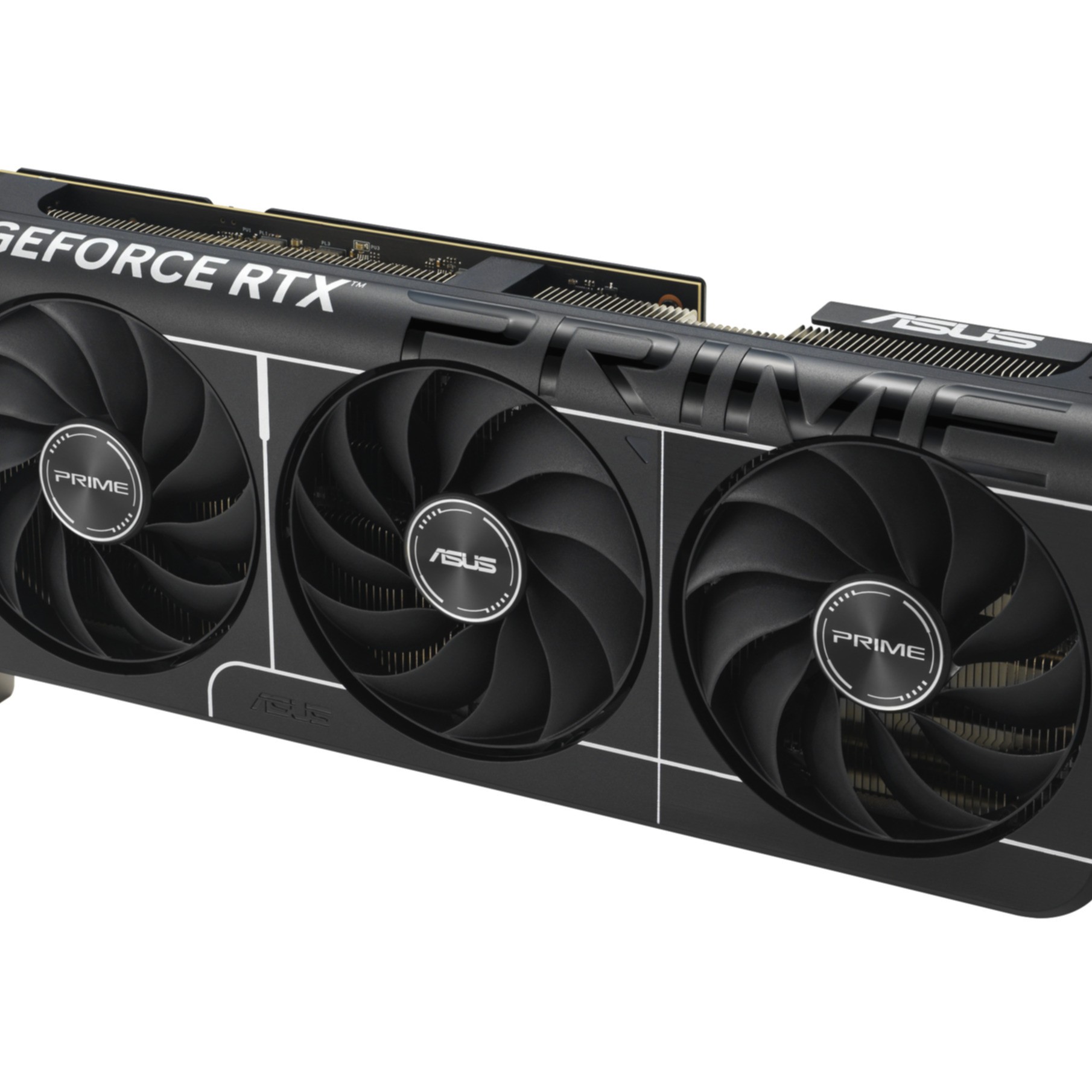

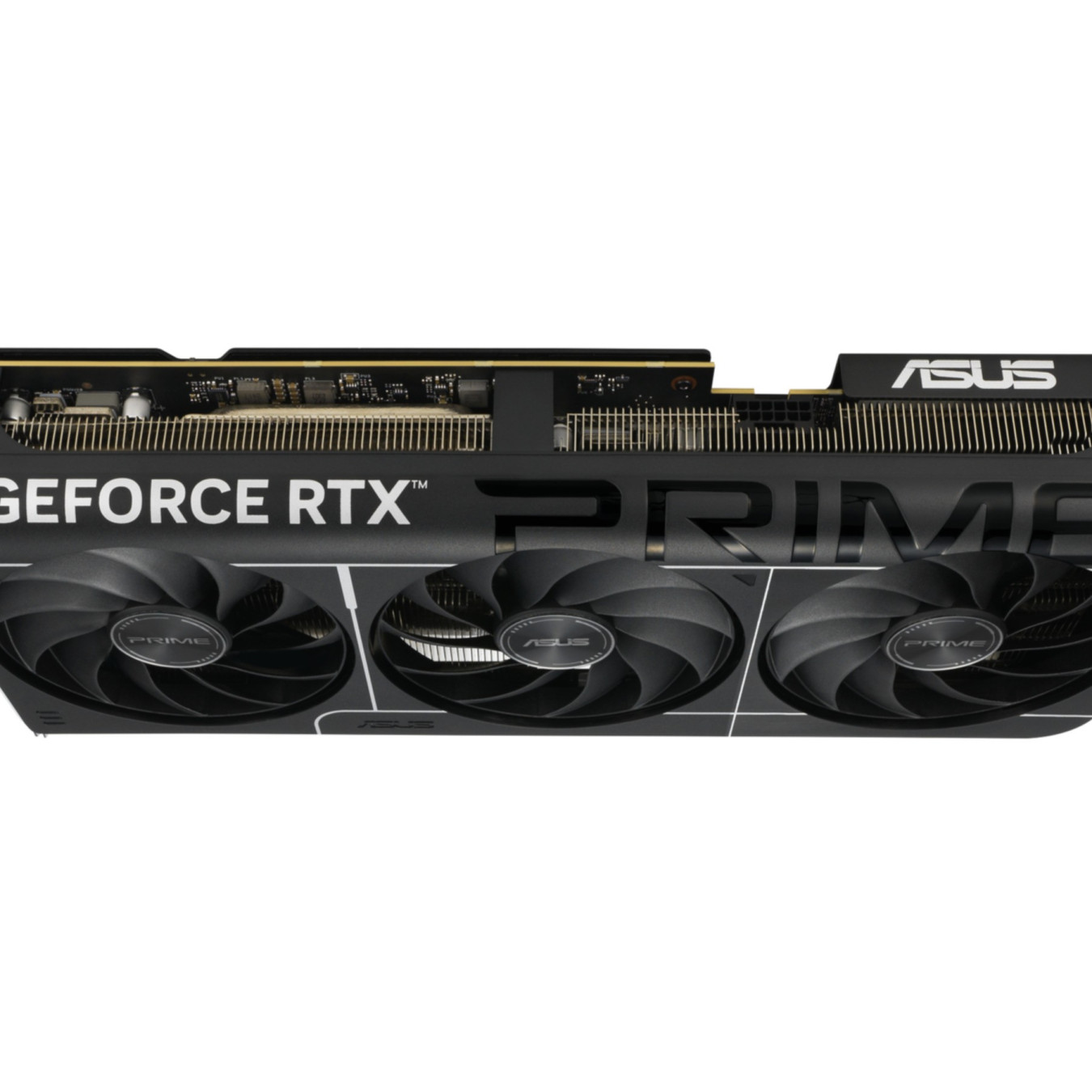

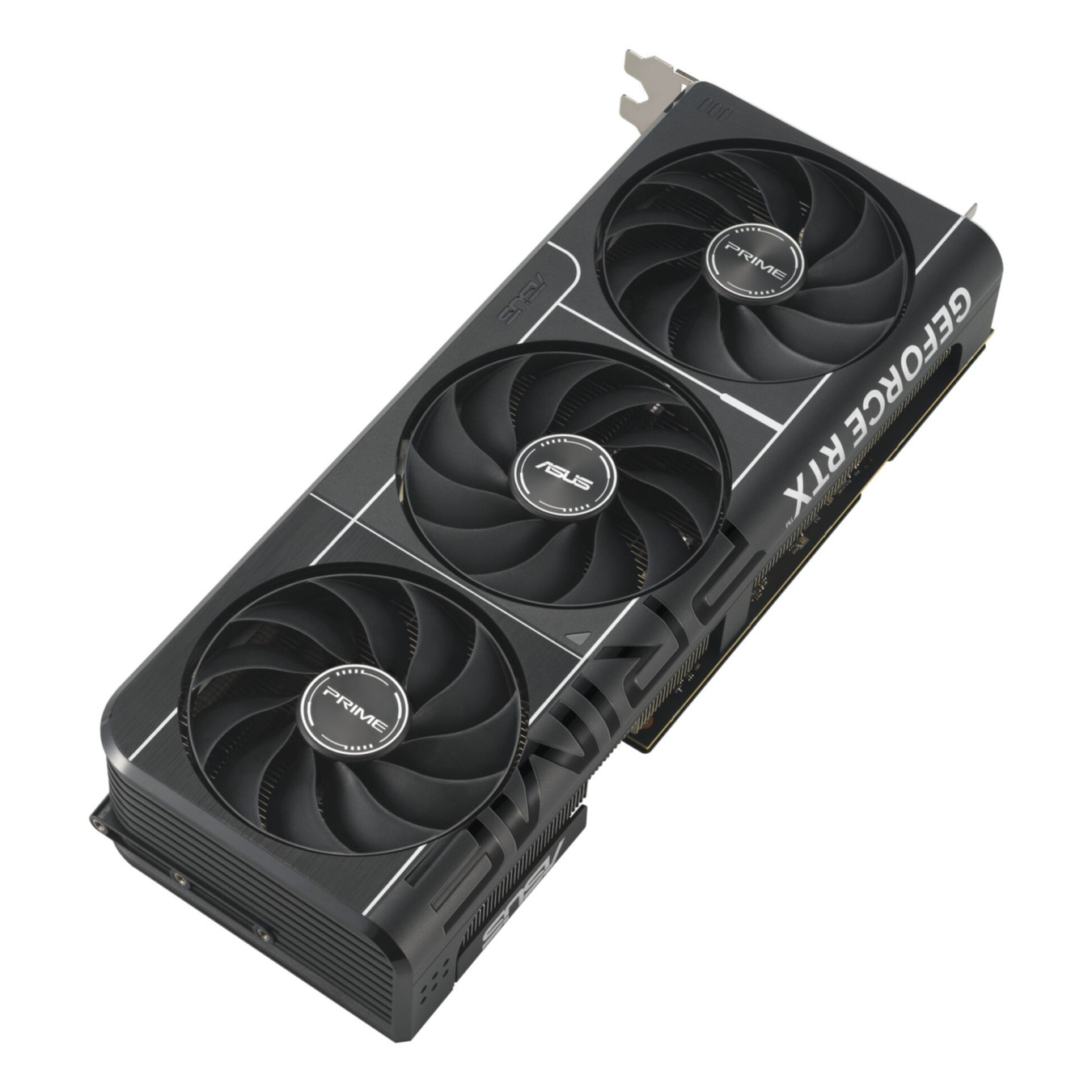

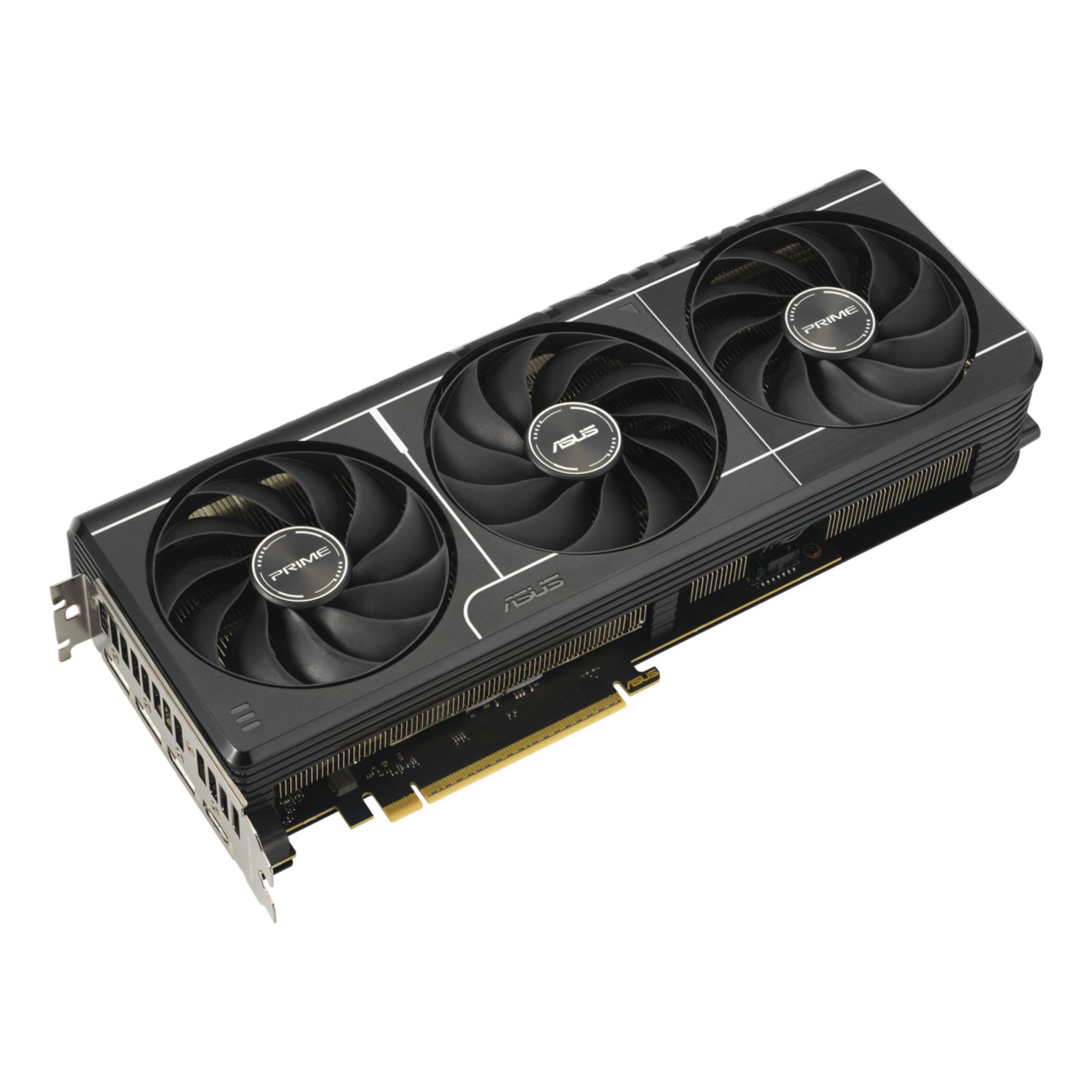

ASUS PRIME OC GeForce RTX 5070 Ti - 16GB GDDR7, Black, PCIe 5.0, HDMI 2.1b
ASUS PRIME OC GeForce RTX 5070 Ti — 16GB GDDR7, 8960 CUDA cores, PCIe 5.0, 3× DisplayPort 2.1b, 1× HDMI 2.1b, 1× 16-pin power, 750W PSU recommended.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| GPU (Graphics Cards) - VRAM Capacity | 16 GB |
|---|---|
| GPU (Graphics Cards) - Power Connector | 12VHPWR (16-pin) |
| GPU (Graphics Cards) - Card Length | 281-320 mm |
| GPU (Graphics Cards) - Slot Thickness | 2.5-slot |
| GPU (Graphics Cards) - Cooler Type | Open-air (axial) |
Primed for Power
Experience Primal performance with the Prime GeForce RTX 5070 Ti, an SFF-Ready Enthusiast GeForce Card featuring a 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme airflow design for supreme cooling.
Build Small. Play Big.
You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.
Cooling
2.5-slot Design
The Prime RTX 5070 Ti features a 2.5 slot design with a carefully arranged layout for the shroud, heatsink and heat pipes to let the three Axial-tech fans leverage chassis side-panel ventilation and deliver optimal thermal performance.
Axial-tech Upgrades
Three tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure for lower temperatures, less noise and higher performance.
0dB Technology
All three fans come to a standstill when GPU temperatures are below 50 Celsius, letting you play less demanding games or perform light tasks in relative silence. Fans start up again when temperatures are over 55 C, establishing a speed curve that balances performance and acoustics for work or play.
Dual Ball Fan Bearings
Different bearing types have unique pros and cons. Dual-ball bearings excel at durability and can last up to twice as long as sleeve bearing designs.

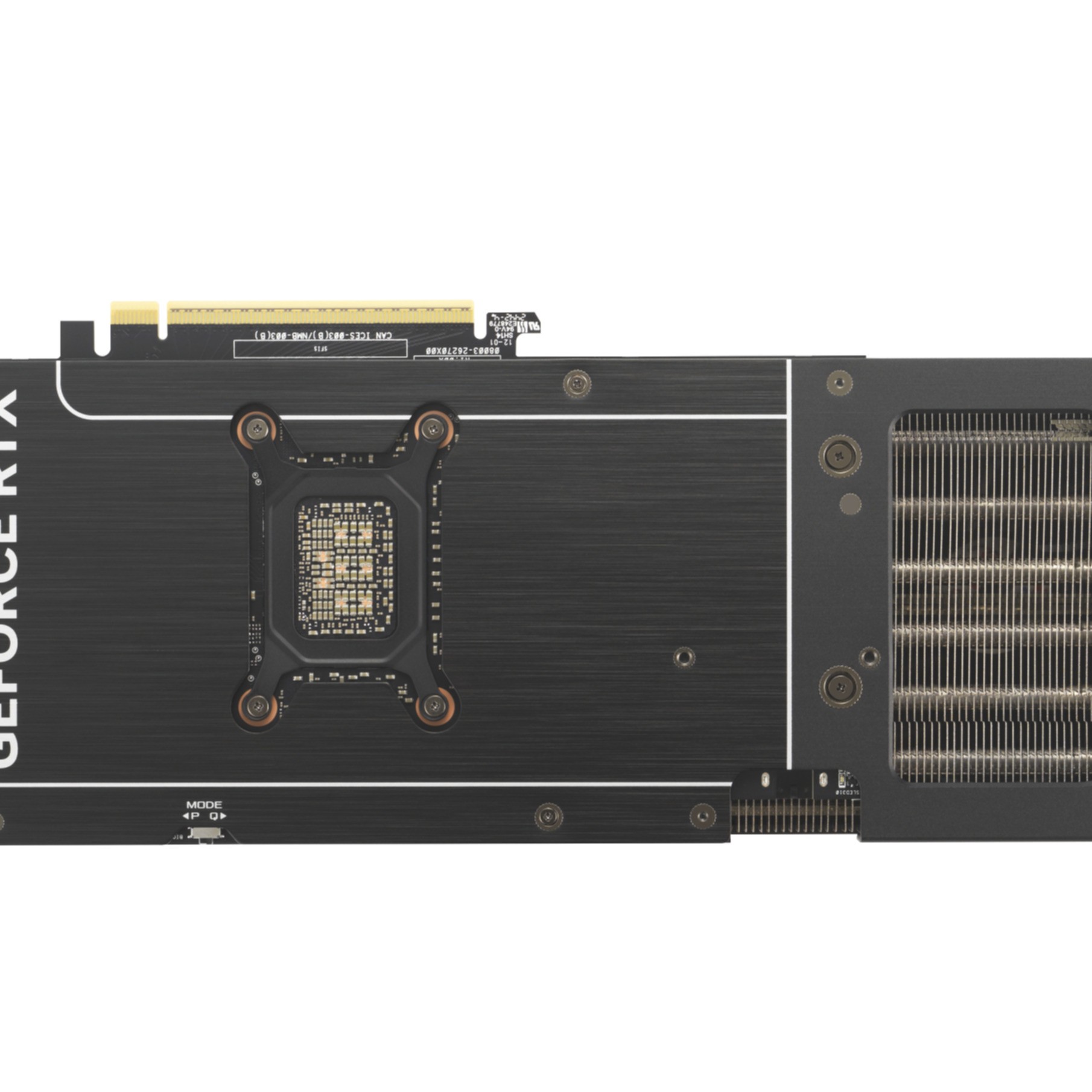

Vented Backplate
Large backplate vents significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.
| CUDA | Yes |
| CUDA cores | 8960 |
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5070 Ti |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 256 bit |
| Data transfer rate | 28 Gbit/s |
| Interface type | PCI Express 5.0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| DisplayPort version | 2.1b |
| TV tuner integrated | No |
| OpenGL version | 4.6 |
| HDCP | Yes |
| HDCP version | 2.3 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| Cooling type | Active |
| Cooling technology | ASUS Axial-tech |
| Number of fans | 3 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 2.5 |
| SFF ready | Yes |
| Product colour | Black |
| Minimum system power supply | 750 W |
| Supplementary power connectors | 1x 16-pin |
| Weight | 1.17 kg |
| Length | 306 mm |
| Depth | 50 mm |
| Height | 126 mm |
| Package width | 405 mm |
| Package depth | 233 mm |
| Package height | 88.5 mm |
| Package weight | 1.82 kg |
| Package type | Box |
| Manual | Yes |
